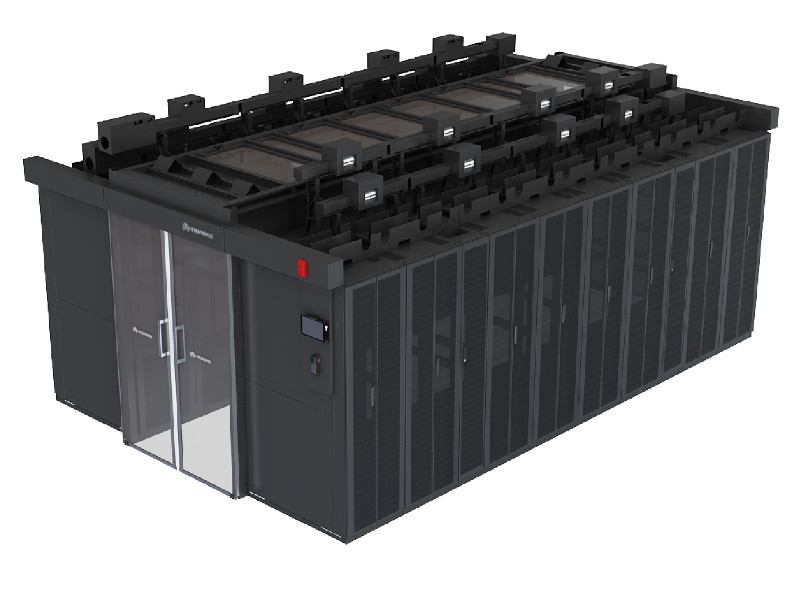

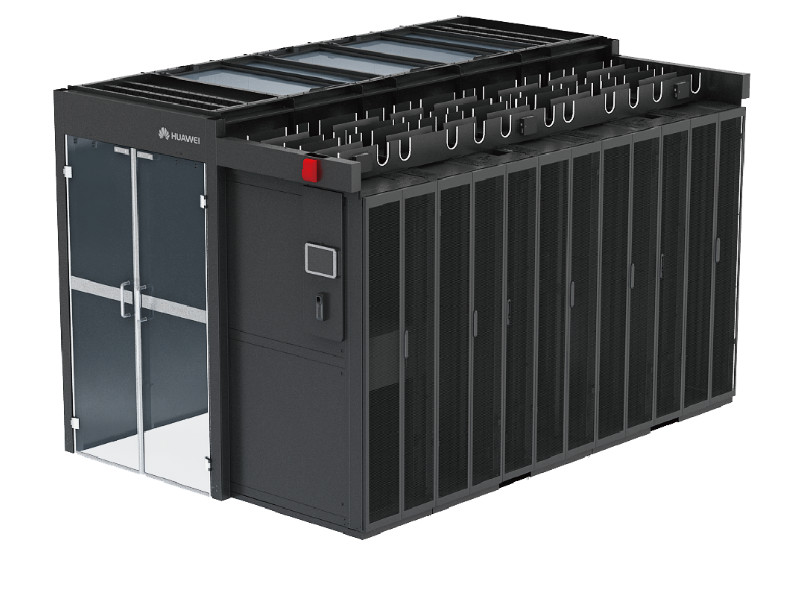

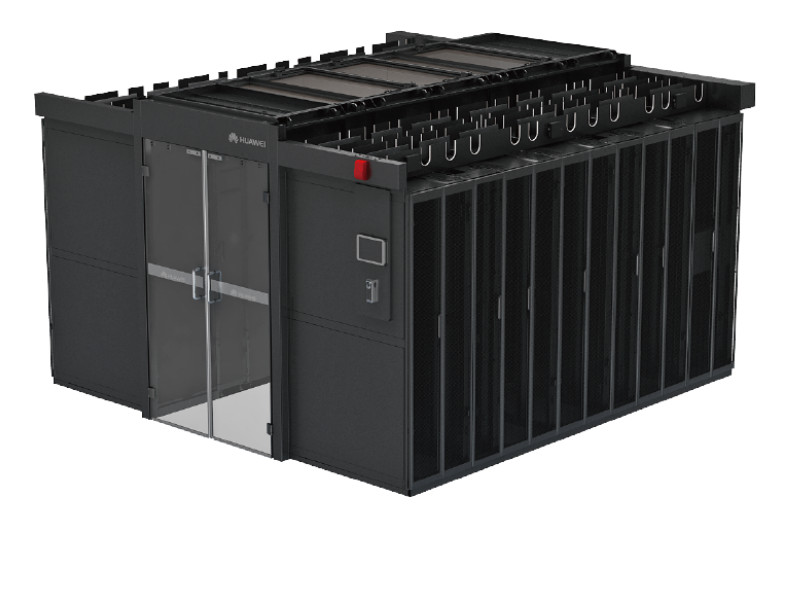

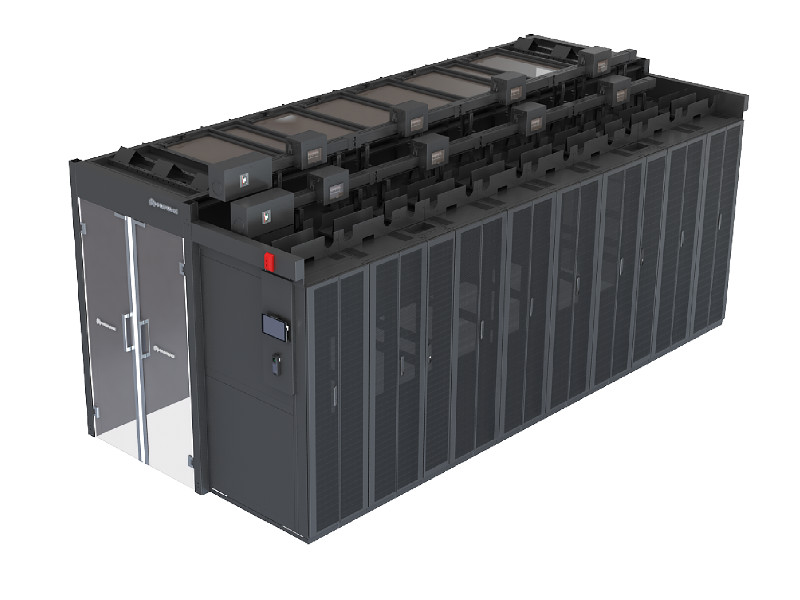

FusionModule5000 Series Modular Data Center

Huawei FusionModule5000 smart modular data center is a next-generation, large-scale data center facility solution, professionally designed for application scenarios with chilled-water cooling.

FusionModule5000 is highly integrated with IT cabinets, power supply and distribution, cabling and management systems, and cooling. It supports flexible deployment with single or dual row, cold or hot aisle containment. The maximum power per IT rack can be up to 21 kW and the maximum IT power per module can be up to 310 kW, which meets the requirements of large-scale data centers for industries like ISP, government, education, healthcare, finance, telecom, etc.

Features

The efficient modular design of Huawei’s FusionModule5000 series modular data center enables quick deployment with high scalability

  • Reliable: Single/dual power supply; Tier IV supportive, precise monitoring of power branch temperature prevents fire caused by loose contact and overheat; water leakage monitoring prevents flooding; ring network of monitoring system; warning of expired, aging, and damaged components; optional aisle/cabinet-level door access keeps the data center safe
  • Efficient: Closely coupled cooling efficiently avoids partial hot spot, supports high-density deployment; hot/cold aisle containment for isolation of hot and cold air; local/remote monitoring
  • Simple: Standardized devices, modular architecture, on-demand deployment, easy installation; optional Busway for power distribution

Specifications

Specifications

Item FusionModule5000
Dimensions
    1,200 single-row cold/hot aisle containment (L x W x H (IT cabinets)):
     L x 2,400 mm x 2,000 mm, L ≤ 15m
     L x 2,300 mm x 2,000 mm, L ≤ 15m
     L x 2,400 mm x 2,200 mm, L ≤ 15m
     Dual-row cold/hot aisle containment (L x W x H (IT cabinets)):
     L x 3,600 mm x 2,000 mm, L ≤ 15m
     L x 3,400 mm x 2,000 mm, L ≤ 15m
     L x 3,600 mm x 2,200 mm, L ≤ 15m
Number of IT Cabinets in a Single Module Single-row: 2 to 24
Dual-row: 6 to 48
Input Power
    380V/400V/415V AC, 50 Hz/60 Hz, 3Ph+N+PE 380V, 400V, or 415V (three-phase, 50 Hz or 60 Hz)
IT Power Consumption
      UPS (in-row): 112 kW
    UPS (out-row): 310 kW
Power Density of a Single Cabinet 21 kW/rack
Reliability Tier II or Tier III (up to Tier IV)
Altitude 0m to 4,000m (>1,000m, deration)
Installation Method Installed on concrete or base support
