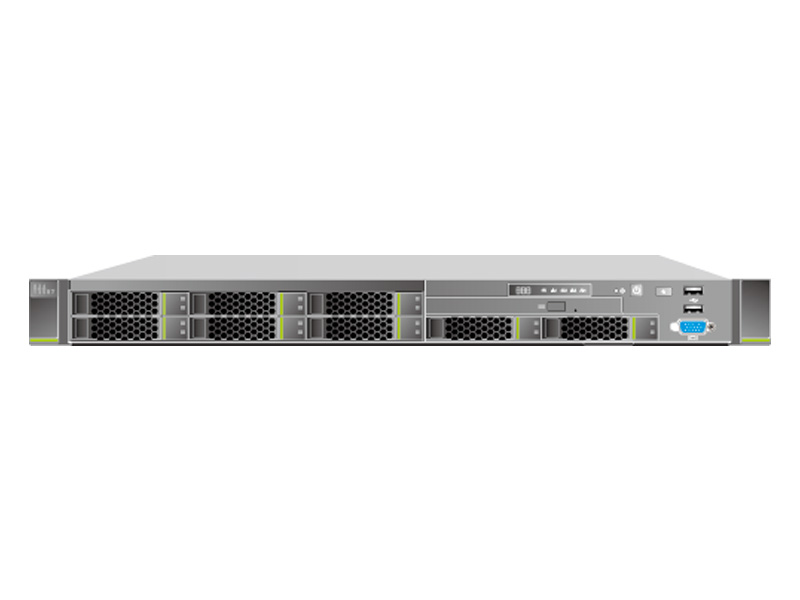

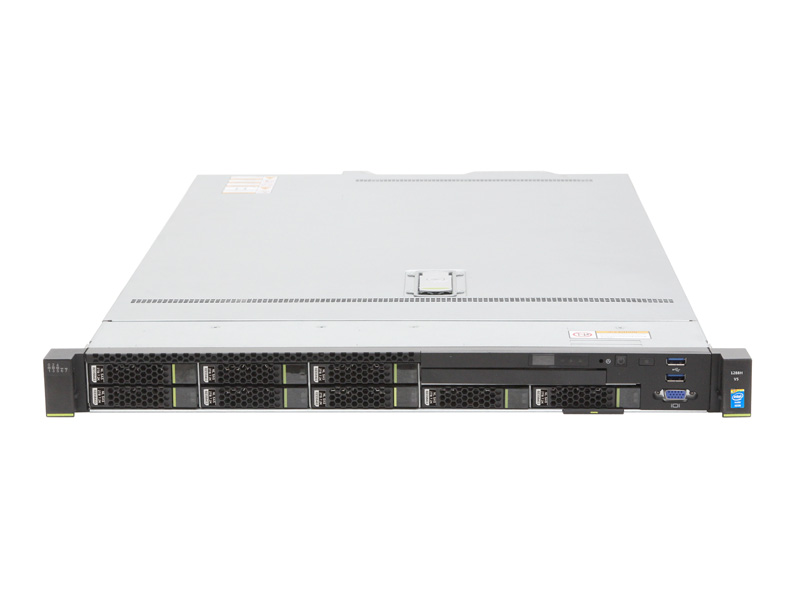

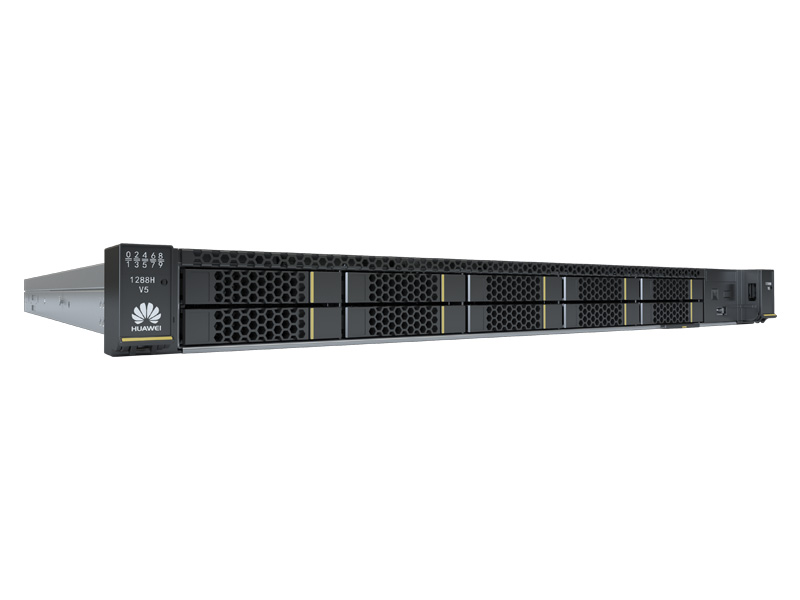

FusionServer 1288H V5 Rack Server
The Huawei FusionServer 1288H V5 is a 1U, 2-socket rack server. It is ideal for high-density deployment to process workloads generated by cloud computing virtualization, High-Performance Computing (HPC), and Big Data processing. It delivers superior performance and excellent scalability and, at the same time, improves space utilization in data centers, driving down the overall expenditure.
Huawei server with Intel® Xeon® processor.
Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and/or other countries.
High computing density, smart power savings, and ease of use
- Superior Performance, Ultra-high Density
Powered by Intel® Xeon® Scalable Processors, supports 24 DDR4 DIMMs with a memory capacity of up to 3 TB (128 GB per DIMM), and supports four 3.5-inch, eight 2.5-inch (configurable with 4 NVMe SSDs), or ten 2.5-inch (configurable with 8 NVMe SSDs) local hard drives - Smart Power Savings and Better Energy Efficiency
Supports Dynamic Energy Management Technology (DEMT) for smart power savings, such as automatic power-on/-off for multi-phase power supplies, fan speed tuning based on the Proportional, Integral, Derivative (PID) algorithm, active-standby power supplies, and DC and High-Voltage DC (HVDC) technologies, improving power efficiency - High Manageability, Integration, and Openness
Supports smart O&M across the entire lifecycle and Fault Diagnosis & Management (FDM) for in-depth fault diagnosis with accuracy of up to 93% for fault diagnosis; streamlines networking and configuration with LOM; provides standardized and open interfaces, facilitating seamless integration with third-party management software
Specifications
| Form Factor | 1U, 2-socket rack server |
| Processors | 1 or 2 full-series Intel® Xeon® Scalable Processors of up to 205W |
| Memory | 24 DDR4 DIMM slots, up to 2,666 MT/s |
| Internal Storage | Three types of hard drive configurations supported:
10 x 2.5-inch hard drives (6 to 8 NVMe SSDs and 2 to 4 SAS/SATA HDDs, total number of drives ≤ 10) (see note 1), which can be: −0 to 6 NVMe SSDs + 0 to 4 SAS/SATA HDDs −0 to 7 NVMe SSDs + 0 to 3 SAS/SATA HDDs −0 to 8 NVMe SSDs + 0 to 2 SAS/SATA HDDs 8 x 2.5-inch SAS/SATA HDDs or SSDs (the NVMe model supports 4 NVMe SSDs) (see note 2) 4 x 3.5-inch SAS/SATA HDDs or SSDs Flash storage: 2 M.2 SSDs (see note 3) |
| RAID Support | RAID 0, 1, 10, 5, 50, 6, or 60
Configured with a supercapacitor for power-off protection for the cache (optional) RAID state transition, RAID configuration memory, self-diagnosis, and web-based remote configuration |
| Network Ports | LOM NIC: 2 x 10 GE and 2 GE ports
FlexibleLOM: 2 GE or 4 GE, 2 x 10 GE, or 1 or 2 x 56 Gbit/s Fourteen Data Rate (FDR) InfiniBand (IB) ports |
| PCIe Expansion | Up to 5 Peripheral Component Interconnect express (PCIe) slots:
Two x16 slots for two half-height half-length PCIe 3.0 x16 standard cards One x8 slot for a full-height half-length PCIe 3.0 x16 standard card One expansion slot for a RAID controller card One expansion slot for a FlexibleLOM card |
| Fan Modules | 7 hot-swappable counter-rotating fan modules with optional N+1 redundancy |
| Power Supply Units | 2 hot-swappable PSUs with support for 1+1 redundancy and the following configuration options (see note 4):
550W AC Platinum PSUs 900W AC Platinum/Titanium PSUs 1,500W AC Platinum PSUs 1,500W 380V HVDC PSUs 1,200W -48V to -60V DC PSUs |
| Management | Based on the Huawei iBMC chip, provides comprehensive management features such as fault diagnosis, automated O&M, and hardware security hardening; supports mainstream standard interfaces such as Redfish, SNMP, and IPMI 2.0, facilitating integration with third-party management software; provides remote management interfaces based on HTML5 and VNC KVM; supports features such as Smart Provisioning and Agentless to simplify management.
Optionally configured with Huawei eSight management software; provides advanced management features such as stateless computing, batch OS deployment, and automated firmware upgrade, enabling smart and automated entire-lifecycle management. |
| Operating Temperature | 5ºC to 45ºC (41ºF to 113ºF), and ASHRAE A3 and A4 compliant |
| Special Notices | Note 1: The 10-SFF drive model is planned for release in December 2017 Note 2: The NVMe model is planned for release in December 2017 Note 3: The 2-M.2 SSD feature is planned for release in December 2017 Note 4: The Titanium PSU and 1,200W and 1,500W PSUs are planned for release in 2018 |
