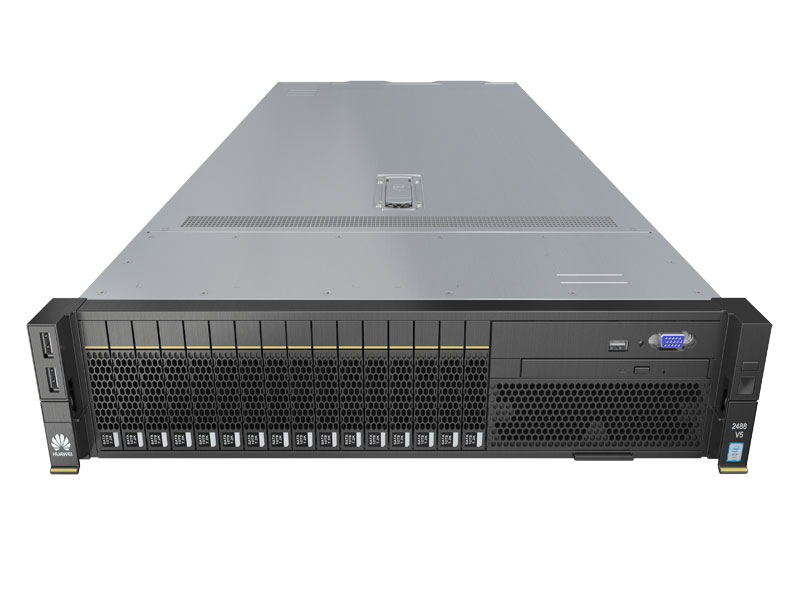

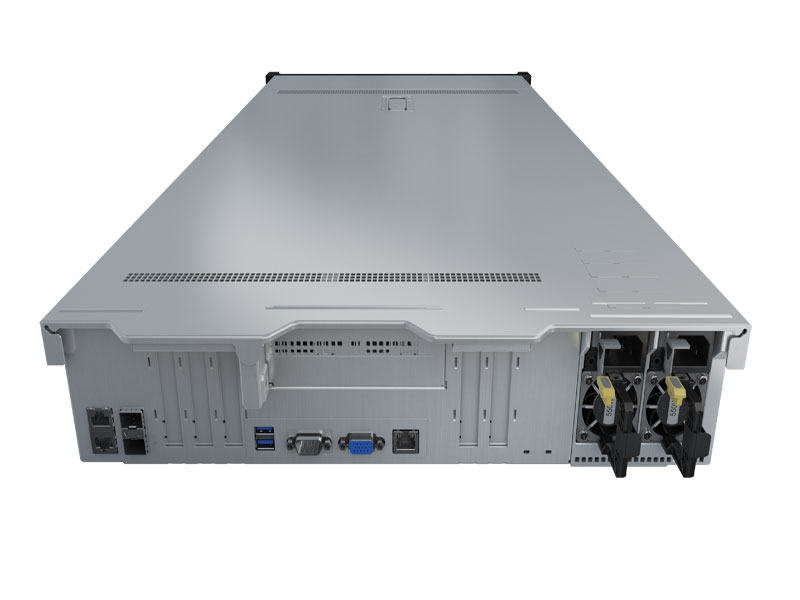

FusionServer 2488 V5 Rack Server
The FusionServer 2488 V5 is Huawei’s latest 2U, 4-socket rack server. It offers an ideal choice for compute-intensive scenarios such as cloud computing virtualization, High-Performance Computing (HPC), and databases. One FusionServer 2488 V5 delivers up to 36% higher performance and about 32% lower OPEX* than two traditional 2U, 2-socket rack servers.
Source: Test results from Huawei Global Computing Innovation OpenLab, Q2 2017
Huawei server with Intel® Xeon® processor.
Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and/or other countries.
New option for distributed deployment with higher efficiency
- Superior Performance:
Powered by the Intel® Xeon® Scalable Processor Family, supports thirty-two DDR4 DIMMs, supports up to twenty-five 2.5-inch local hard drives, supports two GE and two 10 GE LAN On Motherboard (LOM) ports
- Smart Power Saving:
Leverages patented DEMT for smart power management, slashes power consumption by up to 16% without affecting performance; uses 1,500W Platinum AC PSUs and supports DC and HVDC technologies for better energy utilization
- High Manageability, Integration, and Openness:
Supports smart O&M across the entire lifecycle and Fault Diagnosis & Management (FDM) for diagnosis with accuracy of up to 93%; streamlines networking and configuration with LOM; provides standardized and open interfaces, facilitating integration with third-party management software
|Form Factor||2U, 4-socket rack server|
|Processors||2 or 4 Intel® Xeon® Scalable Processors of up to 205W|
|Memory||32 DDR4 DIMM slots, up to 2,666 MT/s|
|Internal Storage||Supports hot-swappable hard drives and the following configuration options:
2 M.2 SSDs (see note 2)
|RAID Support||Supports RAID 0, 1, 5, 6, 10, 50, or 60; supports a supercapacitor for cache power-off protection
Supports functions such as RAID state transition and RAID configuration memory
|Network Ports||2 x 10 GE + 2 x GE LOM ports|
− 3 x8 slots for 3 HHHL PCIe 3.0 x16 standard cards
− 1 x8 slot for 1 FHHL PCIe 3.0 x16 standard card
− 5 x8 slots for 5 HHHL PCIe 3.0 x8 standard cards
|Fan Modules||4 hot-swappable fan modules, providing protection against single-fan failures|
|Power Supply Units||
2 hot-swappable PSUs, with support for redundancy. The PSUs support the following rated power (see note 3):
1,500W AC Platinum PSUs
1,000W (100V to 127V AC input, does not support 1+1 redundancy）
1,500W (200V to 240V AC input)
1,500W (190V to 300V DC input)
|Management||Based on the Huawei iBMC chip, provides comprehensive management features such as fault diagnosis, automated O&M, and hardware security hardening; supports mainstream standard interfaces such as Redfish, SNMP, and IPMI 2.0, facilitating integration with third-party management software; provides remote management interfaces based on HTML5 and VNC KVM; supports features such as Smart Provisioning and Agentless to simplify management.
Optionally configured with Huawei eSight management software; provides advanced management features such as stateless computing, batch OS deployment, and automated firmware upgrade, enabling smart and automated entire-lifecycle management.
|Operating Temperature||5°C to 45°C (41°F to 113°F), compliant with ASHRAE Classes A3 and A4|
|Special Notices||Note 1: The 8-NVMe + 16-SAS/SATA drive model is planned for release in December 2017
Note 2: The 2-M.2 SSD feature is planned for release in December 2017
Note 3: The 2,000W PSU is planned for release in 2018
