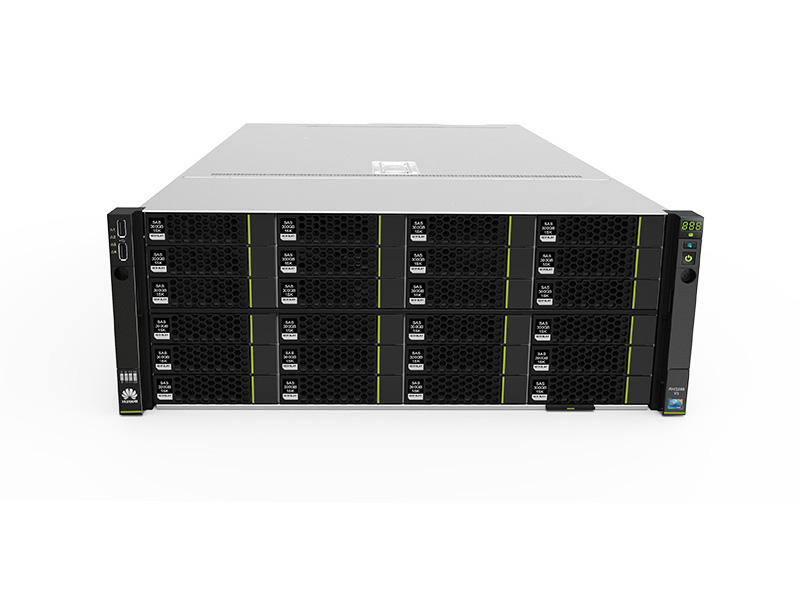

FusionServer 5288 V3 Rack Server

Meet tomorrow’s Big Data challenges today with Huawei’s FusionServer 5288 V3 rack server. Offering ultra-large storage capacity, flexible resource expansion, and high computing performance, this 4U, 2-socket rack server is the ideal choice for cold data and cloud storage, video surveillance, and Big Data applications.

intel-enHuawei server with Intel® Xeon® processor.
Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and/or other countries.

Features

Meet tomorrow’s Big Data challenges today with the ultra-large, flexible, high-performance FusionServer 5288 V3 Rack Server

  • Mass storage: Supports up to 40 3.5-inch hard disks and the latest 12 Gbit/s SAS technology, meeting the requirements for high-bandwidth transmission of Big Data
  • Superior performance: Runs the latest Intel® Xeon® E5-2600 v3 or v4 series processors and supports the Huawei PCIe SSD high-performance storage card
  • High energy efficiency: Leverages intelligent power control technologies, including Dynamic Energy Management Technology (DEMT), power capping, High-Voltage DC (HVDC), and Proportional Integration Differentiation (PID) to control heat dissipation and speed adjustment policies
  • Simplified and convenient management: Provides a digital LED fault diagnosis panel for local maintenance, offers the black box function to facilitate locating system faults, and supports the iBMC management module

Specifications

Specifications

Processors Intel® Xeon® E5-2600 v3/v4 series processors
Memory 16 DDR4 RDIMMs/LRDIMMs
Internal Storage 5288 V3 with 40 hard disks
Front:
  • 24 x 3.5-inch SAS/SATA HDDs

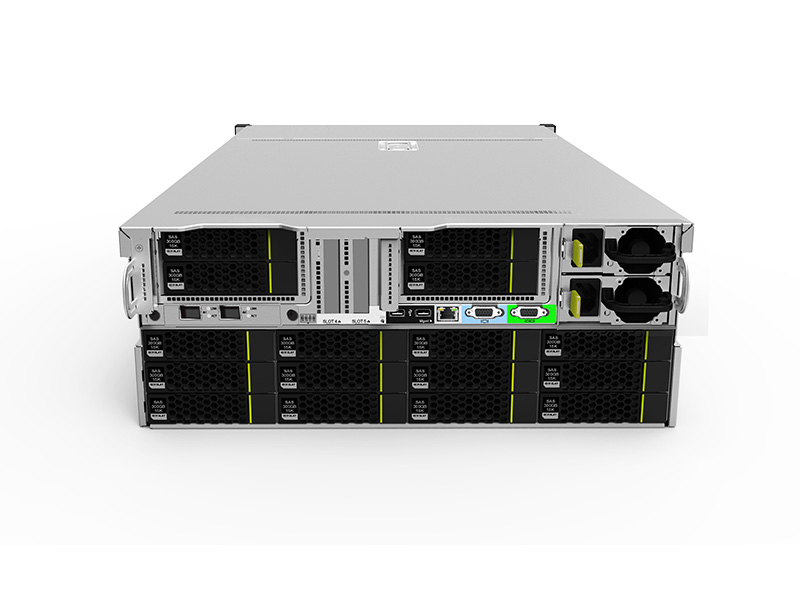

Rear:

  • 16 x 3.5-inch SAS/SATA HDDs
  • 14 x 3.5-inch SAS/SATA HDDs + 2 x 2.5-inch SSDs or SAS/SATA HDDs
  • 12 x 3.5-inch SAS/SATA HDDs + 4 x 2.5-inch SSDs or SAS/SATA HDDs

5288 V3 with 28 hard disks
Front:

  • 24 x 3.5-inch SAS/SATA HDDs

Rear:

  • 4 x 3.5-inch SAS/SATA HDDs
  • 2 x 3.5-inch SAS/SATA HDDs + 2 x 2.5-inch SSDs or SAS/SATA HDDs
  • 4 x 2.5-inch SSDs or SAS/SATA HDDs

RAID

  • RAID 0, 1, 10, 5, 50, 6, or 60
  • Configured with a supercapacitor for power-off protection for the cache (optional)
  • RAID state transition, configuration memory, self-diagnosis, and web-based remote configuration

LOM Network Ports

Supported network configurations:

  • 2 GE electrical ports, supporting Network Controller Sideband Interface (NC-SI), Wake on LAN (WoL), and pre-boot execution environment (PXE)
  • 4 GE electrical ports, supporting NC-SI, WoL, and PXE
  • 2 x 10 GE optical ports, supporting NC-SI and PXE
  • 2 x 10 GE electrical ports, supporting NC-SI, WoL, and PXE
  • 2 GE electrical ports and 2 x 10 GE optical ports, supporting NC-SI, WoL, and PXE

PCIe ExpansionUp to 6 PCIe 3.0 slotsFan ModulesHot-swappable fan modules in N+1 redundancy modePower Supply Units2 hot-swappable PSUs in 1+1 redundancy modeManagement

  • Uses Huawei Hi1710 management chip and independent ports
  • Supports standard management interfaces, such as SNMP and IPMI; provides GUI, remote KVM, virtual media, SOL, Predictive Failure Analysis (PFA), intelligent power supply, remote control, and hardware monitoring
  • Supports Huawei eSight management software and integration with third-party management systems, such as VMware vCenter, Microsoft System Center, and Nagios

Operating Temperature5ºC to 40ºC (41ºF to 104ºF), ASHRAE Class A3 compliant
