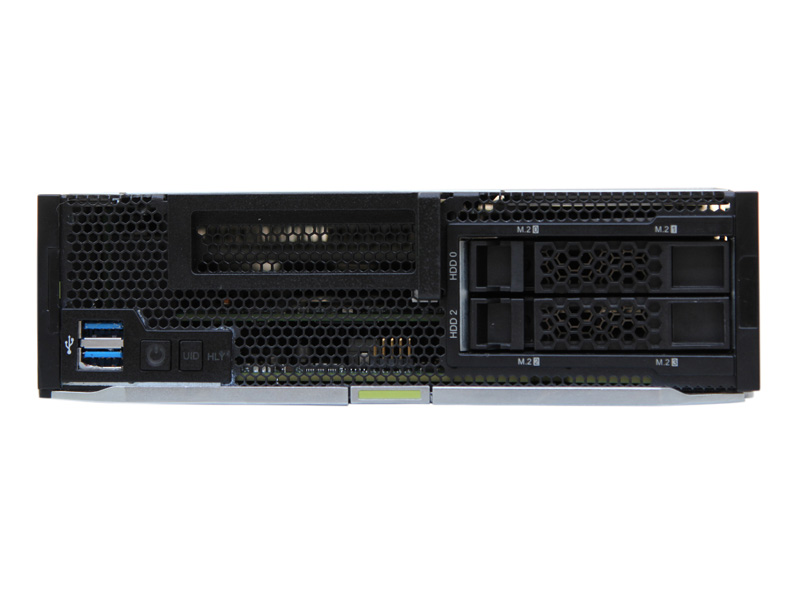

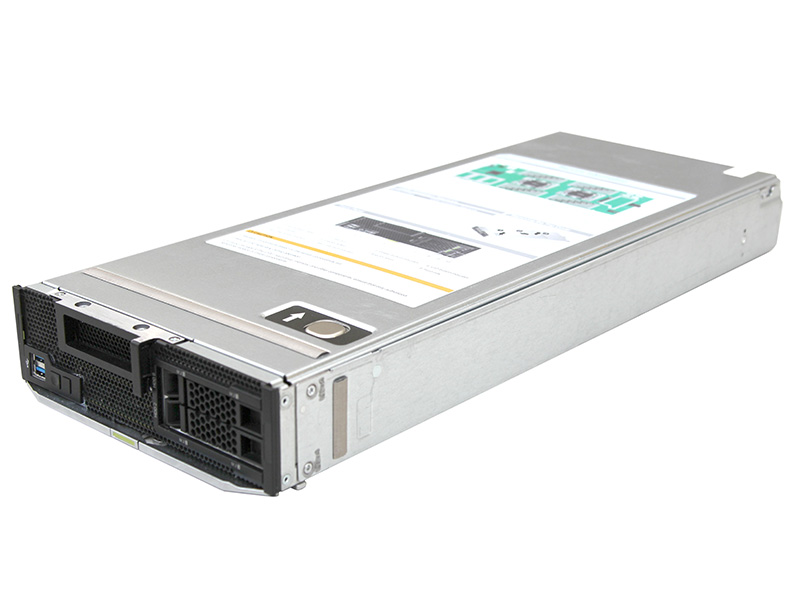

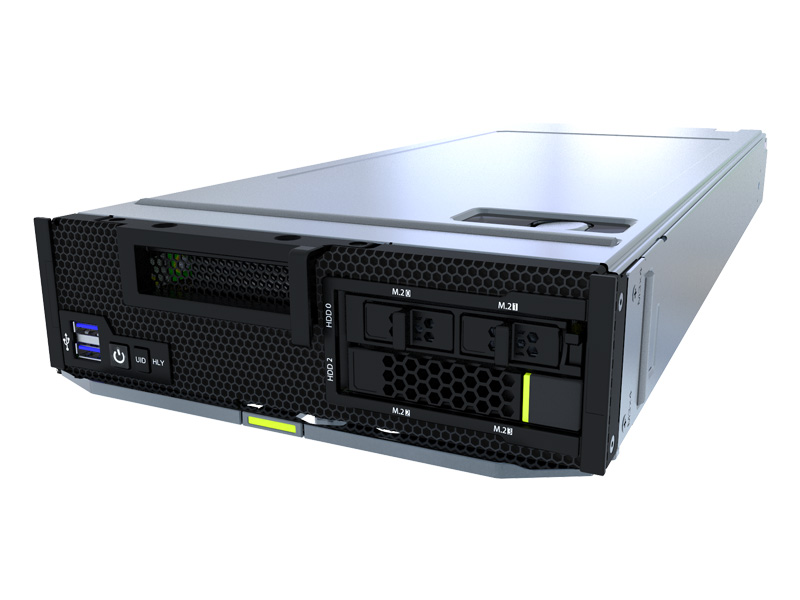

FusionServer CH121 V5 Half-Width Compute Node
Huawei FusionServer CH121 V5 is a compute node optimized for services such as virtualization, cloud computing, HPC, and Network Function Virtualization (NFV). It delivers high-density computing capabilities and ultra-large memory capacity. Running on the new-generation Intel® Xeon® Scalable Processors, it supports the entire processor family with power consumption of up to 205W. CH121 V5 provides 24 DDR4 DIMM slots and supports 4 M.2 SSDs for storage.
Huawei server with Intel® Xeon® processor.
Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and/or other countries.
High performance, energy-efficient, smart management
- Powered by Intel® Xeon® Scalable Processors, with up to 28 compute cores per processor; supports 24 DIMM slots, up to 3 TB DDR4 memory, and 4 M.2 SSDs as well as standard PCIe expansion slots, enabling service acceleration on demand
- Employs innovative Dynamic Energy Management Technology (DEMT) to support smart energy conservation, and drives down power consumption by leveraging different technologies. These include component hibernation, automatic power-on/-off for multi-phase power supplies, and speed tuning using the Proportional-Integral-Derivative (PID) algorithm
- Provides entire-lifecycle smart O&M to drive greater deployment and O&M efficiency; provides standardized, open interfaces, and supports Restful APIs and IPMI 2.0 standard, facilitating seamless integration with third-party management software
Specifications
| Form Factor | 2-socket blade server node in a half-width slot |
| Processors | 1 or 2 Intel® Xeon® Scalable Processors of up to 205W |
| Memory | 24 DDR4 DIMM slots, with memory speeds of up to 2,666 MT/s, and memory capacity of up to 3 TB |
| Internal Storage | 2 x 2.5-inch SSDs, or SAS/SATA hard drives; 2 NVMe SSDs supported
Or up to 4 M.2 SSDs (SATA interface), individually hot-swappable |
| RAID Support | 2 x 2.5-inch SSDs or SAS/SATA hard drives; supports RAID 0 or 1
4 M.2 SSDs; supports RAID 0, 1, 10, 5, or 6 |
| PCIe Expansion | 2 mezzanine cards (x16)
1 half-height half-length PCIe x16 standard card (front-accessible) |
| Operating Systems | Microsoft Windows Server 2008/2012
Red Hat Enterprise Linux SUSE Linux Enterprise Server Oracle Linux CentOS Huawei FusionSphere Citrix XenServer VMware |
| Operating Temperature | 5ºC to 40ºC (41ºF to 104ºF), compliant with ASHRAE CLASS A3 |
| Dimensions (H x W x D) | 60.46 mm x 210 mm x 537.2 mm (2.38 in. x 8.27 in. x 21.15 in.) |
