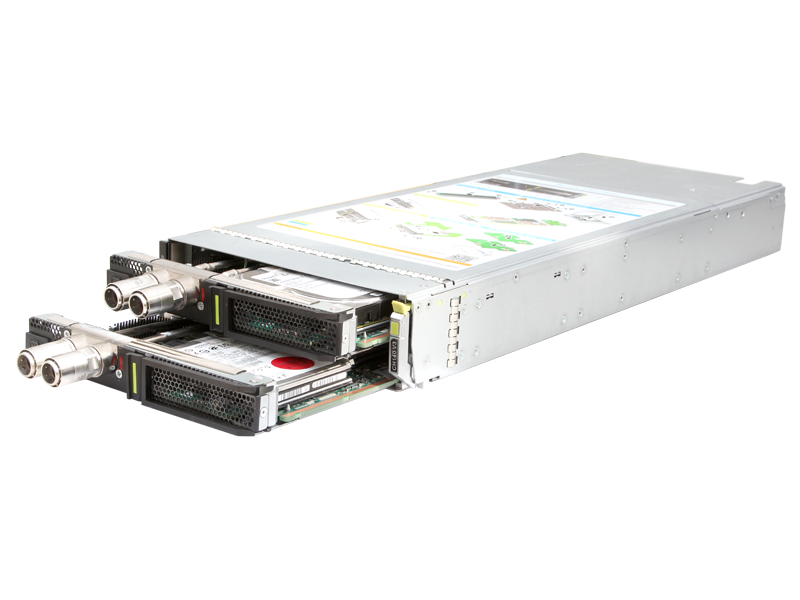

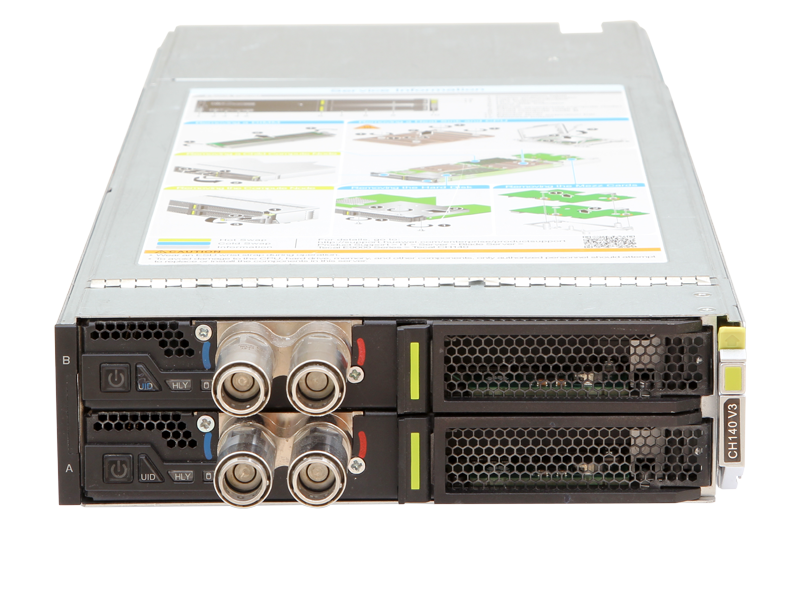

FusionServer CH140L V3 Compute Node

Optimized for HPC and dense computing enterprise services, the liquid cooled CH140L V3 provides ultra-high computing capabilities. A half-width slot supports two 2-socket compute nodes; each node can be maintained independently. The CH140L V3 uses Intel® Xeon® E5-2600 v3/v4 series processors, supports eight DIMM slots and one hard disk, as well as 2 built-in Micro-SD slots supporting RAID 1.

intel-enHuawei server with Intel® Xeon® processor.
Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and/or other countries.

Facilitates ultra-high computing density for enterprise services with easy management and energy savings

  • Supports the full series of Intel® Xeon® E5-2600 v3/v4 processors to deliver up to 2 x 22-core of computing capacity; a half-width slot supports two small slots in two layers for installing two independent 2- socket compute nodes
  • Reduces O&M costs by enabling remote deployment and fault location technologies such as SOL, KVM over IP, virtual DVD-ROM drive, WebUI and IPMI 2.0-compliant
  • Provides efficient, secure power consumption analysis and control capabilities. Complies with Intel® NM 3.0. Supports an intelligent and secure power-off mode for compute nodes

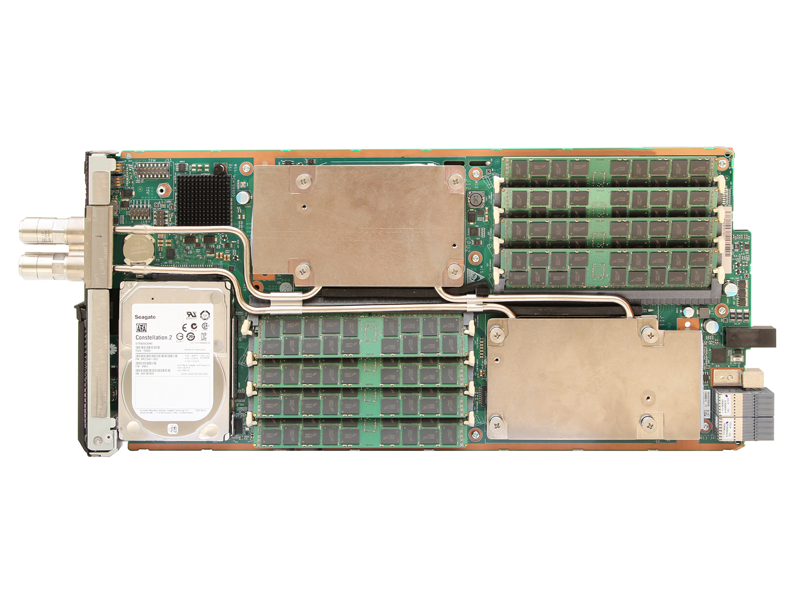

  • Supports board-level liquid cooling; adopts integrated cooling plates without internal solder points; 80% of heat dissipated through liquid; supports individually maintainable CPUs and memory modules

Specifications

Form Factor Two 2-socket, twin compute nodes in a half-width slot
Number of Processors 1 or 2 in each 2-socket compute node
Processor Models Intel® Xeon® E5-2600 v3/v4 series
Number of DIMMs 8 DDR4 DIMMs for each 2-socket compute node
Number of Hard Disks One 2.5-inch SSD/SATA for each 2-socket compute node
RAID Support N/A
PCIe Expansion 2 twin nodes share 2 Mezz modules
OS Support Microsoft Windows Server 2008/2012

Red Hat Enterprise Linux

SUSE Linux Enterprise Server

Oracle Linux

CentOS

Citrix XenServer

VMware

Operating Temperature 5°C to 35°C
Dimensions Height: 60.46 mm (2.38 in.)

Width: 210 mm (8.27 in.)

Depth: 537.2 mm (21.15 in.)
