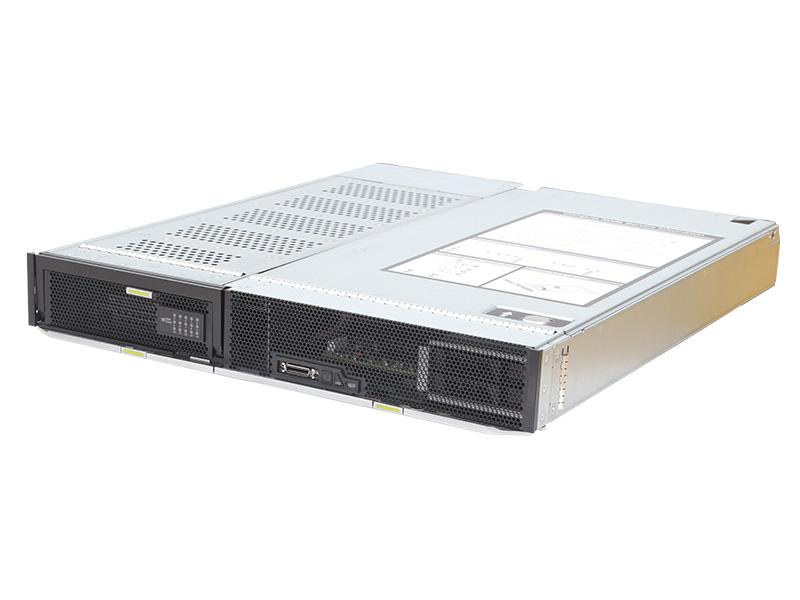

FusionServer CH222 V3 Storage Expansion Compute Node

This compute node can be used for Big Data analysis, server SAN, videos, searches, and the biological sciences — all processing applications that require large storage capacity and high computing performance.

It forms part of the CH100 and CH200 families of compute nodes, which are fully compatible with Huawei’s E9000 Blade Server. This efficient compute node features dynamic energy-saving and power-capping technologies that manage and control power consumption with remarkably reduced low-load operating power. Carrier-class design, manufacturing, and components ensure high quality.

intel-enHuawei server with Intel® Xeon® processor.
Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and/or other countries.

Super storage and computing capabilities for Big Data analysis, server SAN, videos, searches, and the biological sciences

  • Intel® Xeon® Processor E5-2600 v3/v4 series deliver up to two 22-core processors per node
  • Provides the highest cost-efficiency for large-memory applications and the highest storage capacity available on a single node
  • Reduces O&M costs with remote deployment and fault location technologies such as SOL, KVM over IP, virtual DVD-ROM drive, WebUI and IPMI 2.0 compliance
  • Nodes include efficient, secure power consumption analysis and control capabilities, including power-off mode and Intel® NM 3.0 compliance

Specifications

Form Factor Full-width 2-socket compute node
Number of Processors 1 or 2
Processor Models Intel® Xeon® E5-2600 v3/v4 series
Number of DIMMs 24 DDR4 DIMMs, providing a maximum memory capacity of 1.5 TB
Number of Hard Disks 15 x 2.5 in. SAS/SATA HDDs or SSDs
RAID Support RAID 0, 1, 10, 5, 50, 6, and 60 with a 1 GB/2 GB RAID cache
PCIe Expansion 2 PCIe x 16 Mezz modules

1 standard PCIe x 8 full-height, half-length card

OS Support Microsoft Windows Server 2008/2012

Red Hat Enterprise Linux

SUSE Linux Enterprise Server

Citrix XenServer

VMware

Operating Temperature 5°C to 40°C
Dimensions Height: 60.46 mm (2.38 in.)

Width: 423 mm (16.65 in.)

Depth: 537.2 mm (21.15 in.)
