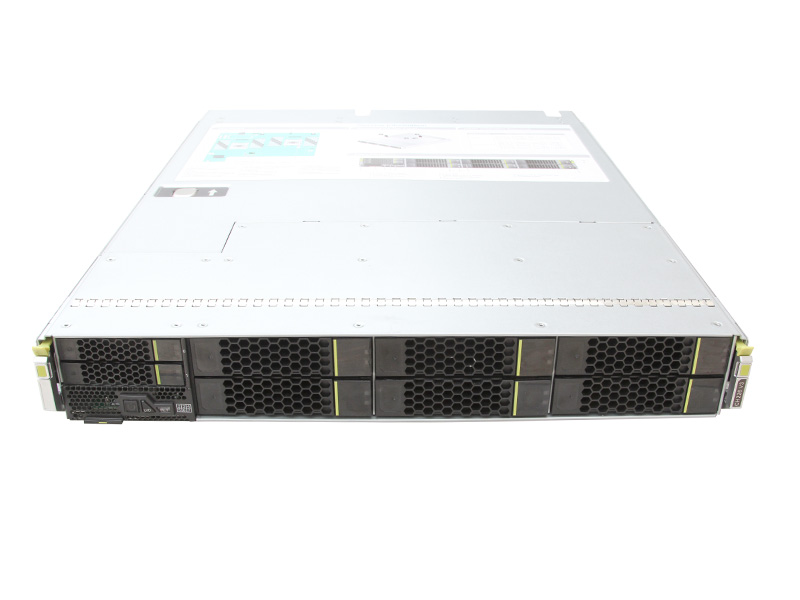

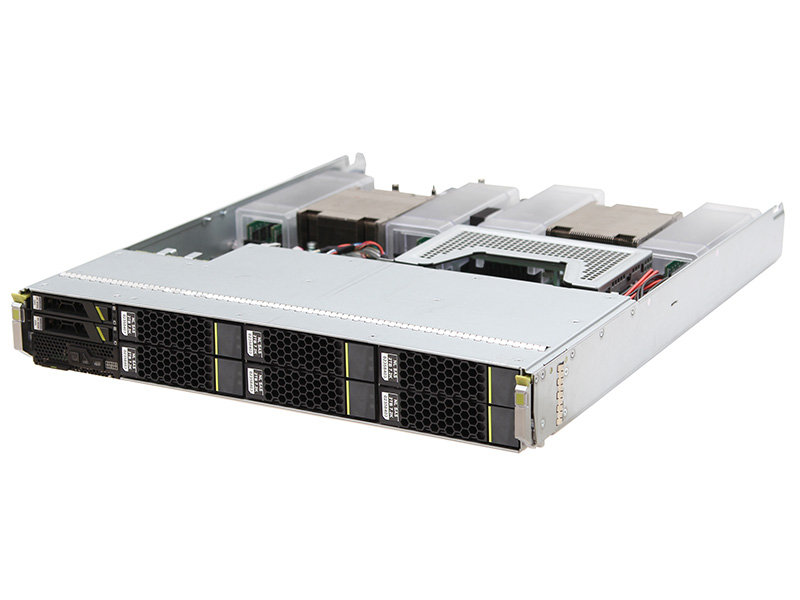

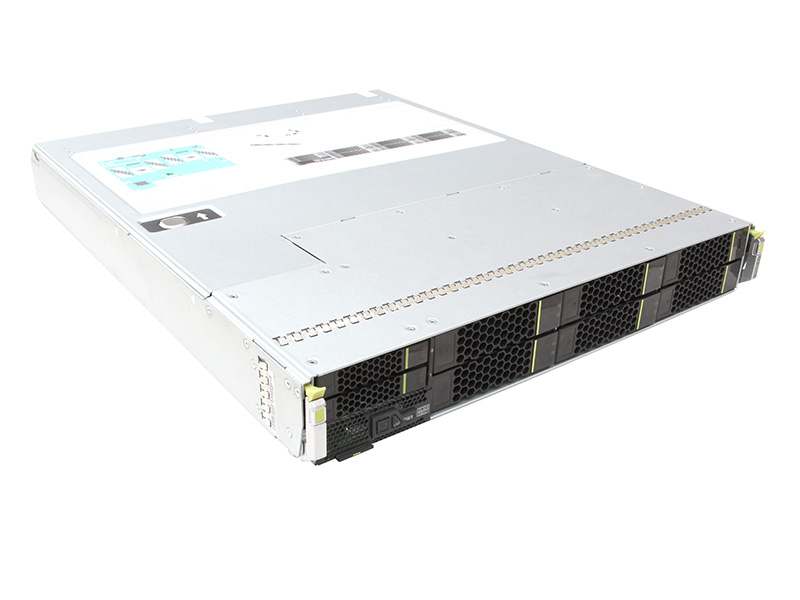

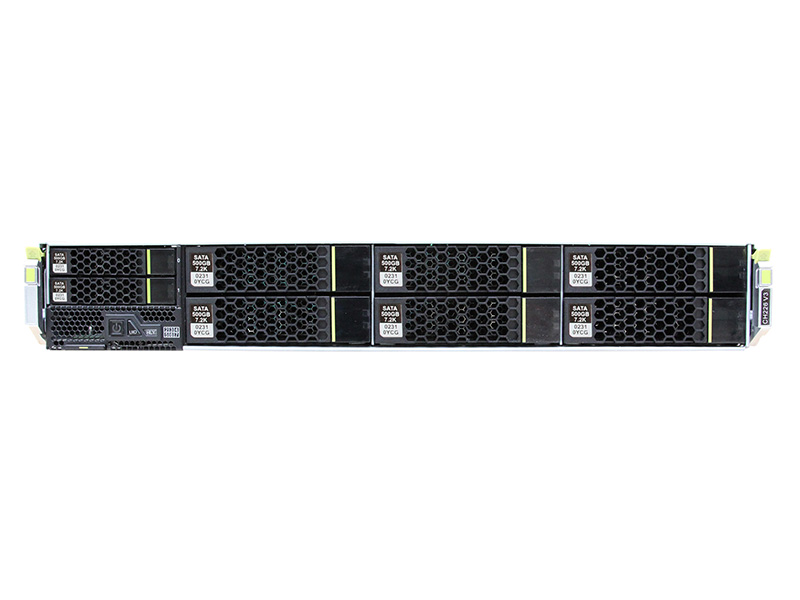

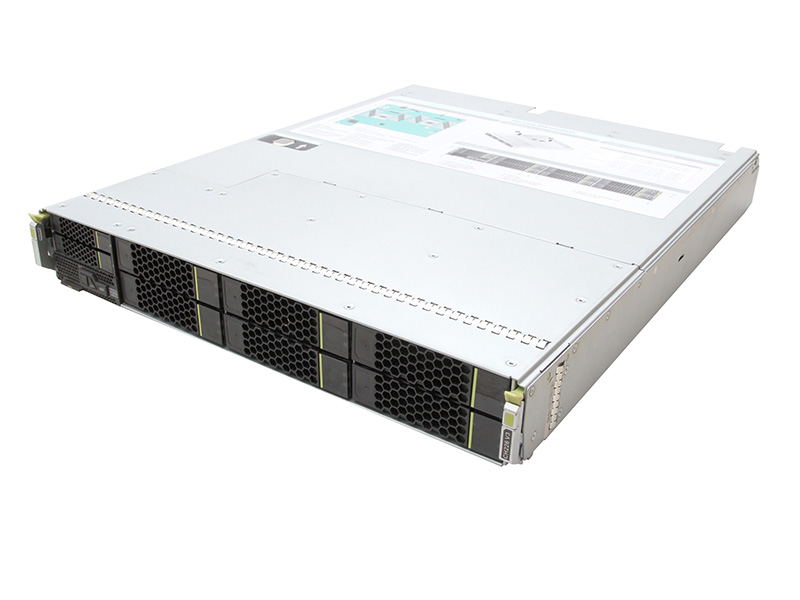

FusionServer CH226 V3 Storage Expansion Compute Node
This compute node can be used for Big Data analysis, server SAN, videos, searches, and the Virtual Desktop Infrastructure (VDI) — all processing applications that require large storage capacity and high computing performance.
It forms part of the CH100 and CH200 families of compute nodes, which are fully compatible with Huawei’s E9000 Blade Server.
This efficient compute node features dynamic energy-saving and power-capping technologies that manage and control power consumption with remarkably reduced low-load operating power.
Carrier-class design, manufacturing, and components ensure high quality.
Huawei server with Intel® Xeon® processor.
Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and/or other countries.
Super storage and computing capabilities for Big Data analysis, server SAN, videos, searches, and the VDI
- Intel® Xeon® E5-2600 v3/v4 processors to deliver up to 2 x 22-core of computing capacity, 24 DDR4 DIMMs
- Supports 6 x 3.5 in. SAS/SATA HDDs and 2 x 2.5 in. SAS/SATA HDDs or SSDs, which provide the highest storage capacity on a single node
- Reduces O&M costs by supporting remote deployment and fault location technologies such as SOL, KVM over IP, virtual DVD-ROM drive, Web UI and IPMI 2.0-compliant
- Nodes include efficient, secure power consumption analysis and control capabilities, including power-off mode, and Intel® NM 3.0 compliance
Specifications
| Form Factor | Full-width, 2-socket compute node |
| Number of Processors | 1 or 2 |
| Processor Model | Intel® Xeon® E5-2600 v3/v4 series |
| Number of DIMMs | 24 DDR4 DIMMs, providing a maximum memory capacity of 1.5 TB |
| Number of Hard Disks | 6 x 3.5 in. SAS/SATA HDDs, and 2 x 2.5 in. SAS/SATA HDDs or SSDs |
| Built-in Storage | 2 x SATA DOM
2 x Micro-SD cards (Raid1) 1 x USB 3.0 Disk |
| RAID Support | RAID 0, 1, 10, 5, 50, 6, and 60
512 MB/1 GB/2 GB RAID cache |
| PCIe Expansion | 2 PCIe x 16 mezz modules
1 standard PCIe x 8 full-height, half-length card |
| OS Supported | Microsoft Windows Server 2008/2012
Red Hat Enterprise Linux SUSE Linux Enterprise Server Citrix XenServer VMware |
| Operating Temperature | 5°C to 40°C |
| Dimensions | Height: 60.46 mm
Width: 423 mm Depth: 537.2 mm |
