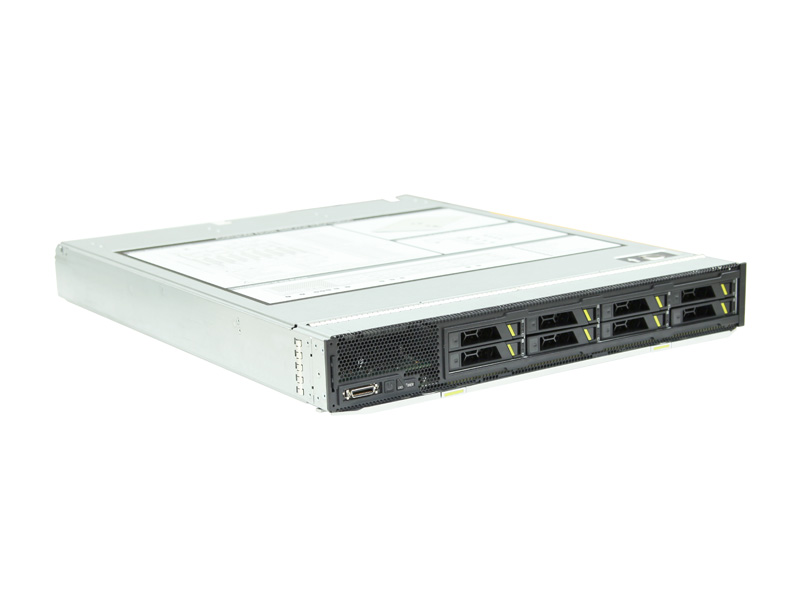

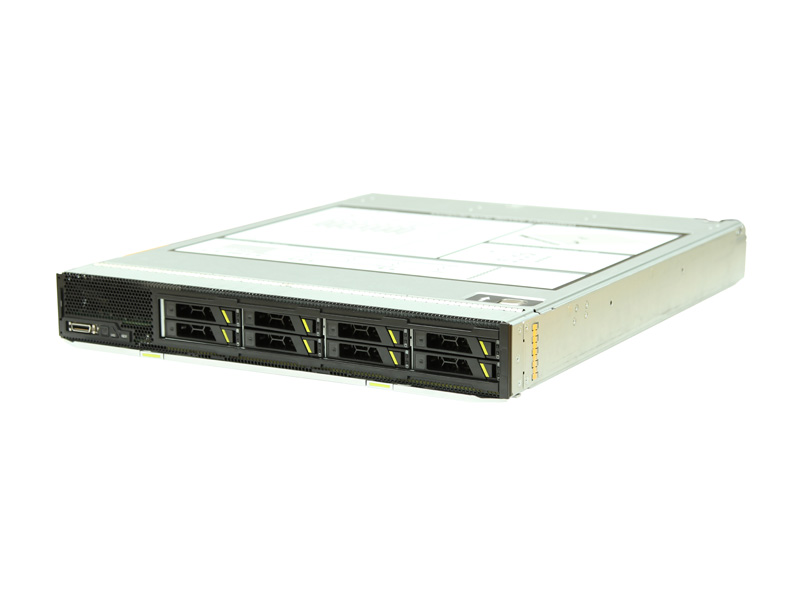

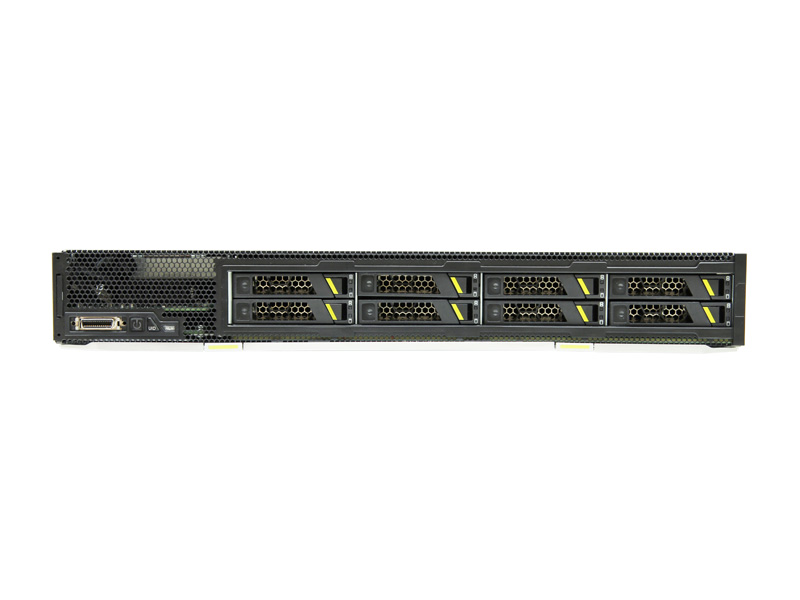

FusionServer CH242 V3 Compute Node

This compute node does more than you thought possible — large data sets and transaction-intensive databases such as Enterprise Resource Planning (ERP), Business Intelligence (BI) platforms, cloud computing, and virtualization. It’s powered by Intel® Xeon® E7 series processors.

It features dynamic energy-saving and power-capping technologies that manage and control power consumption with remarkably reduced low-load operating power. Carrier-class design, manufacturing, and components ensure high quality.

intel-enHuawei server with Intel® Xeon® processor.
Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and/or other countries.

Perfect for large data sets and transaction-intensive databases

  • Intel® Xeon® Processor E7 v3/v4 series, with up to four 24-core processors, to power each compute node
  • Eight 2.5-inch SAS HDDs, SATA HDDs, or SSDs, and two PCIe slots for standard PCIe card expansion
  • Reduces O&M costs with remote deployment and fault location technologies such as SOL, KVM-over-IP, virtual DVD-ROM drive, WebUI and IPMI 2.0 compliance
  • Nodes include efficient, secure power consumption analysis and control capabilities, including power-off mode, and Intel® NM 2.0 compliance

Specifications

Form Factor Full-width 4-socket compute node
Number of Processors 2 or 4
Processor Models Intel® Xeon® E7 v3/v4 series, up to 24-core processor
Number of DIMMs 32 DDR4 DIMMs, providing a maximum memory capacity of 2 TB
Number of Hard Disks 8 x 2.5-inch SAS/SATA HDDs, or SSDs, among them 4 slots support NVMe SSDs
RAID Support RAID 0, 1, 10, 5, 50, 6, and 60 with a 1 GB RAID cache
PCIe Expansion 4 PCIe x 16 Mezz modules

Supports two FHHL PCIe cards. When the two built-in PCIe slots are used, some DIMM slots cannot be used

Operating Systems Support Microsoft Windows Server 2008/2012

Red Hat Enterprise Linux

SUSE Linux Enterprise Server

Huawei FusionSphere

Citrix XenServer

VMware ESX

Operating Temperature 5°C to 40°C
Dimensions Height: 60.46 mm (2.38 in.)

Width: 423 mm (16.65 in.)

Depth: 525 mm (20.67 in.)
