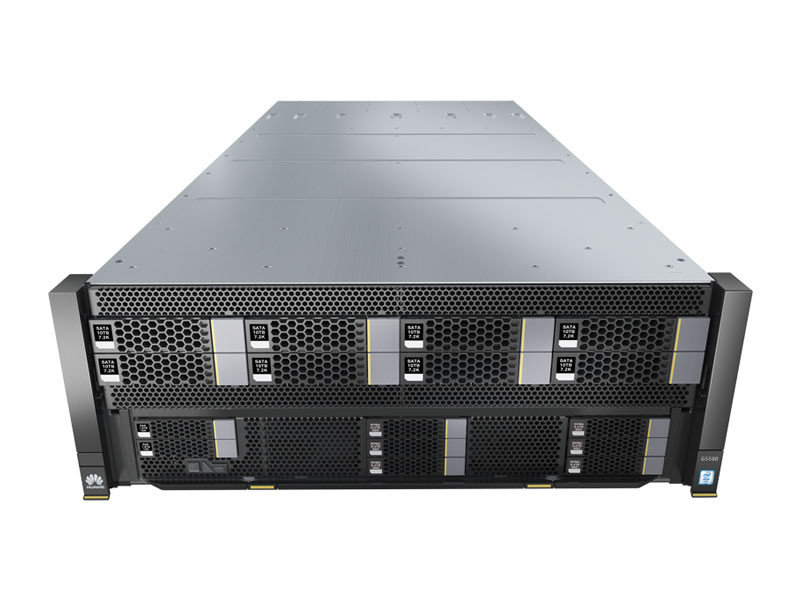

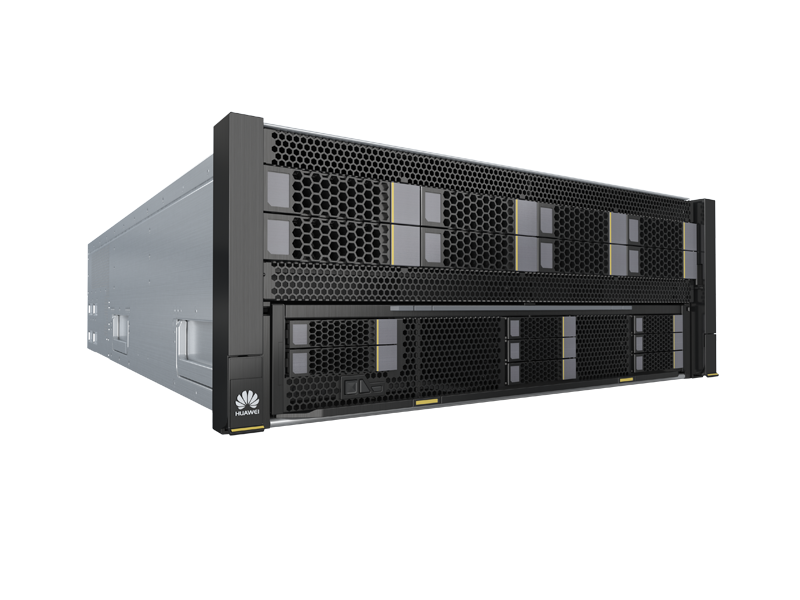

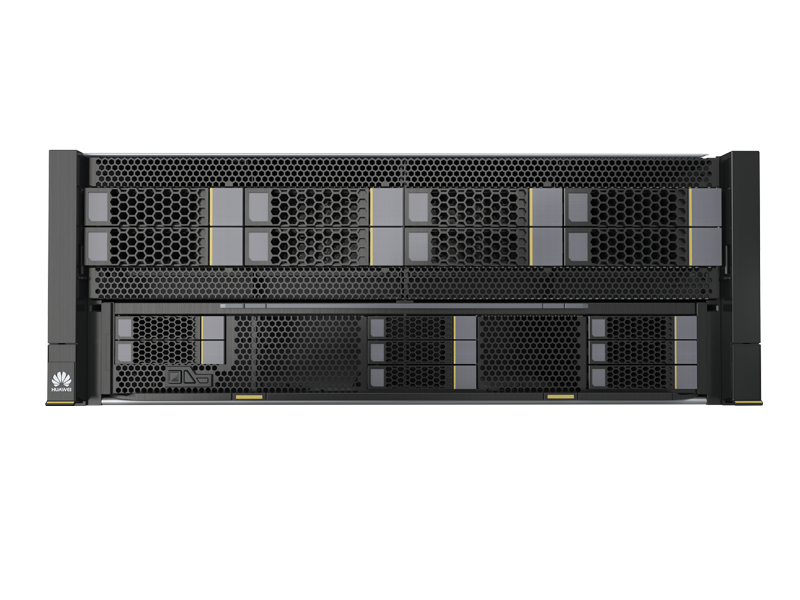

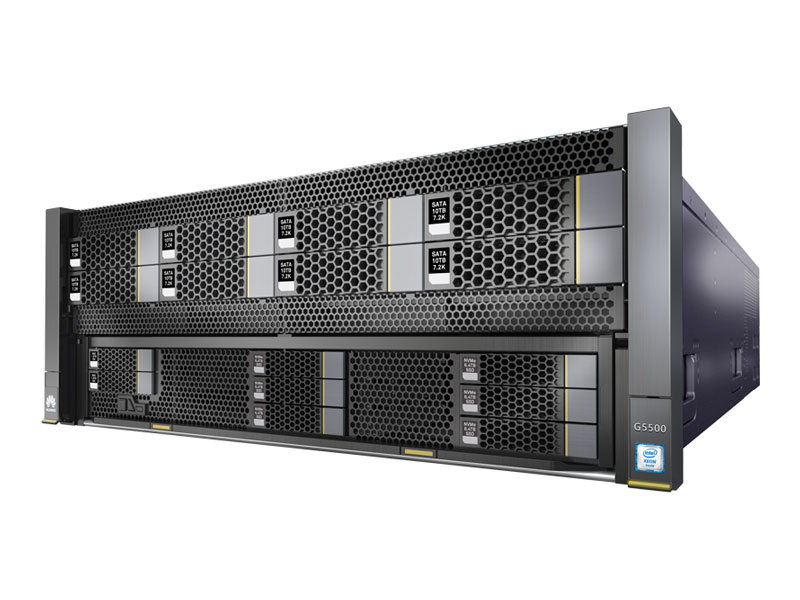

FusionServer G5500 Data Center Heterogeneous Server

The Huawei FusionServer G5500 is a heterogeneous server positioned for data center deployment. It delivers high-density heterogeneous compute power and supports GPUDirect RDMA as well as P2P interconnect technologies. It supports one-click topology switching, which provides the optimal heterogeneous topology configurations for diverse workloads. The server uses a fully modular design, with independent CPUs and heterogeneous unit that support long-term evolution. The G5500 is a best-in-class heterogeneous computing platform for application scenarios such as AI, HPC, intelligent cloud, video analytics, and database acceleration.

Features

Superb performance, flexible configuration, and fully modular design

Exceptional Heterogeneous Computing Capabilities

  • The 4U chassis supports up to 8 FHFL or 32 HHHL heterogeneous accelerator cards
  • Supports GPUDirect RDMA and Peer-to-Peer interconnect technologies, enabling direct memory access for multiple GPU cards

Flexible Topology Configuration

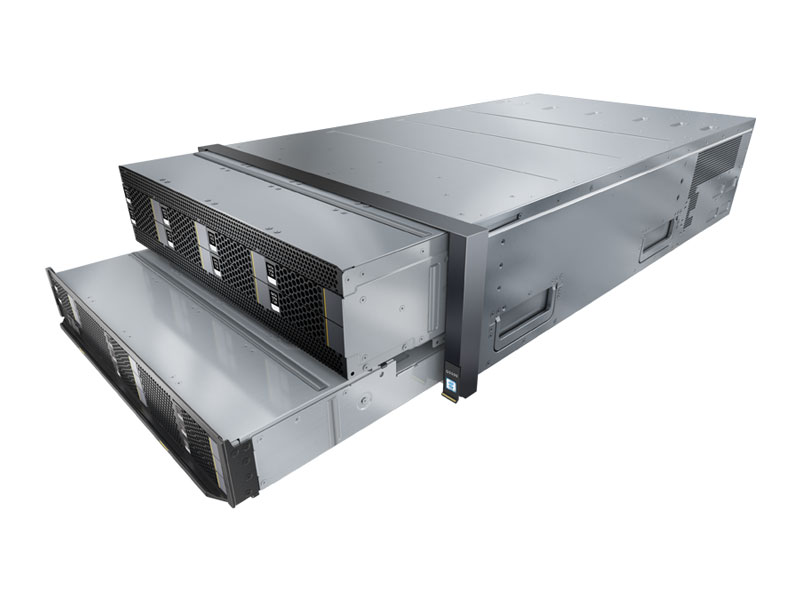

  • Supports 1 full-width or 2 half-width heterogeneous computing nodes
  • Supports one-click topology switching and multiple topologies with different CPU/GPU configuration ratios

Fully Modular Design

  • The design of decoupled CPU module and heterogeneous modules support CPU and heterogeneous unit for long-term evolution
  • Power Supply Units (PSUs), hard drives, and fan modules are designed in a fully modular style, supporting hot swap and redundancy backup and simplifying O&M

Specifications

Specifications

Product G5500 Chassis
Node Support 1 full-width or 2 half-width heterogeneous computing nodes
Power Supply Units Four 80 Plus Platinum 2,200W AC hot-swappable PSUs

N+N redundancy supported
Fan Modules 6 hot-swappable fan modules with smart speed tuning

N+1 redundancy supported
PCIe Expansion 4 PCIe Gen3 x16 HHHL NICs (IB/OPA/Ethernet)
Management Supports aggregation management network port
Power Supply 110V/220V AC or 240V HVDC
Dimensions (H x W x D) 175 mm x 447 mm x 790 mm
