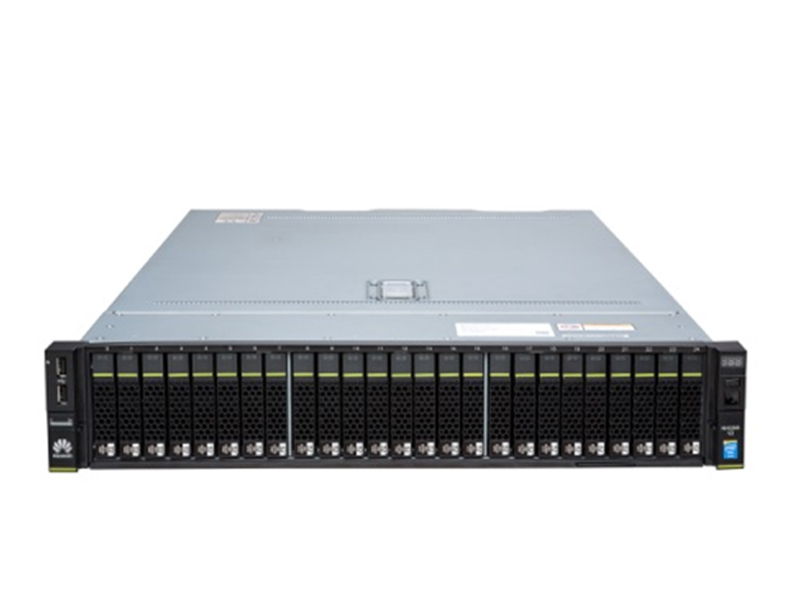

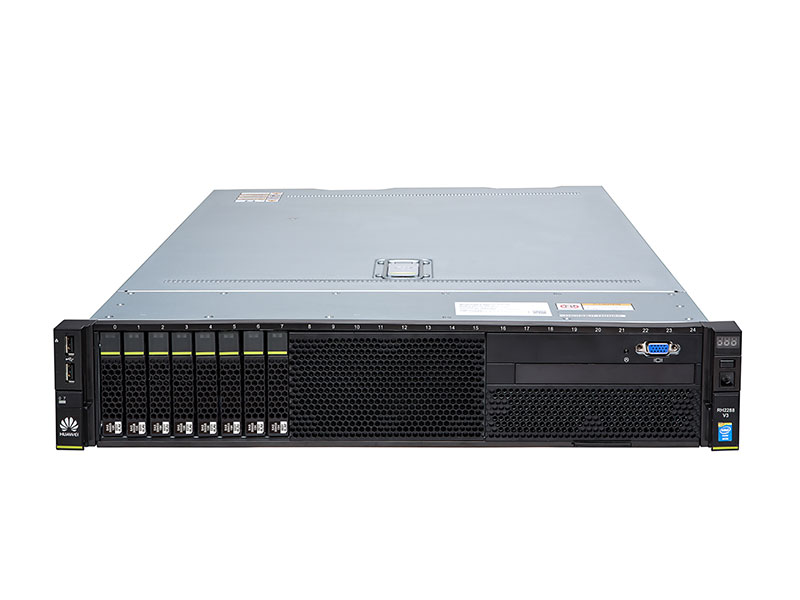

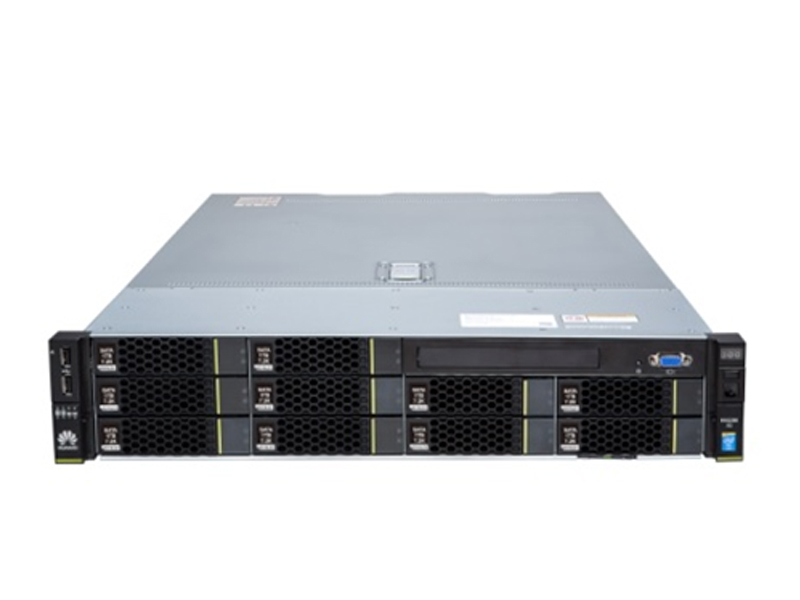

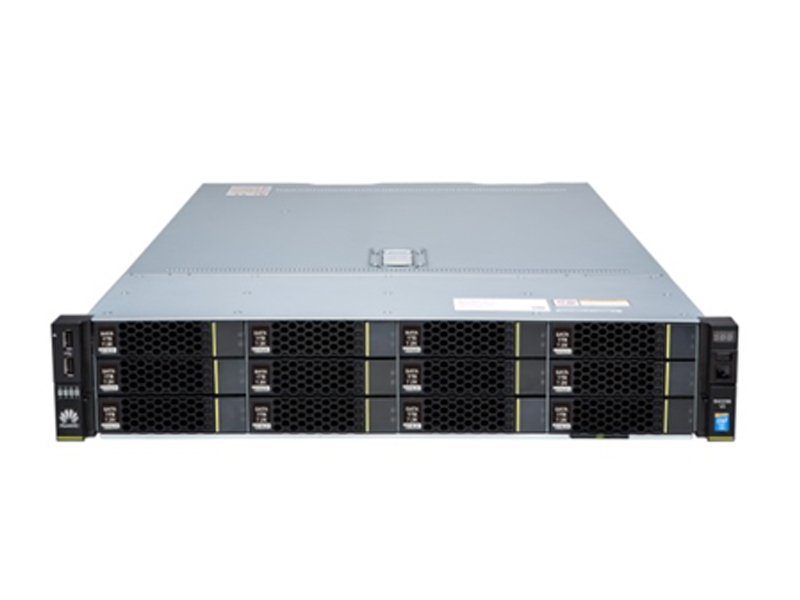

FusionServer RH2288 V3 Rack Server

Huawei’s FusionServer RH2288 V3 is a next-generation 2U, 2-socket rack server. Leveraging the advantages of an efficient design, the RH2288 V3 unleashes superb computing performance, and offers flexible, large-capacity local storage expansion. The RH2288 V3 is an ideal choice for Internet, Big Data, file service, cloud computing, and telecom service applications.

FusionServer RH2288 V3 perfectly balances performance and density in a 2U space.

intel-enHuawei server with Intel® Xeon® processor.
Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and/or other countries.

Features

Processing and storage resources in a small rack space for key applications

  • Massive storage: Supports up to 28 x 2.5-inch or 16 x 3.5-inch hard disks, and supports the latest 12 Gbit/s SAS technology, meeting the requirements for high-bandwidth transmission of Big Data
  • Superior performance: Runs the latest Intel® Xeon® E5-2600 v3/v4 series processors and supports high-performance Huawei GPU cards, PCIe SSD storage cards, and NVMe SSDs
  • High energy efficiency: Leverages intelligent power control technologies, including Dynamic Energy Management Technology (DEMT), power capping, High-Voltage DC (HVDC), and Proportional Integration Differentiation (PID) to control heat dissipation and speed adjustment policies
  • Simplified and convenient management: Provides a digital LED fault diagnosis panel for local maintenance, offers the black box function to facilitate system fault locating, and supports the iBMC management module

Specifications

Specifications

Processor Intel® Xeon® E5-2600 v3/v4 series processors
Memory 16 DDR4 RDIMMs/LRDIMMs
Internal Storage Supports the following hard disk configurations:

• Eight front 2.5-inch SSDs or SAS or SATA HDDs

• Twelve front 3.5-inch SAS or SATA HDDs and two or four rear 2.5-inch or 3.5-inch SSDs or SAS or SATA HDDs

• Twelve front 3.5-inch SAS or SATA HDDs (NVMe model supports four NVMe SSD disks) and two rear 2.5-inch or 3.5-inch SSDs or SAS or SATA HDDs

• Twenty-four front 2.5-inch SAS or SATA HDDs

• Twenty-five front 2.5-inch SSDs or SAS or SATA HDDs and two or three rear 2.5-inch SSDs or SAS or SATA HDDs

Supports built-in Flash:

• Two SD cards
RAID
  • RAID 0, 1, 10, 5, 50, 6, or 60
  • Configured with a supercapacitor for power-off protection for the cache (optional)
  • RAID state transition, configuration memory, self-diagnosis, and web-based remote configuration
LOM Network Ports 2 GE or 4 GE ports, or 2 x 10 GE ports, or 2 x 56 Gbit/s FDR InfiniBand ports
PCIe Expansion Up to 6 PCIe 3.0 slots
Fan Modules Hot-swappable fan modules in N+1 redundancy mode
Power Supply Units 2 hot-swappable PSUs in 1+1 redundancy mode
Management
  • Uses the Huawei Hi1710 management chip and independent ports
  • Supports standard management interfaces, such as SNMP and IPMI; provides GUI, remote KVM, virtual media, SOL, Predictive Failure Analysis (PFA), intelligent power supply, remote control, and hardware monitoring
  • Supports Huawei eSight management software and integration with third-party management systems, such as VMware vCenter, Microsoft System Center, and Nagios
Operating Temperature 5°C to 45°C (41°F to 113°F), ASHRAE Class A3 and A4 compliant
