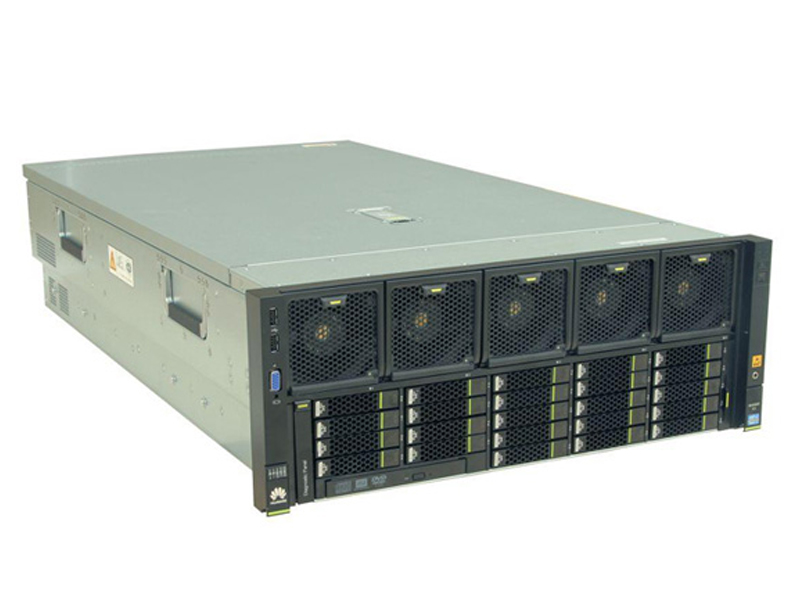

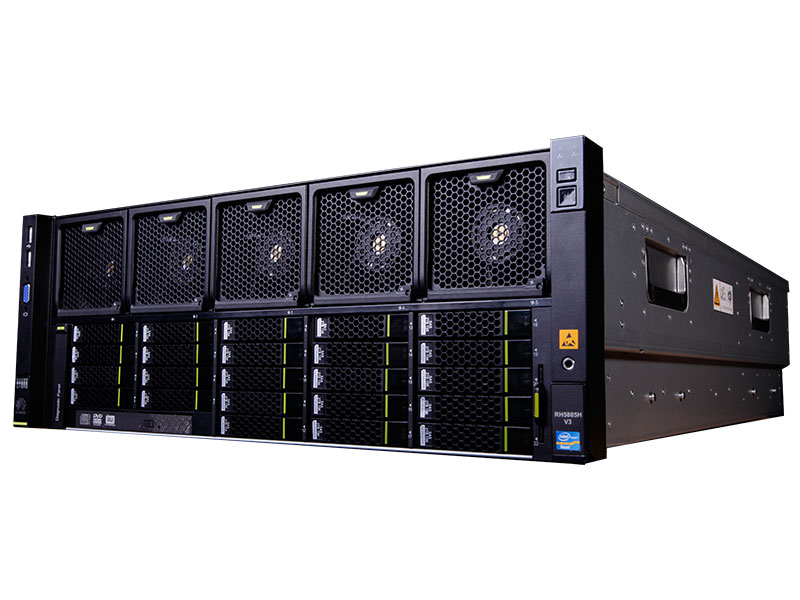

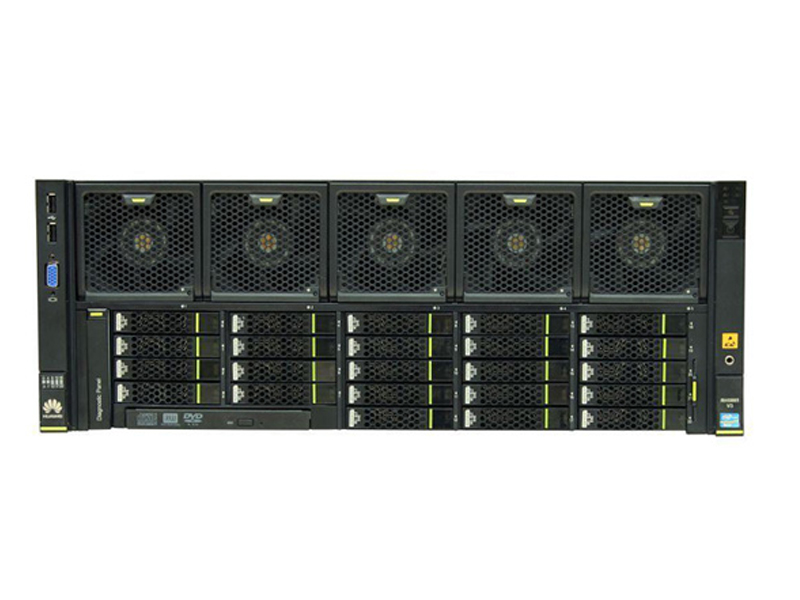

FusionServer RH5885 V3 Rack Server

Huawei’s FusionServer RH5885 V3 is a next-generation 4U 4-socket rack server with Intel® Xeon® E7 v3 or v4 processors that supports up to 96 cores.

It supports flexible component configuration for processor, memory, I/O, and hard disk resources, and delivers exceptional performance to meet the service requirements of databases, Enterprise Resource Planning (ERP), Business Intelligence (BI) analytics, Big Data, and virtualization.

Flexibly expand your platform and improve stability, reliability, and energy efficiency with Huawei’s RH5885 V3 rack server.

intel-enHuawei server with Intel® Xeon® processor.
Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and/or other countries.

Features

A 4-socket rack server that enables superior performance, reliability, expansion capabilities, and energy efficiency

  • High stability and reliability: Supports 53 Reliability, Availability, and Serviceability (RAS) features, including memory mirroring, memory sparing, automatic link recovery, and Predictive Failure Analysis (PFA)
  • Excellent performance: Each E7 v4 series processor supports up to 24 cores, enabling the RH5885 V3 to support up to 96 cores and boosting overall performance
  • Flexible expansion: Supports up to 23 2.5-inch internal hard disks, ideal for Big Data analytics
  • High energy efficiency: Uses Dynamic Energy Management Technology (DEMT), power capping, and High-Voltage DC (HVDC) power supplies to improve energy efficiency

Specifications

Specifications

Processors Intel® Xeon® E7-4800 v3/v4 or E7-8800 v3/v4 series processors
Memory 48 DIMMs
Internal Storage 8 or 23 x 2.5-inch SAS/SATA HDDs or SSDs, or 8 x 2.5-inch SAS/SATA HDDs + 4 x 2.5-inch NVMes
RAID
  • RAID 0, 1, 10, 5, 50, 6, or 60
  • (Optional) Configured with a supercapacitor or Battery Backup Unit (BBU) for power-off protection
LOM Network Ports 2 GE or 4 GE ports, or 2 x 10 GE ports
PCIe Expansion Up to 8 PCIe slots (including one for RAID)
Fan Modules 5 hot-swappable fan modules in N+1 redundancy mode
Power Supply Units
  • 2 hot-swappable PSUs in 1+1 redundancy mode
  • 4 hot-swappable PSUs in 2+2 redundancy mode
Management
  • Provides independent ports; supports standard management interfaces, such as SNMP and IPMI; provides GUI, remote KVM, virtual media, SOL, Predictive Failure Analysis (PFA), intelligent power supply, remote control, and hardware monitoring
  • Supports Huawei eSight management software and integration with third-party management systems, such as VMware vCenter, Microsoft System Center, and Nagios
Operating Temperature 5ºC to 40ºC (41ºF to 104ºF), ASHRAE Class A3 compliant
