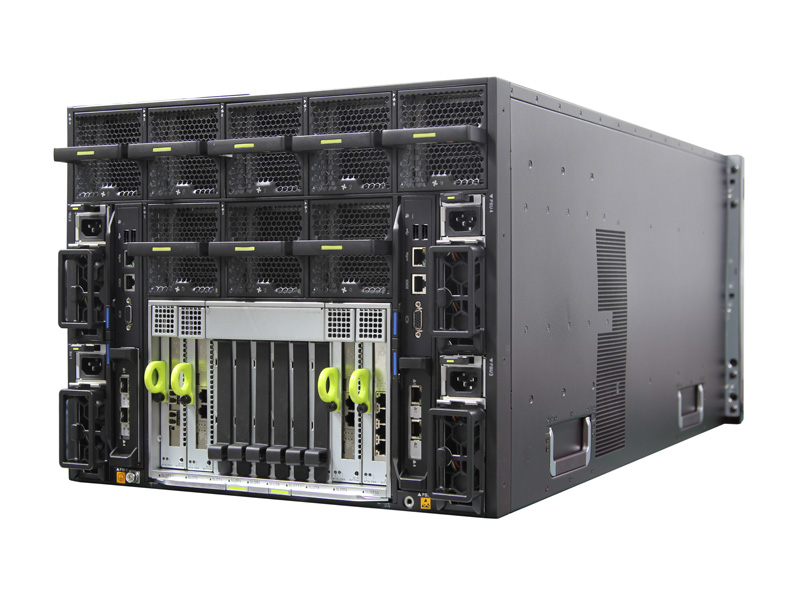

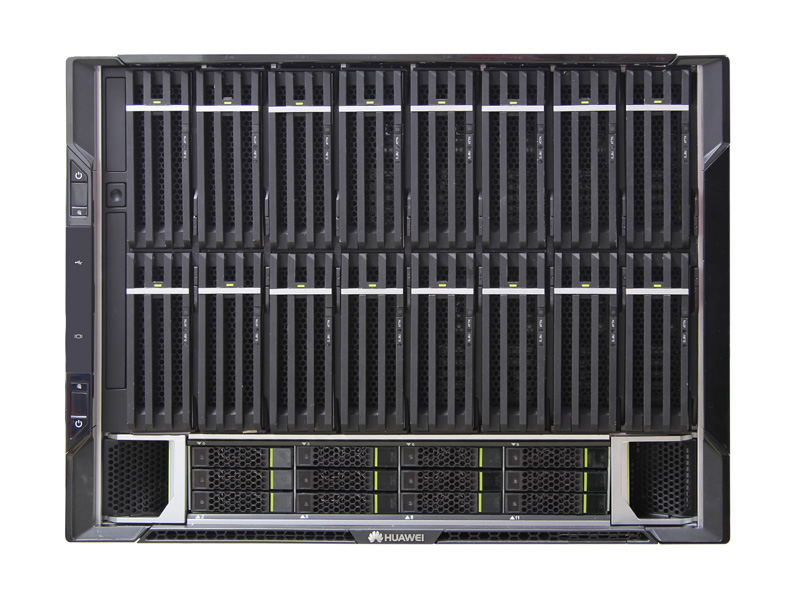

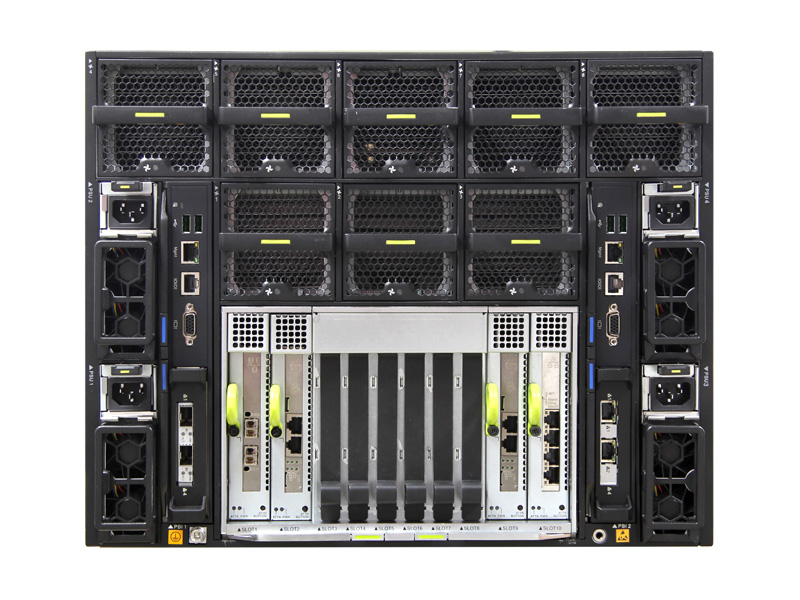

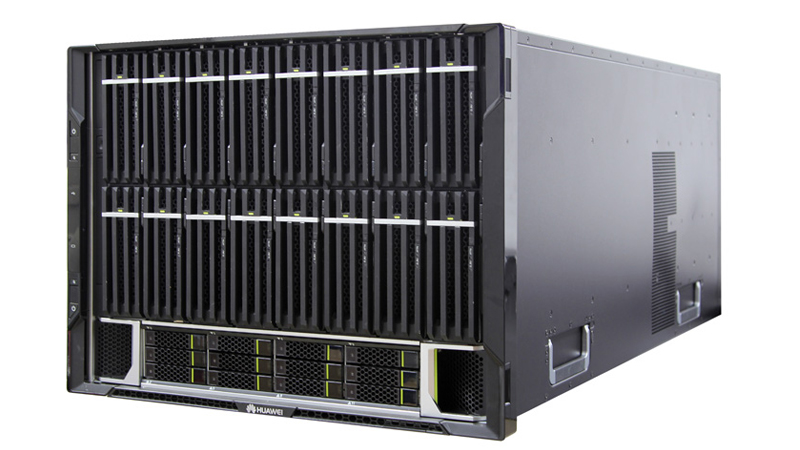

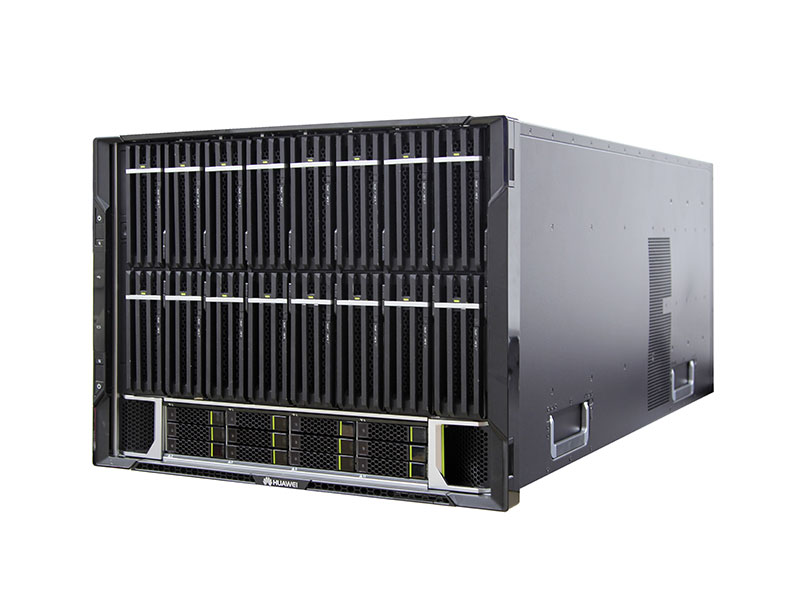

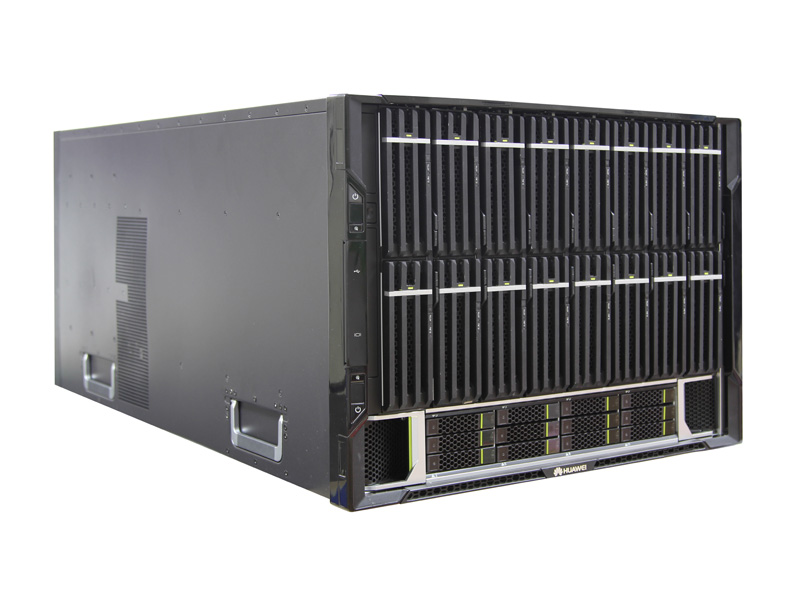

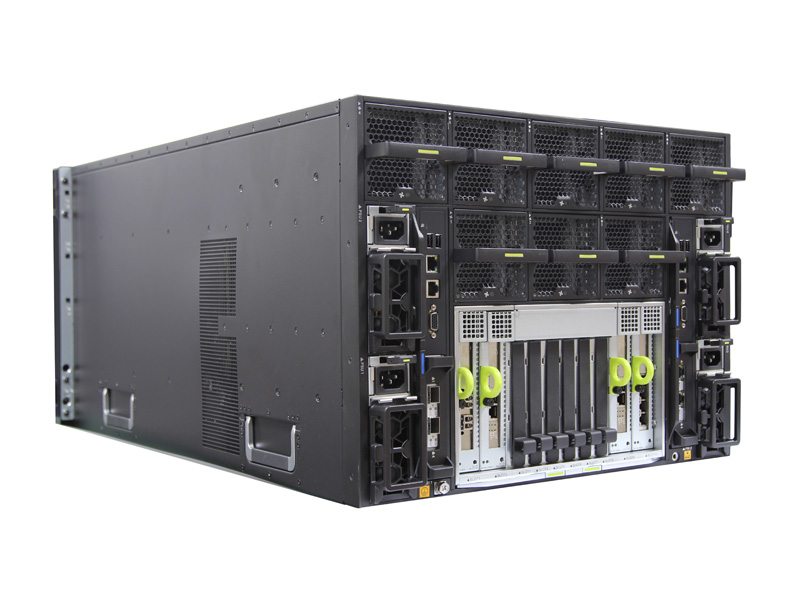

FusionServer RH8100 V3 Rack Server

With up to eight Intel® Xeon® E7-8800 v3/v4 series processors and industry-leading architecture, Huawei’s FusionServer RH8100 V3 provides robust computing performance and scalability. The RH8100 V3 server is ideal for mission-critical applications, either as a single instance database or a cluster of multiple 8-socket servers.

Up to 60 Reliability, Availability, and Serviceability (RAS) features ensure rock-solid system stability and reliability. Hardware partitioning technology addresses future processing requirements, maximizes resource utilization and ensures high ROI.

Rely on Huawei’s RH8100 V3 server for mission-critical services and data mining analytics.

intel-enHuawei server with Intel® Xeon® processor.
Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and/or other countries.

Features

Eight-socket rack server provides high reliability for mission-critical applications

  • Sixty RAS features ensure reliability and availability. Memory migration technology allows module replacement with no shutdown. FusionPar technology partitions RH8100 V3 into two 4-socket servers
  • Redundant components ensure high availability. Smart layout and thermal design enable operation in 40°C (104°F) ambient temperature environments
  • Eight Intel® Xeon® E7-8800 v3 series processors increase computing performance significantly. Supports 192 DDR4 DIMMs with up to 12 TB memory capacity
  • Modular blocks ensure convenient maintenance and upgrades. Huawei BMC chip provides comprehensive remote device management, monitoring, configuration, and fault locating and analysis

Specifications

Specifications

Processors 4 or 8 Intel® Xeon® E7-8800 v3/v4 series processors
Memory 192 DIMMs with up to 12 TB memory capacity
Internal Storage Hard disk configurations:

  • 8 x 2.5-inch SAS/SATA HDDs, SSDs or NVMes
  • 12 x 2.5-inch SAS/SATA HDDs or SSDs
  • 24 x 2.5-inch SAS/SATA HDDs or SSDs
RAID RAID 0, 1, 10, 5, 50, 6, or 60
LOM Network Ports 2 LOM mezzanine cards, with up to 8 GE ports or 4 x 10 GE ports
PCIe Expansion Up to 18 PCIe 3.0 slots (2 for RAID)
Fan Modules 8 hot-swappable fan modules in N+1 redundancy mode
Power Supply Units 4 hot-swappable PSUs in 2+2 redundancy mode

  • 2,000W or 3,000W AC PSUs
  • 2,500W DC PSUs
Management
  • Provides independent ports; supports standard management interfaces, such as SNMP and IPMI; provides GUI, remote KVM, virtual media, SOL, Predictive Failure Analysis (PFA), intelligent power supply, remote control, and hardware monitoring; integrates a touchscreen LCD diagnosis panel
  • Supports Huawei eSight management software and integration with third-party management systems, such as VMware vCenter and Microsoft System Center
Operating Temperature 5ºC to 40ºC (41ºF to 104ºF), ASHRAE Class A3 compliant
