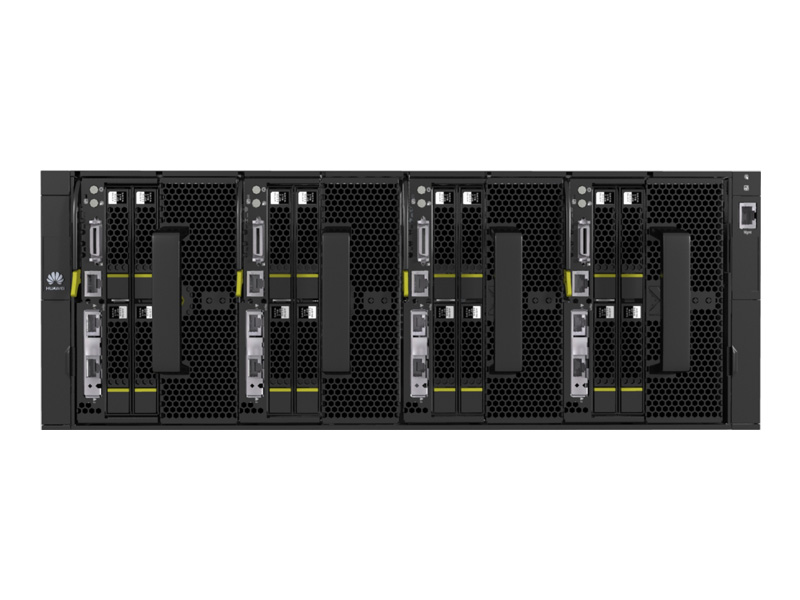

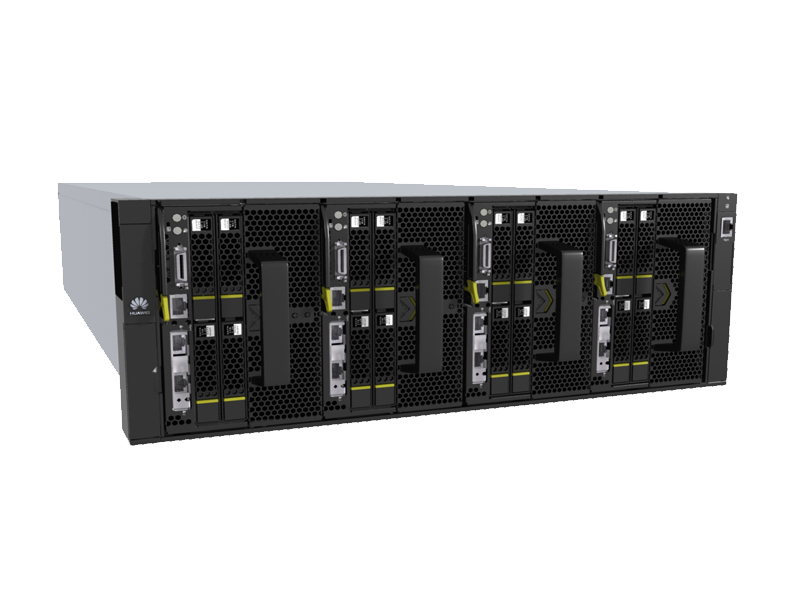

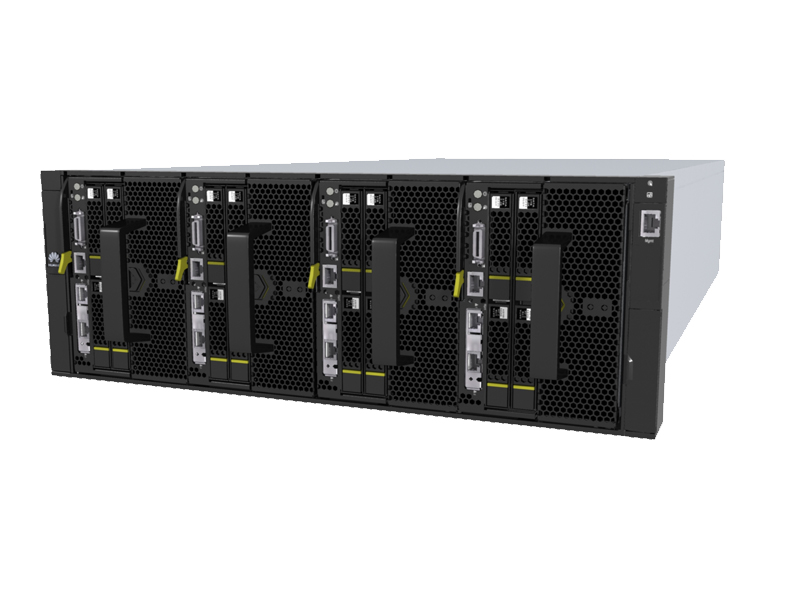

FusionServer X6800 Data Center Server
A next-generation data center server optimized to implement all aspects of business into one solution. This server provides a broad portfolio of server nodes with different specifications to flexibly provide service applications for computing, storage, and I/O resources.
FusionServer X6800, with an advanced architecture, is designed for various applications such as cloud computing and Big Data, and is the optimal choice for IT infrastructure of a cloud data center.
Huawei server with Intel® Xeon® processor.
Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and/or other countries.
Provides high performance, large local storage space, and supports SSD technologies

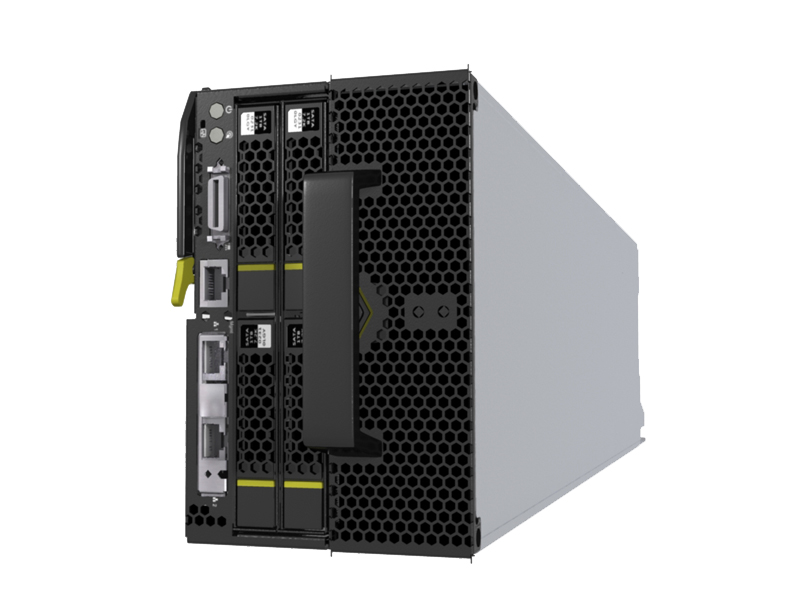

- Supports a variety of high-density server nodes in a 4U chassis
- Allows flexible configuration of compute, storage, and GPU acceleration nodes to meet different service requirements
- LOM network port supports 2 x GE, 4 x GE, 2 x 10 GE, 2 x GE + 2 x 10 GE, 2 x 10G Base-T or 2 x 56G IB
- Supports centralized power supply, high-voltage DC, with little internal cabling
- Reduces system-level power consumption with optimal heat dissipation design, uses a double-faced cellular board, and supports airflow separation between server nodes and PSUs
Specifications
| Specifications | X6800 |
| Form Factor | 4U multi-node server |
| PCIe Expansion | 8 rear PCIe slots |
| PSU | Four redundant AC PSUs (750W/1,200W/1,500W) or four redundant DC PSUs (800W) |
| Fans | 5 fan modules in N+1 redundancy mode |
| Management |
|
| Power Supply |
|
| Operating Temperature | 5°C to 40°C (41°F to 104°F), ASHRAE Class A3 compliant |
| Certifications | CE, UL, FCC, CCC, and RoHS |
| Dimensions (H x W x D) | 170 mm x 447 mm x 898 mm (6.69 in. x 17.60 in. x 35.35 in.) |
