FusionServer XH620 V3 Server Node

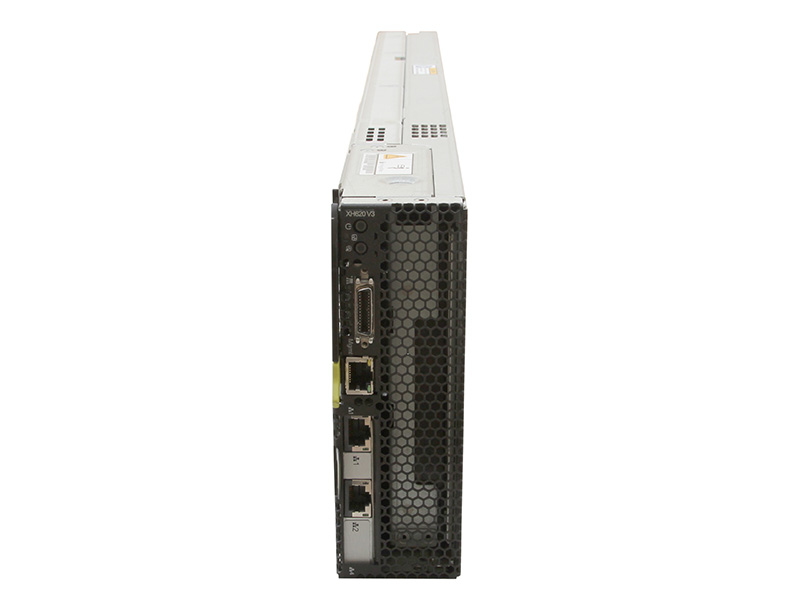

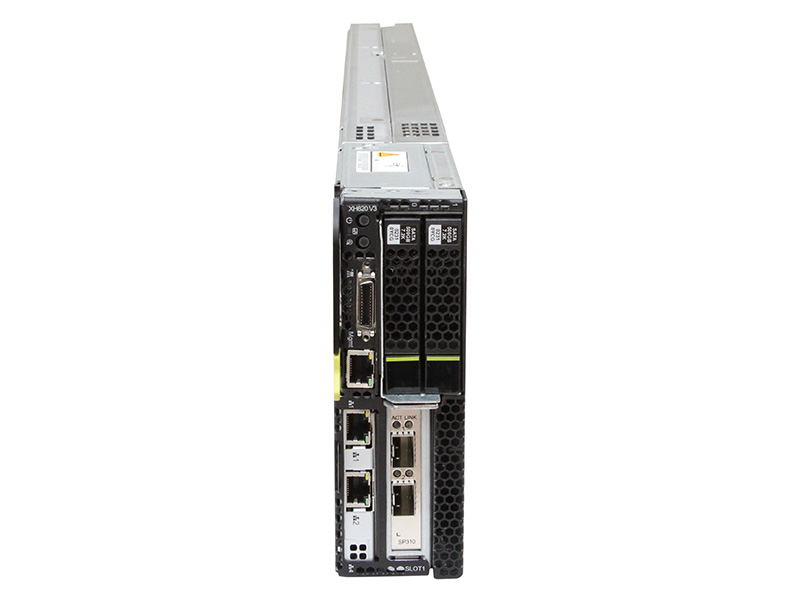

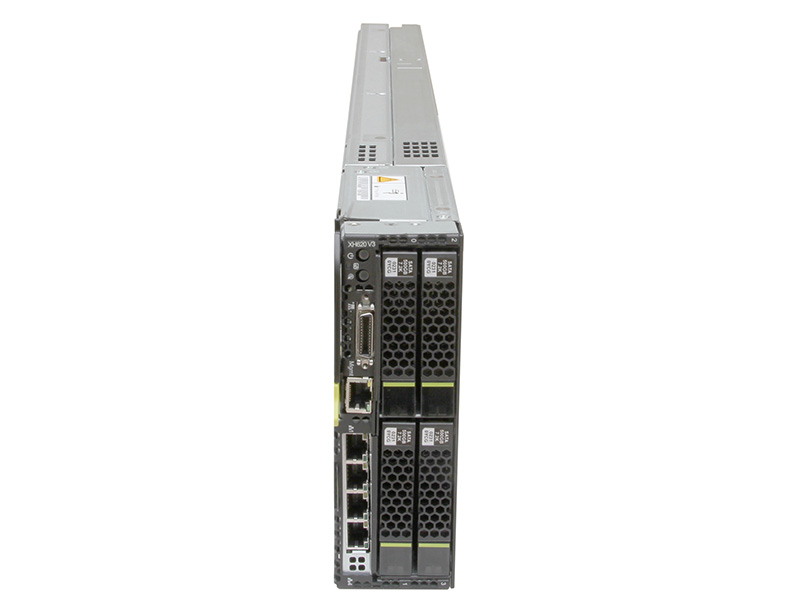

Huawei FusionServer XH620 V3 Server Node (XH620 V3 for short) is a full-height dual-socket server node occupying one slot in an X6800 server. It uses Intel® Xeon® E5-2600 v3/v4 series processors and supports 16 DDR4 low-voltage DIMMs. The XH620 V3 is suitable for applications that require high-density computing servers, such as web access, hosting, and virtualization. Improve energy efficiency while saving space.

intel-enHuawei server with Intel® Xeon® processor.
Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and/or other countries.

Features

Provides high density, leading performance, and flexible configuration

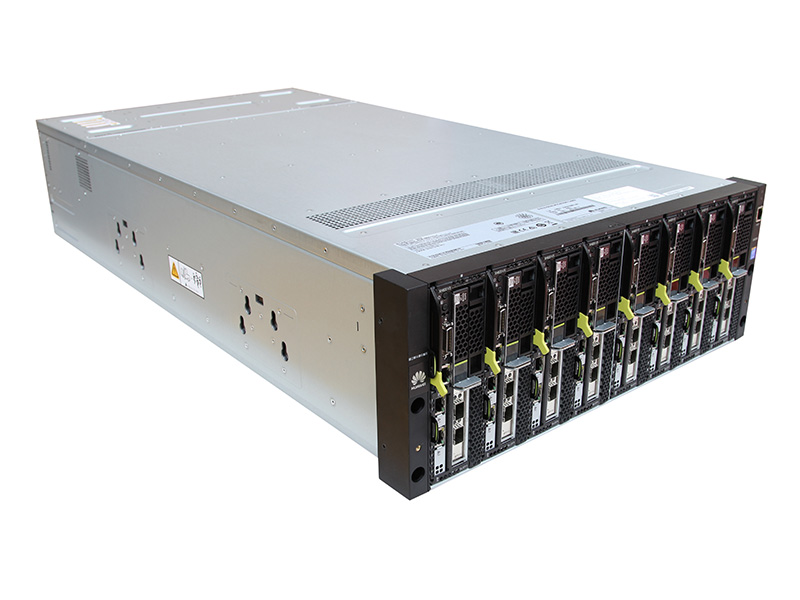

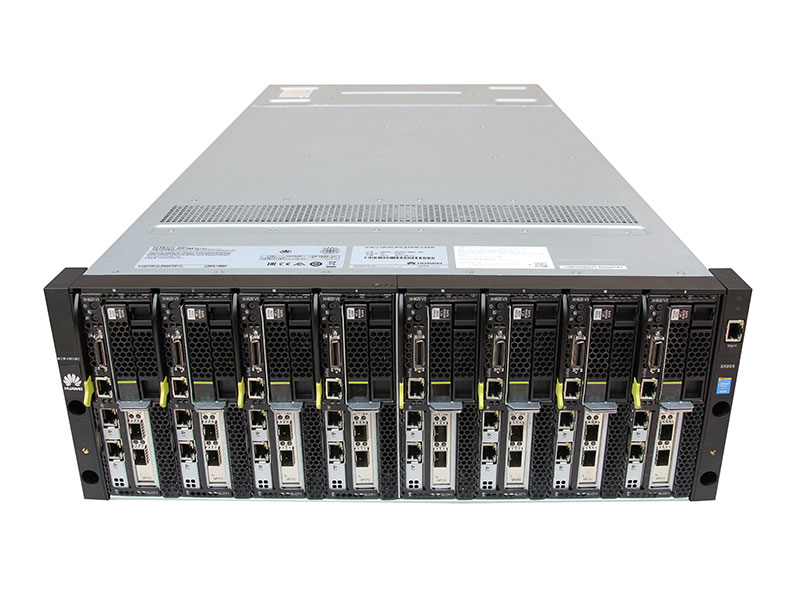

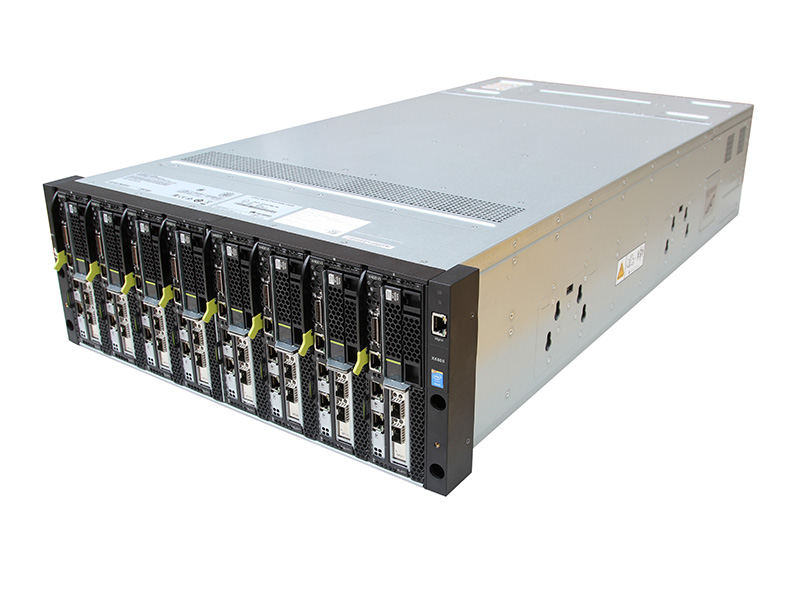

  • Eight XH620 V3 server nodes can be deployed in a 4U space, saving up to 50% equipment footprint compared with 1U rack servers
  • Each XH620 V3 supports up to two Intel® Xeon® E5-2600 v3/v4 series processors that support a maximum frequency of 3.5 GHz and a maximum L3 cache capacity of 55 MB, providing excellent computing performance
  • A 4U chassis can hold eight XH620 V3 server nodes that support up to 352 CPU cores and 704 threads. Each XH620 V3 supports Intel’s hyper-threading technology, boosting performance for multi-threaded applications
  • Each XH620 V3 supports 16 DDR4 DIMMs and supports the memory bandwidth of up to 153.6 Gbit/s, providing excellent data processing speed

Specifications

Specifications

Form Factor Full-height, dual-socket server node occupying one slot
Number of Processors 1 or 2
Processor Intel® Xeon® E5-2600 v3/v4 processor
Memory 16 DDR4 DIMM slots
Local Storage Four or two 2.5-inch SSDs or SAS/SATA HDDs or two 3.5-inch SAS/SATA HDDs

Two mini-SSDs (SATA DOMs)

One USB flash drive
LOM Network Ports 2 x GE, 4 x GE, 2 x 10 GE, 2 x GE + 2 x 10 GE, 2 x 10G Base-T or 2 x 56G IB
PCIe Expansion Up to 3 PCIe slots
OSs Supported Citrix XenServer

Microsoft Windows Server

Oracle Enterprise Linux

Oracle Server VM

Red Hat Enterprise Linux

SUSE Linux Enterprise Server

VMware ESXi
Operating Temperature* 5ºC to 40ºC (41ºF to 104ºF), ASHRAE Class A3 compliant
Certifications CE, UL, FCC, and RoHS
Dimensions (H x W x D) 166 mm x 54 mm x 670 mm

*Note: If the XH620 V3 is configured with two 2.5-inch or 3.5-inch hard disks, the operating temperature ranges from 5ºC to 40ºC, and if it is configured with four 2.5-inch hard disks, the operating temperature ranges from 5ºC to 35ºC
