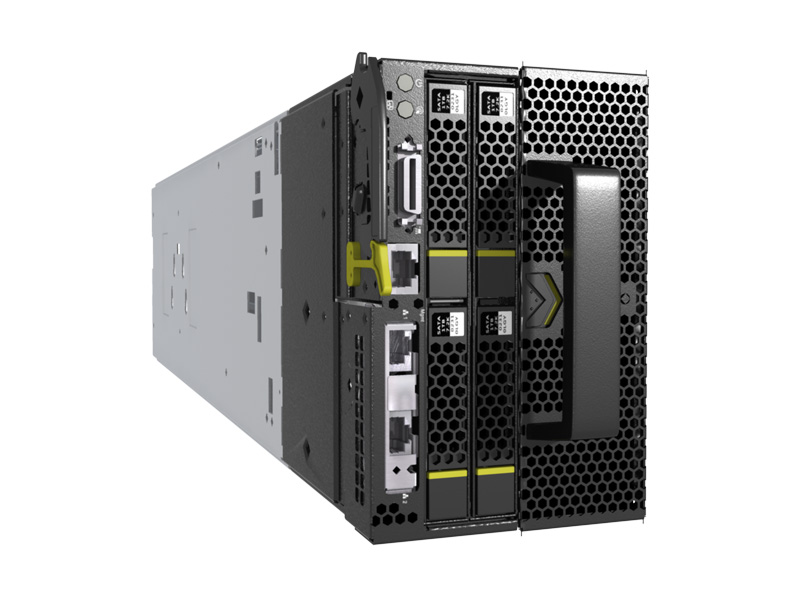

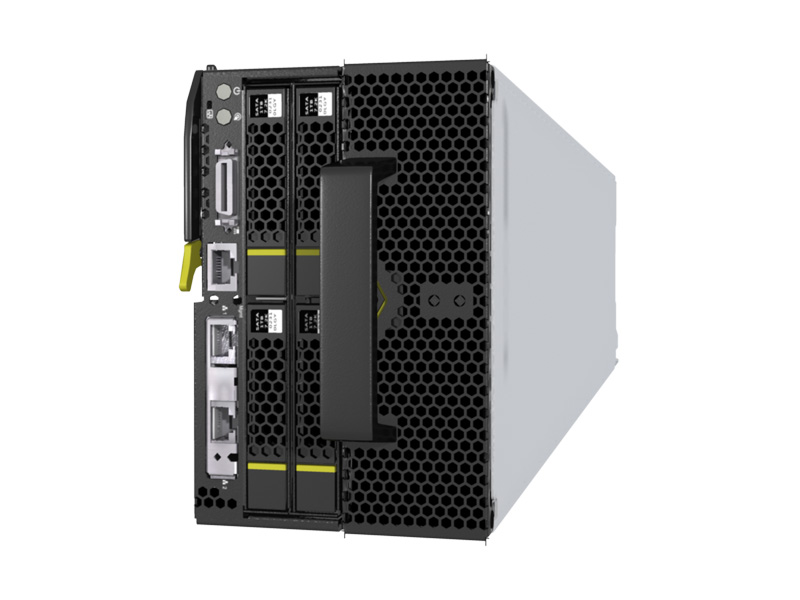

FusionServer XH622 V3 Server Node

A high-performance, full-height dual-socket server node, occupies two slots in a Huawei X6800 server. XH622 V3 uses Intel® Xeon® E5-2600 v3/v4 series processors, supports 16 DDR4 memory slots and four 2.5-inch SSDs, SAS, or SATA HDDs. XH622 V3 provides two dual-slot GPGPUs or Xeon-Phi cards.

XH622 V3 server nodes are used in Huawei ES3000 storage acceleration solution for applications such as High-Performance Computing (HPC), graphics acceleration, and online games.

intel-enHuawei server with Intel® Xeon® processor.
Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and/or other countries.

Provides high density, high performance, and low equipment footprint

  • Minimizes space requirements with server nodes sharing fan modules and PSUs in a 4U4 chassis, occupies fifty percent less space than a traditional 2U rack server
  • Supports up to two Intel® Xeon® E5-2600 v3/v4 series processors

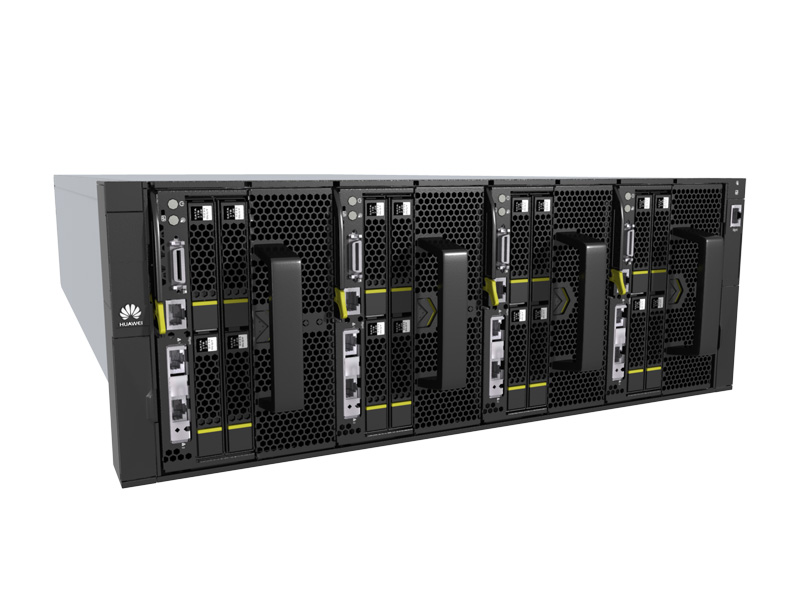

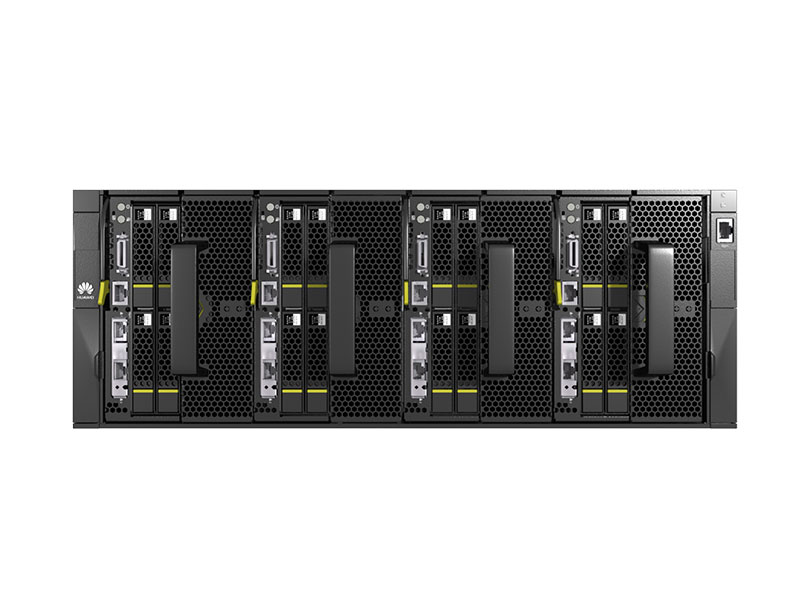

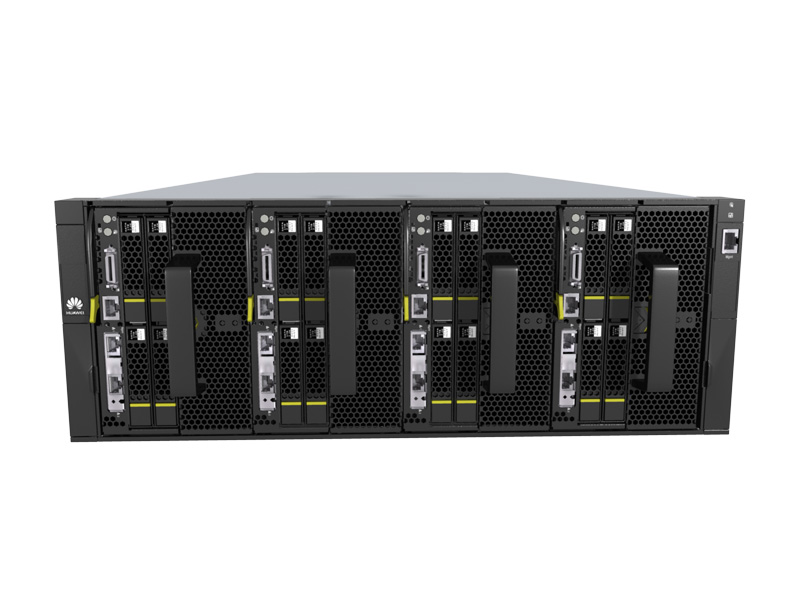

  • A 4U server can hold four XH622 V3 nodes and 8 high-performance GPGPUs or Xeon-Phi cards, offering 28 TeraFLOPS and calculation peak performance of 28 trillion times


Specifications XH622 V3
Form Factor Full-height 2-socket server node occupying two slots
Number of Processors 1 or 2
Processor Intel® Xeon® E5-2600 v3/v4 series processors
Memory 16 DDR4 DIMMs
Internal Storage
  • 4 x 2.5-inch SAS/SATA HDDs or SSDs
  • 2 x Mini-SSDs (SATA DOMs)
  • 1 x USB flash drive
LOM Network Ports 2 x GE, 4 x GE, 2 x 10 GE, 2 x GE + 2 x 10 GE, 2 x 10G Base-T or 2 x 56G IB
PCIe expansion Up to 5 PCIe slots
Management Built-in iBMC:

  • IPMI, SOL, KVM over IP, and virtual media
  • One 10/100/1,000 Mbit/s RJ45 management network port
Operating Systems Supported
  • Citrix XenServer
  • Microsoft Windows Server
  • Oracle Enterprise Linux
  • Oracle Server VM
  • Red Hat Enterprise Linux
  • SUSE Linux Enterprise Server
  • VMware ESXi
Operating Temperature 5°C to 40°C (41°F to 104°F), ASHRAE Class A3 compliant
