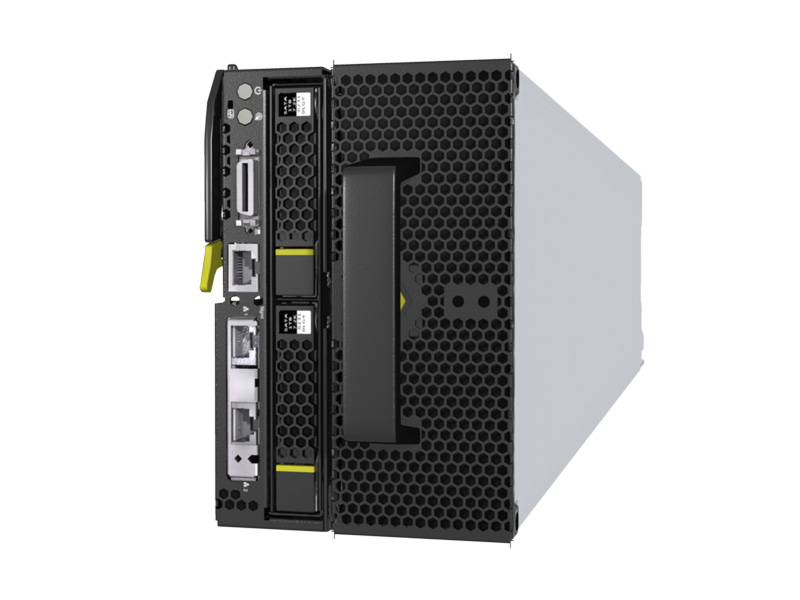

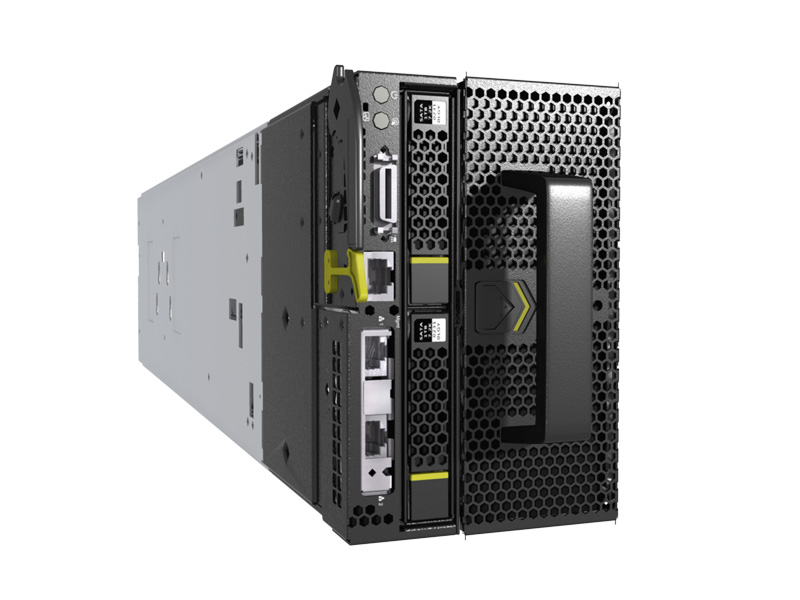

FusionServer XH628 V3 Server Node

A full-height, dual-socket server node which occupies two slots in a Huawei X6800 server.

XH628 V3 uses Intel® Xeon® E5-2600 v3/v4 series processors, supports 16 DDR4 memory slots. XH628 V3 can be configured with twelve 3.5-inch SAS or SATA HDDs, or 2.5-inch SSDs, SAS, or SATA HDDs and two 2.5-inch SSDs or SATA HDDs.

FusionServer XH628 V3 server nodes can be used in a Huawei ES3000 storage acceleration solution for applications like cloud computing, data centers, Big Data.

intel-enHuawei server with Intel® Xeon® processor.
Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and/or other countries.

Provides high density and large capacity which is ideal for distributed, large-capacity storage solutions

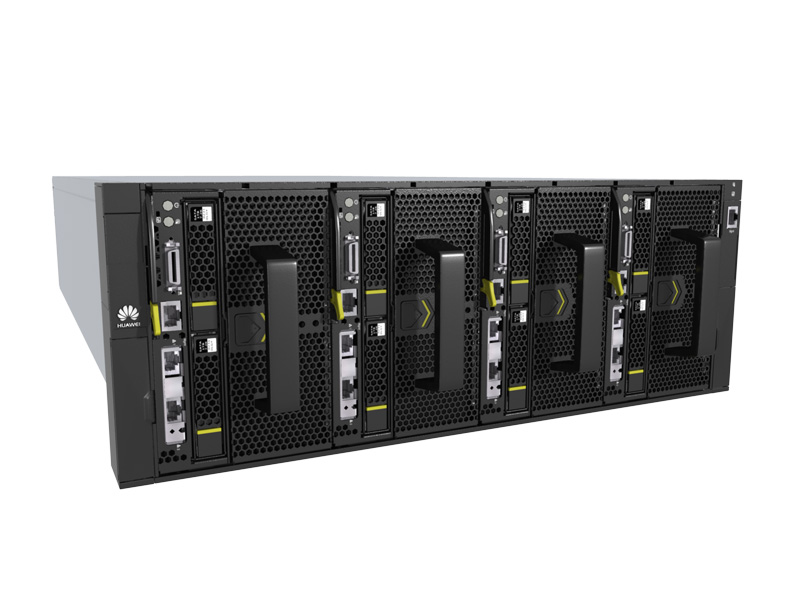

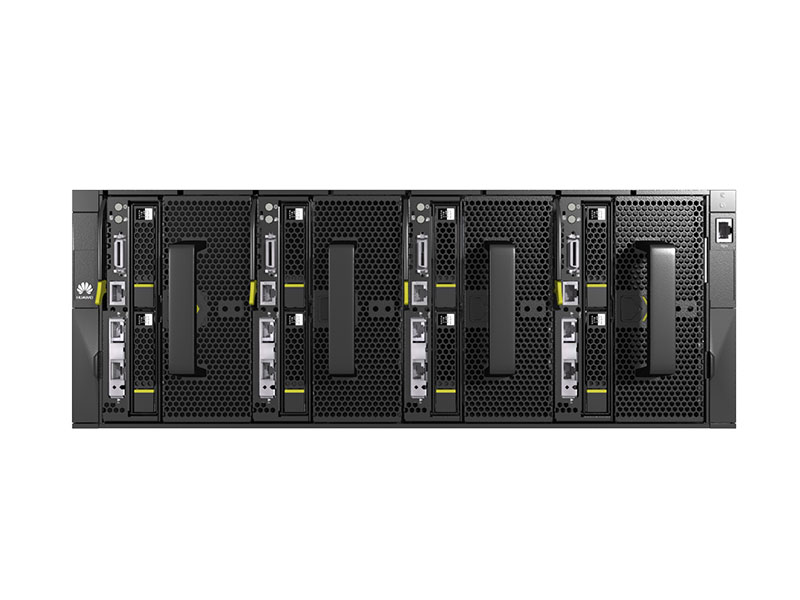

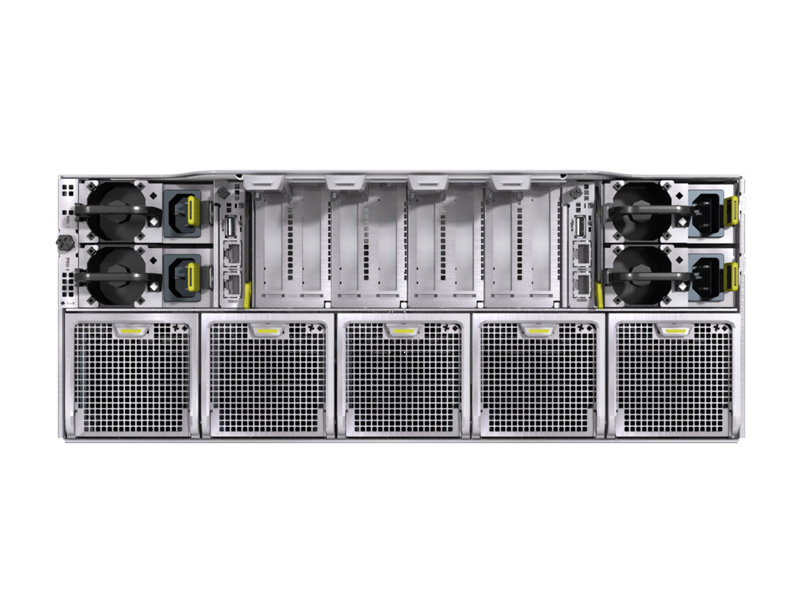

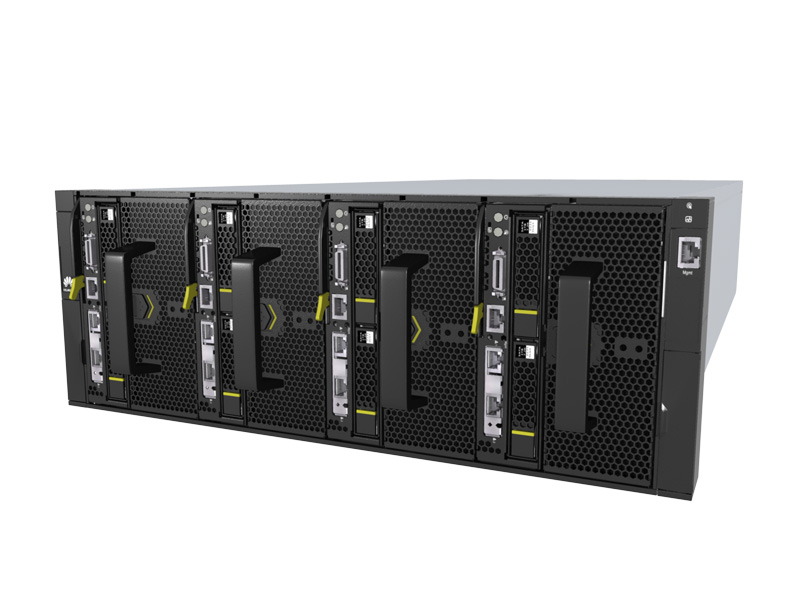

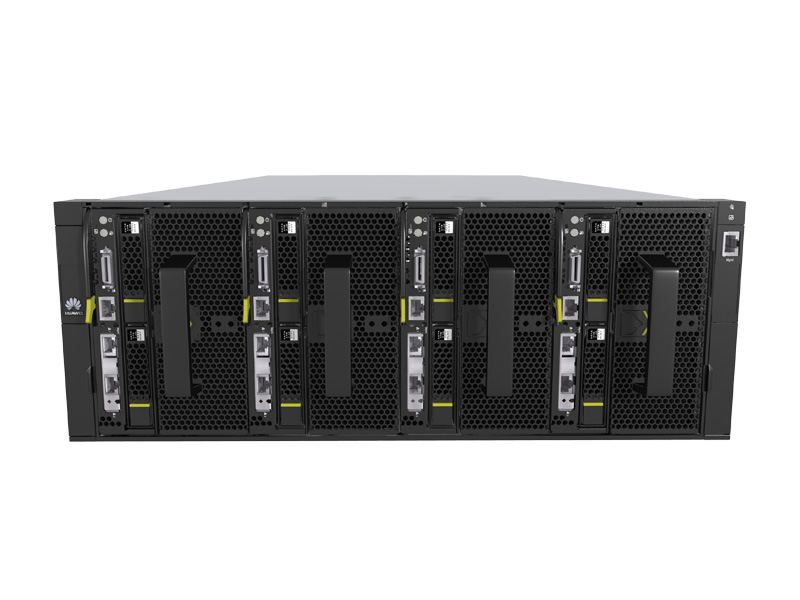

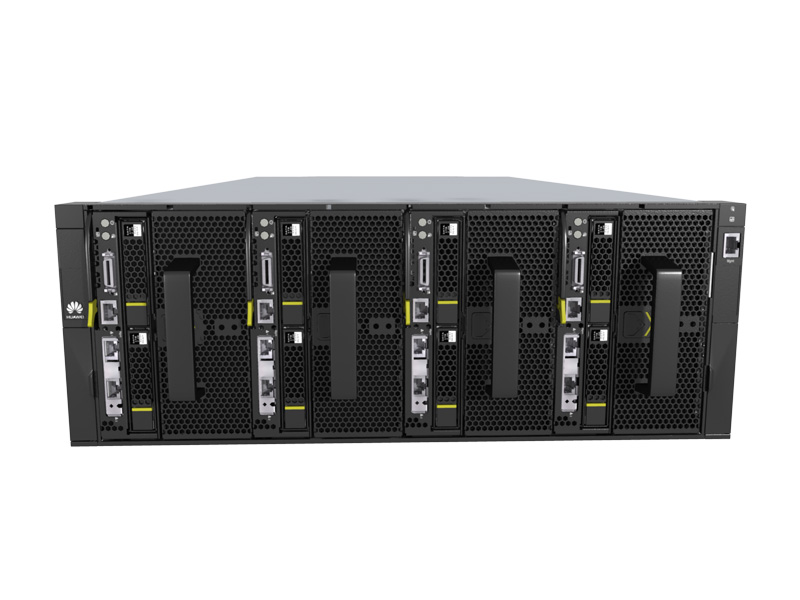

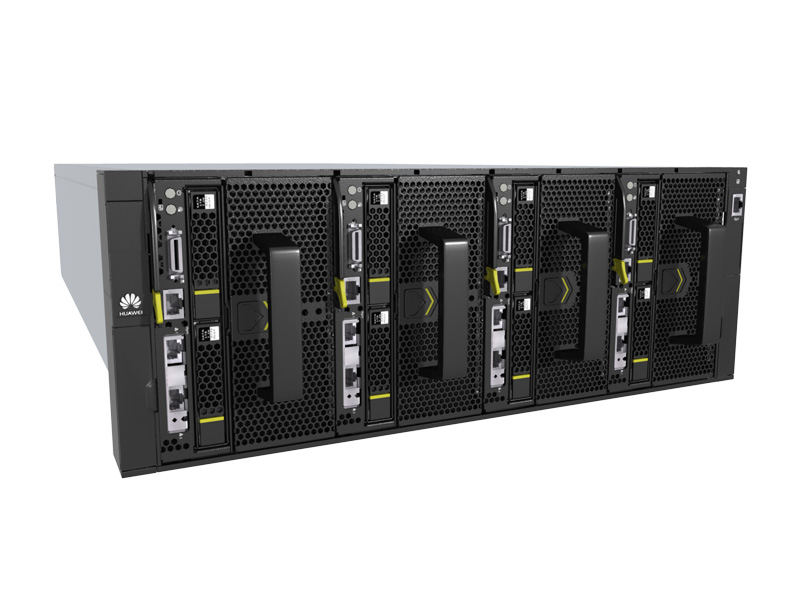

  • Four XH628 V3 server nodes can be deployed in 4U space, saving up to fifty percent equipment footprint compared with conventional 2U rack servers, and uses chassis PSUs and fan modules
  • Supports up to four Huawei ES3000 PCIe storage cards and offers 1.56 million IOPS, which is equivalent to 1,500 mainstream SAS HDDs
  • A cabinet can be configured with a maximum of 40 XH628 V3 nodes, with a maximum capacity of 400 TB

Specifications

Specifications XH628 V3
Form Factor Full-height, 2-socket server node occupying two slots
Number of Processors 1 or 2
Processor Intel® Xeon® E5-2600 v3/v4 series processors
Memory 16 DDR4 DIMMs
Internal Storage
  • 12 x 3.5-inch hot-swappable SAS/SATA HDDs or 2.5-inch hot-swappable SAS/SATA HDDs or SSDs
  • (Optional) 2 x 2.5-inch SATA HDDs or SSDs
  • 2 x Mini-SSDs (SATA DOMs)
  • 1 x USB flash drive
LOM Network Ports 2 x GE, 4 x GE, 2 x 10 GE, 2 x GE + 2 x 10 GE, 2 x 10G Base-T, or 2 x 56G IB
PCIe Expansion Up to 5 PCIe slots
Management Built-in iBMC:

  • IPMI, SOL, KVM over IP, and virtual media
  • One 10/100 Mbit/s RJ45 management network port
Operating Systems Supported
  • Citrix XenServer
  • Microsoft Windows Server
  • Oracle Enterprise Linux
  • Oracle Server VM
  • Red Hat Enterprise Linux
  • SUSE Linux Enterprise Server
  • VMware ESXi
Operating Temperature 5ºC to 40ºC (41ºF to 104ºF), ASHRAE Class A3 compliant
