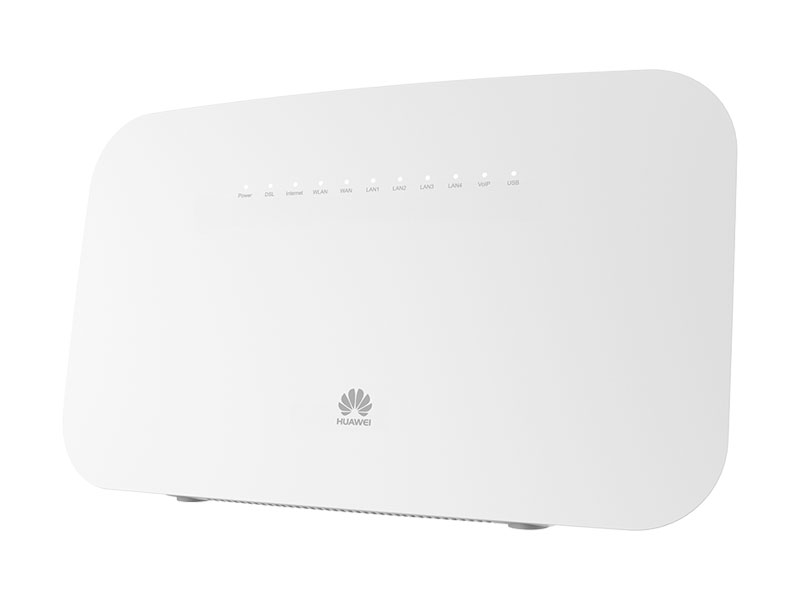

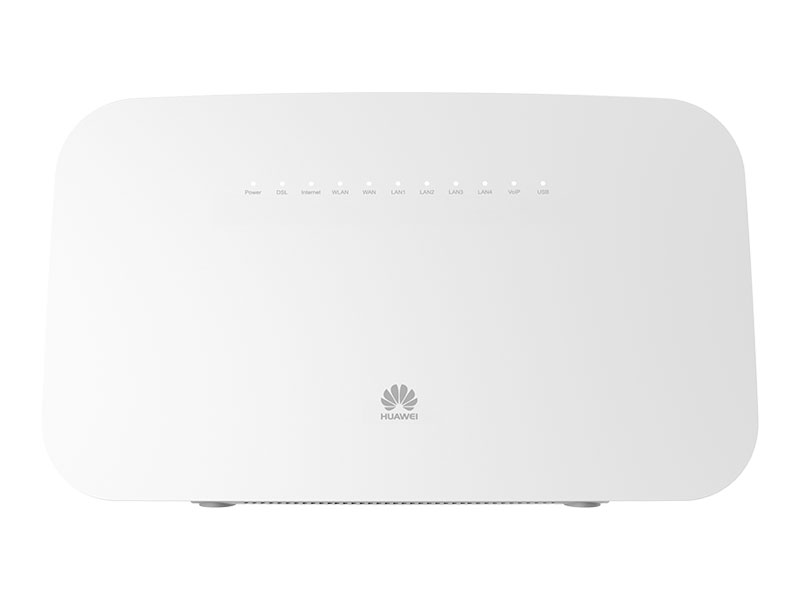

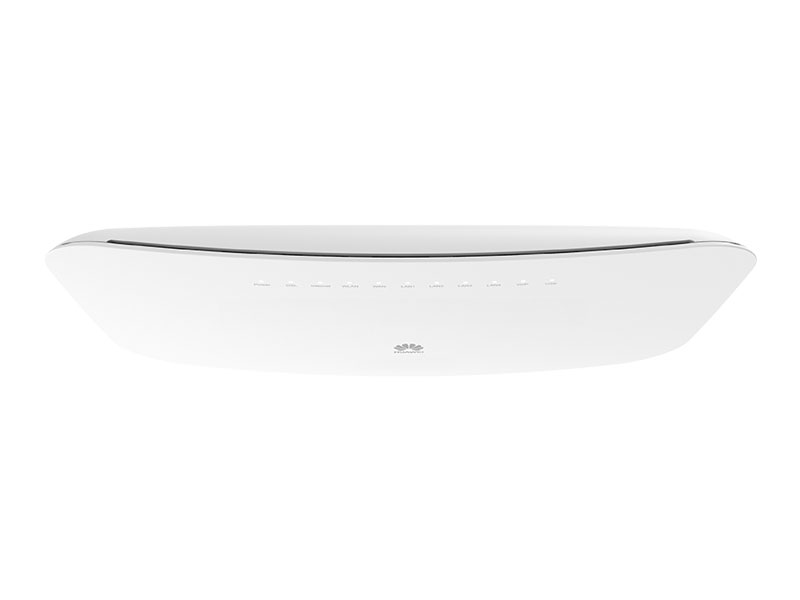

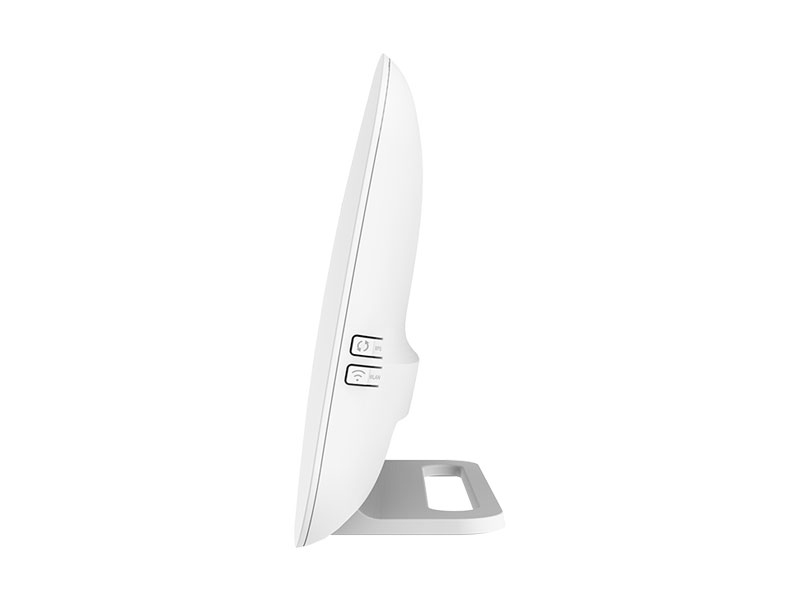

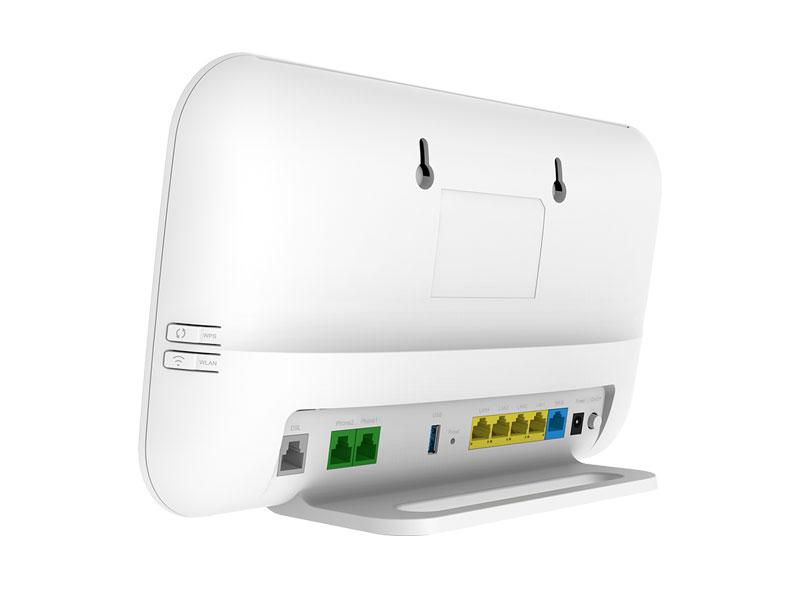

Huawei DN8245W-10 Gateway
The Huawei DN8245W-10 functions as a SuperVector home gateway in Huawei’s Giga Copper solution. The DN8245W-10 helps to reduce the OPEX of ultra-broadband networks by using SuperVector technologies, and it provides ultra-broadband access for home users. It offers 1 DSL upstream port, 1 GE Ethernet upstream port, 2 FXS voice ports, 4 GE Ethernet downstream ports, 1 USB port, and 2.4G/5G Wi-Fi. Thanks to these ports, the DN8245W-10 delivers high-performance forwarding capabilities and effectively ensures an excellent voice, data, and HD video service experience. It facilitates ideal terminal solutions for FTTH deployment, and supports future-oriented services.
Huawei’s DN8245W-10 ensures faster access, better experience, and easier O&M
- Faster Access: Provides ultra-broadband access for home users by using SuperVector
- Better Experience: Provides high-performance dual-band Wi-Fi; 2.4G 3 x 3 & 5G ac 4 x 4 wave 2 MU-MIMO, ensuring excellent service experience over call, data, and HD video
- Easier O&M: Provides terminal-specific service provisioning solutions for copper line deployment and FTTH network construction; future-proof service support capabilities are also provided
| Specifications | DN8245W-10 |
| Dimensions (H x W x D) | 295 mm x 180 mm x 47 mm |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 5% RH to 95% RH (non-condensing) |
| Power Adapter Input | 100V to 240V AC, 50 Hz/60 Hz |
| System Power Supply | 12V DC, 3A |
| Network-side Ports | 1 x DSL/1 x GE |
| User-side Ports | 2 x FXS + 4 x GE + 2.4G/5G Wi-Fi + 1 x USB |
| Indicators | Power/DSL/Internet/WLAN/WAN/LAN1–LAN4/VoIP/USB |
