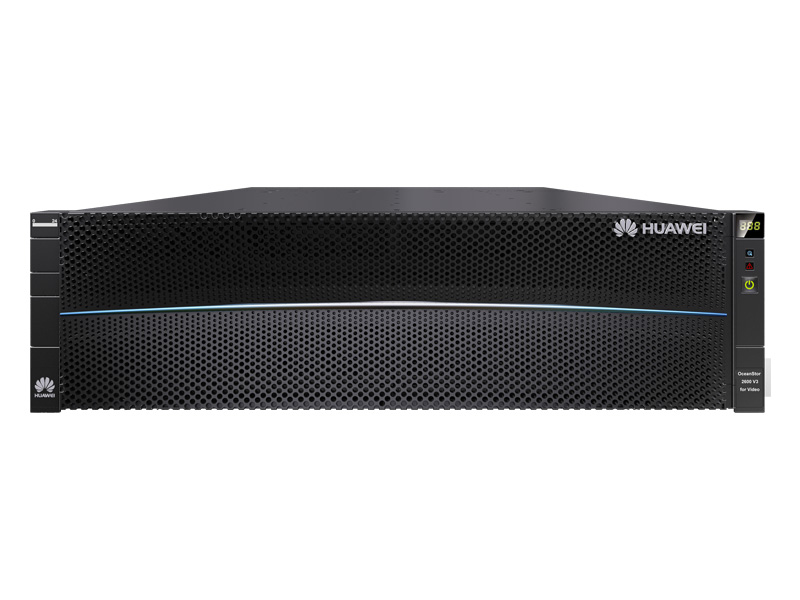

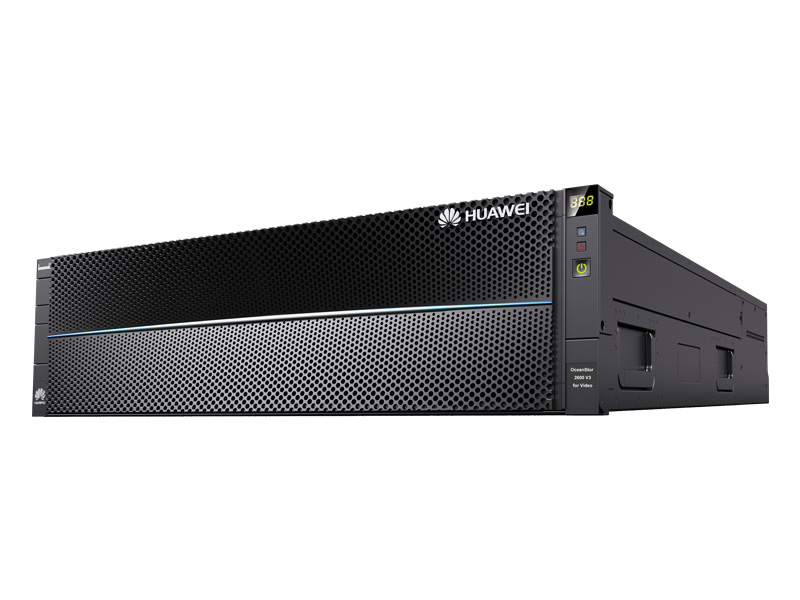

Huawei OceanStor 2600 V3 for Video
Specifically configured for video storage, efficient data protection measures are included.
Adopts an active-active dual-controller architecture, new-gen PCI-E 3.0 buses, and 12 Gbit/s SAS 3.0 high-speed disk ports, one device can house up to 396 disks.
The OceanStor 2600 V3 for Video supports a variety of video storage tasks and is ideal for Safe City, finance, and rail transportation applications.
Key Features
- Can support for 396 disks on a single device; Supports up to 1024 channels of 2Mbps recording and playback, support IP/FC SAN.
- Huawei proprietary SmartConfig automatically completes server mounting, LUN configurations, and other operations; storage resource configurations completed in three simple steps in less than one minute.
- GUI-based management tools; visualization of capacity, performance, fault, and other information; and support for a wide range of alarm handling procedures helps simplify management.
| Specifications | OceanStor 2600 V3 for Video |
| Video input and output capabilities (videos stored for 30 days) | Supports up to 1024 channels of 2Mbps recording and playback
Note: Specifications may vary depending on the ISV or VMS platform being used (check the project specifications for your site) |
| High-speed Cache Capacity | 32 GB (dual controllers) |
| Types of Ports | 1/10 Gbps Ethernet, 8/16 Gbps FC and SAS 3.0 (back-end I/O ports) |
| Max. Number of Disks | 396 |
| Maximum Number of Front-end
Ports per Controller |
10Gb Eth: 8, GE: 12 |
| Maximum Number of Hot-swappable
I/O Modules per Controller |
2 |
| Disk Types | 6 TB SATA disks |
| Supported RAID Levels | 0, 1, 3, 5, 6, 10, 50 |
| Easy Configuration | SmartConfig significantly simplifies configurations, allowing personnel to quickly learn how to configure devices without having to understand the complexities of the storage technology. |
