iManager NetEco6000 Data Center Management System

Huawei NetEco6000 is a data center management system for ISPs, operators, banks, government, large cloud data centers, vertical and financial systems, rail transportation, and other data center management scenarios.

NetEco6000 supports remote management and local mobile O&M for easy control.

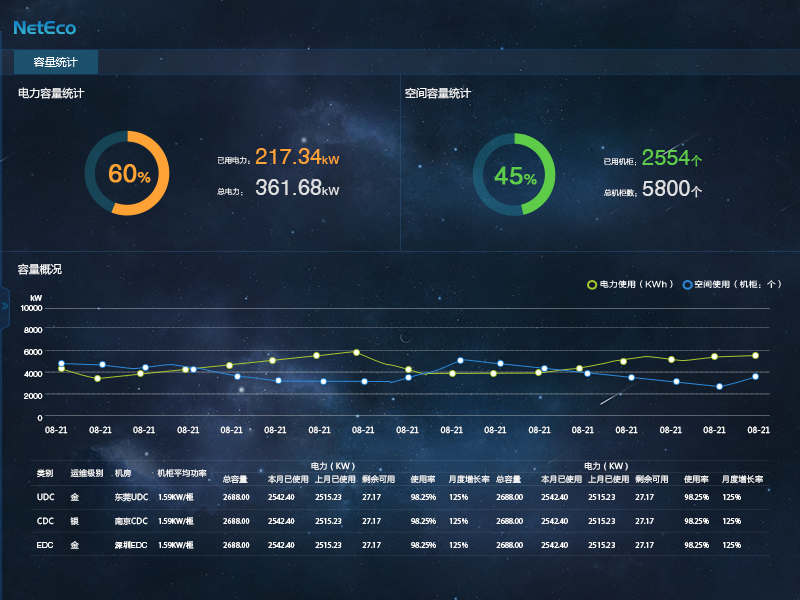

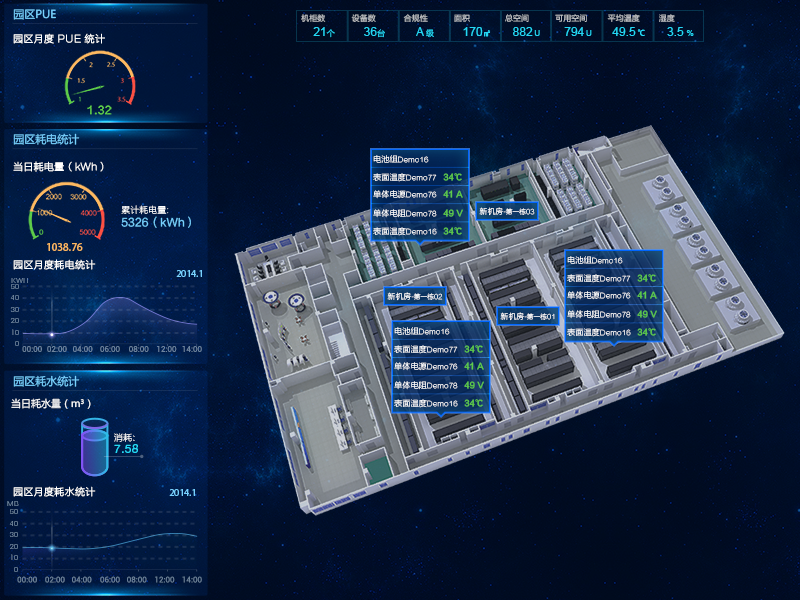

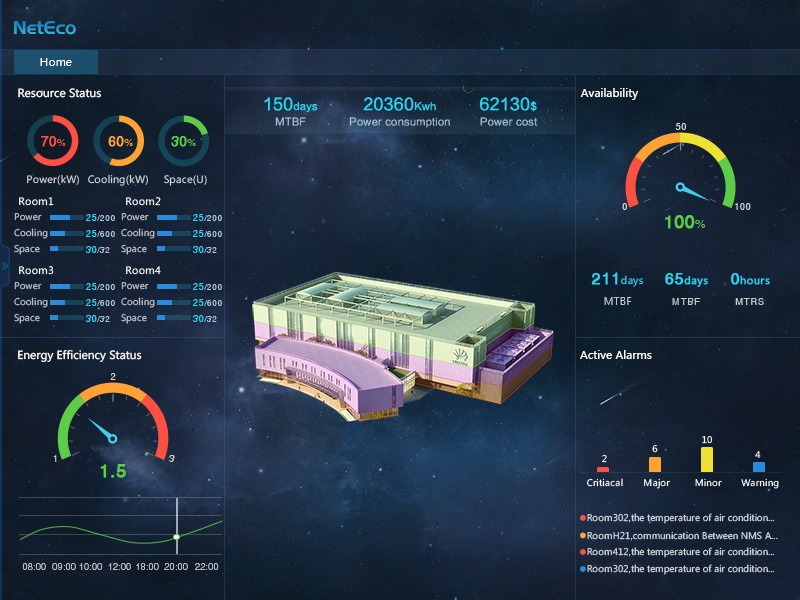

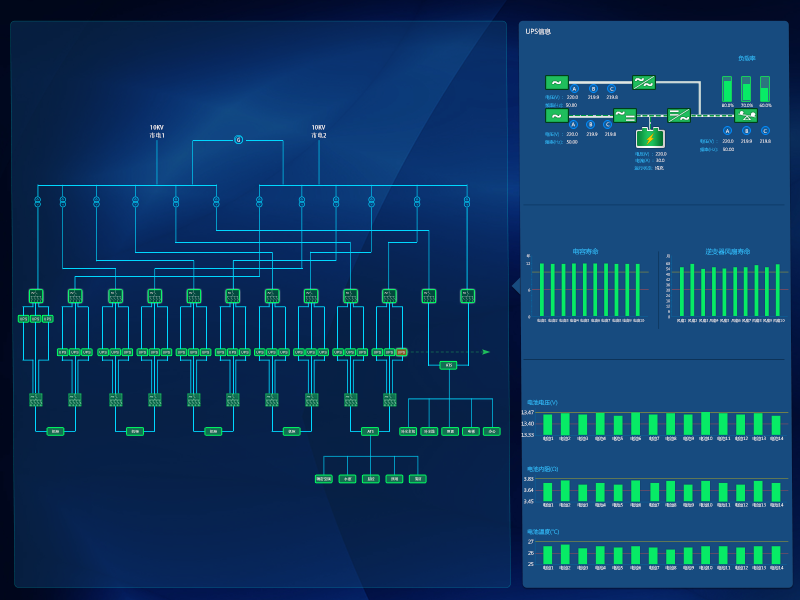

NetEco6000 provides a platform that enables flexible configuration, expansion, hierarchical management, and centralized power monitoring. It provides App management, energy management, capacity management, and work order management. Users can easily view real-time status updates for data center equipment, which helps customers achieve easy operation and maintenance.

Simple, efficient, and reliable data center management

  • Simple Simple delivery: Pre-installation automatically uploads device parameters, 90% reduced debugging time

    Simple usage: Scenario-specific UI design, simple web interface and App, simple operation

    Simple expansion: Online expansion

  •  Efficient Efficient resource usage: Asset life-cycle management, balanced power planning, full utility from capacity resources in the data center

    Efficient O&M: Remotely updates device software, automatically filters invalid alarms, guides maintenance processes, automatically publishes maintenance reports

  • Reliable Reliable data center: Collects data every second, pre-alarm for components, fast fault detection

    Reliable system: Data encryption during analysis, transmission and storage, reinforcement design of OS and DB, anti-virus and vulnerability scanning tests

Specifications

Items Specification
System Capacity RH2288 simple configuration RH2288 medium configuration RH5885 high configuration
500 smart nodes, 20,000 parameters 1,000 smart nodes, 100,000 parameters 5,000 smart nodes, 400,000 parameters
Platform Function B/S, online help
Networking Solution IP Networking
Southbound Interface SNMP, Modbus, etc.
Northbound Interface SNMP, Webservice, C interface, etc.
ECC500 Maximum support 20 RS485 communication interfaces or 128 AI/DI access (chosen Independent Deployment AI/DI Module)
