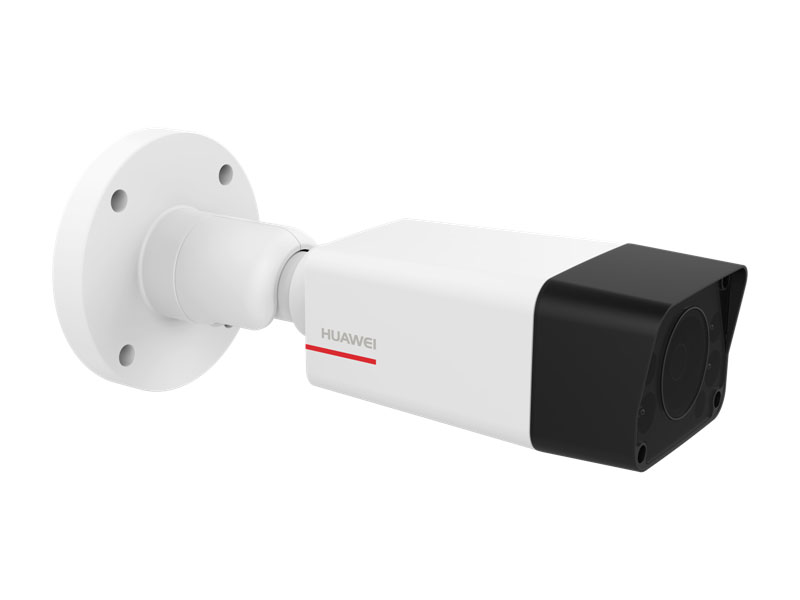

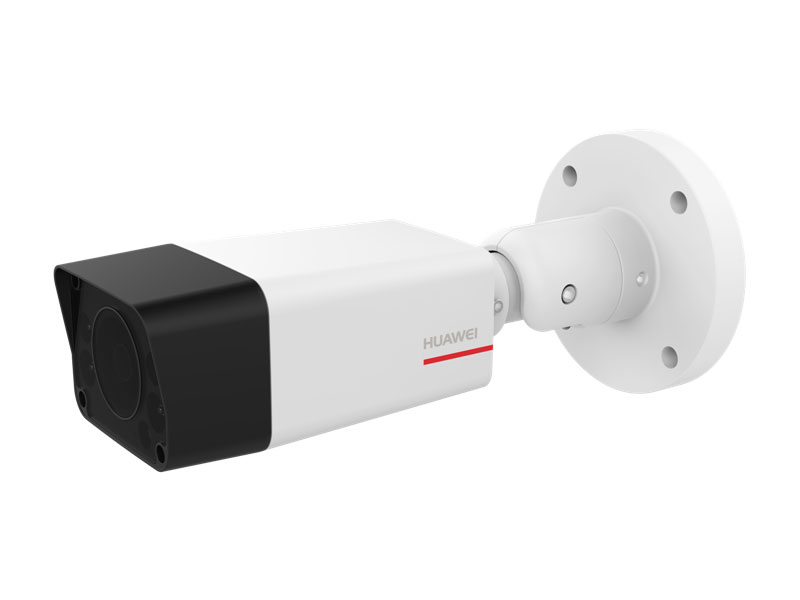

IPC6224-IR 2-Megapixel IR Fixed Bullet IPC
The IPC6224-IR camera uses H.265 encoding technology, greatly reducing the transmission and storage cost. It supports the following functions:
- Intelligent infrared light control, wide dynamic range, and intelligent defog
- IP66 rating
- DC/PoE power supply modes
- Ultra-wide voltage range
The IPC6224-IR camera delivers high-quality images even in poor lighting conditions, such as for roads, warehouses, underground parking lots, bars, and campuses.
H.265, super WDR, HD image quality, ultra-low bit rate
- Offers industry-leadingw wide dynamic range (120 dB) that is especially beneficial in harsh environments where strong contrast is an issue; enables details in both bright and dark areas to be visible
- Automatic defog enables the camera to deliver crisp and crystal clear images even in harsh weather conditions

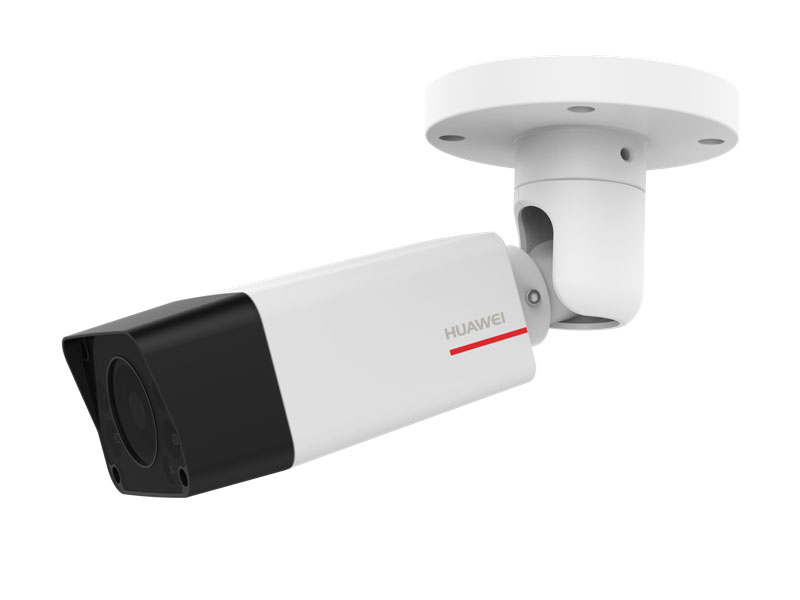

- Three-axis integrated bracket that supports pole-mount, ceiling-mount, and wall-mount
- Features IP66 protection rating against the ingress of dust and rain
- Withstands harsh weather conditions, from -40°C up to 60°C
Specifications
| Image Sensor | 1/2.7-inch 2.0 megapixel progressive scan CMOS |
| Min. Illumination | Color: 0.005 lux (F1.4, AGC ON)
B/W: 0.003 lux (F1.4, AGC ON), Zero lux with IR on |
| Wide Dynamic Range | 120 dB |
| Focal Length | Fixed 3.6 mm/6 mm/12 mm |
| Video Compression | H.265/H.264/MJPEG |
| Max. Resolution | 1,920 x 1,080 |
| Power Supply | 12V DC ±25%, PoE (IEEE 802.3at/af), DC supply polarity is self-adaptive and DC supply can be hot standby for PoE |
| Power Consumption | Typical 3W, Max. 8W |
| IP Protection Class | IP66, complies with IEC 60529 |
