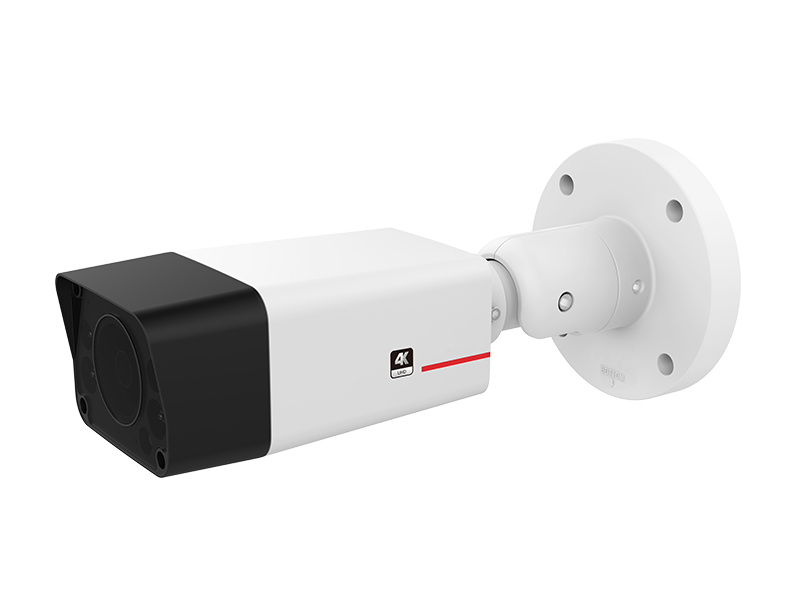

IPC6284-VRZ 8 Megapixel WDR IR Network Bullet Camera

The IPC6284-VRZ camera uses H.265 encoding technology, greatly reducing the transmission and storage cost. It supports the following functions:

  • Intelligent infrared light control, wide dynamic range, and intelligent defog
  • IP67 rating
  • DC/PoE power supply modes
  • Ultra-wide voltage range

The IPC6284-VRZ camera delivers high-quality images even in poor lighting conditions, such as public squares, roads, warehouses, underground parking lots, bars, and campuses.

High-quality images even in poor lighting conditions, and the storage to keep them

  • Up to 4K (3,840 x 2,160) UHD resolution
  • H.265 at 4K @ 30 fps video compression
  • Ultra-WDR up to 120 dB
  • 30 meters IR coverage high power LEDs
  • IP67 ingress protection, IK10 vandal-resistance


Model IPC6284-VRZ
Image Sensor 1/2.5-inch 8 megapixel progressive scan CMOS
Maximum Pixels 3,840 (H) x 2,160 (V)
Minimum Luminance Color: 0.08 lux (F1.53, AGC ON)

B/W: 0.08 lux (F1.53, AGC ON), zero lux with IR on

Day/Night Mode Auto/Color/Monochrome (infrared-cut filter)
Maximum Radiation Distance 30m
Lens 4.1 mm to 12.8 mm
Angle of View Horizontal field of view: 87.76° (Wide) to 28.18° (Tele)
Power Supplies DC 12V ± 25%, PoE (IEEE 802.3at)

DC/AC supply can be hot standby for PoE supply

Power Consumption Standard consumption: 9.5W
Maximum consumption: 17.5W
Operating Environment Operating temperature: -40°C to 60°C

Relative humidity: 5% to 95% (without condensation)

Weatherproof Rating IP67, complies with IEC 60529
