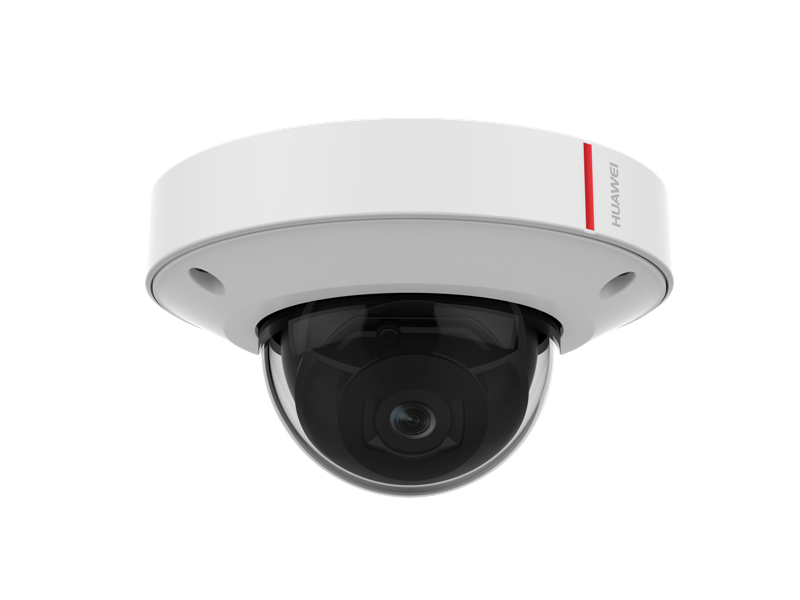

IPC6324-MIF 2-Megapixel Fixed Mini Dome Camera

The IPC6324-MIF uses 1/2.7-inch progressive scan CMOS and H.265 encoding technologies. It offers an industry-leading wide dynamic range (120 dB) that is especially beneficial in harsh environments where severe contrast is an issue. It supports Super Error Concealment (SEC), tolerating a maximum packet loss rate of 20%, and supports IK10 rating.

This camera provides high-quality images even in poor lighting conditions or under backlight conditions, such as for school, airport, factory, hotel, museum, hall, and traffic surveillance, financial, telecommunications, and governmental scenarios.

Super WDR, HD image quality, ultra–low illumination, mini dome camera

  • Adopts H.265 encoding technologies to minimize transmission and storage costs
  • Offers industry-leading Wide Dynamic Range (120 dB) that is especially beneficial in harsh environments where strong contrast is an issue; enables details in both bright and dark areas to be visible
  • Supports bitrate stream smoothing, adaptive bandwidth, and QoS configuration, improving the product stability
  • Supports IK10 rating to extend the lifespan of camera
  • Supports PoE and DC power supplies
  • Supports ultra-wide voltage range

Specifications

Image Sensor 1/2.7-inch 2.0 megapixel progressive scan CMOS
Min. Illumination Color: 0.01 lux (F1.4, AGC ON)

B/W: 0.005 lux (F1.4, AGC ON)

Wide Dynamic Range 120 dB
Focal Length Fixed 2.8 mm/3.6 mm/6 mm
Video Compression H.265/H.264/MJPEG
Frame Rate 32 Kbit/s to 8 Mbit/s
Power Supply 12V DC ±25%, PoE (IEEE 802.3at/af). DC supply polarity is self-adaptive, DC supply can be hot standby for PoE.
Power Consumption Typical 3.5W, Max. 4W
Lightning Surge Suppression 4 kV surge voltage, complies with IEC 61000-4-5
Vandal–proof Class IK10, complies with IEC 62262
