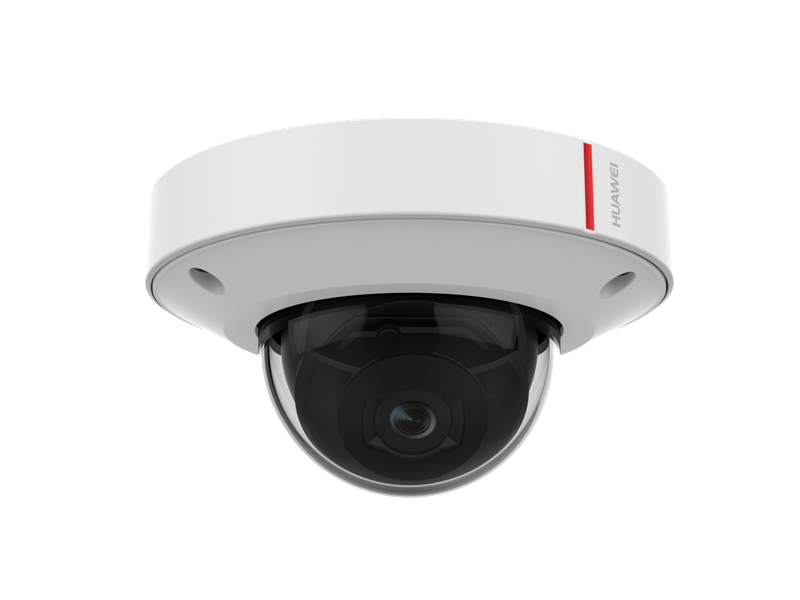

IPC6324-MIR 2-Megapixel Fixed Mini Dome Camera with IR Illumination
The IPC6324-MIR uses 1/2.7-inch progressive scan CMOS and H.265 encoding technologies. It has built-in infrared lights. It offers an industry-leading wide dynamic range (120 dB) that is especially beneficial in harsh environments where severe contrast is an issue. It supports Super Error Concealment (SEC), tolerating a maximum packet loss rate of 20%, and supports IK10 rating.
This camera provides high-quality images even in poor lighting conditions or under backlight conditions, such as schools, airports, factories, hotels, museums, halls, and traffic surveillance, financial, telecommunications, or governmental scenarios.
Super WDR, HD image quality, ultra-low bit rate, mini dome camera
- Adopts H.265 encoding technologies to minimize transmission and storage costs
- Offers an industry-leading wide dynamic range (120 dB) that is especially beneficial in harsh environments where severe contrast is an issue; enables details in both bright and dark areas to be visible
- Supports bitrate stream smoothing, adaptive bandwidth, and QoS configuration, improving product stability
- Supports IK10 rating to extend the lifespan of the camera
- Supports PoE and DC power supply
- Supports ultra-wide voltage range
Specifications
| Image Sensor | 1/2.7-inch 2.0 megapixel progressive scan CMOS | |
| Min. Illumination | Color: 0.01 lux (F1.4, AGC ON)
B/W: 0.005 lux (F1.4, AGC ON), Zero lux with IR on |
|
| Wide Dynamic Range | 120 dB | |
| Focal Length | Fixed 2.8 mm/3.6 mm/6 mm | |
| Video Compression | H.265/H.264/MJPEG | |
| Frame Rate | 32 Kbit/s to 8 Mbit/s | |
| Power Supply | 12V DC ±25%, PoE (IEEE 802.3at/af). DC supply polarity is self-adaptive, DC supply can be hot standby for PoE | |
| Power Consumption | Typical 3.5W, Max. 8W | |
| Lightning Surge Suppression | 4 kV surge voltage, complies with IEC 61000-4-5 | |
| Vandal–proof Class | IK10, complies with IEC 62262 | |
