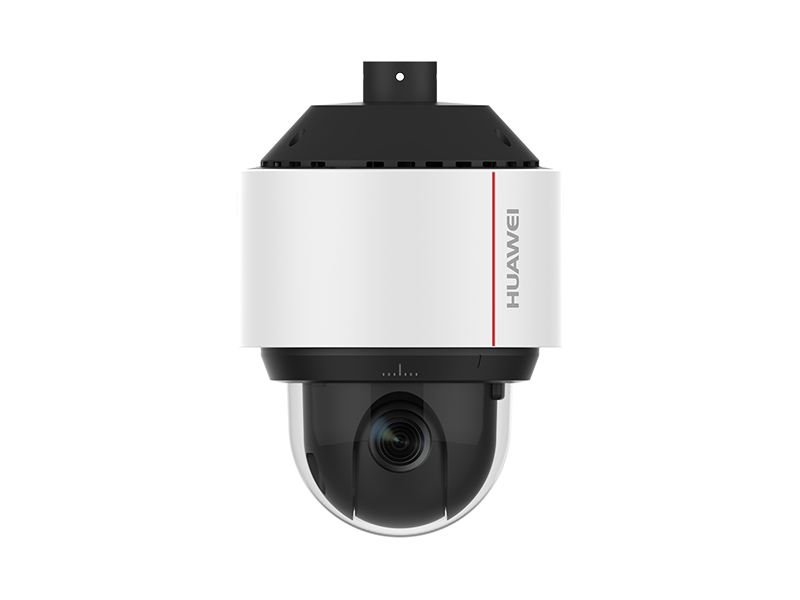

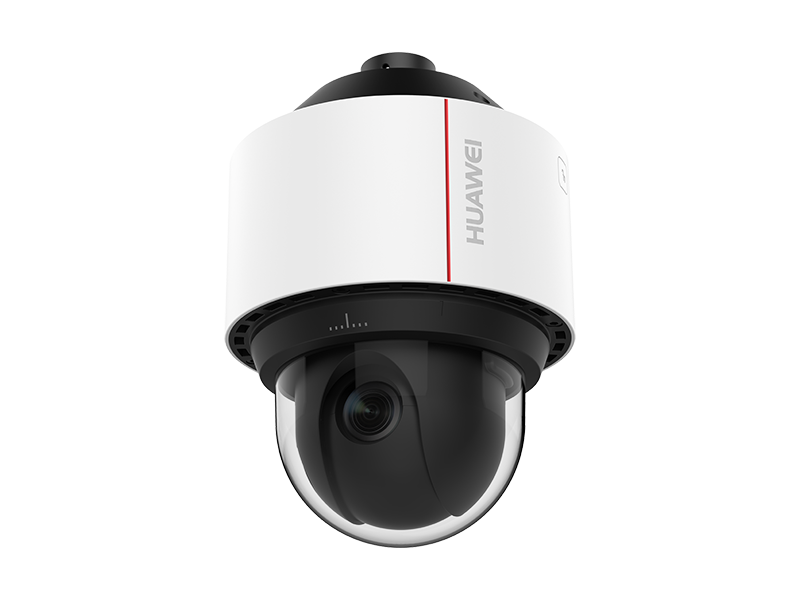

IPC6525-Z30-S 2-Megapixel 30x Zoom Intelligent High-Speed PTZ Dome

The IPC6525-Z30-S uses a 1/2.8-inch Progressive Scan CMOS and H.265 encoding technologies to minimize transmission and storage costs. It supports the following functions:

  • High frame rate (60 fps) encoding in full 1080p resolution, wide dynamic range, highlight suppression, electronic image stabilization, and defog
  • IK10 and IP66 ratings
  • PoE power supply mode
  • Ultra-wide voltage range and operating temperature range

It can be widely used in areas requiring large-scale high-definition surveillance, such as with rivers, forests, roads, railways, airports, ports, squares, parks, scenic areas, streets, railway stations, and large stadiums.

PoE power supply, IK10 and IK66 ratings

  • Supports high frame rate (60 fps) encoding in full 1080p resolution
  • Intelligent encoding and transmission: Supports stream smoothing parameter configuration, Region Of Interest (ROI) encoding, adaptive bandwidth, Media Transcode Unit (MTU) configuration, and QoS configuration, improving the stability of the product
  • Supports stream encryption using the Advanced Encryption Standard (AES), IP address filtering, digital watermarking, 802.1x access authentication, tri-configuration and system, ultra-wide operating temperature range, and ultra-wide voltage range
  • Features IP66 and IK10 protection ratings against the ingress of dust and rain


Model IPC6525-Z30-S
Image Sensor 1/2.8-inch 2.0-megapixel progressive scan CMOS
Minimum Illumination Color: 0.001 lux (AGC ON)
B/W: 0.001 lux (AGC ON)
WDR 120 dB
Focal Length (Zoom Ratio) 4.5 mm to 135 mm (30x), F1.6 (Wide) to F5.0 (Tele)
Zoom Optical zoom: 30x, Digital zoom: 16x
Video Compression H.265/H.264/MJPEG
Maximum Resolution 1,920 x 1,080
IP Protection Class IP66, complies with IEC 60529
Vandal–proof Class IK10, complies with IEC 62262
