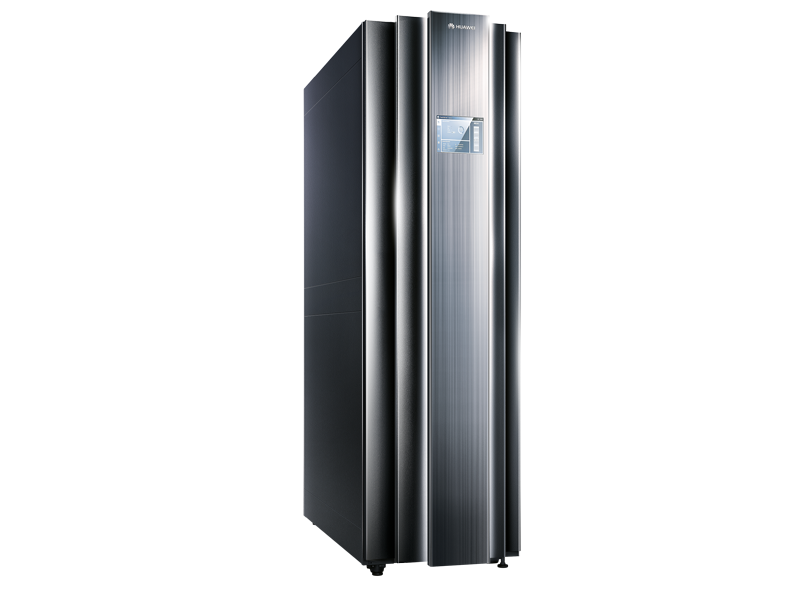

KunLun 9008/9016/9032 Mission Critical Server

KunLun Mission Critical Server sets a new standard in mission critical computing by combining an innovative and open design with breakthrough CPU interconnection and RAS 2.0 technologies. These innovations enable KunLun to deliver superior performance and reliability to support enterprises’ mission critical applications on a huge scale.

There are three models of KunLun servers: 9008, 9016, and 9032, corresponding to 8-sockets, 16-sockets, and 32-sockets. The 9008 and 9016 servers both can scale up to 32-sockets. KunLun is ideal for DB/OLTP, in-memory computing, HPC fat node, and virtualization or cloud platform. Compared to UNIX servers, KunLun lowers TCO by 30%.

Huawei server with Intel® Xeon® processor.
Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and/or other countries.

Meet the performance and scalability demand of mission critical environments while cutting costs with Huawei’s Mission Critical Servers

  • Superior reliability: RAS 2.0 proactive fault management ensures service continuity. It is first in the industry to support online CPU and memory module maintenance without shutting down the server, ensuring continuity of mission critical services
  • Ultimate performance: Innovative CPU interconnection technology exceeds the industry standard for accelerated business growth. KunLun 9032 ranks No. 1 performance-wise in the SPEC CPU2006 benchmark test, outperforming traditional mission critical servers’ benchmarks
  • Open: Mainstream x86 ecosystem, resulting in 30% lower TCO than UNIX servers

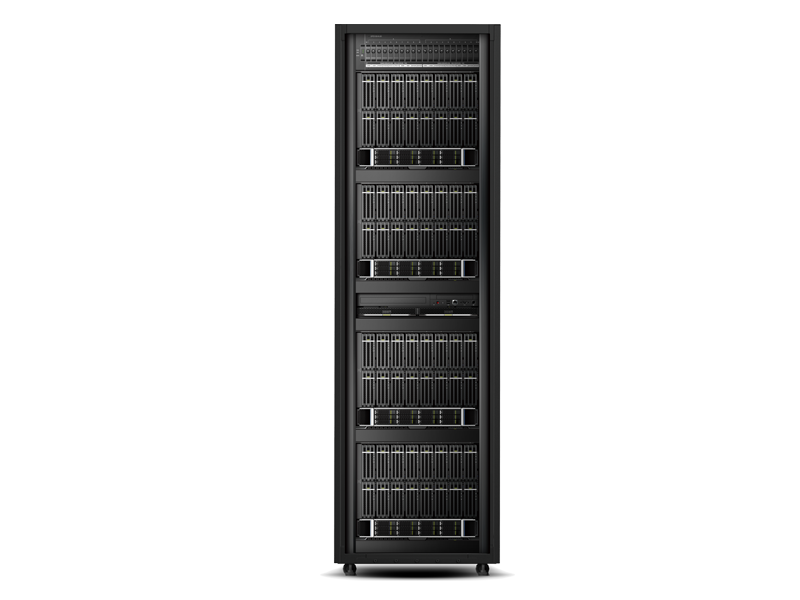

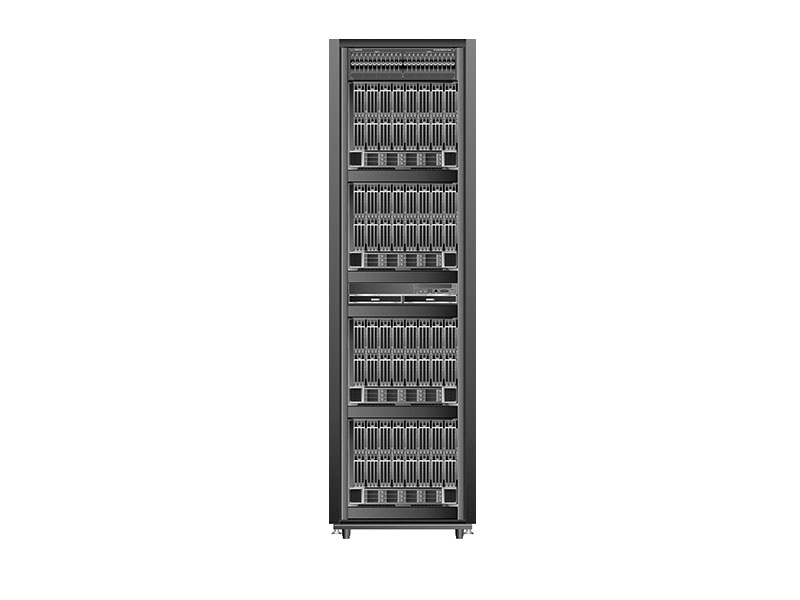

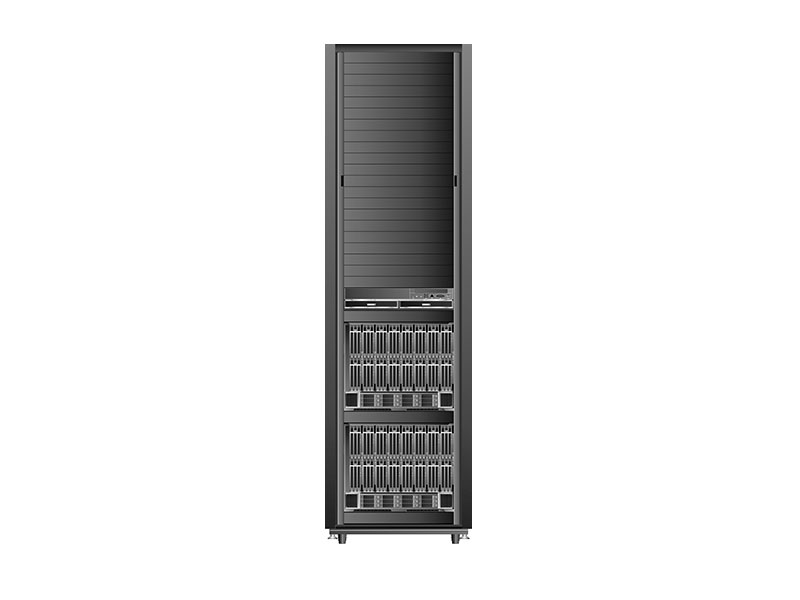

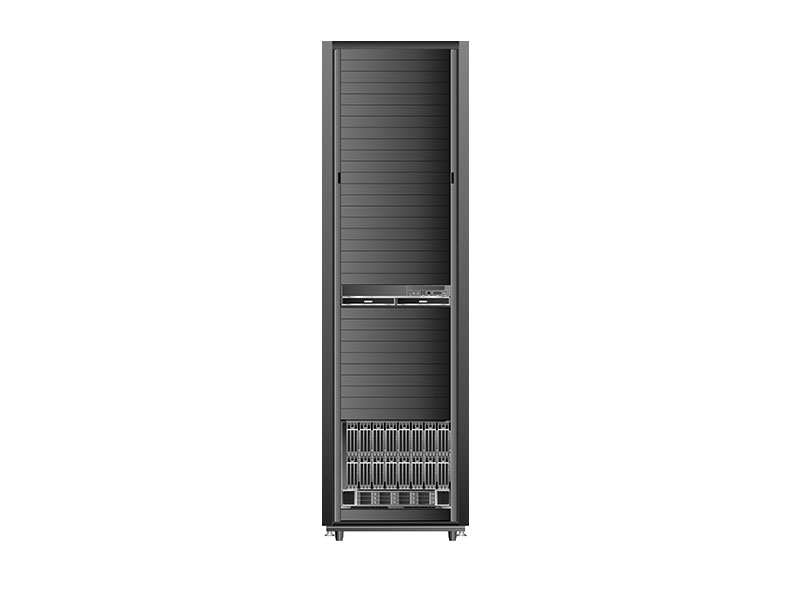

KunLun 9008 KunLun 9016 KunLun 9032
Form Factor 8-socket server 16-socket cabinet-level server 32-socket cabinet-level server
Processors Intel® Xeon® E7-4800 v3/E7-8800 v3 series processors
Memory 192 DDR4 DIMMs 384 DDR4 DIMMs 768 DDR4 DIMMs
Internal Storage 12 x 2.5-inch SAS/SATA HDDs or SSDs 24 x 2.5-inch SAS/SATA HDDs or SSDs 48 x 2.5-inch SAS/SATA HDDs or SSDs
RAID RAID 0, 1, 10, 5, 50, 6, or 60
LOM Network Ports Up to 2 LOM mezzanine cards (GE/10 GE), each card providing two GE, four GE, or two 10 GE ports Up to 4 LOM mezzanine cards (GE/10 GE), each card providing two GE, four GE, or two 10 GE ports Up to 8 LOM mezzanine cards (GE/10 GE), each card providing two GE, four GE, or two 10 GE ports
PCIe Expansion Up to 6 rear PCIe 3.0 expansion slots and 24 front PCIe 3.0 expansion slots Up to 12 rear PCIe 3.0 expansion slots and 12 front PCIe 3.0 expansion slots Up to 24 rear PCIe 3.0 expansion slots and 24 front PCIe 3.0 expansion slots
Partitioning Supports physical and logical partitioning
Fan Modules 1 group of hot-swappable fan modules, containing 8 fan modules in N+1 redundancy mode 2 groups of hot-swappable fan modules, each group containing 8 fan modules in N+1 redundancy mode 4 groups of hot-swappable fan modules, each group containing 8 fan modules in N+1 redundancy mode
Management
  • Provides independent ports; supports standard management interfaces, such as SNMP and IPMI; provides GUI, remote KVM, virtual media, SOL, intelligent power supply, remote control, and hardware monitoring
  • Built-in physical partition management, Proactive Failure Analysis Engine (PFAE), and precise fault locating features
  • (Optional) Built-in logical partition management
  • (Optional) 8-inch touchscreen for local management
  • Supports Huawei eSight management software and integration with third-party management systems, such as VMware vCenter and Microsoft System Center
Operating Systems
  • Redhat® Enterprise Linux (RHEL)
  • SUSE Linux® Enterprise Server (SLES)
  • Microsoft® Windows Server® 2012
  • Oracle Linux
  • VMware ESXi
  • Huawei FusionSphere
  • Kylin Linux
  • NeoKylin Linux
  • RedFlag Asianux
Operating Temperature 5°C to 40°C (41°F to 104°F), ASHRAE Class A3 compliant
Dimensions (H x W x D) 440 mm x 447 mm x 855 mm
(17.32 in. x 17.60 in. x 33.66 in.)
2,000 mm x 600 mm x 1,200 mm (78.74 in. x 23.62 in. x 47.24 in.)
