ME60 Series Multi-Service Control Gateways

High-capacity Broadband Remote Access Server (BRAS) with tightly integrated Hierarchical QoS and unified user access and management features.

Highly scalable with slots to provide various port types from 64 Kbit/s to 100 Gbit/s, up to 240 Gbit/s subscriber access line card. Supports up to 64K subscribers per Line Processing Unit (LPU), up to 256,000 subscribers per chassis.

Rich IPv6 support and industry’s largest capacity Carrier Grade NAT (CGN) service board enable smooth migration from IPv4 to IPv6 networking.

Features

Performance, reliability, security, and comprehensive subscriber services and monetization features make Huawei’s ME60 the easy BRAS choice

2 Tbit/s hardware platform supports high-capacity routing boards (10 Gbit/s to 240 Gbit/s) and Carrier Grade NAT (CGN) boards up to 160 Gbit/s
Capable of processing 1,000 user access requests per second per chassis; over 60,000 users can connect in one minute
Supports Destination Address Accounting (DAA) and alternative access modes including IPoX, PPPoX, 802.1x, and web authentication
Redundant, non-stop design implements Virtual Router Redundancy Protocol (VRRP+), and Bi-directional Forwarding Detection (BFD) for link and for VRRP
1+1 or 1:1 inter-chassis and intra-chassis hot backup ensures subscriber services are always online
Supports NAT44, NAT64, DS-Lite, and L2NAT

Specifications

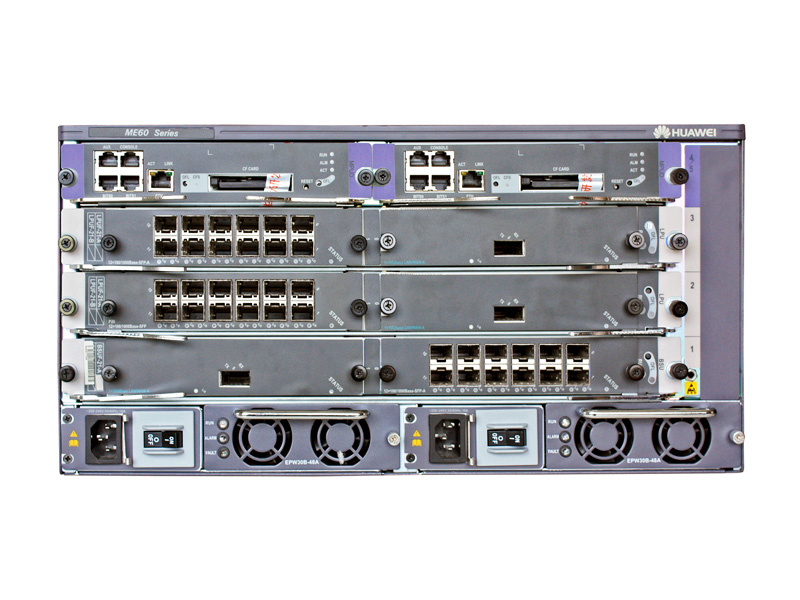

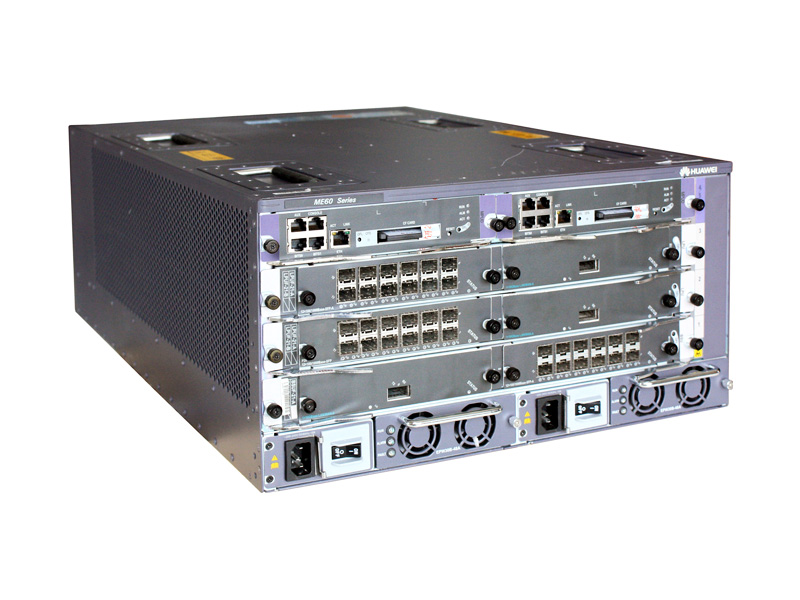

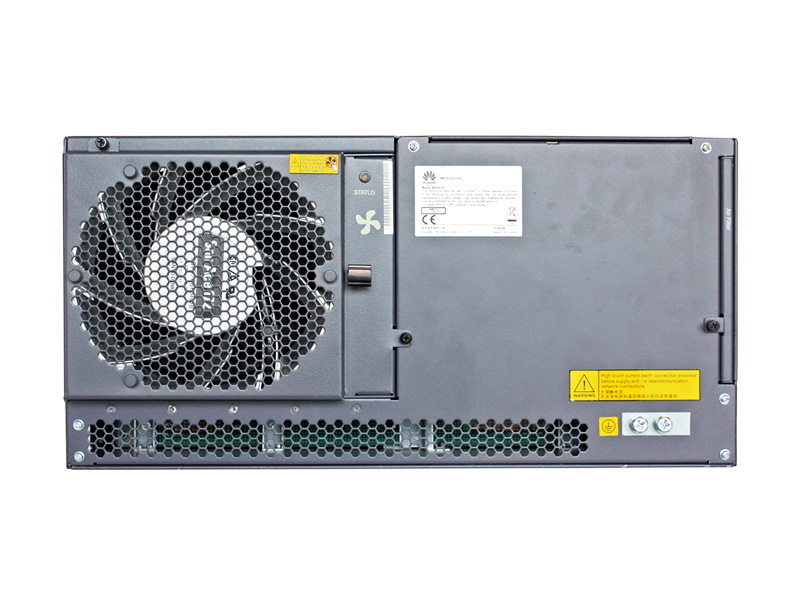

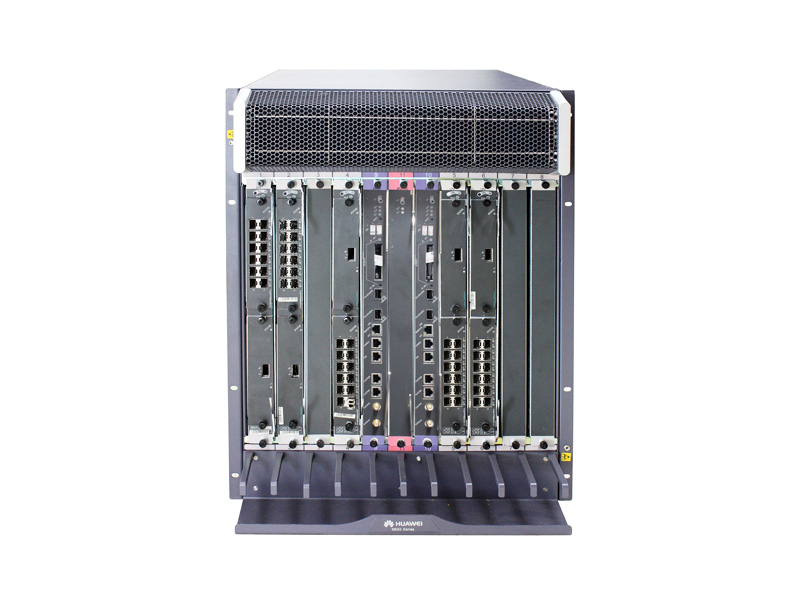

Attribute	ME60-X16A	ME60-X8A	ME60-X16	ME60-X8	ME60-X3
Switching Capacity	50.32 Tbit/s	25.16 Tbit/s	12.58 Tbit/s	7.08 Tbit/s	1.08 Tbit/s
Forwarding Performance	11,520 Mpps	5,760 Mbit/s	5,760 Mbit/s	2,880 Mbit/s	360 Mbit/s
Number of Slots	22 slots, including 16 LPUs, 2 SRUs, and 4 SFUs	12 slots, including 8 LPUs, 2 SRUs, and 2 SFUs	22 slots, including 16 LPUs, 2 SRUs, and 4 SFUs	11 slots, including 8 LPUs, 2 SRUs, and 1 SFU	5 slots, including 3 LPUs and 2 SRUs
Dimensions (H x W x D)	1,778 mm x 442 mm x 650 mm (40U)	934 mm x 442 mm x 650 mm (21U)	1,420 mm x 442 mm x 650 mm (32U)	620 mm x 442 mm x 650 mm (14U)	175 mm x 442 mm x 650 mm (DC 4U) 220 mm x 442 mm x 650 mm (AC 5U)
Maximum Power Consumption	7,220W (BSUF-240) 9,040W (BSUF-480)	4,110W (BSUF-240) 4,770W (BSUF-480)	4,610W (BSUF-100) 6,210W (BSUF-240)	2,340W (BSUF-100) 3,220W (BSUF-240)	920W (BSUF-100)
Full Configuration Weight	356 kg	190 kg	279 kg	136 kg	DC: 42 kg (100G) AC: 52 kg (100G)
Interface Types	100 GE-WAN/LAN 10 GE-WAN/LAN GE/FE
BRAS	User access protocols: PPPoE, IPoE, 802.1X, and ND access User authentication protocols: PAP, CHAP, MSCHAP, RADIUS, and HWTACACS User billing protocols: RADIUS, HWTACACS, and COPS User authorization protocols: RADIUS, HWTACACS, COPS, and COA
QoS	Provides a well-designed HQoS mechanism Provides advanced scheduling and congestion avoidance technologies, accurate traffic policing and shaping, and complex rule definition and fine-grained flow identification Supports MPLS HQoS and ensures QoS for MPLS VPN, VLL, and PWE3 services Supports DiffServ- and MPLS TE-based DS-TE, eight class types (CTs), and TE-tunnel-based QoS Supports a maximum of 768K flow queues per slot
Value-added Services	Supports Destination Address Accounting (DAA), which helps carriers identify services based on destination network segments and perform separate accounting for different services on IP carrier networks Supports Enhanced Dynamic Service Gateway (EDSG), which identifies various user services based on traffic destination addresses and implements independent rate limit, accounting, and management for each service
