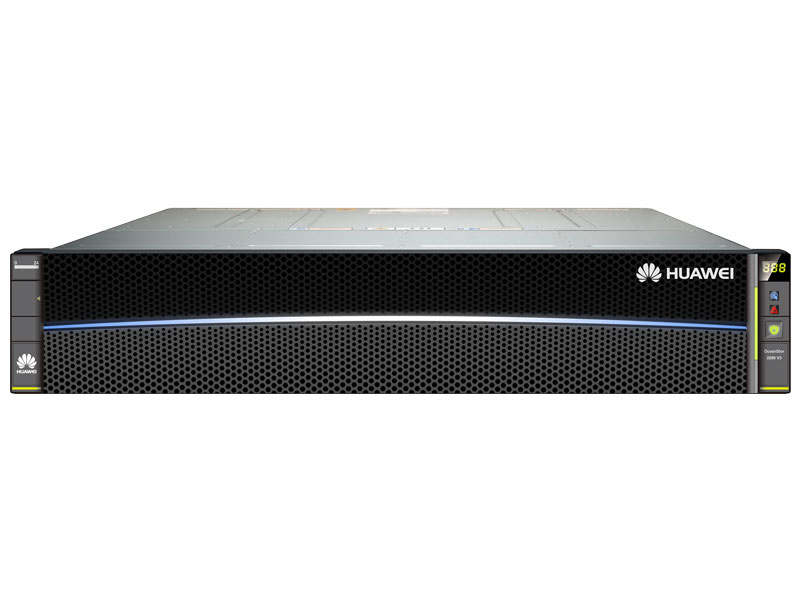

OceanStor 2200 V3 Storage System

A next-generation, entry-level storage product specifically designed for enterprise-class applications.

Scalable up to 2.4 PB capacity, with a variety of interfaces, including 10 Gbit/s FCoE, 16 Gbit/s FC, PCIe 3.0, and 12 Gbit/s SAS.

Built to support rapid business growth of SMB, and widely applied in industries including government, health care, education, telecommunications, energy, and manufacturing.

Features

Simple, converged, and efficient; the best choice for SMB and large enterprise branch offices

  • Simple: The unique, easy-to-use SmartConfig significantly simplifies system configuration. Resources can be allocated in minutes with only three steps
  • Converged: Convergence of SAN and NAS supports both block and file services. The flash-oriented design ensures full performance of SSDs with latency lower than 1 ms
  • Efficient: Automatic storage tiering and smart identification of hot data significantly improve storage resource utilization. The intelligent service quality control technology enables the system to identify important services and ensure their performance

Specifications

Specifications

Model 2200 V3
System Cache (dual controller) 16 GB 32 GB
Max. Number of Controllers 2
Supported Storage Protocols Fibre Channel, FCoE, and iSCSI Fibre Channel, FCoE, iSCSI, NFS, CIFS, HTTP, and FTP
Front-end Port Types 1/10 Gbit/s Ethernet, 10 Gbit/s FCoE, and 8/16 Gbit/s Fibre Channel
Back-end Port Type SAS 3.0 (each port supporting 4 x 12 Gbit/s)
Max. Number of I/O Modules per Controller 1
Max. Number of Front-end Ports per Controller 12
Max. Number of Disks 300
Virtualization Features
  • Heterogeneous virtualization: Consolidates storage resources of mainstream products to manage and allocate resources in a flexible and unified manner
  • Block virtualization: Balanced data distribution, quick fault recovery
  • Computing virtualization: Support for virtual machines including VMware, XenServer, and Hyper-V; support for value-added features related to virtual environments, including VMware VAAI/VASA/SRM and Hyper-V; support for integration of vSphere and vCenter
Software
  • HyperSnap (snapshot), HyperCopy (LUN copy), HyperClone (clone), HyperMirror (volume mirror), and HyperReplication (remote replication)
  • SmartQoS (intelligent QoS control), SmartTier (intelligent storage tiering), SmartCache (intelligent SSD caching), SmartThin (intelligent thin provisioning), SmartMotion (intelligent data migration), SmartMigration (LUN migration), and SmartErase (data destruction)
  • UltraPath (multipathing management), BCManager (disaster recovery management software), DeviceManager (manage a single device), eSight (manage multiple cross-field devices), and SmartConfig (easy-to-use configuration tool)
  • HyperSnap (snapshot), HyperCopy (LUN copy), HyperClone (clone), HyperMirror (volume mirror), HyperReplication (remote replication), HyperLock (WORM), and HyperVault (integrated backup)
  • SmartQoS (intelligent QoS control), SmartTier (intelligent storage tiering), SmartCache (intelligent SSD caching), SmartThin (intelligent thin provisioning), SmartMotion (intelligent data migration), SmartMigration (LUN migration), and SmartErase (data destruction)
  • UltraPath (multipathing management), BCManager (disaster recovery management software), DeviceManager (manage a single device), eSight (manage multiple cross-field devices), and SmartConfig (easy-to-use configuration tool)
