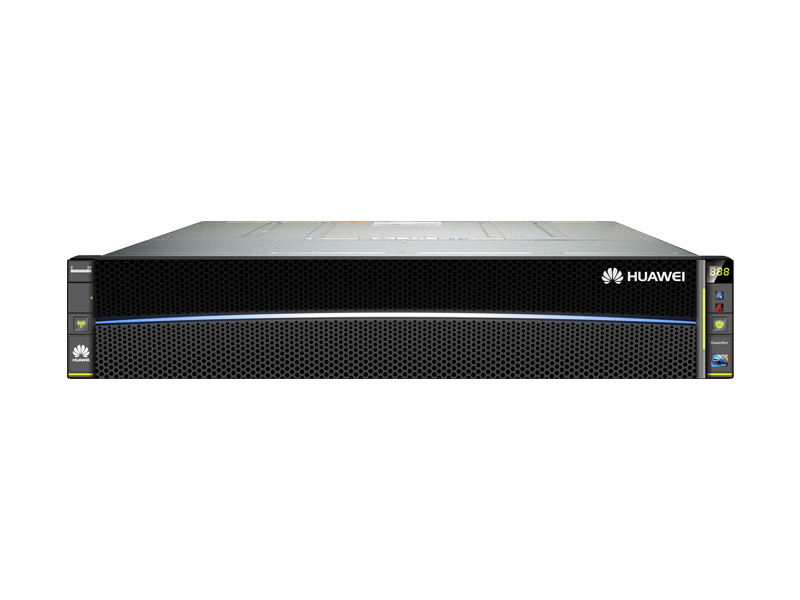

OceanStor 2800 V3 Video Cloud Converged Storage System

Specifically configured for video storage, with support for direct storage of video streams from surveillance cameras. The system can provide an open converged data platform in the controller and allows deployment of video applications using templates. Efficient data protection measures are included.

One device can house up to 750 disks and provides 96 GB of cache memory. For connectivity, the system has eight GE ports and supports the use of 10 GE.

The OceanStor 2800 V3 supports a variety of video storage tasks and is ideal for Safe City, finance, and rail transportation applications.

SmartContainer provides an open converged data platform, allowing users to migrate video applications to storage controllers and build an open cloud storage system

  • The OceanStor 2800 V3 architecture converges computing and storage resources, supports direct storage of video streams, video applications can be integrated on the platform
  • This industry-leading hardware architecture supports maximum of 400 HD videos (recording) at 4 Mbit/s and 100 HD video (playback) at 4 Mbit/s when using SmartContainer, maximum of 1,600 HD videos (recording) at 4 Mbit/s and 400 HD videos (playback) at 4 Mbit/s when using IPSAN
  • Image repair and video restoration technologies help ensure video quality, and the system works reliably on a 24/7 basis with fault-tolerant features. For example, if a RAID group fails, all video data can be used with no video interruption

Specifications

Specifications OceanStor 2800 V3
Video Input and Output Capabilities (configured with 4 TB/6 TB disks; videos stored for 30 days) Direct storage mode: Maximum of 400 channel inputs at 4 Mbit/s and 100 channels playback at 4 Mbit/s
IP SAN mode: Maximum of 1,600 channels input at 4 Mbit/s and 400 channels playback at 4 Mbit/s
Note: Specifications may vary depending on the ISV or VMS platform being used (check the project specifications for your site)
High-speed Cache Capacity 96 GB
Types of Ports 1 Gbit/s Ethernet, 10 Gbit/s ToE, and SAS 3.0 (back-end I/O ports)
Max. Number of Disks 750
Max. Number of Front-end Host Ports per Controller 12
Number of Hot-swappable I/O Modules per Controller 2
Supported Disk Types and RAID Levels Disk types: NL-SAS, SATA

RAID levels: 0, 1, 3, 5, 6, 10, and 50

Base System Software Package Storage resource management, storage RAID protection, dynamic LUN expansion, dynamic disk expansion, online upgrade, performance statistics, alarm management, and remote power-off
