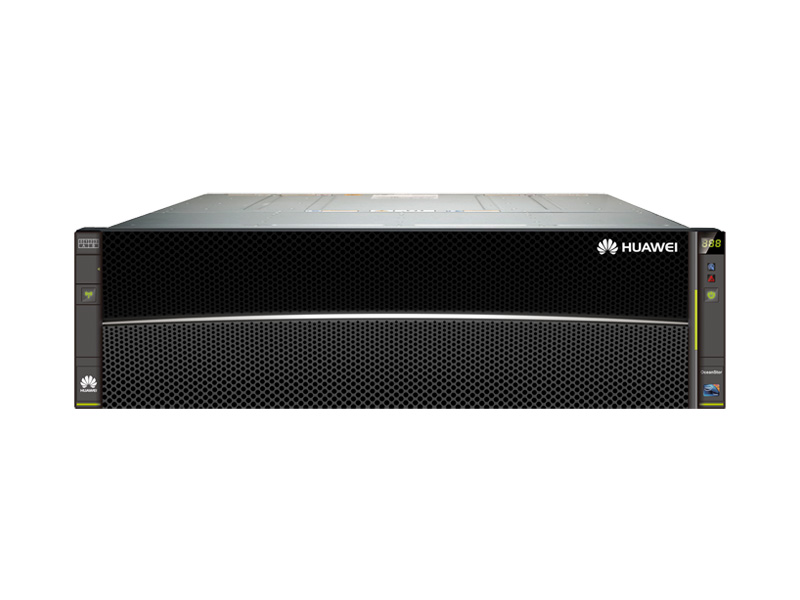

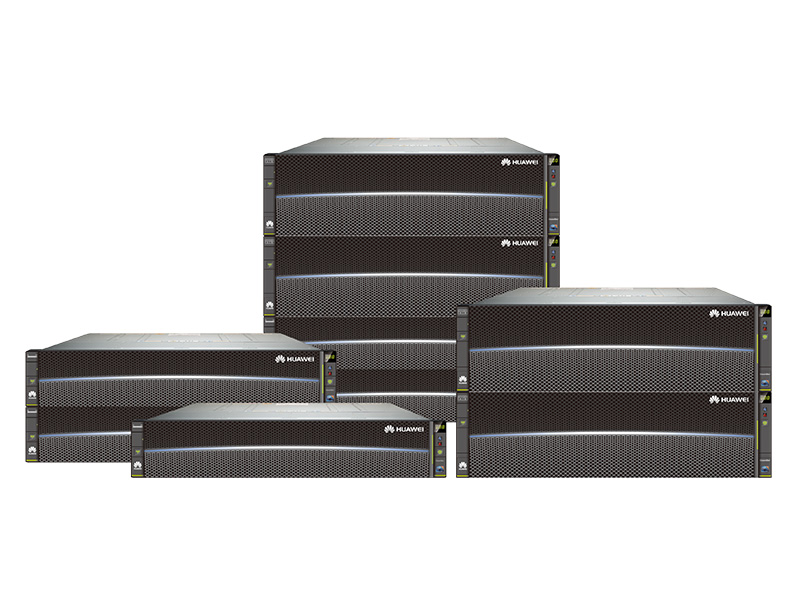

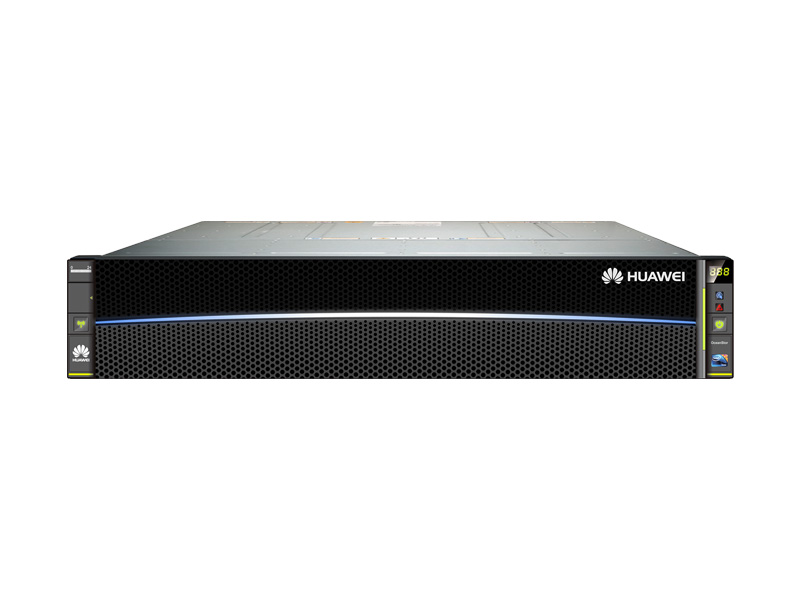

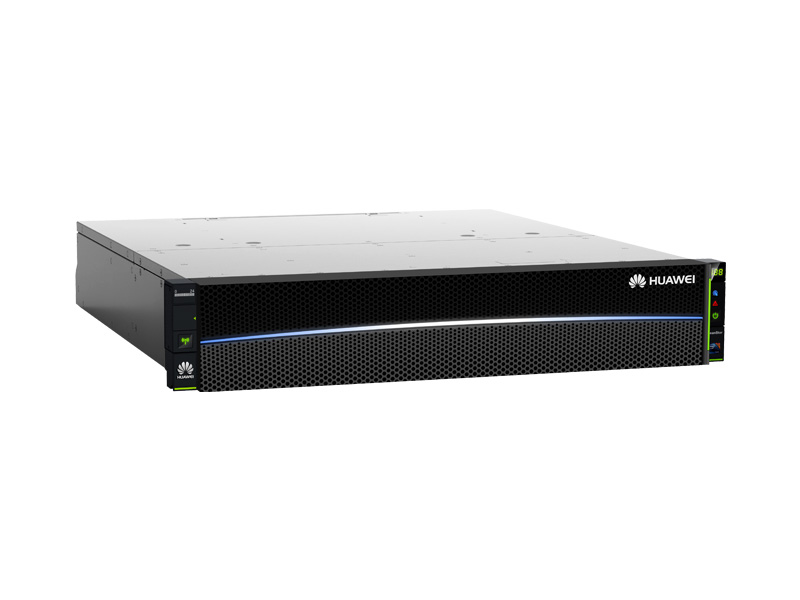

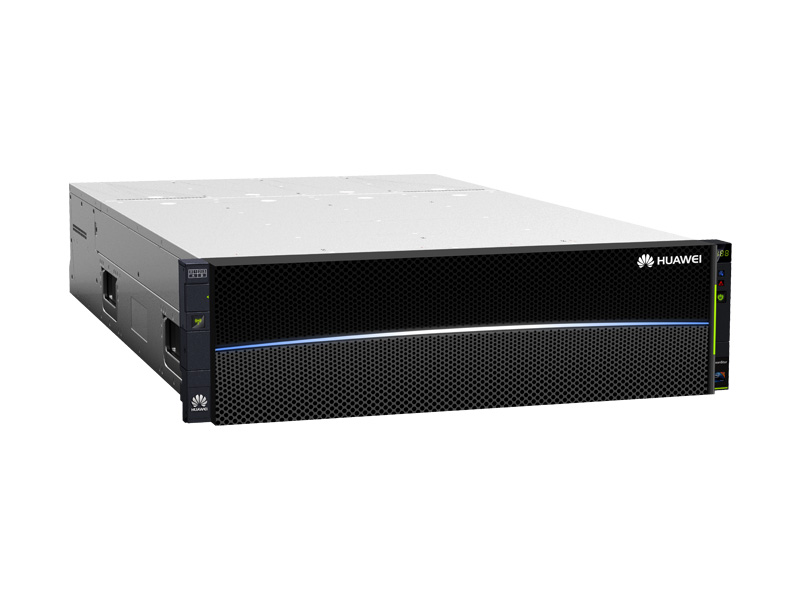

OceanStor 5300/5500/5600/5800 V3 Storage Systems

Huawei’s OceanStor 5300, 5500, 5600, 5800 V3 series storage systems offer a cloud architecture-oriented operating system, high-performance hardware platform, and a complete suite of smart management software.

They achieve high performance at a latency lower than 1 ms when configured with all SSDs.

Scalable to eight controllers, 1 TB cache, 15 PB storage capacity, with a variety of interfaces, including 16 Gbit/s FC, 56 Gbit/s InfiniBand, PCIe 3.0, 12 Gbit/s SAS, and smart I/O cards.

They are the perfect storage systems for large OLTP/OLAP databases, file sharing, and cloud computing in the government, finance, telecom, energy, and media industries.

intel-enHuawei OceanStor with Intel® Xeon® processor.
Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and/or other countries.

Features

On-demand converged storage systems with secure, reliable, efficient features for multiple applications: heterogeneous storage consolidation, disaster recovery, fast data growth

  • Enable convergence in five areas: SAN and NAS, heterogeneous devices, entry-level to high-end storage, HDD and SSD, and storage and backup
  • Provide industry-leading specifications: Up to 8 controllers, 1 TB cache, 15 PB storage capacity, and various interface types, including 16 Gbit/s FC, 56 Gbit/s InfiniBand, PCIe 3.0, 12 Gbit/s SAS, and Smart I/O card
  • Simplest management platform handles multiple product models with a graphical interface and is available in Windows, iOS, and Android versions
  • Protect customer initial investment and reduce TCO for multiple applications, various product models, and fast business growth

Specifications

Specifications

Specifications 5300 V3 5500 V3 5600 V3 5800 V3
System Cache (expanded with the number of controllers) 32 GB to 256 GB 48 GB to 512 GB 64 GB to 1,024 GB 128 GB to 2,048 GB
Max. Number of Controllers 8 8 8 8
Supported Storage Protocols Fibre Channel, FCoE, iSCSI, InfiniBand, NFS, CIFS, HTTP, and FTP
Port Types 1 Gbit/s Ethernet, 10 Gbit/s FCoE, 10 Gbit/s TOE, 16 Gbit/s FC, and 56 Gbit/s InfiniBand, SAS 3.0 (back-end, 4 x 12 Gbit/s per port)
Max. Number of Disks Supported by Two Controllers 500 750 1,200 1,500
Max. Number of Front-end Ports per Controller 20 20 28 28
Max. Number of Hot Swappable I/O Modules per Controller 2 2 8 8
Disk Types and Supported RAID Levels Disk types: SSD, SAS, and NL-SAS

RAID levels: 0, 1, 3, 5, 6, 10, or 50
Max. Raw Capacity (all-SSD, dual-controller configuration) 1,800 TB 2,700 TB 3,600 TB 5,400 TB
Gateway Mode Supported
Virtualization Features
  • Heterogeneous virtualization: Consolidates storage resources of mainstream products to manage and allocate in a flexible and unified manner
  • Block virtualization: Balanced data distribution, quick fault recovery
  • Computing virtualization: Support for virtual machines including VMware, XenServer, and Hyper-V; support for value-added features related to virtual environments, including VMware VAAI/VASA/SRM and Hyper-V; support for integration of vSphere and vCenter
Key Software Features
  • HyperSnap (snapshot), HyperCopy (LUN copy), HyperClone (clone), HyperMirror (volume mirror), and HyperReplication (remote replication), HyperMetro (active-active storage arrays), and HyperVault (integrated backup)
  • SmartQoS (intelligent QoS control), SmartPartition (intelligent partitioning), SmartCache (intelligent SSD caching), SmartTier (intelligent storage tiering), SmartThin (intelligent thin provisioning), SmartMotion (intelligent data migration), SmartMulti-Tenant (multi-tenant), SmartMigration (LUN migration), SmartCompression (online compression), SmartDedupe (online de-duplication), SmartQuota (quota management), HyperLock (WORM), and SmartErase (data destruction)
  • UltraPath (multipathing management), Cloud Service (remote maintenance and management), BCManager (disaster recovery management software), DeviceManager (manage a single device), and eSight (manage multiple cross-field devices)
