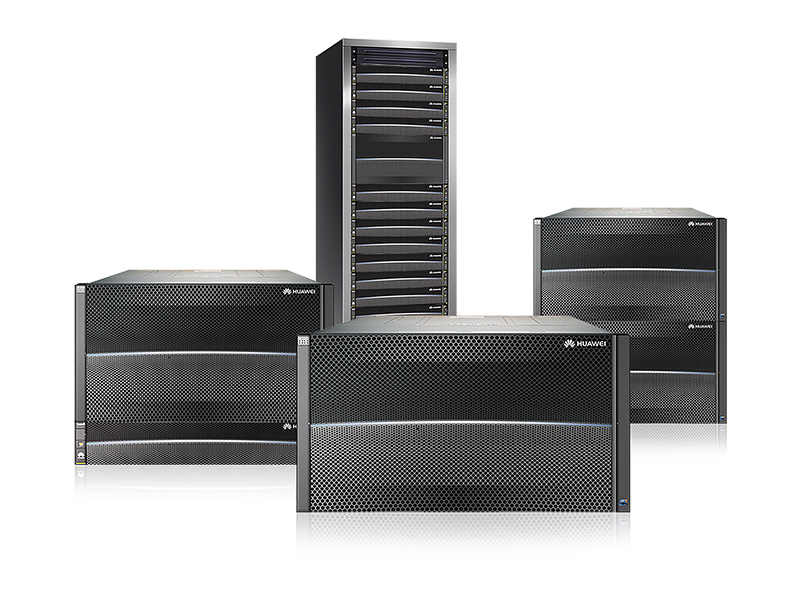

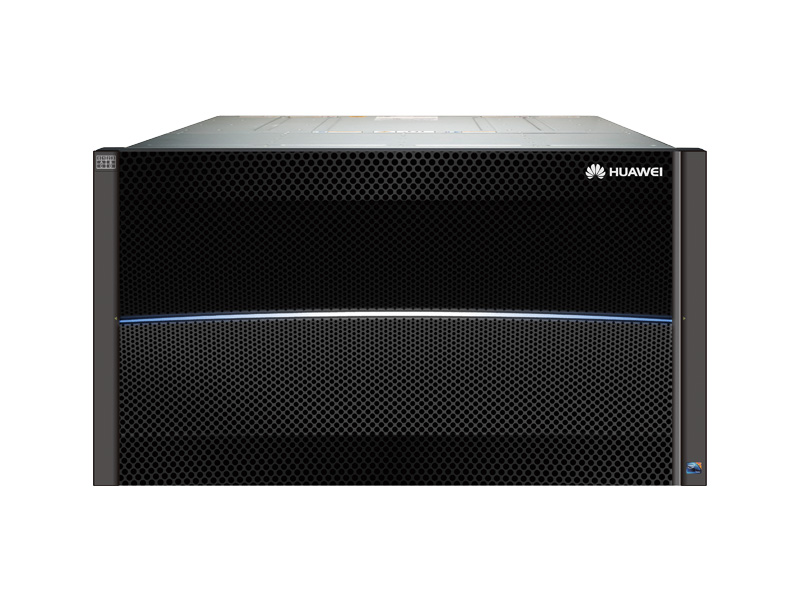

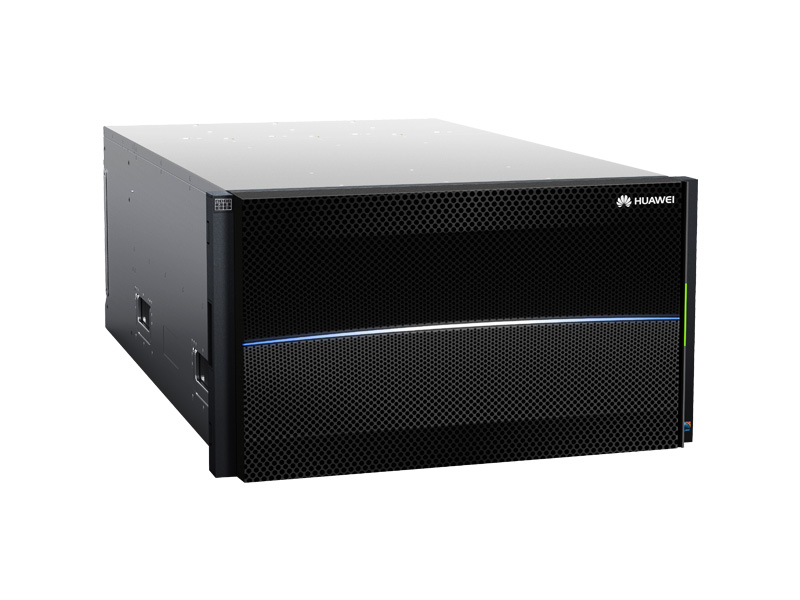

OceanStor 6800 V3 Storage System

Huawei OceanStor 6800 V3 Storage System offers a cloud architecture-oriented operating system, high-performance hardware platform, and a complete suite of smart management software.

Achieves high performance at a latency lower than 1 ms when configured with all SSDs.

Scalable to eight controllers, 4 TB cache, 32 PB storage capacity, with many interfaces, including 16 Gbit/s FC, 56 Gbit/s IB, PCIe 3.0, 12 Gbit/s SAS, and smart I/O cards.

A secure solution for large OLTP/OLAP databases, file sharing, or cloud computing in government, finance, telecom, energy, and media industries.

intel-enHuawei OceanStor with Intel® Xeon® processor.
Intel, the Intel logo, Xeon, and Xeon Inside are trademarks or registered trademarks of Intel Corporation in the U.S. and/or other countries.

Features

Best suited for running multiple applications: Heterogeneous device integration, data disaster recovery, and Big Data expansion

  • Enables convergence in five areas: SAN and NAS, heterogeneous devices, entry-level to high-end storage, HDD and SSD, storage and backup
  • Simple management platform handles multiple product models with a graphical interface and is available for Windows, iOS, and Android
  • Protects initial customer investments and reduces TCO for multiple applications, various product models, and fast business growth

Specifications

Specifications

Specifications 6800 V3
System Cache (expanded with the number of controllers) 256 GB to 4,096 GB
Max. Number of Controllers 8
Supported Storage Protocols Fibre Channel, FCoE, iSCSI, InfiniBand, NFS, CIFS, HTTP, and FTP
Port Types 1/10 Gbit/s Ethernet, 10 Gbit/s FCoE, 10 Gbit/s TOE, 8/16 Gbit/s Fibre Channel, 56 Gbit/s InfiniBand, and SAS 3.0 (back-end, 4 x 12 Gbit/s per port)
Max. Number of Disks Supported by Two Controllers 3,200
Max. Number of Front-end Ports per Controller 20
Max. Number of Hot Swappable I/O Modules per Controller 6
Disk Types and Supported RAID Levels Disk types: SSD, SAS, and NL-SAS

RAID levels: 0, 1, 3, 5, 6, 10, and 50
Max. Raw Capacity (all-SSD configuration) 11.5 PB
Gateway Mode Supported
Virtualization Features
  • Heterogeneous virtualization: Consolidates storage resources of mainstream products to manage and allocate in a flexible and unified manner
  • Block virtualization: Balanced data distribution, quick fault recovery
  • Computing virtualization: Support for virtual machines including VMware, XenServer, and Hyper-V; support for value-added features related to virtual environments, including VMware VAAI/VASA/SRM and Hyper-V; support for integration of vSphere and vCenter
Key Software Features
  • HyperSnap (snapshot), HyperCopy (LUN copy), HyperClone (clone), HyperMirror (volume mirror), HyperReplication (remote replication), HyperLock (WORM), HyperMetro (active-active storage arrays), and HyperVault (integrated backup)
  • SmartQoS (intelligent QoS control), SmartPartition (intelligent partitioning), SmartCache (intelligent SSD caching), SmartTier (intelligent storage tiering), SmartThin (intelligent thin provisioning), SmartMotion (intelligent data migration), SmartMulti-Tenant (multi-tenant), SmartMigration (LUN migration), SmartCompression (online compression), SmartDedupe (online de-duplication), SmartQuota (quota management), and SmartErase (data destruction)
  • UltraPath (multipathing management), Cloud Service (remote maintenance and management), BCManager (disaster recovery management software), DeviceManager (manage a single device), and eSight (manage multiple devices)
