OceanStor Dorado V3 All-Flash Storage System

Huawei’s OceanStor Dorado V3 all-flash storage is the ideal choice for enterprises’ mission-critical business. It is the industry’s first commercial use of NVMe all-flash storage, and it delivers high-performing, reliable, and efficient storage services.

Huawei’s FlashLinkTM technology delivers 4 million IOPS, 0.5 ms consistent latency, improving storage performance 10-fold. The HyperMetro gateway-free active-active solution ensures 99.9999% availability, and 3:1 data reduction guarantee reduces TCO by 50%.

The Dorado satisfies the storage requirements of databases, Virtual Desktop Infrastructure (VDI) and Virtual Server Infrastructure (VSI), smoothing the way to the all-flash era.

Features

Lightning fast, rock solid

  • Outstanding performance: Employs the flash-oriented Huawei FlashLinkTM technology to achieve 0.5 ms latency and a 10-fold storage performance increase. The system can scale out to 16 controllers to deliver 4 million IOPS in performance
  • Stable and reliable: Provides the HyperMetro gateway-free active-active solution to ensure 99.9999% availability, and RAID-TP technology to weather up to three simultaneous SSD failures
  • Converged and efficient: Inline de-duplication and compression support a 3:1 data reduction ratio*, resulting in 50% TCO savings. The ability to interwork with the OceanStor V3 series allows you to build cost-efficient disaster recovery solutions in your data centers

* For details about the 3:1 data reduction guarantee, see the Huawei OceanStor Dorado V3 Effective Capacity Guarantee Program Guide

Specifications

Specifications

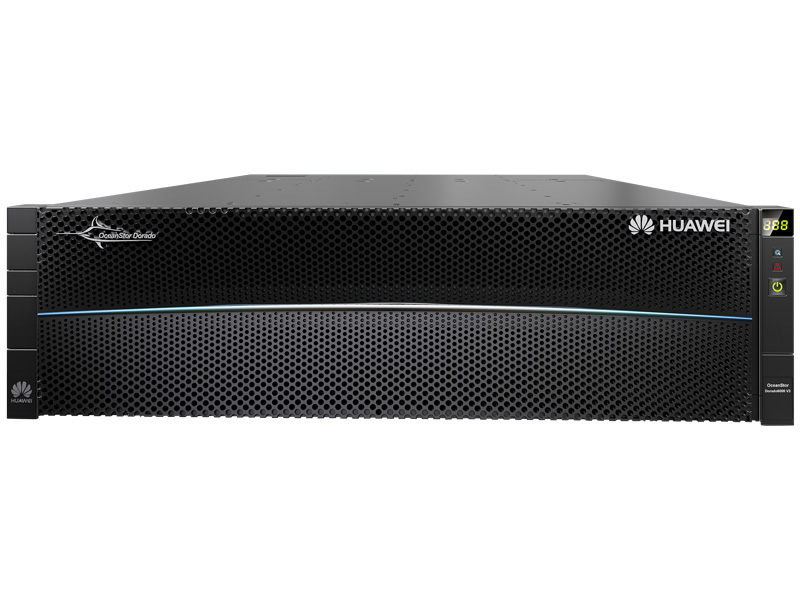

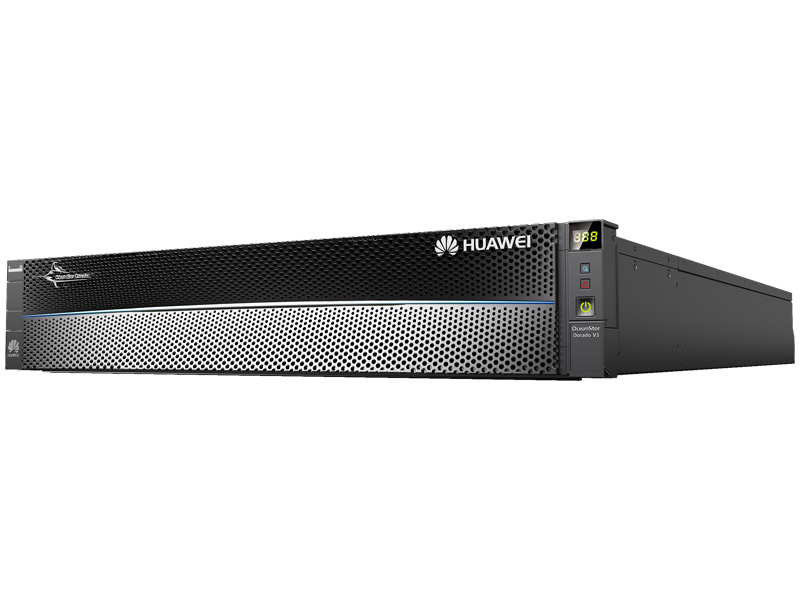

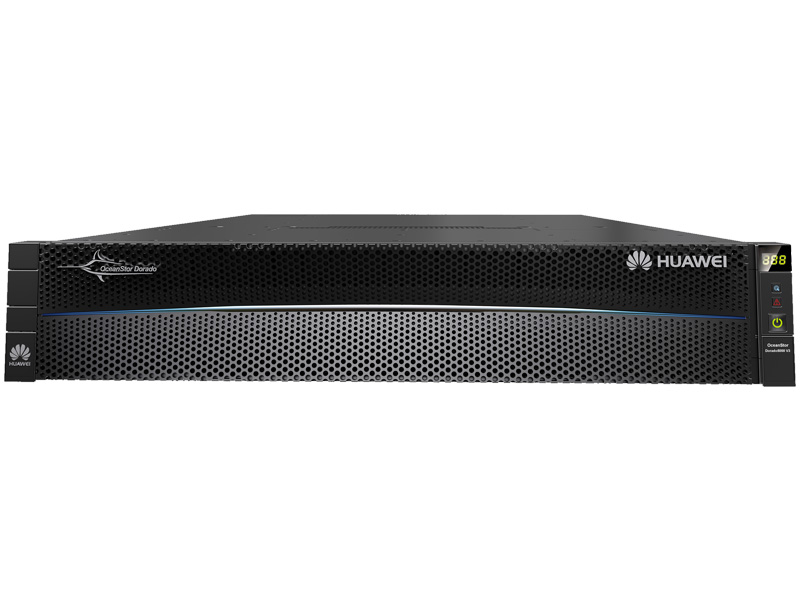

Model OceanStor Dorado5000 V3 OceanStor Dorado6000 V3
Maximum Number of Controllers 16*
System Cache (dual-controller, expanded with the number of controllers) 256 GB to 2 TB 512 GB to 4 TB 512 GB to 4 TB 1 TB to 8 TB
Supported Storage Protocols FC, iSCSI, InfiniBand, HTTP, and FTP
Type of Front-end Ports 8 Gbit/s, 16 Gbit/s FC, 10 GE iSCSI, and 56 Gbit/s InfiniBand
Type of Back-end Ports SAS3.0 PCIe 3.0 SAS3.0
Maximum Number of SSDs 800 200 2,400
Supported Disk Types 600 GB/900 GB/1.8 TB/3.6 TB/7.68 TB* SAS SSD 1 TB/2 TB/4 TB NVMe SSD 600 GB/900 GB/1.8 TB/3.6 TB/7.68 TB* SAS SSD
Supported RAID Levels RAID5, RAID6, and RAID-TP (tolerating simultaneous failure of 3 SSDs)
Maximum Number of Hosts 8,192
Maximum Number of LUNs 16,384
Value-added Features SmartDedupe (intelligent inline de-duplication)      SmartCompression (intelligent inline compression)

SmartThin (intelligent thin provisioning)                SmartVirtualization (intelligent heterogeneous virtualization)

SmartMigration (intelligent LUN migration)           HyperSnap (snapshot)

HyperReplication (remote replication)                   HyperMetro (gateway-free active-active solution)
Storage Management Software DeviceManager (device management)         UltraPath (multi-path management)

eService (remote maintenance management)
Operating System Compatibility AIX, HP-UX, Solaris, Linux, and Windows
Supported Virtualization Environment Software Huawei FusionSphere, VMware, XenServer, Hyper-V, and other virtualization platforms

VMware VAAI/VASA/SRM, Hyper-V, and other value-added features

Integration with vSphere and vCenter

*16 controllers and 7.68 TB SAS SSDs will be supported in the next version
