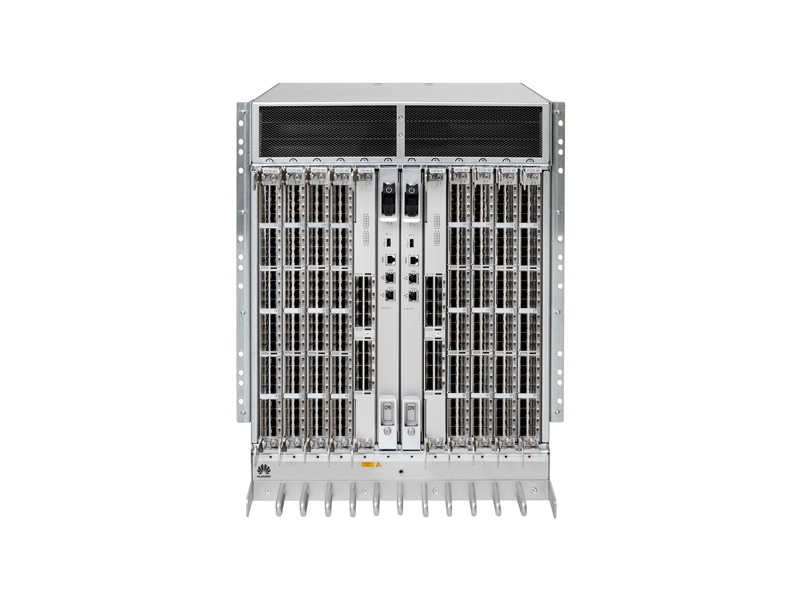

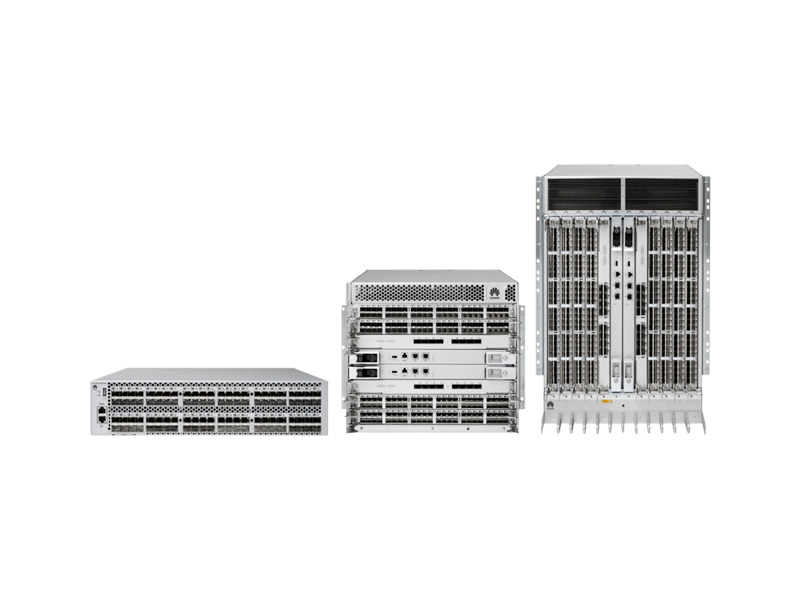

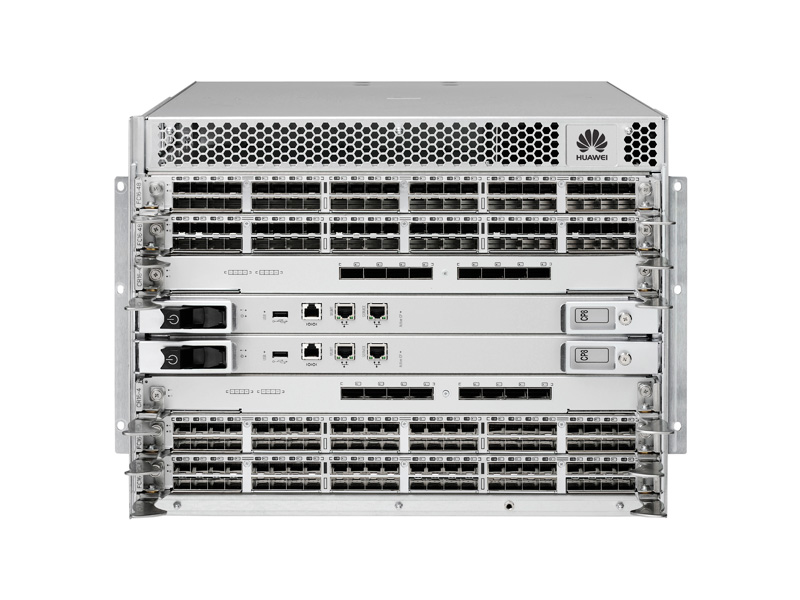

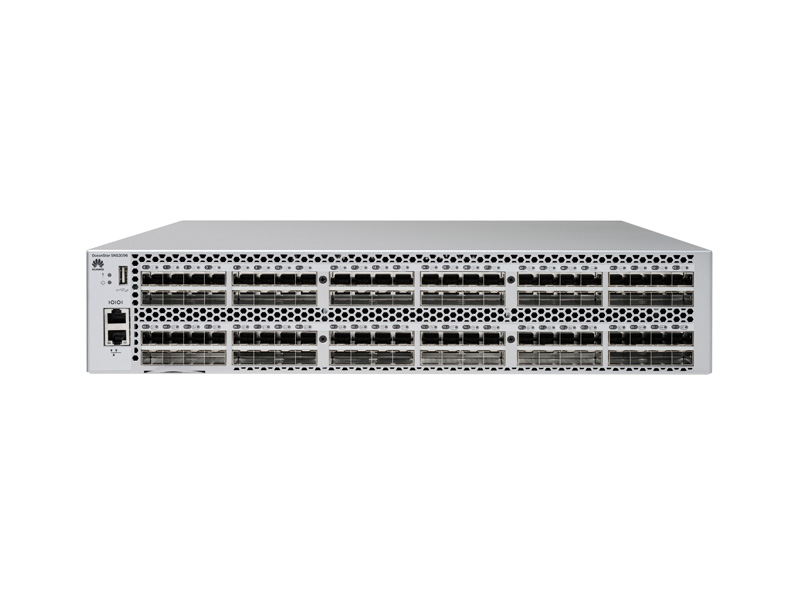

OceanStor SNS3096/5192/5384

OceanStor SNS3096, SNS5192, and SNS5384 are switches proven in network infrastructures dedicated to data centers.

These easy-to-use switches providing storage requirements and unparalleled reliability, with up to 16 Gbit/s performance.

Using enterprise-class Gen 5 Fiber Channel technology, the SNS3096, SNS5192, and SNS5384 unleash the full potential of high-density server virtualization, cloud architecture, and next-generation storage architecture.

Features

The OceanStor series of switches provides excellent reliability with optimal performance, and is a cost-effective solution to enable mission-critical tasks for data centers

  • Provides “pay-as-you-grow” flexibility and Ports-on-Demand (PoD) capabilities for port expansion, with speeds up to 16 Gbit/s
  • Simplifies and centralizes end-to-end SAN management with comprehensive diagnostics, monitoring, and automation

Specifications

Specifications

Model SNS3096 SNS5192 SNS5384
Number of Ports A maximum of 96 ports in increments of 24; the number of general-purpose ports can be increased to 48, 72, or 96 using PoD licenses. A maximum of 256 ports; a fully populated chassis includes four blades, and each blade supports 32, 48, or 64 ports. A maximum of 512 ports; a fully populated chassis includes eight blades, and each blade supports 32, 48, or 64 ports.
Port Types D_Port, E_Port, EX_Port, F_Port, and M_Port
Port Rates Auto-sensing of 2, 4, 8, and 16 Gbit/s
Maximum Fabric Latency Latency for locally switched ports is 700 ns
Aggregate Bandwidth 1,536 Gbit/s (96 ports x 16 Gbit/s data rate) 5.1 Tbit/s (256 ports x 16 Gbit/s data rate + 1.024 Tbit/s ICL bandwidth) 10.2 Tbit/s (512 ports x 16 Gbit/s data rate + 2.048 Tbit/s ICL bandwidth)
Media Types SFP+, LC connector; 16 Gbit/s SWL, LWL, and ELWL
Maximum Frame Size 2,112-byte payload
Frame Buffers 8,192 frames dynamically allocated
Scalability Full fabric architecture with a maximum of 239 switches
