OptiX OSN 8800 OTN Platform

Huawei OptiX OSN 8800 is a widely deployed 100G/200G product and applied on backbone and metro WDM/OTN networks, which are mainly used in power, finance, government, media, transportation industries, etc.

It is future oriented and adopts industry-leading technologies, such as the 2nd-generation SD-FEC, 100G, OTN, POTS/MS-OTN technology. Integrated ROADM, T-bit electrical cross-connect, 100M to 100G any services access and protection functions, provide an end-to-end OTN/WDM transmission solution, achieve multi-service, large capacity, full transparent transmission network.

Huawei’s OptiX OSN 8800 intelligent OTN platform for reliable OTN/WDM backbone networks and long-haul transmission of multiple services over Tbit/s connections

  • Single fiber 19.2Tbit/s capacity to support massive bandwidth. Supports 100G/200G line rates and hybrid transmission with 10G; bandwidth can be upgraded smoothly
  • 100 Mbit/s to 100 Gbit/s any services over one network, E2E services delivery, optimizes bandwidth utilization and configuration efficiency
  • Supports comprehensive soft decision (SDFEC and SDFEC2) and hard decision (HFEC) schemes to address various long-haul transmission requirements
  • High reliability equipment and services 1 + 1 protection, electrical and optical ASON can be combined to prevent multiple fiber cuts, ensuring 99.9999% availability

Specifications

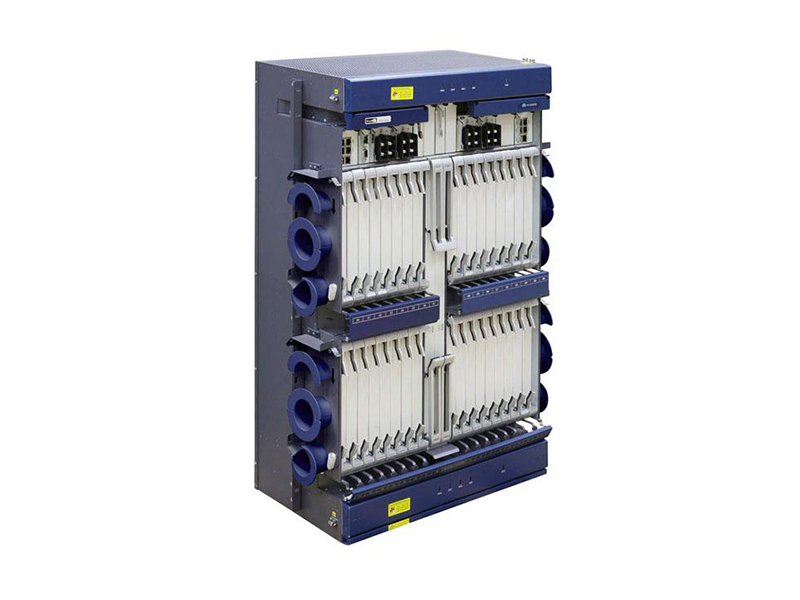

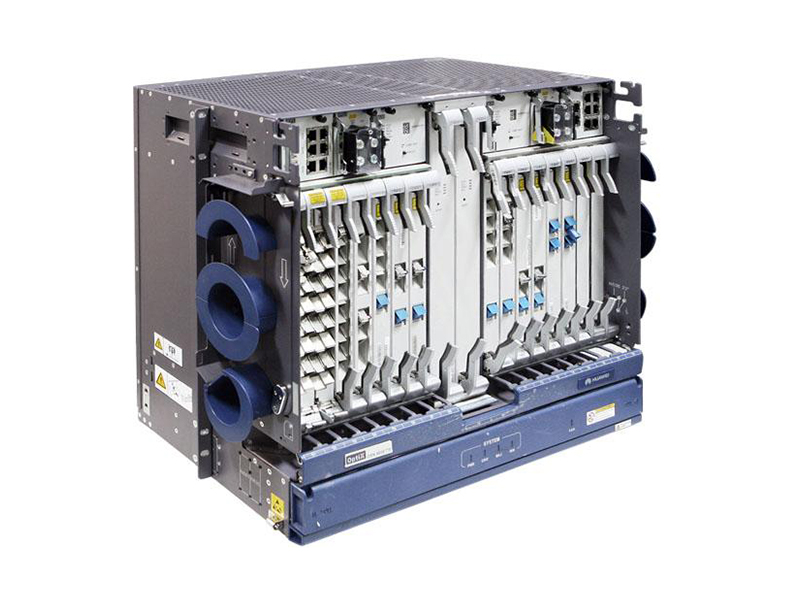

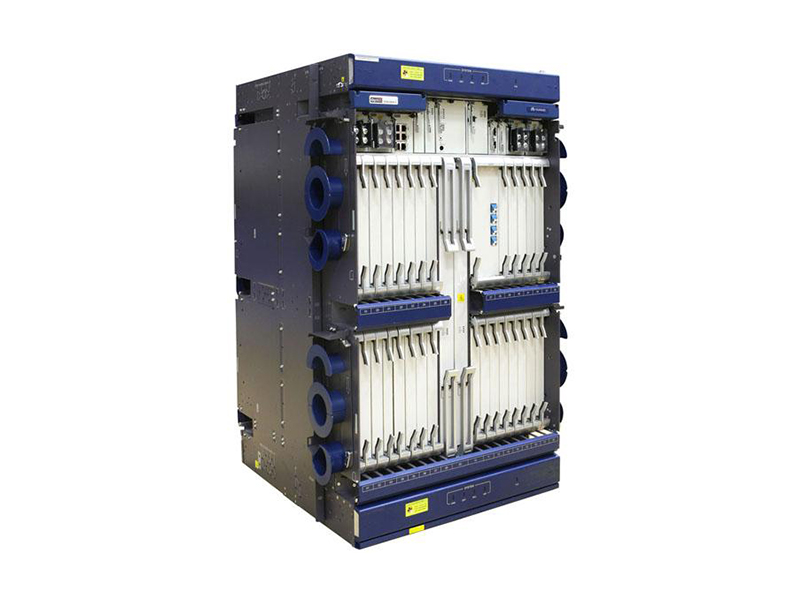

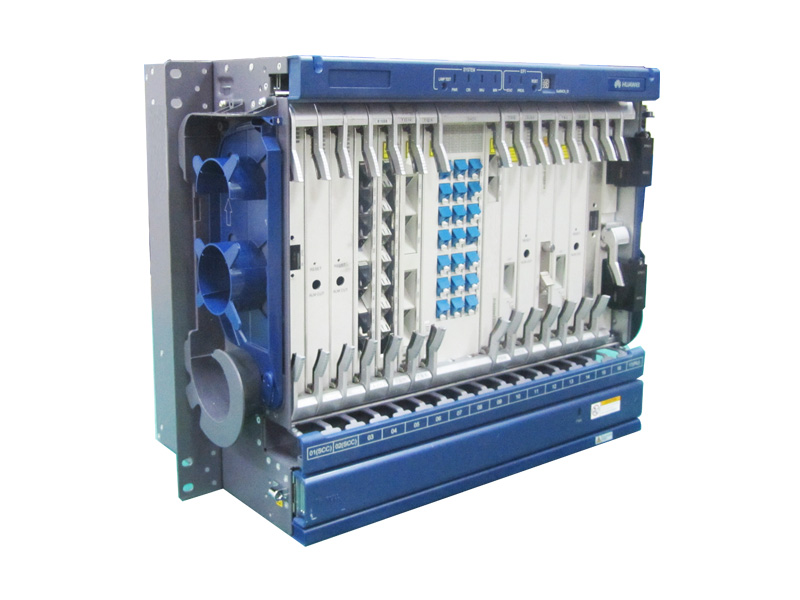

Specifications OptiX OSN 8800 UPS OptiX OSN 8800 T16 OptiX OSN 8800 T32 OptiX OSN 8800 T64
Dimensions (H x W x D) 397 mm x 442 mm x 291 mm 450 mm x 498 mm x 295 mm 900 mm x 498 mm x 295 mm 900 mm x 498 mm x 580 mm
Number of Service Slots 16 16 32 64
Cross-connect Capability NA 1.6T ODUk, 640G VC4 & 20G VC3 & VC12, 800G Packet 3.2T ODUk, 1.28T VC4 & 80G VC3 & VC12, 1.6T Packet 6.4T ODUk, 1.28T VC4 & 80G VC3 & VC12
Channel Spacing 100 GHz fixed grid for 40/48 wavelengths
50 GHz fixed grid for 80/96 wavelengths
37.5 GHz to 400 GHz flex grid
Rate per Channel (maximum) 100G/ 200G
Wavelength Range DWDM: 1,529.16 nm to 1,560.61 nm (C band, ITU-T G.694.1)
Power Supply -48V DC to -60V DC
