OptiX OSN 9800 OTN Platform
OptiX OSN 9800 is Huawei’s next-generation core packet-optical OTN platform for 100G and beyond, ideal for building high-performance backbone and metro networks in data center interconnection, power, finance, government, media, transportation industries, etc. It integrates Huawei’s advanced Packet, OTN, and Optics Transport technologies, and offers a leading high-density architecture with ultra-low power consumption per bit, providing the best solution for MTDC, MBB, and FBB networks.
At 25.6 Tbit/s and scalable to over 100 Tbit/s with clustering unblocked electrical switching capacity; 20 dimensions of Colorless + Directionless + Contentionless + Gridless (C-D-C-G) ROADM; any business access from 100M to 100 GE; self-developed DSP supports QPSK/8 QAM/16 QAM/64 QAM and 100G/200G/400G programmer transmission, to balance transmission capacity and distance; suitable for cloud-era data traffic burst growth demands.
Huawei’s OptiX OSN 9800 enables you to create reliable, large backbone and metro networks with 100G/200G/400G transmission speeds over long distances
- Ultra-large capacity OTN platform with high bandwidth, resilient 25.6 Tbit/s cross-connect capacity — scalable for cross-connect capacity up to 100 Tbit/s
- Industry-leading 400G per slot capacity, smooth evolution to address future 100G+ demands
- Unified switching matrix based on exclusive Tbit/s switching chip implements universal SDH/packet/OTN access, switching, and transmission
- E2E services automatically deliver, fast TTM, bandwidth provisioning and booking on demand
Specifications
| Specifications | OptiX OSN 9800 UPS | OptiX OSN 9800 U16 | OptiX OSN 9800 U32 | OptiX OSN 9800 U64 |

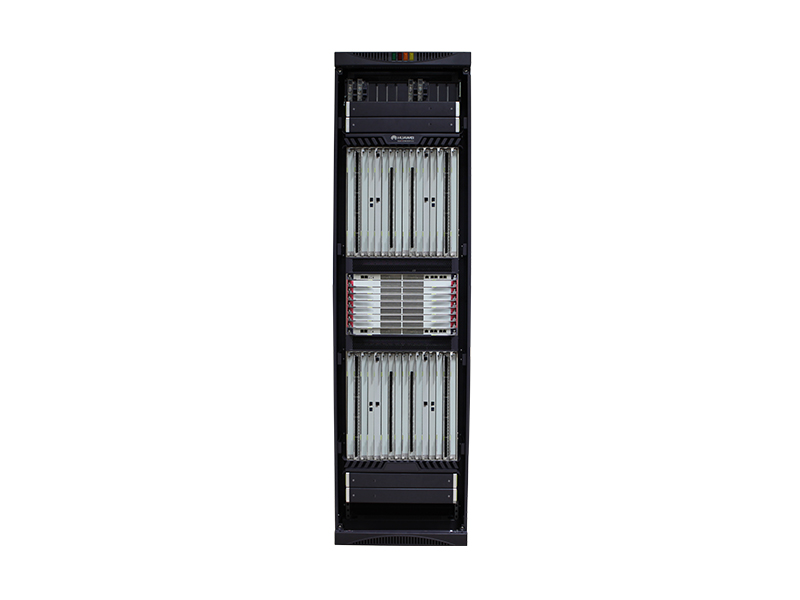

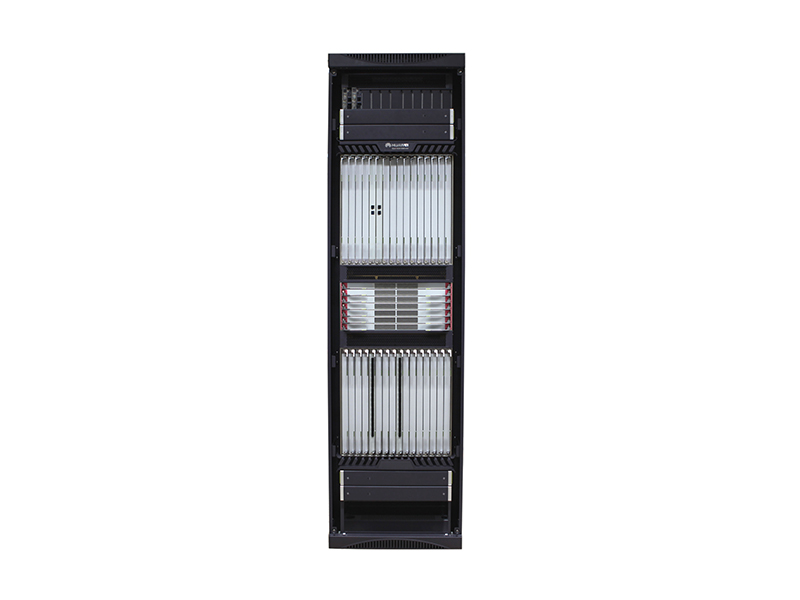

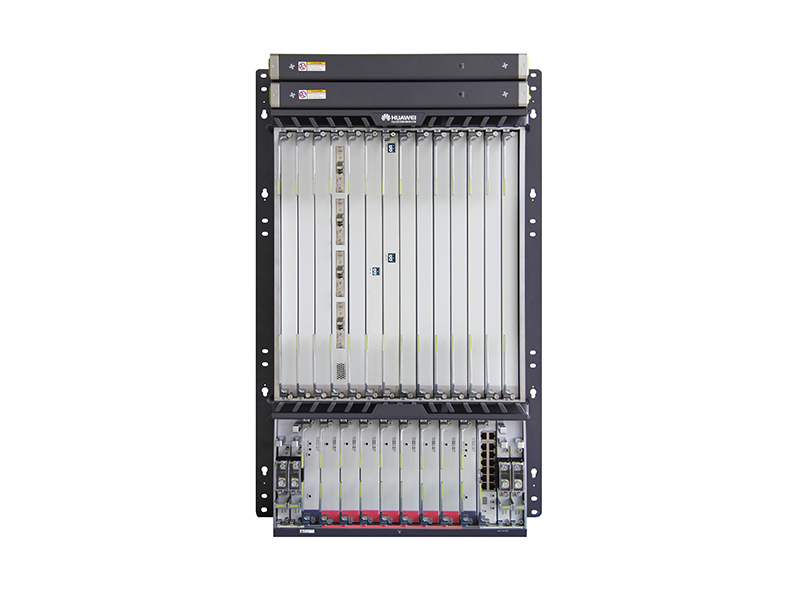

| Dimensions (H x W x D) | 397 mm x 442 mm x 291 mm | 847 mm x 442 mm x 295 mm | 1,900 mm x 498 mm x 295 mm | 2,200 mm x 600 mm x 600 mm (with cabinet) |
| Number of Service Slots | 16 | 14 | 32 | 64 |
| Cross-connect Type | NA | ODUk/ PKT/VC | ODUk/ PKT/VC | ODUk/ PKT/VC |
| Cross-connect Capability | NA | 5.6T/2.8T/1.12T | 12.8T/6.4T/2.56T | 25.6T/12.8T/5.12T |
| Channel Spacing | 100 GHz fixed grid for 40/48 wavelengths 50 GHz fixed grid for 80/96 wavelengths 37.5 GHz to 400 GHz flex grid |
|||
| Rate per Channel (maximum) | 100G/200G/400G | 100G/200G/400G/1T | ||
| Wavelength Range | DWDM: 1,529.16 nm to 1,560.61 nm (C band, ITU-T G.694.1) | |||
| Power Supply | –48V DC/–60V DC | |||
