OptiX PTN 900 Transmission Systems

The OptiX PTN 900 delivers rich PTN services for cellular base stations or enterprise private lines with small devices. It allows easy installation with remote O&M support.

Choose product models to support small cells up to base stations with 4 x 10 GE access interfaces, switching capacity scalable to 56 Gbit/s, Power over Ethernet (PoE) support. Service interfaces include E1, FE, GE, xDSL, and STM-1, supporting Time-Division Multiplexing (TDM), Asynchronous Transfer Mode (ATM), Ethernet, and IP in one compact enclosure.

Same comprehensive service management and security features as larger PTN systems for easy integration and scalability.

Features

Compact PTN transmission platform to support small cells and base stations; SDN-based design for simplified provisioning, comprehensive remote management features for easy O&M

  • Compact platform with rich PTN features including E-Line, E-LAN, Layer 3 Virtual Private Network (L3 VPN), Circuit Emulation Service (CES), and ATM
  • PoE to provide power to small cells
  • SDN-based design simplifies provisioning of new services; built-in management features include easy “plug and play” installation, immediately available Data Communication Network (DCN), E2E service detection, and performance monitoring for simplified O&M
  • Clock synchronization functions include synchronous Ethernet and IEEE 1588 v2; supports E2E clock synchronization solutions
  • 10 GE interfaces support hard and soft pipes for high performance and low latency

Specifications

Specifications

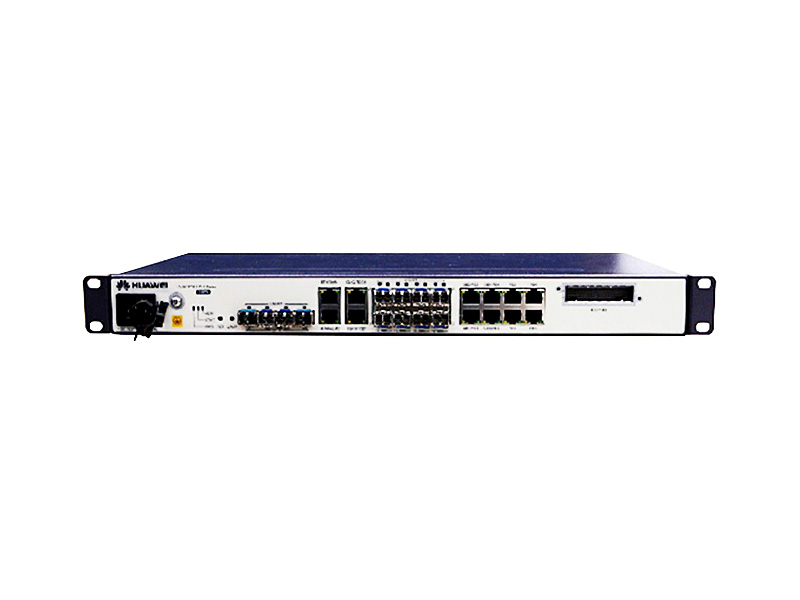

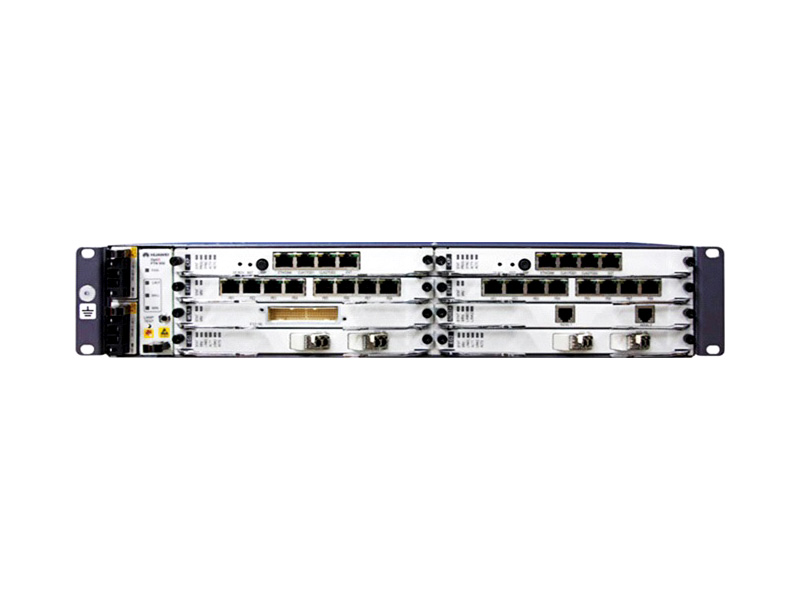

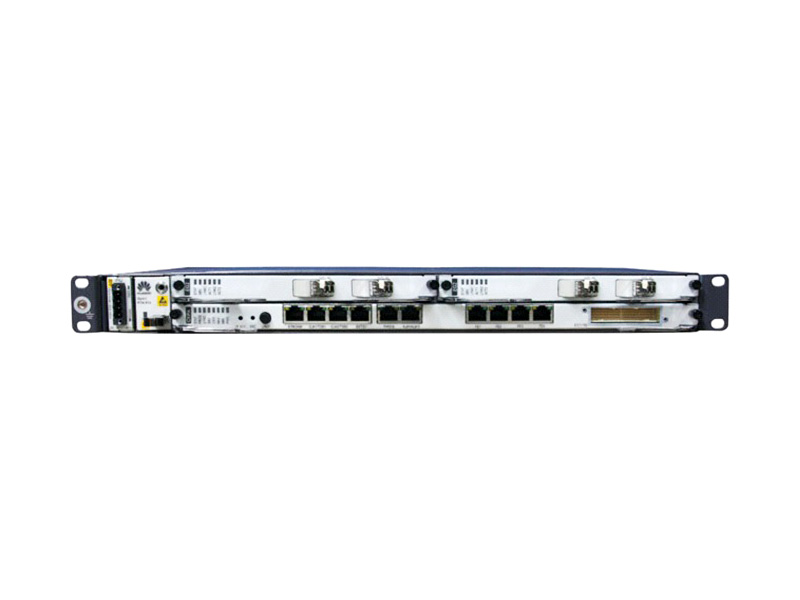

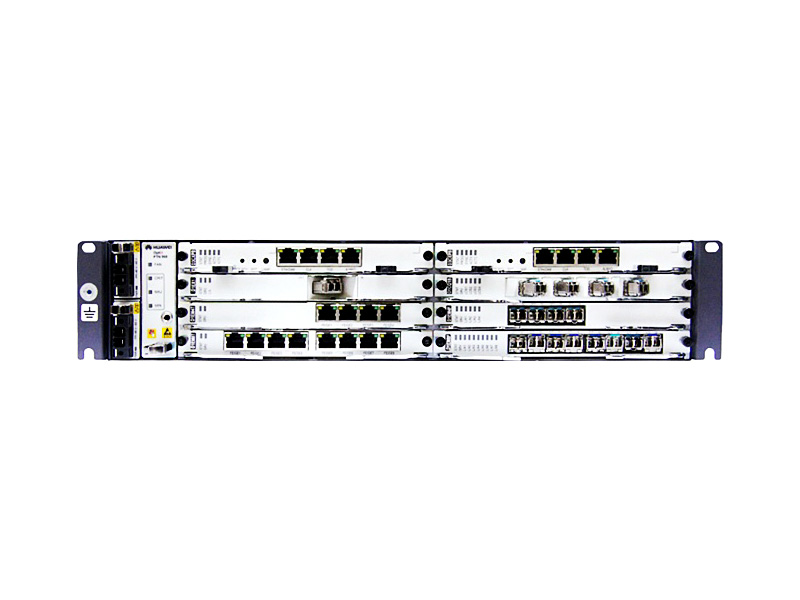

PTN 906 A PTN 905 B/C1/D PTN 910-F PTN 910 PTN 950 PTN 960
Dimensions (W x D x H) 250 mm x 180 mm x 52 mm 250 mm x 180 mm x 43.6 mm 442 mm x 220 mm x 44.5 mm 442 mm x 220 mm x 44.5 mm 442 mm x 220 mm x 88.9 mm (DC); 442 mm x 220 mm x 133.3 mm (AC) 442 mm x 220 mm x 88.9 mm (DC); 442 mm x 220 mm x 133.3 mm (AC)
Working Voltage 100V to 240V
(50 Hz or 60 Hz)		 100V to 240V AC 100V to 240V AC; -38.4V  to -72.0V DC -38.4V to -72.0V -38.4V to -72.0V DC;  90V to 80V AC -38.4V to 72.0V DC;
90V to 280V AC
Environmental Requirements Long term: -40°C to 55°C, Storage temperature: -40°C to 70°C, Relative humidity: 5% RH to 95% RH Long term: -20°C to 60°C, Storage temperature: -40°C to 70°C, Relative humidity: 10% RH to 90% RH, Altitude: ≤ 4,000m Long term: -20°C to 60°C, Storage temperature: -40°C to 70°C, Relative humidity: 10% RH to 90% RH, Altitude: ≤ 4,000m Long term: -20°C to 60°C, Storage temperature: -40°C to 70°C, Relative humidity: 10% RH to 90% RH, Altitude: ≤ 4,000m Long term: -20°C to 60°C, Storage temperature: -40°C to 70°C, Relative humidity: 10% RH to 90% RH, Altitude: ≤ 4,000m Long term: -20°C to 60°C, Storage temperature: -40°C to 70°C, Relative humidity: 10% RH to 90% RH，Altitude: ≤ 4,000m
Switching Capacity 4 Gbit/s 3 Gbit/s, 3 Gbit/s, and 3.01 Gbit/s 9.23 Gbit/s 6.5 Gbit/s, 6.8 Gbit/s, and 10.8 Gbit/s 12 Gbit/s 56 Gbit/s
Interface Types GE (o/e), FE (o/e), and PoE GE (o/e), FE (o/e), and TDM E1 Smart E1 (IMA/TDM/ML-PPP), FE (o/e), and GE (o/e) ADSL2+, G.SHDSL, Smart E1 (IMA/TDM/ML-PPP), Ch STM-1, FE (o/e), and GE (o/e) ADSL2+, G.SHDSL, Smart E1 (IMA/TDM/ML-PPP), Ch STM-1, ATM STM-1, FE (o/e), and GE (o/e) TDM E1, Ch STM-1, ATM STM-1, FE (o/e), GE (o/e), and 10 GE (o)
Service Types E-Line, E-LAN, L3VPN, CES, ATM, and IP over PW E-Line, E-LAN, L3VPN, CES, and ATM
Service Protection LAG, LSP APS, PW APS, and Ring protection LAG, LSP APS, and PW APS LMSP, LAG, LSP APS, PW APS, and Ring protection LMSP, LAG, LSP APS, PWAPS, and Ring protection
Clock Synchronization Synchronous Ethernet, IEEE 1588 v2 Synchronous Ethernet, TDM Clock Synchronization External clock, IEEE 1588 v2, Synchronous Ethernet, and TDM Clock Synchronization External clock, IEEE 1588 v2, Synchronous Ethernet, and TDM Clock Synchronization
