OptiX RTN 900 Series

A generic split-mount platform for TDM/Hybrid/Packet/Route microwave transmission. The platform provides various service interfaces, large bandwidth, and easy scalability. The RTN 900 system fully meets the needs of enterprise microwave transmission networks.

Designed to protect investments in existing enterprise infrastructures, and for smooth transformation to future new ICT networks, Huawei’s RTN 900 systems are widely used in various kinds of vertical industries; especially in government, broadcasting, energy, and power utilities.

Features

Build faster, more-reliable radio transmission links supporting multiple services with Huawei OptiX RTN 900 series IP microwave systems

  • Ultra-large bandwidth — Utilizing high modulation schemes, cross-polarization interference cancellation, and Ethernet frame header compression technologies; offer 2 Gbit/s capacity per channel
  • Carrier-grade reliability — Protection and redundancy at the network, link, and equipment levels; Ingress Protection (IP65) for water and dust, and 8 kA surge protection for high-availability operation in harsh environments
  • Easy maintenance — Unified NMS with Optics and Routers for seamless end-to-end networking, supports TP-Assist features for flexible and cost-effective O&M
  • Enhanced security – Support AES 128/256 air link encryption and device anti-theft functions

Specifications

Specifications

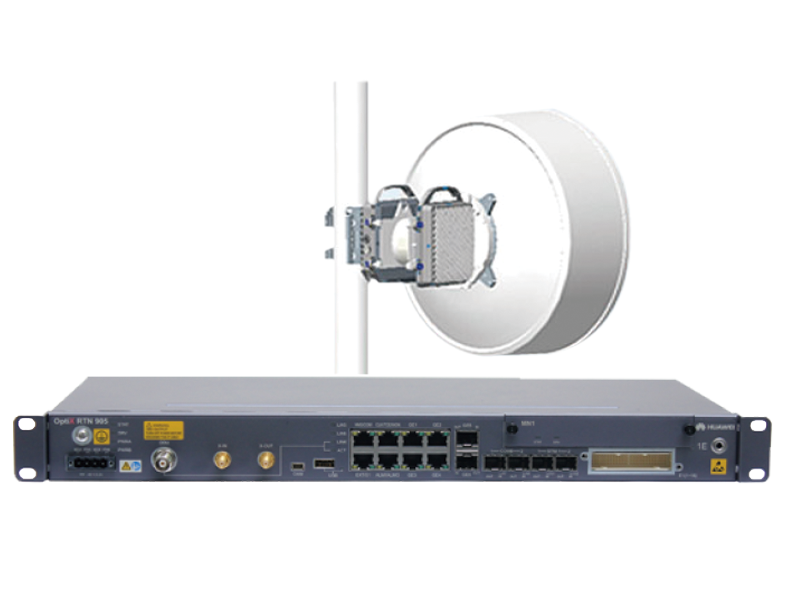

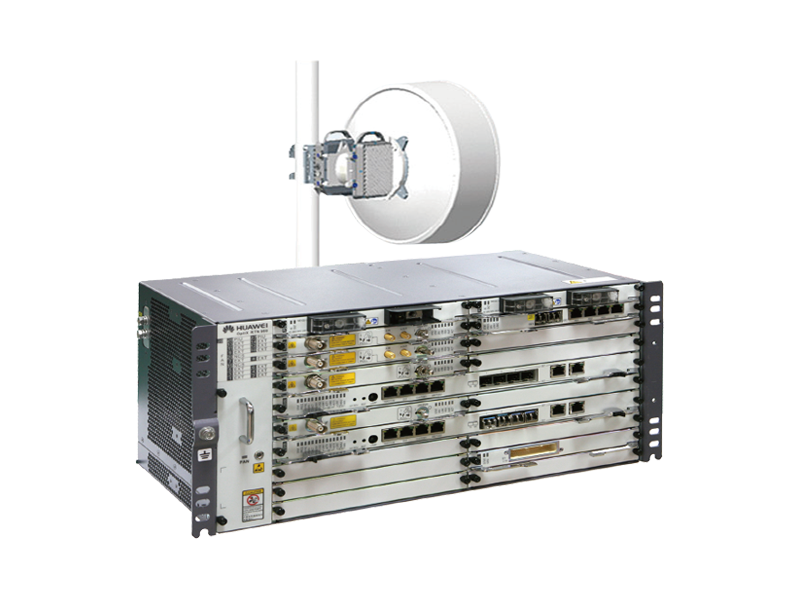

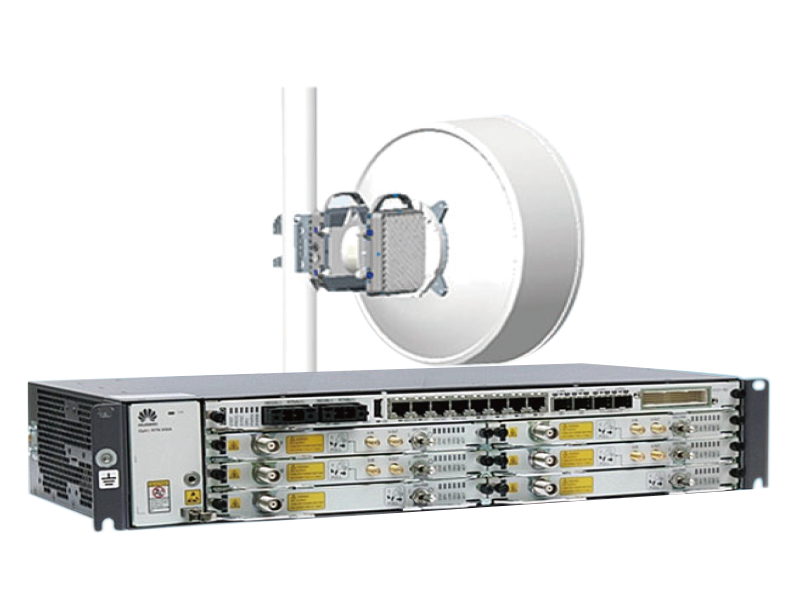

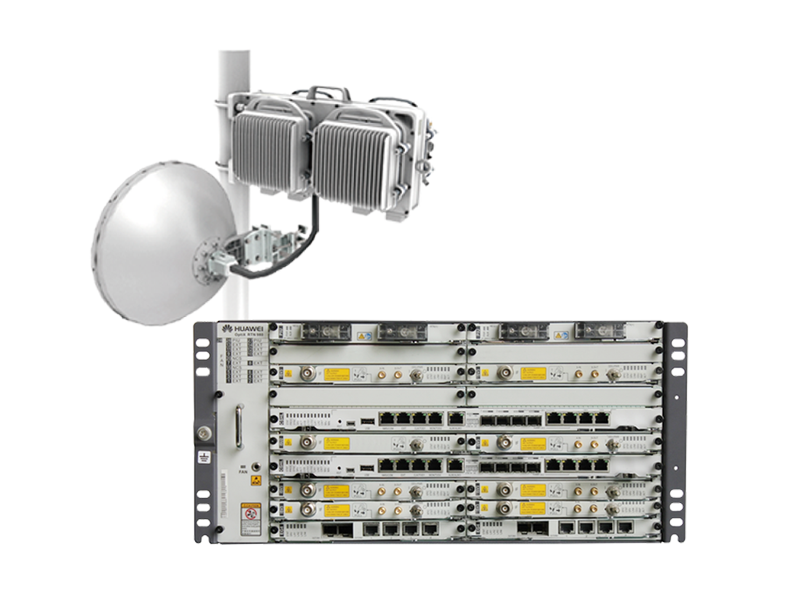

Specifications RTN905e RTN950A RTN980 RTN980L
Frequency 6/7/8/10/10.5/11/13/15/18/23/26/28/32/38/42 GHz 56/7/8/11GHz
Channel Spacing 3.5/7/14/28/40/50/56 MHz 3.5/7/14/28/40/50/56/112 MHz
RF Directions 1U/2 RF 2U/10 RF 5U/20 RF 5U/16 RF
Switching Capacity 8 Gbit/s 10 Gbit/s 22 Gbit/s 120Gbit/s
Cross-Connect Capacity 8 x 8 VC-4 32 x 32 VC-4 128 x 128 VC-4 128 x 128 VC-4
IDU Dimension (W x D x H) 442 mm x 220 mm x 44 mm 442 mm x 220 mm x 88 mm 442 mm x 220 mm x 225 mm  442 mm x 220 mm x 225 mm
IDU Weight 3.1 kg 6.2 kg 15.4 kg  20.1 kg
Power Supply –38.4V to –57.6V -38.4V to -57.6V -38.4V to -72V  -38.4V to -72V
Typical Power Consumption 92W 125W 470W 746W
Environment Temperature Ranges: IDU –5℃ to +60℃, ODU –35℃ to +55℃
Humidity Ranges: IDU 5% to 95%, ODU 5% to 100%
