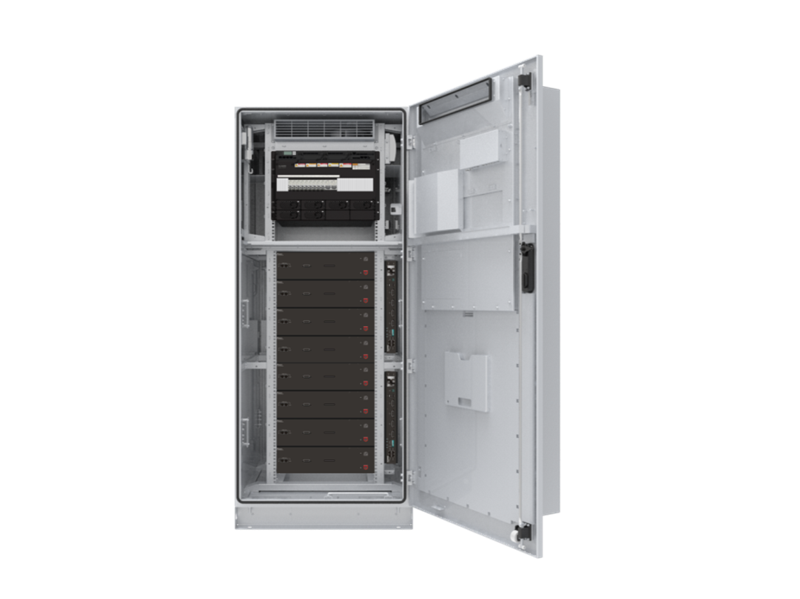

PowerCube 1000 Grid Hybrid Power

Huawei’s high-performance, grid hybrid power system is used in poor grid areas. With integrated design of unified platform, industry-leading GridMax technology and high environment adaptability, it maximizes the efficiency of electric power and optimizes power supply cost performance to provide a simple, efficient and reliable on-site power supply.

Features

Simple, efficient, and reliable grid hybrid power solution

Simple: Integrated system design ensures fast site deployment and smooth evolution with the addition of solar energy
Efficient: Huawei GridMax technology utilizes grid power to “fast charge” hybrid systems in just two hours and it reduces electricity cost per unit by 15% compared to similar solutions
Reliable: Rectifier with 500V high voltage resistance and derating at low voltage, plus ultra-wide operating temperature range (-40°C to 70°C) enables the system to adapt easily to any environment

Specifications

Product Type PowerCube 1000 G2 PowerCube 1000 G3 PowerCube 1000 G4  PowerCube 1000 G4 Mini
AC Input Mode 220V/380V, three-phase, four-wire; 10V dual–live wire 220V/380V, three-phase, four-wire; 10V dual–live wire 220V/380V, three-phase four-wire; 110V, dual-live wire 220V/380V, three-phase four-wire
DC Output Distribution
  • Load branches: 11 x MCB
  • Battery branches: 2 x 250A
  • Load branches: 11 x MCB
  • Battery branches: 2 x 250A
  • Load branches: 11 x MCB
  • Battery branches: 2 x 160A
  • Load branches: 9 x MCB
  • Battery branches: 2 x 125A
Battery ESU-A ESU-A, FCB FCB FCB
Cooling Mode
  • Equipment cabinet: HEX
  • Battery cabinet: DC air conditioner
  • Equipment cabinet: HEX
  • Battery cabinet: DC air conditioner
  • Equipment cabinet: HEX
  • Battery cabinet: DC air conditioner/direct ventilation
  • Equipment cabinet: HEX
  • Battery cabinet: Direct ventilation
IP Level IP55 IP55
  • Equipment cabinet: IP55
  • Battery cabinet: IP34/IP55
  • Equipment cabinet: IP55
  • Battery cabinet: IP34
Operating Temperature 0°C to 50°C (+ solar radiation) -10°C to 50°C (+ solar radiation) -10°C to 50°C (+ solar radiation) -10°C to 45°C (+ solar radiation)
Altitude Zero to 4,000m (1°C per 200m temperature derating from 2,000m to 4,000m) Zero to 4,000m (1°C per 200m temperature derating from 2,000m to 4,000m) Zero to 4,000m (1°C per 200m temperature derating from 2,000m to 4,000m) Zero to 4,000m (1°C per 200m temperature derating from 2,000m to 4,000m)
