PowerCube 500 Small Capacity Power

Huawei PowerCube 500 is a highly-integrated power system widely-used in “safe” and “smart” cities to support video surveillance. It is used in areas with unstable grids and frequent outages, and in off-grid areas. With its integrated, modular platform, the system supports high-performance lithium batteries and intelligent network management. Its leading SolarMax and GridMax power technologies enable it to maximize the use of solar energy to provide a safe and reliable power supply for surveillance equipment.

Features

Simple, Efficient, and Reliable Small Capacity Power

Simple: Features energy MIMO technology; supports solar and grid input; supports 4 voltage modes output (12V DC, 24V AC, 48V DC, 220V AC); power supply, battery, and transmission equipment all-in-one design; supports pole mounting; unified OSS and mobile App; and is easy to deploy, operate, and maintain.
Efficient: Huawei SolarMax and GridMax technologies, 96% efficient rectifier, energy efficiency increased by 20%.
Reliable: IP55 protection rating, -30°C to 50ºC wide temperature adaptability, Huawei high-performance lithium batteries, multi-level anti-theft design, high power reliability.

Specifications

Solution Grid Hybrid Grid + Solar Hybrid Pure Solar

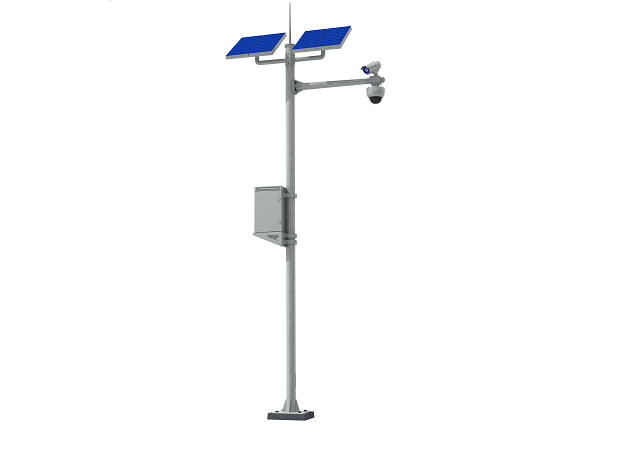

Installation Mode Pole mounted/on ground Pole mounted Pole mounted/on ground
Cabinet Cooling Mode Equipment cabin: Heat exchange; Battery cabin: Direct cooling
Protection Level Equipment cabin: IP55; Battery cabin: IP34
AC Input Mode 220V single-phase, 110V dual-live wire 220V single-phase, 110V dual-live wire –
AC Input Voltage 85V to 300V, rated: 220V 85V to 300V, rated: 220V –
DC Input Voltage – 24V to 130V 24V to 130V
Output Voltage 12V DC, 24V AC, 48V DC (220V AC, PoE optional)
Signal Input 3 DI + 4 AI + 5 dry contact
OSS Networking IP
Operating Temperature Range -30ºC to 50ºC (including solar radiation)
Wind-resistance Level  ≤ 40m/s
