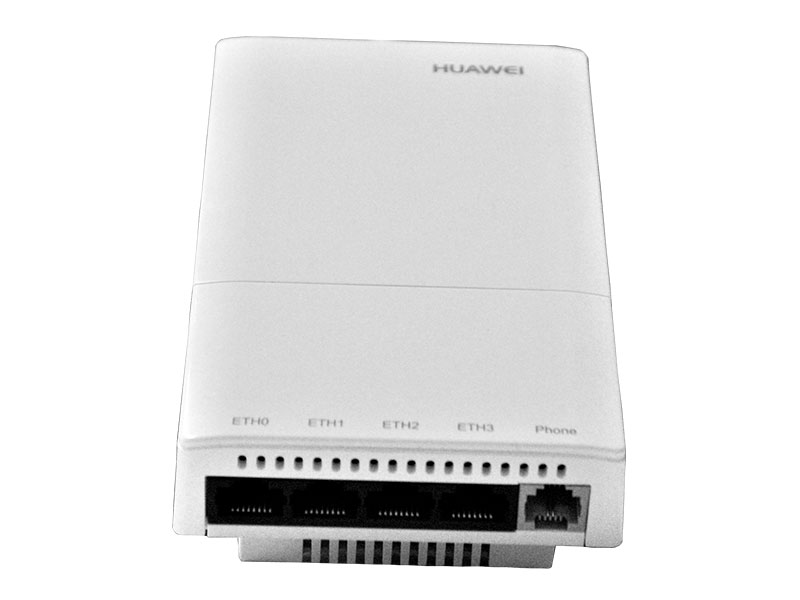

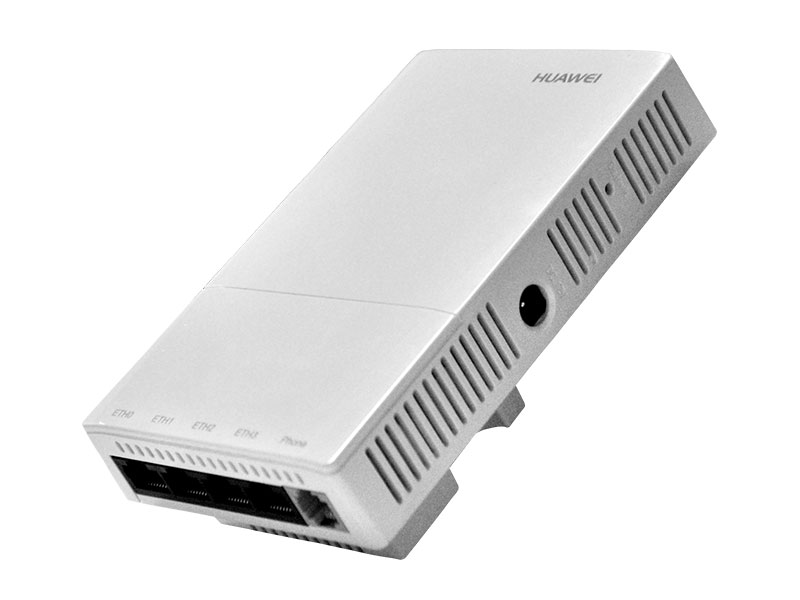

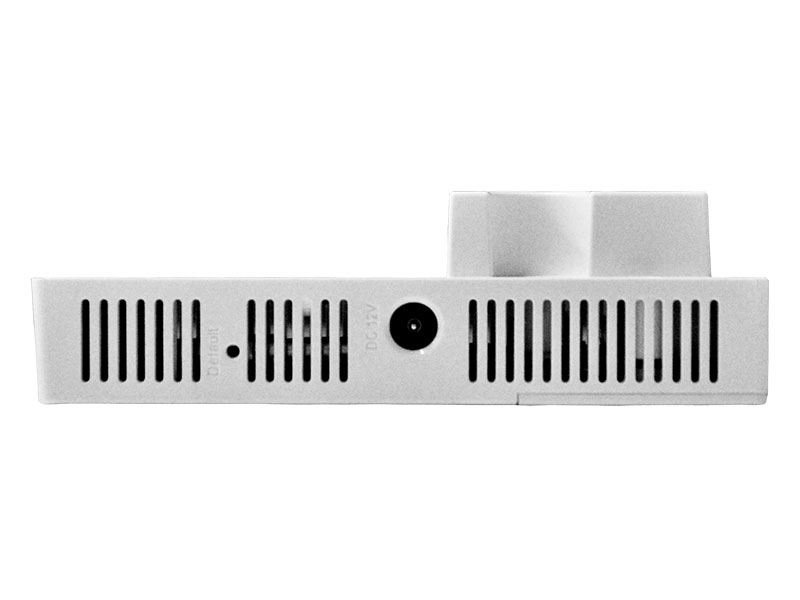

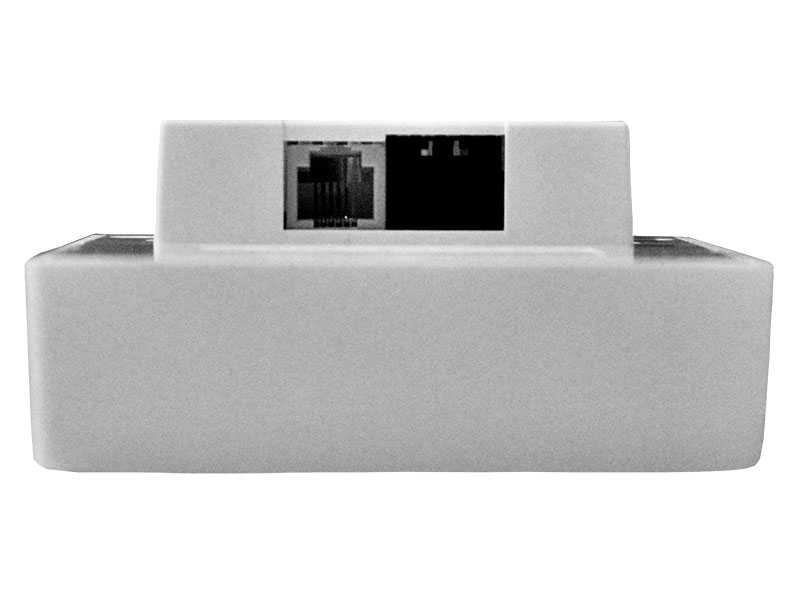

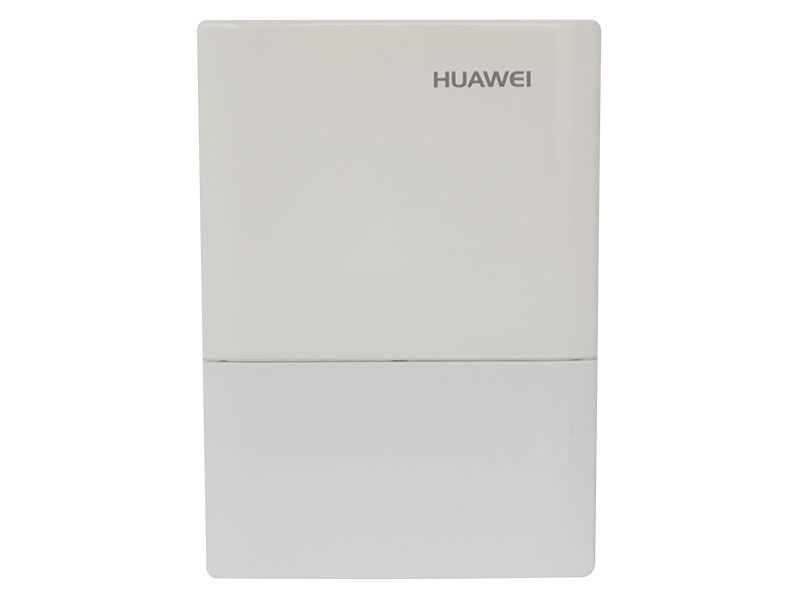

R240D/R230D Remote Units

High-availability Remote Units (RUs) with PoE support for indoor use in Huawei Agile Distributed Wi-Fi Solutions. Mount on walls, ceilings, or in an 86-type box and connect directly to a central AP.  All units include an IEEE 802.11a/b/g/n/ac wireless module and can work on both 5 GHz and 2.4 GHz frequency bands.

Onboard intelligence supports comprehensive RADIUS security and QoS policies for BYOD and enterprise mobility. Built-in antenna and covered LED indicators allow RUs to be installed virtually anywhere without affecting interior design or decorations.

Features

Versatile RUs with PoE support used in Huawei Agile Distributed Wi-Fi Solutions; connect to a central AP for resilient wireless networking indoors

  • Complies with IEEE 802.11a/b/g/n/ac, supports 2 x 2 MIMO, works on both 2.4 GHz and 5 GHz frequency bands, and provides strong signals at a gigabit wireless rate
  • Easily mounted to a ceiling or wall or embedded into an 86-type box
  • Can be uniformly managed by the central AP and do not use license resources
  • Supports wired and wireless users: the R240D supports downlink Ethernet interfaces for connecting wired users

Specifications

Specifications R240D R230D
Dimensions (H x W x D) 140 mm x 86 mm x 41.5 mm 120 mm x 86 mm x 26 mm
Power Input DC: 12V ± 10%

PoE power supply in compliance with IEEE 802.3af/at

 PoE power supply in compliance with IEEE 802.3af/at
Maximum Power Consumption 8.7W 5.1W
Operating Temperature 0°C to 40°C 0°C to 40°C
Antenna Type/Antenna Gain Built-in antenna: 2.4G; 2 dBi, 5G; 3 dBi Built-in antenna: 2.4G; 3 dBi, 5G; 4 dBi
Maximum Number of Concurrent Users ≤ 256 ≤ 256
Maximum Transmit Power 21 dBm (combined power) 20 dBm (combined power)
MIMO: Spatial Streams 2 x 2:2 2 x 2:2
Radio Protocols 802.11a/b/g/n/ac 802.11a/b/g/n/ac
Highest Rate 1.167 Gbit/s 1.167 Gbit/s
Installation Modes Mounting to a ceiling, wall, or built into an 86-type box Mounting to a ceiling, wall, or built into an 86-type box
