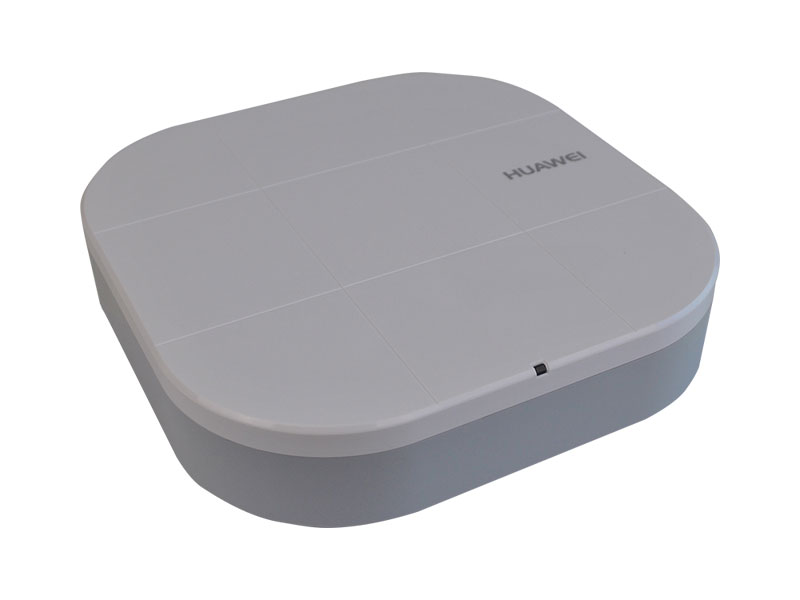

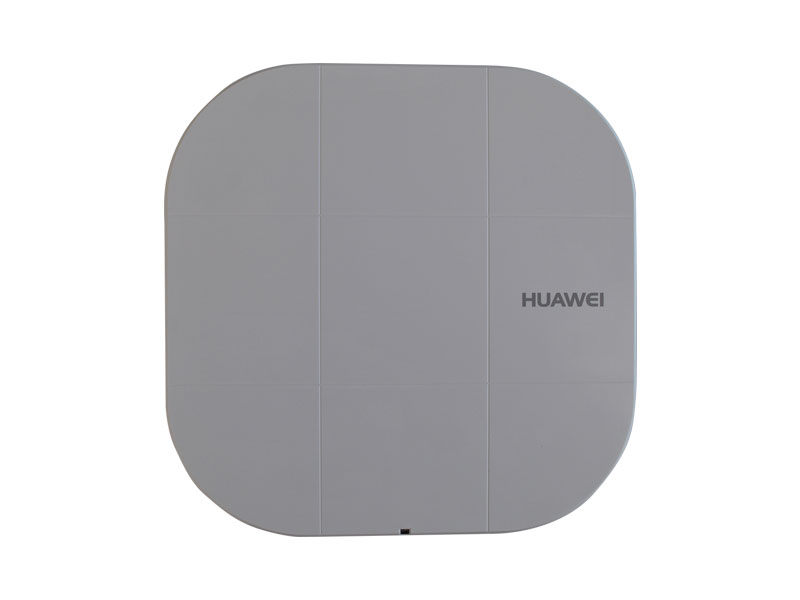

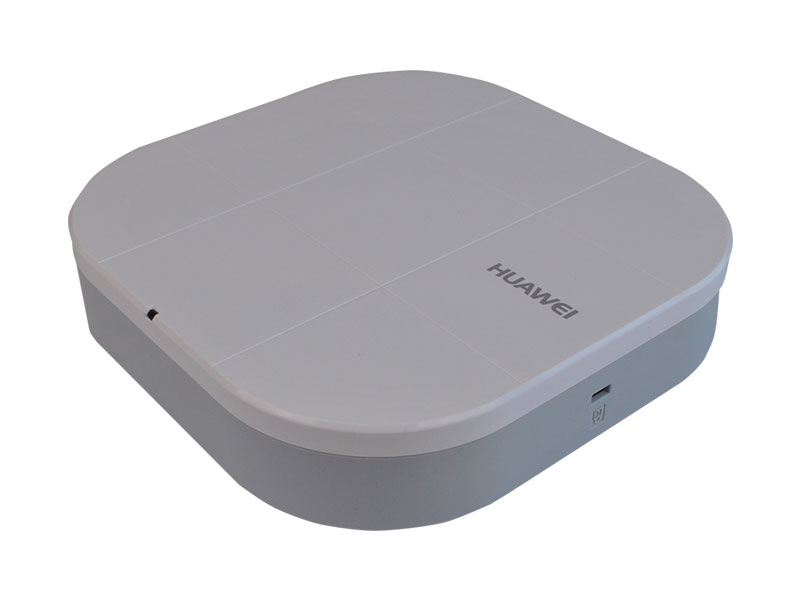

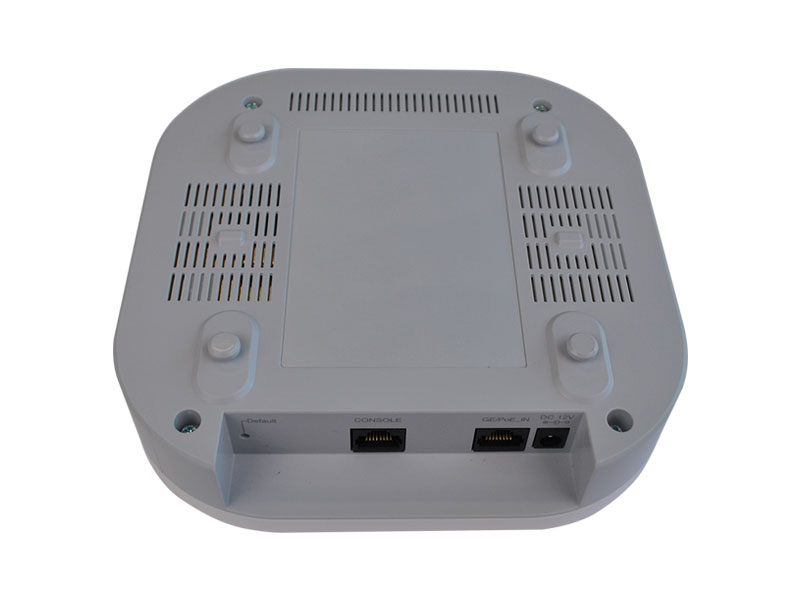

R450D Remote Unit
The Huawei R450D is a Remote Unit (RU) used in Huawei’s agile distributed Wi-Fi solution. It is applicable to environments with complex wall structures and high-density rooms, such as schools, hotels, hospitals, and office meeting rooms.
Get convenient Wi-Fi in even the most complex environments with Huawei’s ceiling-mounted or wall-mounted R450D remote unit
- 802.11ac Wave 2 standards compliance, MU-MIMO (2SU-2MU)
- Services simultaneously provided on the 2.4 GHz and 5 GHz radio bands, at 1.267 Gbit/s throughput for the device
- Various installation modes for easy deployment, including ceiling-mounting and wall-mounting modes
| Specifications | R450D |
| Dimensions (H x W x D) | 170 mm x 170 mm x 35 mm |
| Power Input | DC: 12V ±10%
PoE power supply: In compliance with IEEE 802.3af/at |
| Maximum Power Consumption | 12.1W
Note: The actual maximum power consumption depends on local laws and regulations |

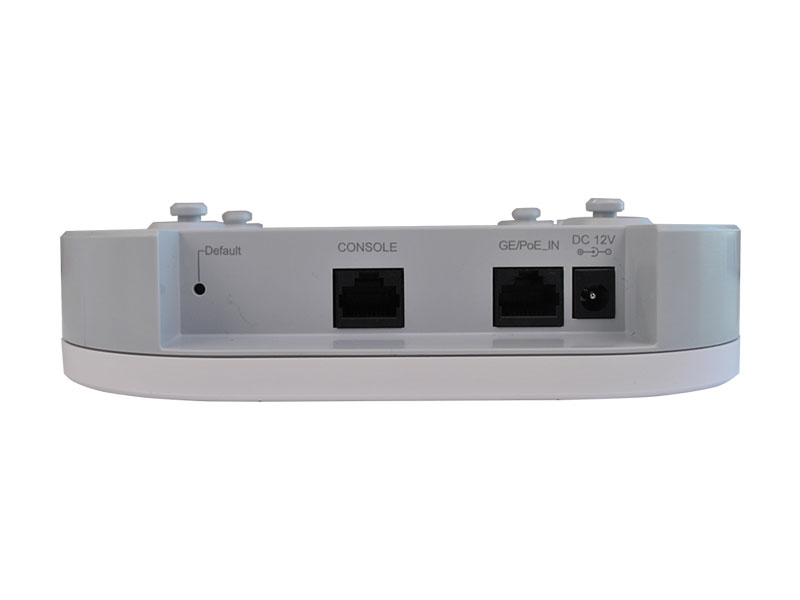

| Port | Uplink: 1 x GE |
| Operating Temperature | -10°C to 50°C |
| Antenna Type | Built-in antennas (horizontal beamwidth 360°) |
| Maximum Number of Concurrent Users | ≤ 256 |
| Maximum Transmit Power | 2.4G: 23 dBm (combined power)
5G: 23 dBm (combined power) Note: The actual transmit power depends on local laws and regulations |
| MIMO: Spatial Streams | 2 x 2:2 |
| Radio Protocols | 802.11a/b/g/n/ac/ac wave 2 |
| Maximum Rate | 1.267 Gbit/s |
