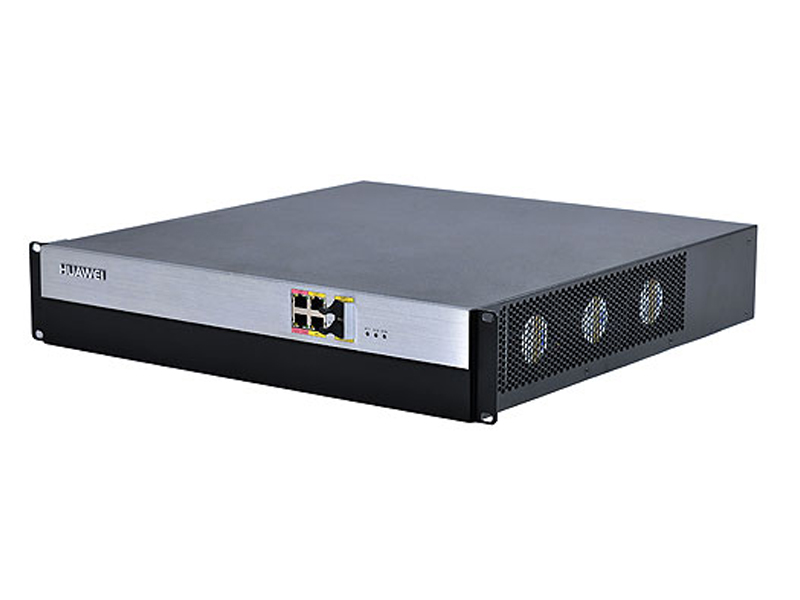

RSE6500 1080p60 Recording and Streaming Engine

A high-performance, full-HD recording and streaming engine that supports live video multicast and mobile Video on Demand (VoD). It provides 1080p60 live streaming for up to 2,000 viewers, with large storage capacity and multiple backup mechanisms.

The engine integrates seamlessly with Huawei’s single-screen and three-screen HD video conferencing solutions for streaming and recording; open APIs enable easy integration with IPTV and third-party streaming media systems.

Supports live and on-demand streaming formats, multiple picture-in-picture options, and user-friendly content indexing, searching, and queuing features with thumbnail previews.

Features

Large-capacity 1080p60 HD Recording and Streaming Engine for local and Web-based video conferencing, multicast, and mobile VoD

  • Versatile HD recording and streaming media processor with open SOAP-based APIs for integration with third-party streaming media applications, FTP and TS transmission, and storage support
  • Large scale, 30-channel 1080p60 recording and concurrent 2,000 channels on-demand playback; also supports 1080p30, 720p60, 720p30, 4CIF, and CIF
  • Local and network recording and live broadcasting; convenient Web-based access based on HTML5; mobile playback without plug-ins
  • Three backup mechanisms for high reliability: Power supply, hard disk, and chipset
  • Secure encryption: HTTPS, H.235, and TLS/SRTP

Specifications

Specifications RSE6500-M RSE6500-L
Maximum Capability Recording:

30 x 1080p60/1080p30/720p60/720p30 (dual stream)

Live: 10 x 720p30, 5 x 1080p30, or 2 x 1080p60 live streams

VoD: 2,000 viewers @ 256 kbit/s; 1,000 viewers @ 512 kbit/s; 512 viewers @ 1 Mbit/s; 256 viewers @ 2 Mbit/s

 Recording:

30 x 1080p60/1080p30/720p60/720p30 (dual stream)

Live: 20 x 720p30, 10 x 1080p30, or 5 x 1080p60 live streams

VoD: 2,000 viewers @ 256 kbit/s; 1,000 viewers @ 512 kbit/s; 512 viewers @ 1 Mbit/s; 256 viewers @ 2 Mbit/s
Storage Capacity 2 TB, 4,000-hour recordings @ 512 kbit/s
Recording Time Up to 4,000 hours of 512 kbit/s dual stream recordings
Reliability and Security
  • Power, hard disk, and chipset backup
  • Network storage expansion: IP SAN and NAS
  • User authentication: Log in confirmation of LDAP/AD users simplifies user and group management
  • Multiple-user tiered permission management based on video grouping and user grouping
  • Encryption: HTTPS, H.235, TLS/SRTP
Standards and Protocols
  • ITU-T H.323 and IETF SIP
  • H.264 BP, H.264 HP, H.263, H.263+, and H.263++
  • AAC-LD, AAC-LC, G.711a, G.711u, G.722, and iLBC
  • H.239 and BFCP
Recording
  • Uni-stream and dual-stream recording
  • Recording of the endpoint called by the recording server
  • Recording of three-screen Telepresence
  • 1080p60, 1080p30, 720p60, 720p30, 4CIF, and CIF
  • File storage formats: MP4, AVI, WMV, ASF, and FLV
  • Offline transcoding and adding text index
  • Dump, export, and upload recorded files
  • Records PowerPoint files or conference agendas
  • Audio IVR for reminding
  • Bandwidth: 128 kbit/s to 8 Mbit/s
Live Streaming and VoD
  • Web-based and standard videoconferencing endpoints
  • Live streaming: Unicast and multicast
  • On-demand streaming (unicast)
  • Offline playback after downloading
  • Browser
  • Computer: Internet Explorer 8+, Firefox 19+, Chrome 25+; MAC and iOS: Safari 5+; Android: Android 2.3+
Playback Features
  • Search, preview, and play recorded content on the Web interface
  • Quickly search video sources through video grouping and labeling
  • Pause, drag, and PowerPoint content searching during on-demand playback on the Web interface
  • Multiple playing layouts
  • Chat online while live broadcasting, and comment when video on-demand
Languages English, French, German, Spanish, Russian, Simplified Chinese, and Traditional Chinese
Third-party Integration SOAP-based open APIs and transmission interfaces based on TS stream and FTP
