S2700 Series Enterprise Switches

Highly scalable, energy-efficient 100 Mbit/s access switches for enterprise campus networks.

Cutting-edge switching technologies combined with Huawei’s Versatile Routing Platform (VRP) software and comprehensive built-in security features make the S2700 Series Switches ideal for building and expanding next-generation IT networks.

Choose from over 20 Standard (SI) and Enhanced (EI) models with Huawei’s exclusive Easy Operation Toolkit for easy installation, configuration, monitoring, and trouble shooting.

Features

Choose Fast Ethernet switches from Huawei for resilient performance and carrier-grade reliability

  • Built-in 7 kV surge protection
  • Configure up to 48 downstream ports in a 1U height switch; combine with up to 8 x S2700 or larger Campus Switches in one rack with Huawei’s iStack virtualization technology
  • Plug-in optical port connectors extend downstream reach to 500 meters; use Power-over-Ethernet (PoE) modules to power PCs, terminals, VoIP telephony, and other IP-based devices
  • 802.1x authentication and MAC address authentication

Specifications

Specifications

Specifications S2700-SI/S2710-SI S2700-EI S2750-EI/S2751-EI/S2720-EI
Switching Capacity 32 Gbit/s 32 Gbit/s S2750-EI/S2751-EI: 64 Gbit/s

S2720-28TP-EI-AC: 12.8 Gbit/s
Forwarding Performance 2.7 Mpps/5.4 Mpps/6.6 Mpps/13.2 Mpps 2.7 Mpps/5.4 Mpps/6.6 Mpps/13.2 Mpps 8.4 Mpps/9.6 Mpps
Port Descriptions Downlink: 8/16/24/48 x 10/100 Base-TX Ethernet ports

Uplink: 2/4 x GE ports

 Downlink: 8/16/24/48 x 10/100 Base-TX Ethernet ports

Uplink: 2/4 x GE ports

 Downlink: 24 x 10/100 Base-TX Ethernet ports

Uplink: 4 x GE ports
MAC Address Table 8K MAC address entries

Manual deletion of dynamic MAC address entries

Configurable aging time of MAC addresses

Blackhole MAC address entries

 8K MAC address entries

Manual deletion of dynamic MAC address entries

Configurable aging time of MAC addresses

MAC address learning control based on ports

Blackhole MAC address entries

 16K MAC address entries

Manual deletion of dynamic MAC address entries

Configurable aging time of MAC addresses

MAC address learning control based on ports

Limit on the number of MAC addresses learned on a port

Blackhole MAC address entries
VLAN 4K active VLANs, complying with IEEE 802.1Q

Port-based VLAN assignment

 4K active VLANs, complying with IEEE 802.1Q

Port-based VLAN assignment

MAC address-based assignment

Port-based QinQ

 4K active VLANs, complying with IEEE 802.1Q

Port-based VLAN assignment

MAC address-based assignment

Port-based QinQ
QoS Outbound port-based rate limiting

4 or 8 queues of different priorities on each port

Mapping between 802.1p priorities and queues

SP, WRR, and SP + WRR algorithms

 Port-based rate limiting

4 or 8 queues of different priorities on each port

Mapping between 802.1p priorities and queues

SP, WRR, and SP + WRR algorithms

 Port-based rate limiting

8 queues of different priorities on each port

Mapping between 802.1p priorities and queues

SP, WRR, and SP + WRR algorithms

Packet-based priority re-marking and packet redirection
IPv4 routing Static routing

RIP v1/v2 (S2750-EI)
IPv6 Features IPv6 protocol

Static IPv6 routes

 IPv6 protocol

Static IPv6 routes

MLD v1/v2 snooping

 IPv6 protocol

Static IPv6 routes

MLD v1/v2 snooping
Multicast IGMP v1/v2/v3 snooping

Port-based rate limiting for multicast packets

 MVLAN

Controllable multicast

IGMP v1/v2/v3 snooping

Port-based rate limiting for multicast packets

 MVLAN

Controllable multicast

IGMP v1/v2/v3 snooping

Port-based rate limiting for multicast packets
Reliability S2700-SI: STP (IEEE 802.1d), RSTP (IEEE 802.1w)

S2710-SI: STP (IEEE 802.1d), RSTP (IEEE 802.1w), MSTP (IEEE 802.1s)

 STP (IEEE 802.1d), RSTP (IEEE 802.1w), MSTP (IEEE 802.1s), and RRPP ring topology and RRPP multi-instance STP (IEEE 802.1d), RSTP (IEEE 802.1w), MSTP (IEEE 802.1s), and RRPP topology and RRPP multi-instance SEP and ERPS (G.8032)

Smart Link tree topology and Smart Link multi-instance, implementing millisecond-level protective switch-over
Surge Protection Surge protection capability of service ports: 7 kV Surge protection capability of service ports: 7 kV Surge protection capability of service ports: 7 kV
Security and Access Features S2700-SI: Storm suppression

S2710-SI: Storm suppression, IP Source Guard

S2700-SI: Multiple authentication methods including AAA, RADIUS, and TACACS+;

Port isolation;

Suppression of multicast, broadcast, and unknown unicast packets;

CPU defense

S2710-SI: Multiple authentication methods including AAA, RADIUS, and TACACS+;

Port isolation;

Suppression of multicast, broadcast, and unknown unicast packets;

CPU defense;

 802.1x authentication and limit on the number of users on an interface

Storm suppression

IP Source Guard

Multiple authentication methods including AAA authentication, RADIUS authentication, and TACACS+ authentication

802.1x authentication, MAC address authentication, MAC bypass authentication

DHCP snooping

Port isolation and sticky MAC

Packet filtering based on MAC addresses

Limit on the number of learned MAC addresses

Suppression of multicast, broadcast, and unknown unicast packets

CPU defense

S2750-EI/S2751-EI: DHCP relay

 802.1x authentication and limit on the number of users on an interface

Storm suppression

IP Source Guard

Multiple authentication methods including AAA authentication, RADIUS authentication, and TACACS+ authentication

802.1x authentication, MAC address authentication, MAC bypass authentication

DHCP snooping

Port isolation and sticky MAC

Packet filtering based on MAC addresses

Limit on the number of learned MAC addresses

Suppression of multicast, broadcast, and unknown unicast packets

CPU defense

S2750-EI/S2751-EI/S2720-EI: DHCP relay

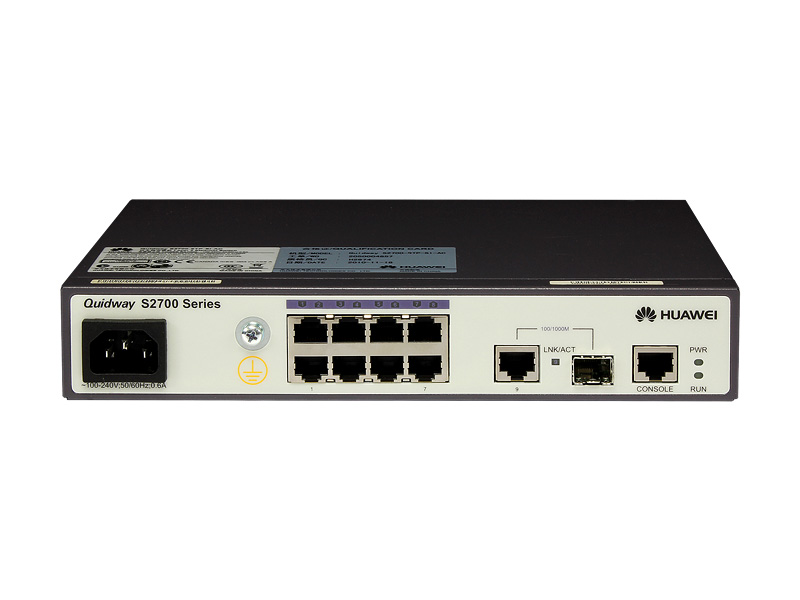

Power Consumption S2700-9TP-SI < 12.8W

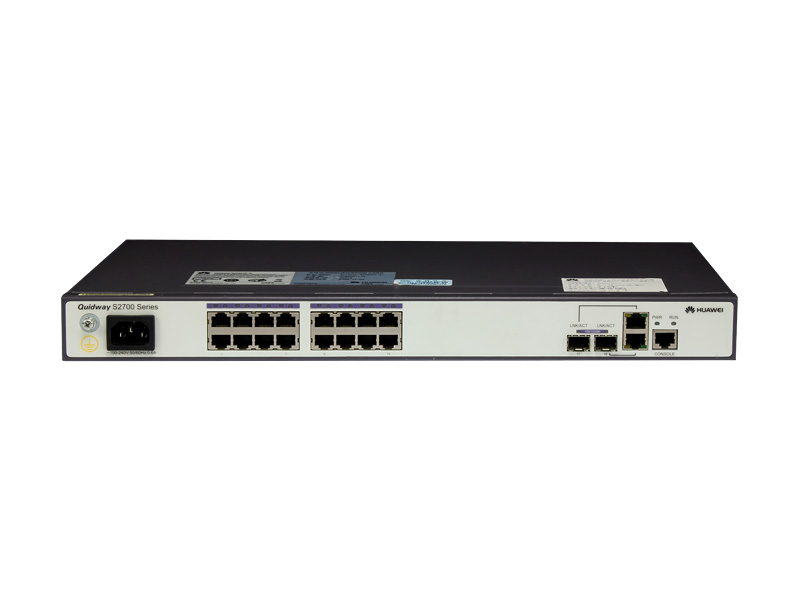

S2700-18TP-SI < 14.5W

S2700-26TP-SI < 15.5W

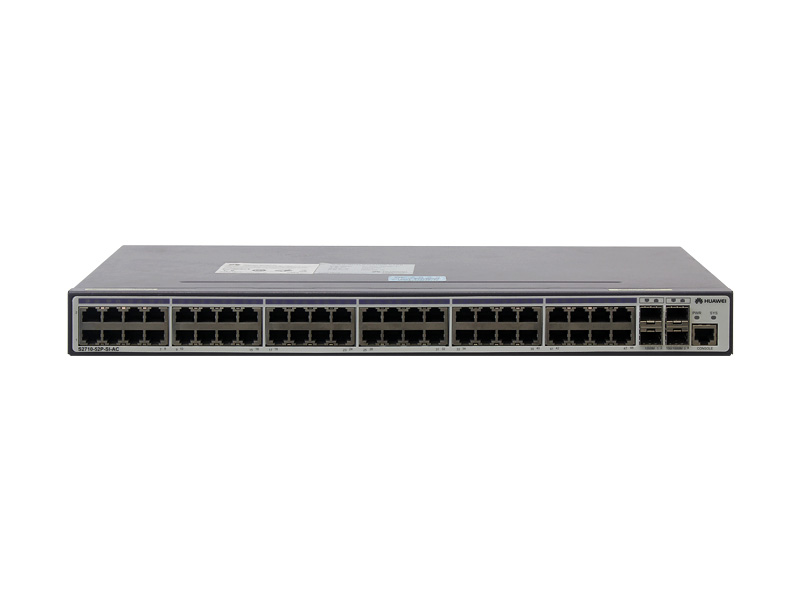

S2710-52P-SI < 38W

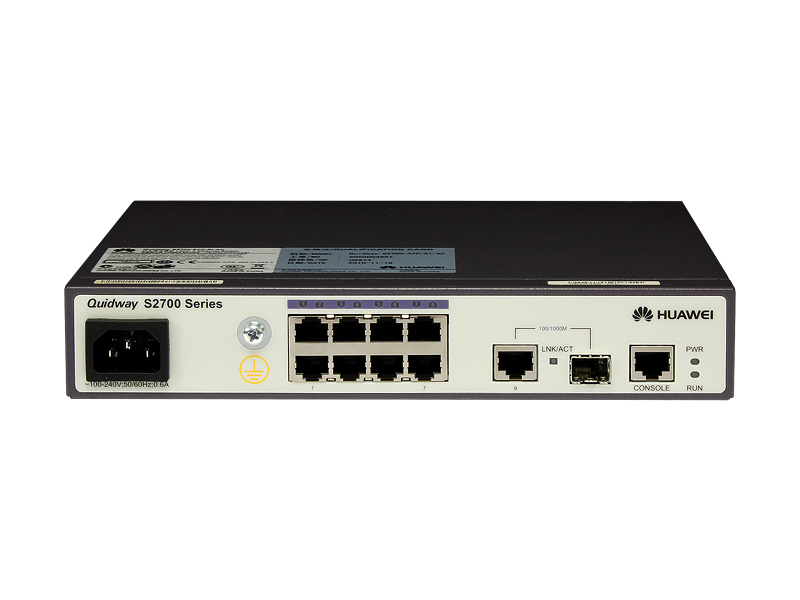

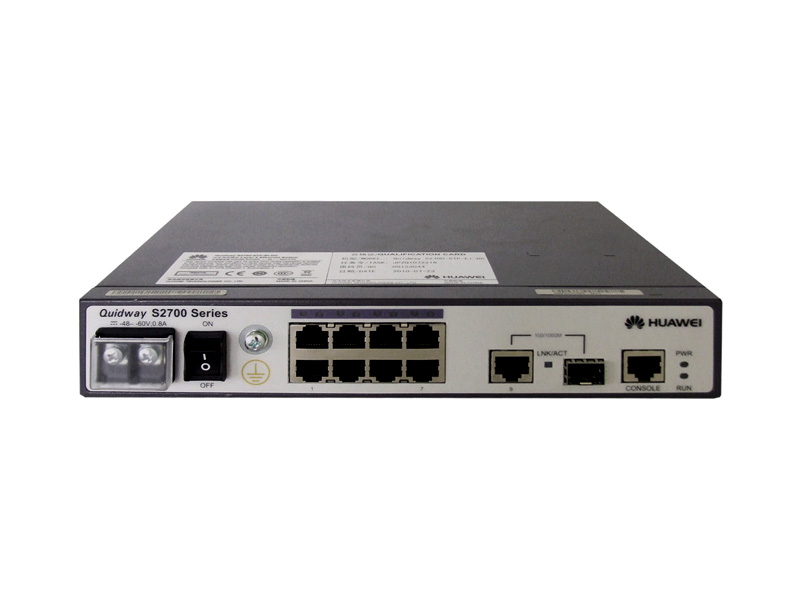

 S2700-9TP-EI < 12.8W

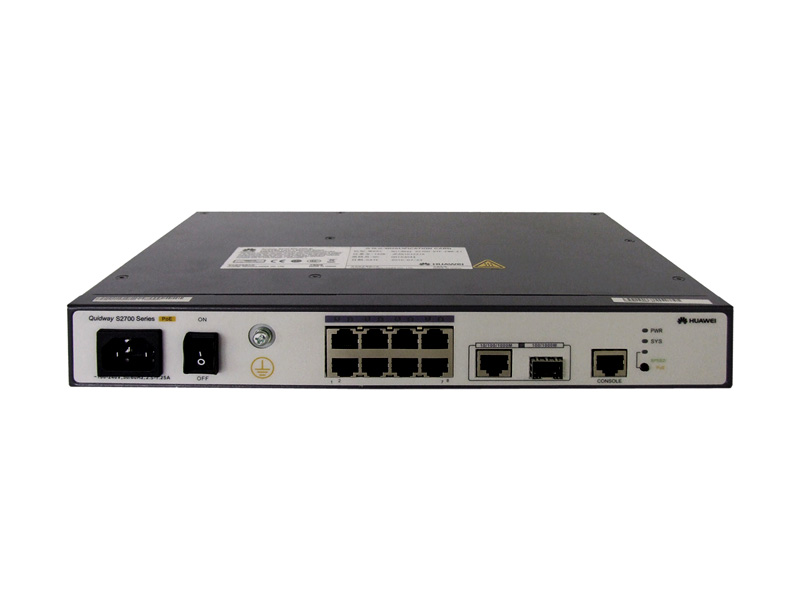

S2700-9TP-PWR-EI < 154W (PoE: 124W)

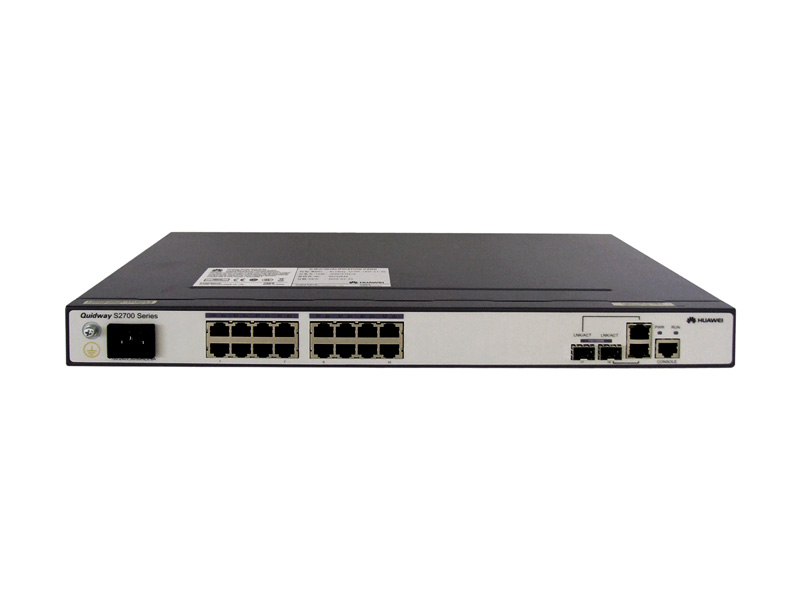

S2700-18TP-EI < 14.5W

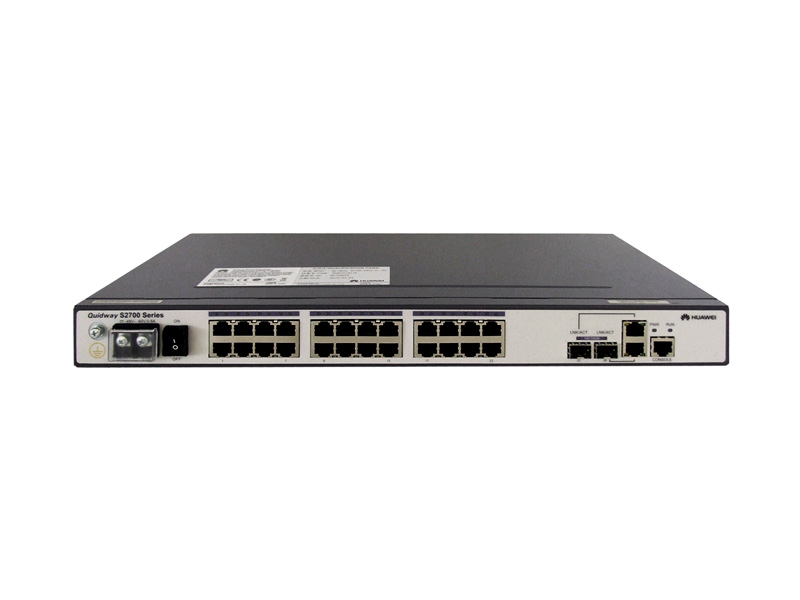

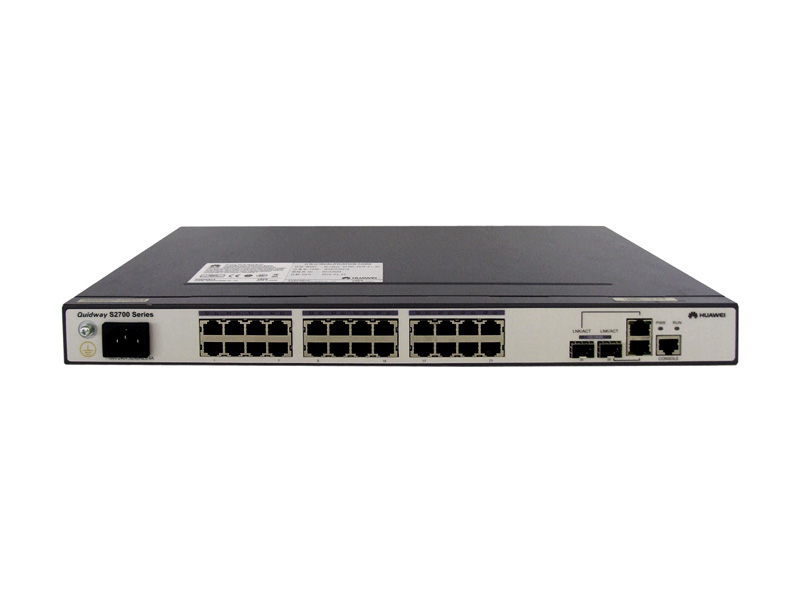

S2700-26TP-EI < 15.5W

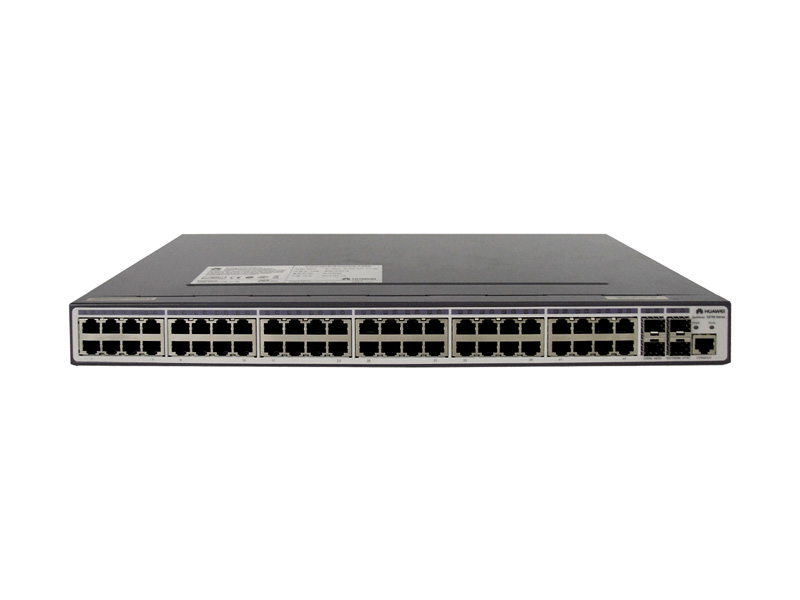

S2700-52P-EI < 38W

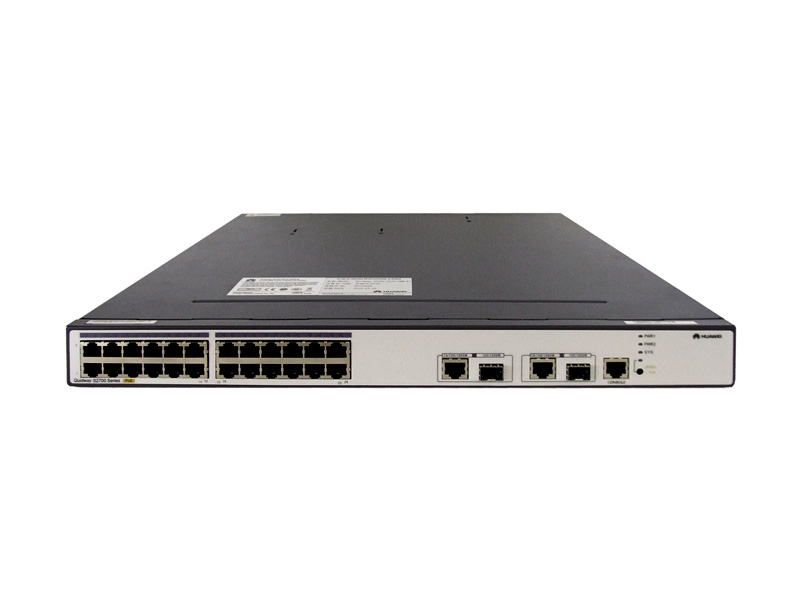

S2700-26TP-PWR-EI < 808W (PoE: 740W)

 S2750-20TP-PWR-EI < 435W

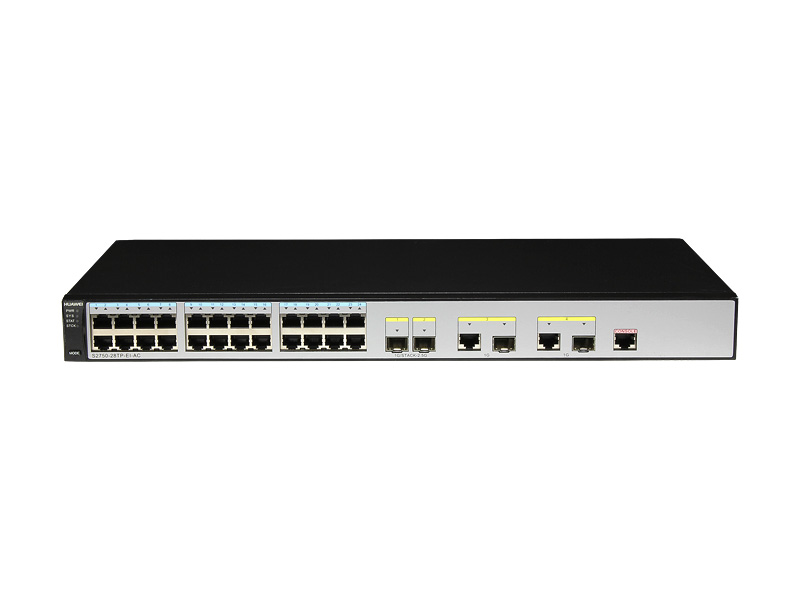

S2750-28TP-EI < 15.7W

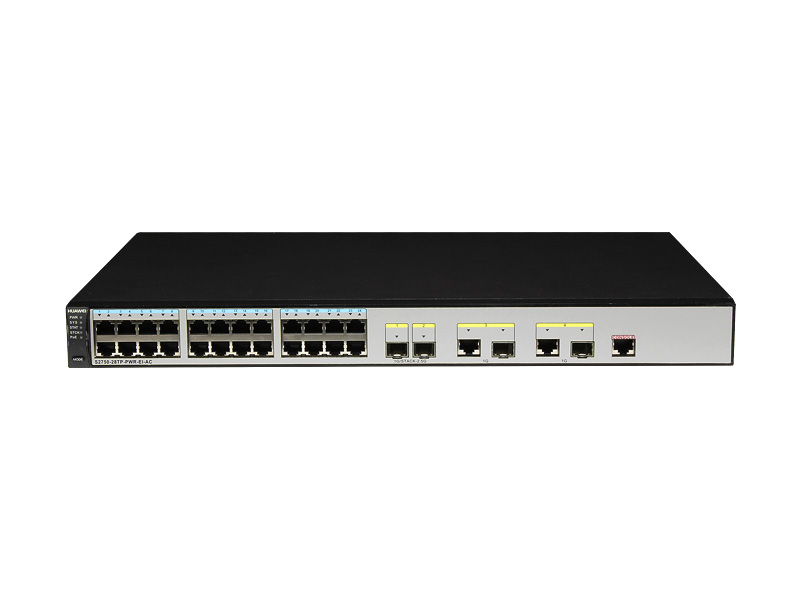

S2750-28TP-PWR-EI < 445W

S2751-28TP-PWR-EI-AC < 147W

S2720-28TP-EI-AC < 15.7W
Interoperability VLAN-based Spanning Tree (VBST) (interoperating with PVST, PVST+, and RPVST)

Link-type Negotiation Protocol (LNP) (similar to DTP)

VLAN Central Management Protocol (VCMP) (similar to VTP)

For detailed interoperability certifications and test reports
