S5700-HI Series Advanced Gigabit Switches

Highly scalable gigabit access for terminals in enterprise campus networks; also ideal for resilient server support and aggregation in large-scale data centers. 40 Gbit/s upstream ports configurable to 10 Gbit/s for flexible networking.

Advanced hardware design and Huawei’s Versatile Routing Platform (VRP) software provide resilient, manageable operation; comprehensive onboard security features protect against cyberattacks.

S5700-HI models support Energy Efficient Ethernet (EEE), port energy detection, and device hibernation technologies, greatly reducing energy consumption and noise without compromising performance and stability.

Choose Huawei S5700 Series Switches to provide Gbit/s access for wired and wireless devices throughout the enterprise network

  • Smart Link and Rapid Ring Protection Protocol (RRPP) provide load balancing among links, optimizing bandwidth usage
  • NetStream and sFlow support provide dynamic traffic analysis and management, simplifying O&M
  • Multiple fault-detection mechanisms: both hardware- and software-based Bi-directional Forwarding Detection (BFD) and Operations, Administration, and Maintenance (OAM) features
  • Combine multiple S5700-HI switches into a single stack with Huawei’s intelligent iStack technology

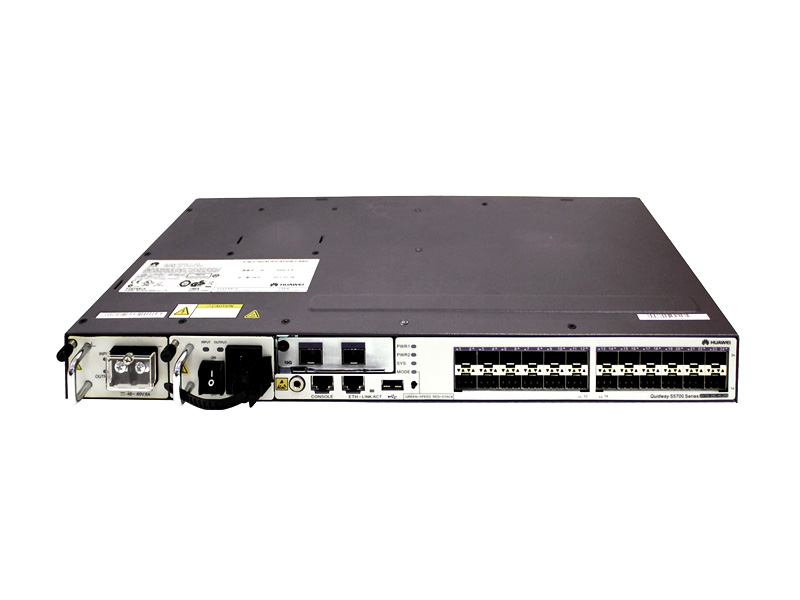

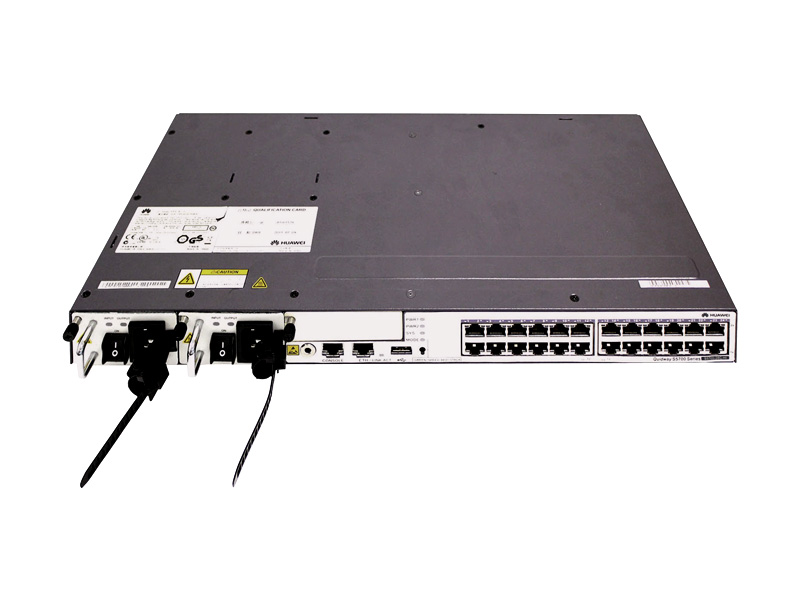

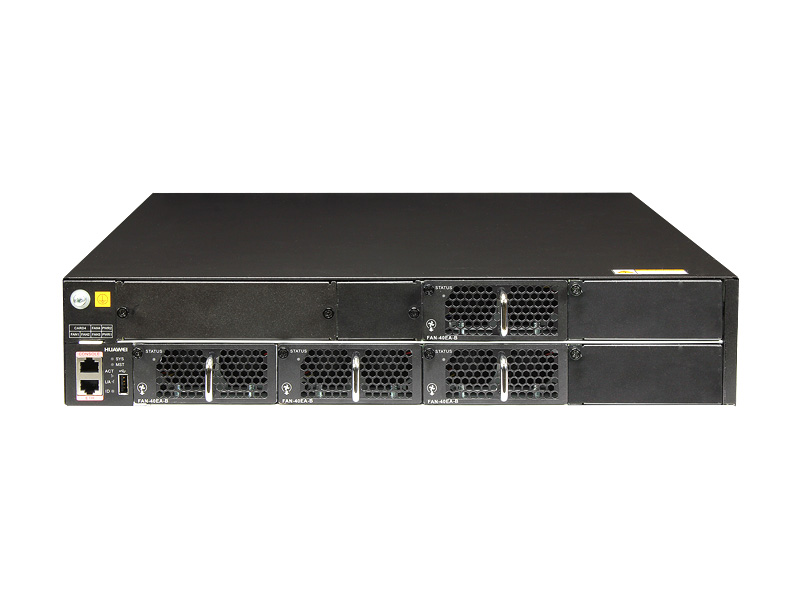

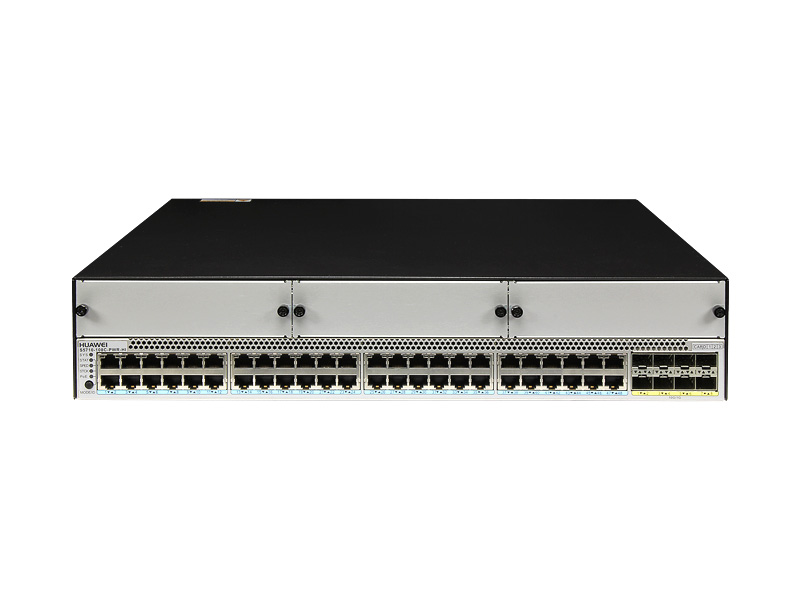

Specifications S5700-28C-HI S5700-28C-HI-24S S5710-108C-PWR-HI
Switching Capacity 256 Gbit/s 256 Gbit/s 1,024 Gbit/s
Forwarding Performance 96 Mpps 96 Mpps 504 Mpps
Fixed Ports 24 x 10/100/1,000 Base-T 24 x 10/100/1,000 Base-X 48 x 10/100/1,000 Base-T, and 8 x 10 GE SFP+
Extended Slots One extended slot:

Optional sub-card 1: 2 x 10 GE SFP+

Optional sub-card 2: 4 x 10 GE SFP+

Optional sub-card 3: 4 x 1,000 BASE-X

Three front extended slots:

Optional subcard 1: 16 x 10/100/1,000 BASE-T

Optional subcard 2: 16 x 1,000 BASE-X

One rear extended slot:

Optional subcard 1: 4 x 10 GE SFP+ (no GE auto adaption)

Optional subcard 2: 4 x 40 GE QSFP+

MAC Address Table 32K 456K
Ring Network Protection RRPP ring topology and RRPP multi-instance

Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protection switchover

Smart Ethernet Protection (SEP)

G.8032 Ethernet Ring Protection Switching (ERPS)

STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)

BPDU protection, root protection, and loop protection

IP Routing Static route, RIPv1, RIPv2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, and routing policy




OAM Hardware OAM:



Y.1731 performance test

Hardware-level delay and jitter detection

Software OAM:



Y.1731 performance test

Interoperability VBST (compatible with PVST/PVST+/RPVST)

LNP (similar to DTP)

VCMP (similar to VTP)

For detailed interoperability certifications and test reports
