S5700-SI Series Standard Gigabit Switches

High-performance hardware tightly integrated with Huawei’s Versatile Routing Platform (VRP) software, in a highly scalable, energy-efficient Gbit/s access or aggregation switch.

Flexible networking options and intelligent iStack technology make the S5700-SI easily scalable, and simple to operate and maintain.

Comprehensive security features defend against DoS and user-targeted cyberattacks; dynamic policy provisioning simplifies user authentication, improving QoS performance.

Choose Huawei S5700 Series Switches to provide Gbit/s access for wired and wireless devices throughout the enterprise network

  • ŸIntelligent iStack technology virtualizes multiple switches into one logical switch, improving device reliability and simplifying configuration and management
  • Flexible networking through STP, RSTP, and MSTP protocols, Smart Link and SEP technology
  • Diversified security mechanisms: MAC address, 802.1x, and portal authentication mechanisms; dynamic provisioning of user access policies including VLAN, QoS, and ACL policies
  • Huawei’s Easy Operation enables zero-touch installation, configuration-free replacement, and remote batch-mode upgrades

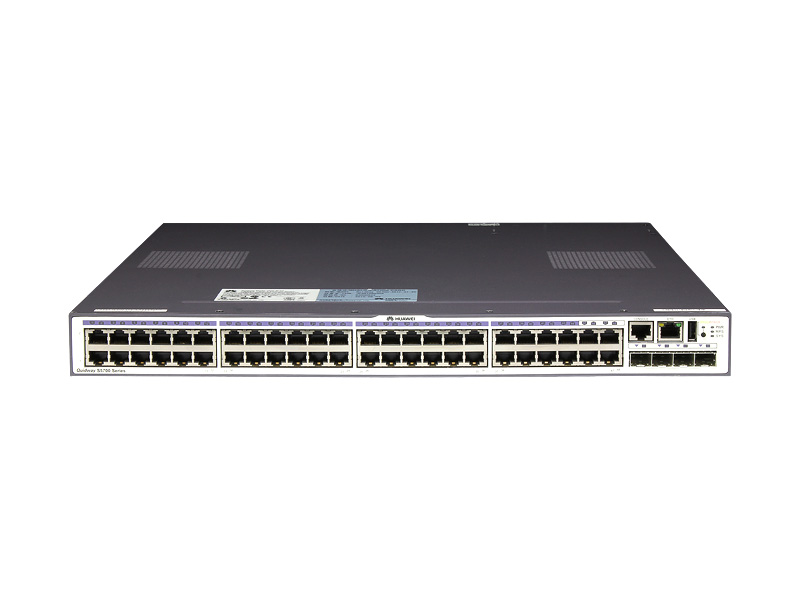

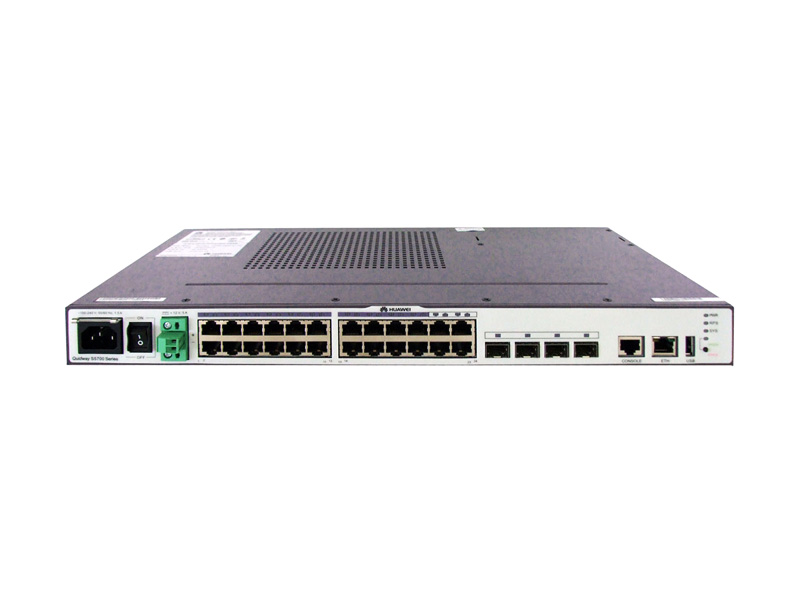

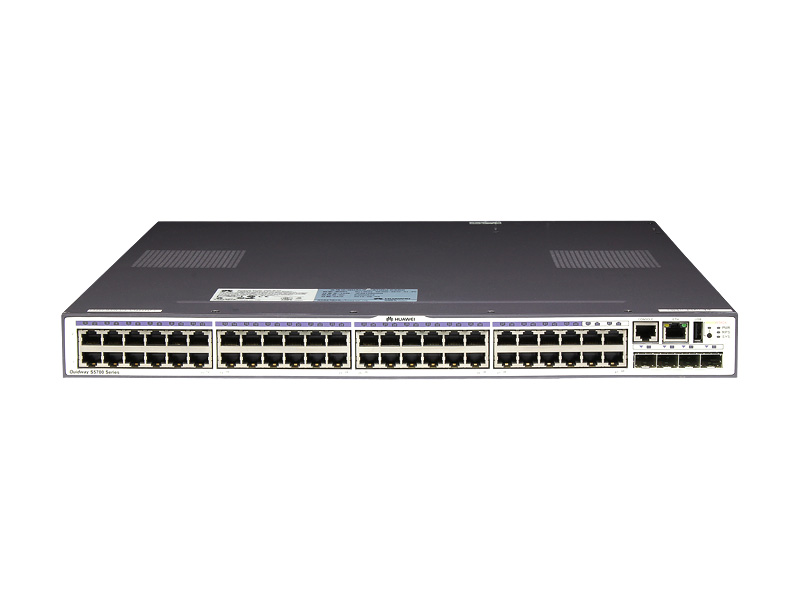

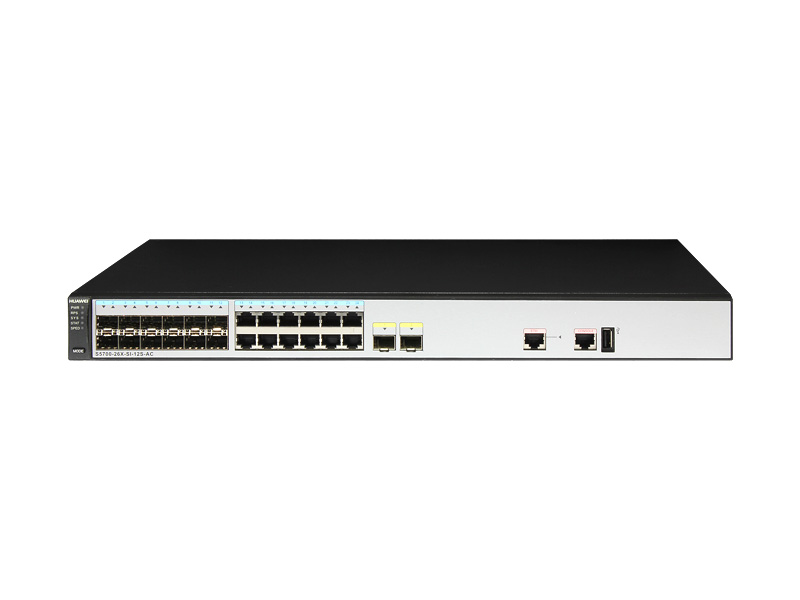

Specifications S5700-24TP-SI S5700-26X-SI-12S-AC S5700-48TP-SI-AC
Switching Capacity 256 Gbit/s 256 Gbit/s 256 Gbit/s
Forwarding Performance 36 Mpps/96 Mpps 66 Mpps 72 Mpps
Fixed Ports 24 x 10/100/1,000 Base-T, four GE SFP combo 12 x 10/100/1,000 BASE-T, 12 x 100/1,000 Base-X, 2 x 10 GE SFP+ 48 x 10/100/1,000 Base-T, four GE SFP combo
Extended Slots The S5700TP provides a stacked extended slot
MAC Address Table IEEE 802.1d compliance

MAC address learning and aging

Static, dynamic, and blackhole MAC address entries

Packet filtering based on source MAC addresses


Interoperability VBST (compatible with PVST/PVST+/RPVST)

LNP (similar to DTP)

VCMP (similar to VTP)

For detailed interoperability certifications and test reports.

Access Security DHCP relay, DHCP server, DHCP snooping, DHCP security, and SAVI
Management and Maintenance Intelligent stacking (not supported by S5700-26X-SI-12S-AC)

Virtual cable test

Remote network monitoring (RMON)

eSight and web-based NMS

Auto-config and Easy Operation

SNMP v1/v2c/v3

System logs and multi-level alarms


Guest VLAN and voice VLAN

Super VLAN



1:1 and N:1 VLAN mapping

VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports

Ring Network Protection STP, RSTP, and MSTP

Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protection switchover

RRPP ring topology and RRPP multi-instance

G.8032 Ethernet Ring Protection Switching (ERPS)

Smart Ethernet Protection (SEP)

BPDU protection, root protection, and loop protection

BPDU tunnel

Reliability Ethernet OAM (IEEE 802.3ah and 802.1ag)


Enhanced Trunk (E-Trunk)



IP Routing Static route

Layer 3 dynamic route
