S5720-LI Series Simplified Gigabit Ethernet Switches
The S5720-LI is a next-generation energy-saving gigabit Ethernet switch that provides flexible GE access ports and 10 GE uplink ports.
Building on next-generation, high-performance hardware, store-and-forward mode, and Huawei Versatile Routing Platform (VRP), the S5720-LI supports intelligent stack (iStack), flexible Ethernet networking, and diversified security control. It provides customers with a green, easy-to-manage, easy-to-expand, and cost-effective gigabit to the desktop solution.
Choose S5720-LI Series Next-generation Simplified Gigabit Ethernet Switches to provide energy-saving and cost-effective gigabit to the desktop solution
- Support intelligent stack (iStack) with a stacking bandwidth of 96 Gbit/s, and implement electrical port stacking for easier stack set-up and lower costs
- Support various Layer 3 routing protocols (such as RIP and OSPF), and work as a Super Virtual Fabric (SVF) client that is plug-and-play with zero configuration
- Use energy-saving technologies such as port sleep and automated port power adjustment, and provide various fan-free models to enable noise-free GE to the Desktop
Specifications

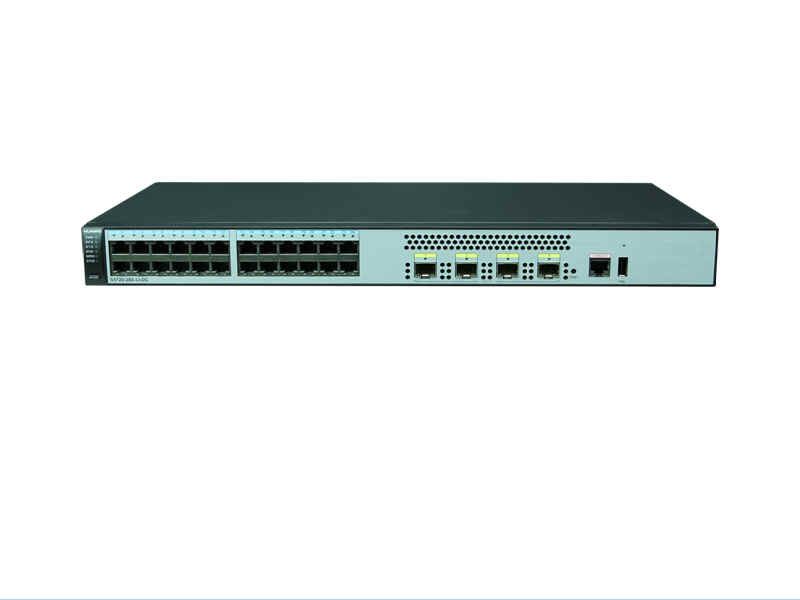

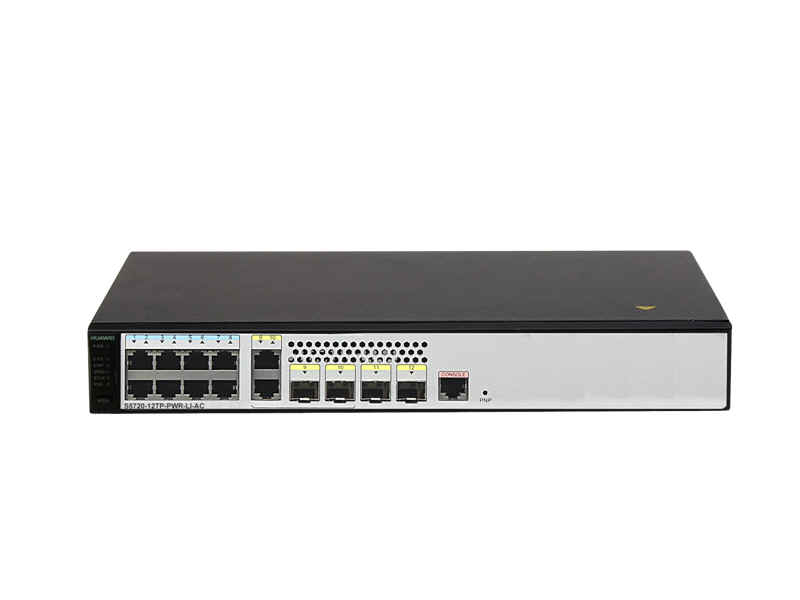

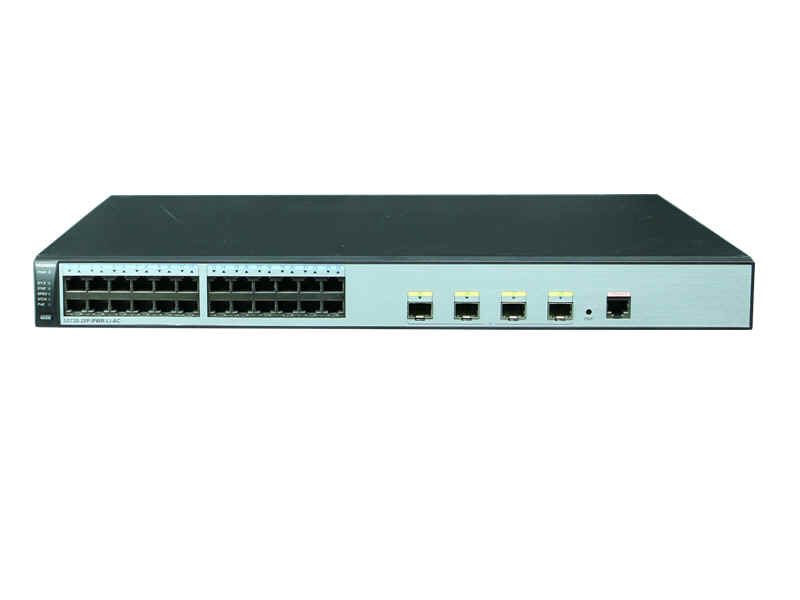

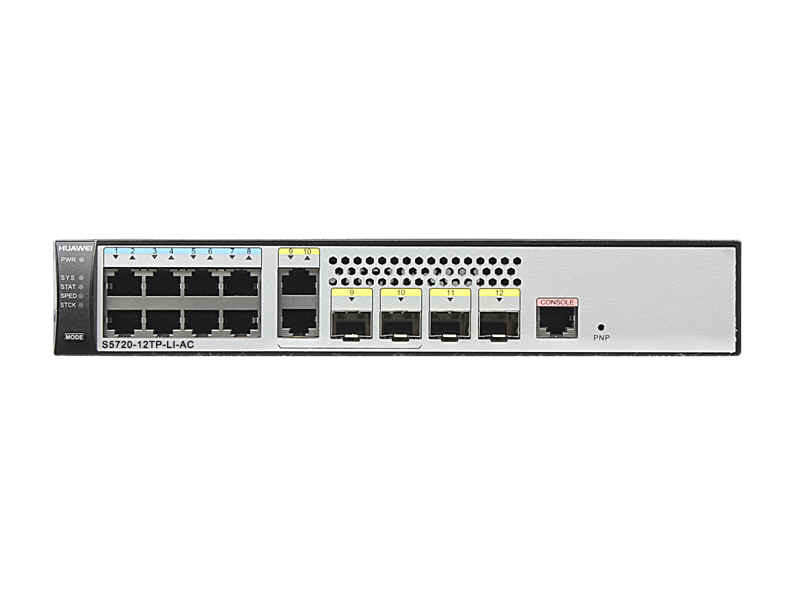

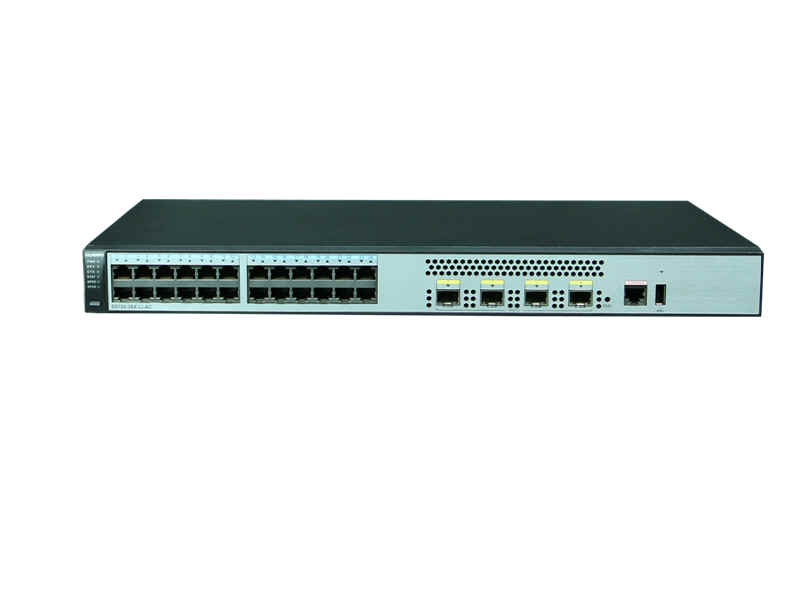

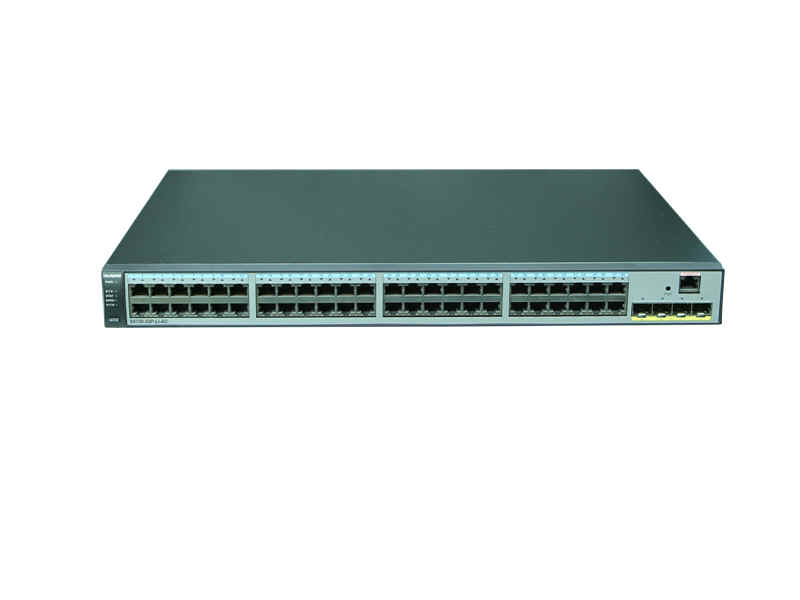

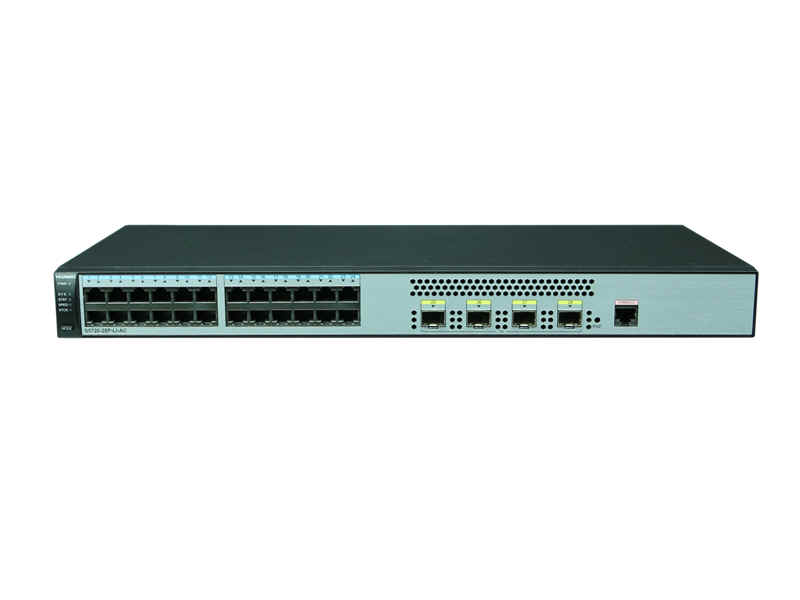

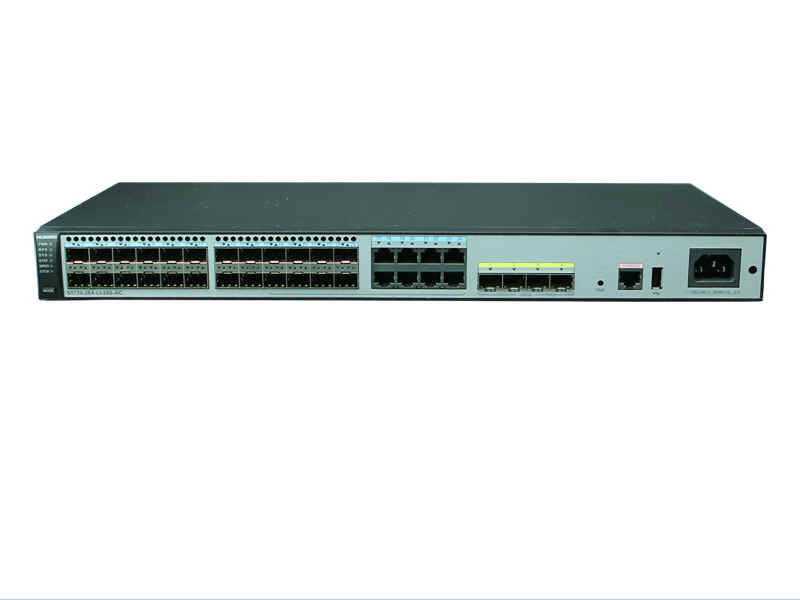

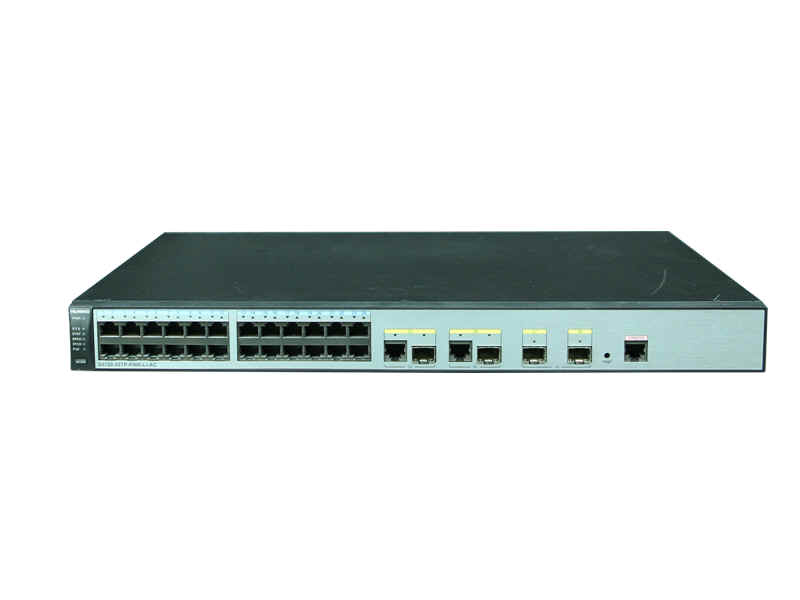

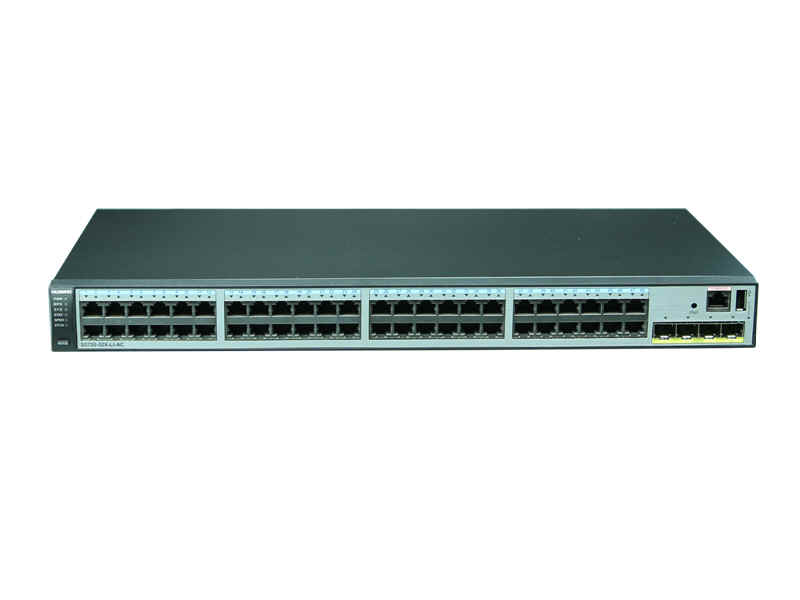

| Product Models and Forwarding Performance | S5720-12TP-LI-AC/S5720-12TP-PWR-LI-AC: 27 Mpps S5720-28P-LI-AC/S5720-28P-PWR-LI-AC/S5720-28TP-LI-AC/S5720-28TP-PWR-LI-AC/S5720-28TP-PWR-LI-ACL: 51 Mpps S5720-52P-LI-AC/S5720-52P-PWR-LI-AC: 87 Mpps S5720-28X-LI-AC(DC)/S5720-28X-PWR-LI-AC/S5720-28X-LI-24S-AC(DC): 108 Mpps S5720-52X-LI-AC(DC)/S5720-52X-PWR-LI-AC/S5720-52X-PWR-LI-ACF: 144 Mpps S5720-16X-PWH-LI-AC: 51 Mpps S5720-28X-PWH-LI-AC: 126 Mpps |
| Switching Capacity | 336 Gbit/s |
| MAC Address Table | 16K |
| VLAN | 4K |
| Ring Network Protection | RRPP ring topology and RRPP multi-instance Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protection switchover SEP ERPS (G.8032) STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) BPDU protection, root protection, and loop protection BPDU tunnel |
| IP Routing | Static route, RIP, RIPng, and OSPF |
| Multicast | IGMP v1/v2/v3 snooping and IGMP fast leave Multicast forwarding in a VLAN and multicast replication between VLANs Multicast load balancing among member ports of a trunk Controllable multicast Interface-based multicast traffic statistics |
| Super Virtual Fabric (SVF) | Working as an SVF client that is plug-and-play with zero configuration Automatically loading the system software package and patches of clients one-click and automatic delivery of service configurations Supports independent running client |
| Interoperability | VBST (compatible with PVST/PVST+/RPVST) LNP (similar to DTP) VCMP (similar to VTP) For detailed interoperability certifications and test reports |
