S5720S-LI Series Simplified Gigabit Ethernet Switches

The S5720-LI is a next-generation energy-saving gigabit Ethernet switch that provides flexible GE access ports and 10 GE uplink ports.

Building on next-generation, high-performance hardware, store-and-forward mode, and Huawei Versatile Routing Platform (VRP), the S5720-LI supports intelligent stack (iStack), flexible Ethernet networking, and diversified security control. It provides customers with a green, easy-to-manage, easy-to-expand, and cost-effective gigabit to the desktop solution.

Huawei S5720S-LI series Ethernet switches are only sold in several countries and regions as part of Huawei’s channel distribution products.

Features

Choose S5720-LI Series Next-generation Simplified Gigabit Ethernet Switches to provide energy-saving and cost-effective gigabit to the desktop solution

  • Support intelligent stack (iStack) with a stacking bandwidth of 96 Gbit/s, and implement electrical port stacking for easier stack set-up and lower costs
  • Support various Layer 3 routing protocols (such as RIP and OSPF), and work as a Super Virtual Fabric (SVF) client that is plug-and-play with zero configuration
  • Use energy-saving technologies such as port sleep and automated port power adjustment, and provide various fan-free models to enable noise-free GE to the Desktop

Specifications

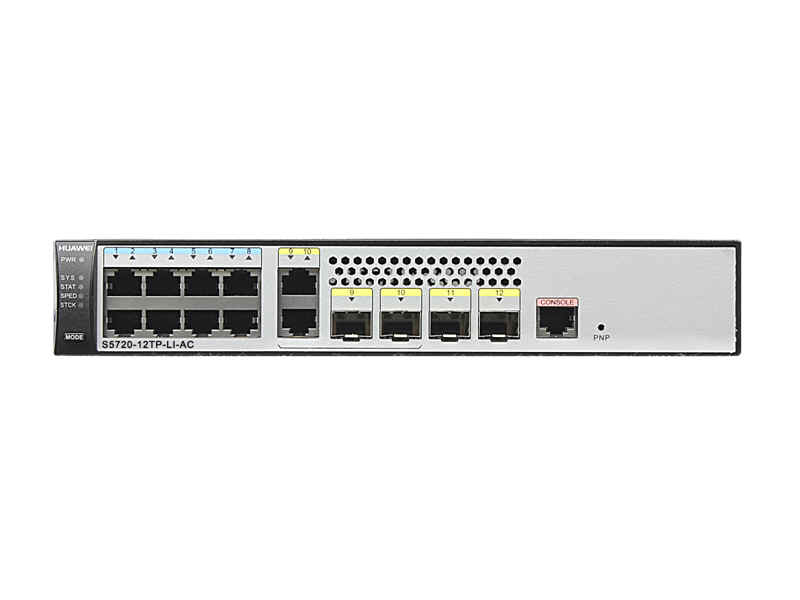

Item S5720S-12TP-LI-AC

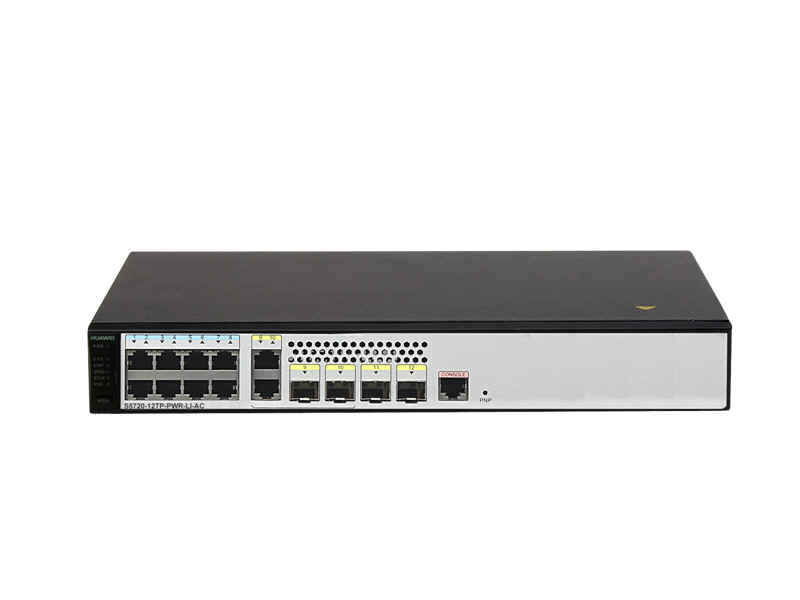

S5720S-12TP-PWR-LI-AC

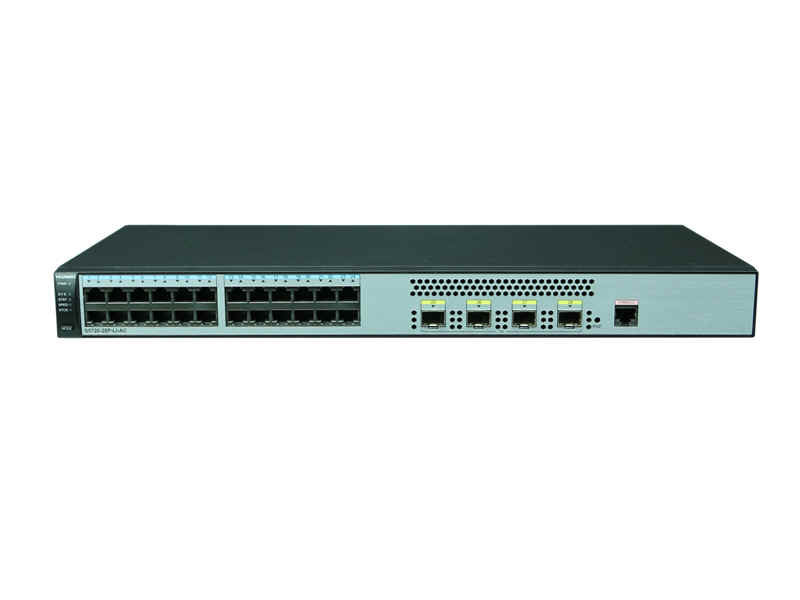

 S5720S-28P-LI-AC

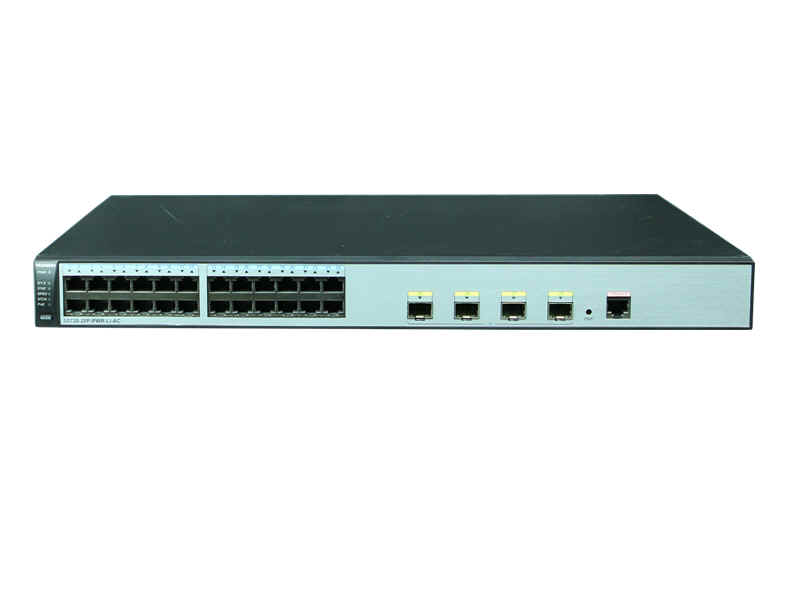

S5720S-28P-PWR-LI-AC

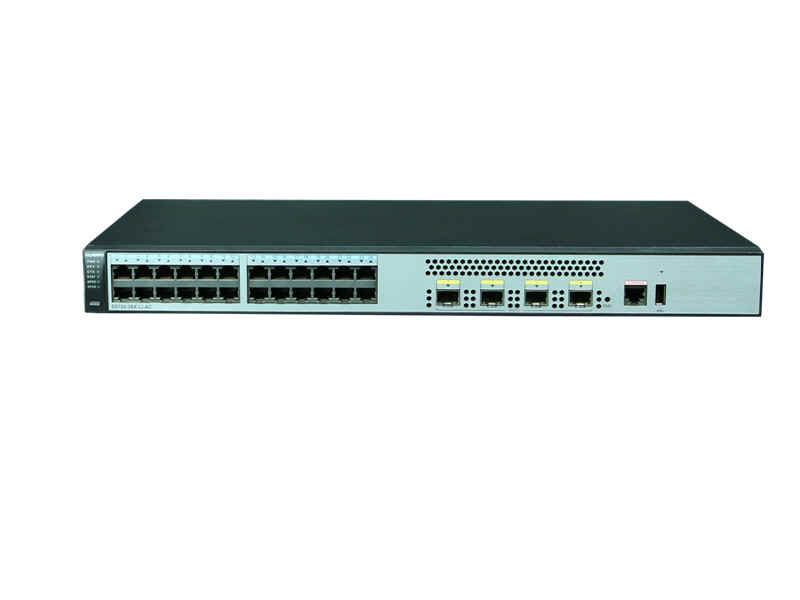

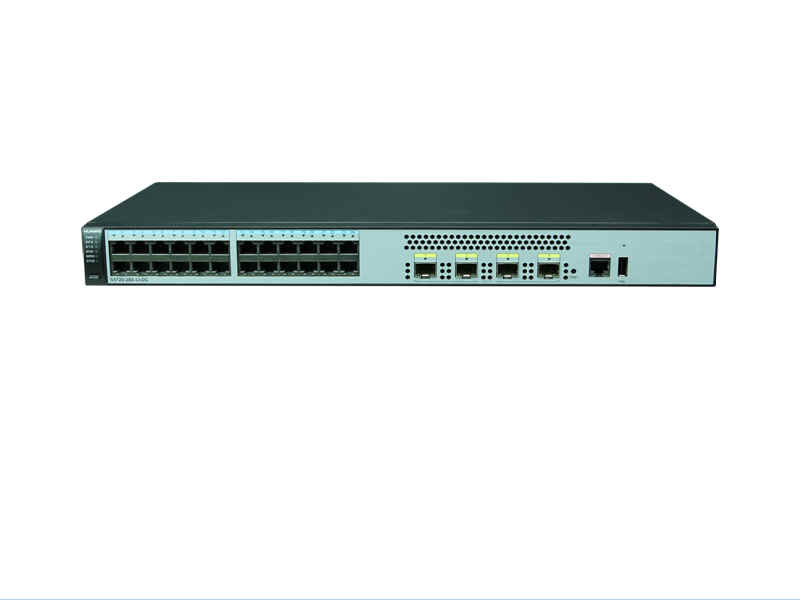

S5720S-28X-LI-AC

S5720S-28X-PWR-LI-AC

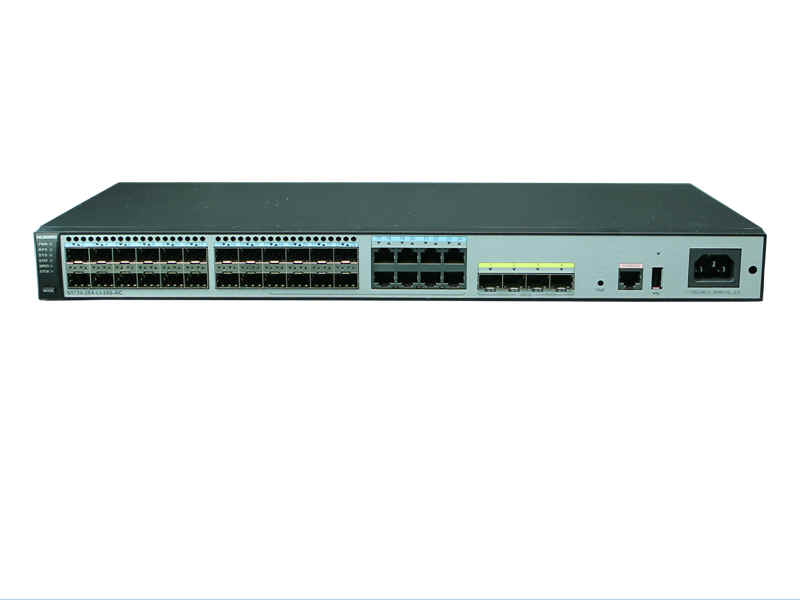

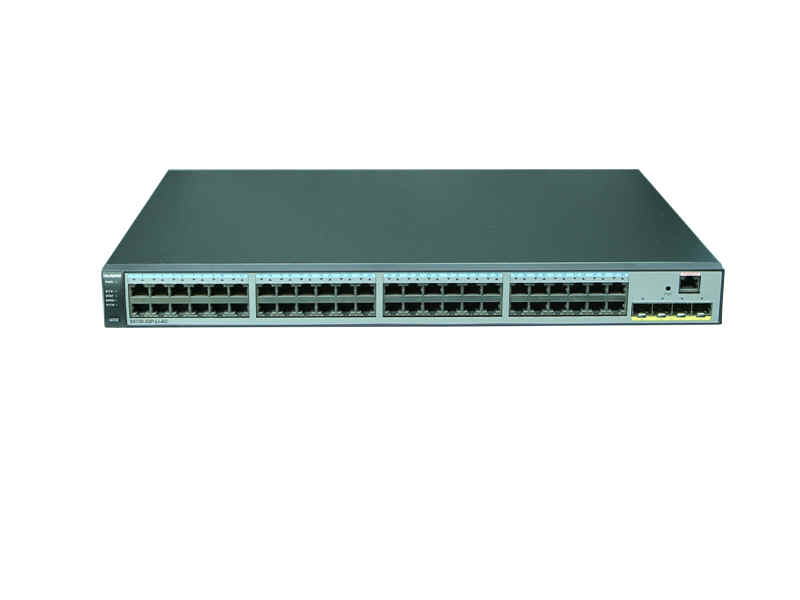

 S5720S-28X-LI-24S-AC S5720S-52P-LI-AC

S5720S-52P-PWR-LI-AC

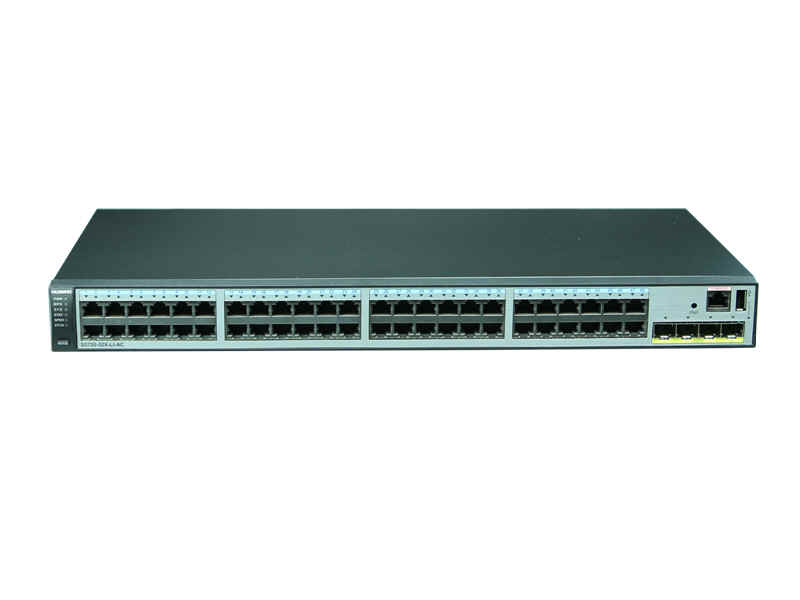

S5720S-52X-LI-AC

S5720S-52X-PWR-LI-AC

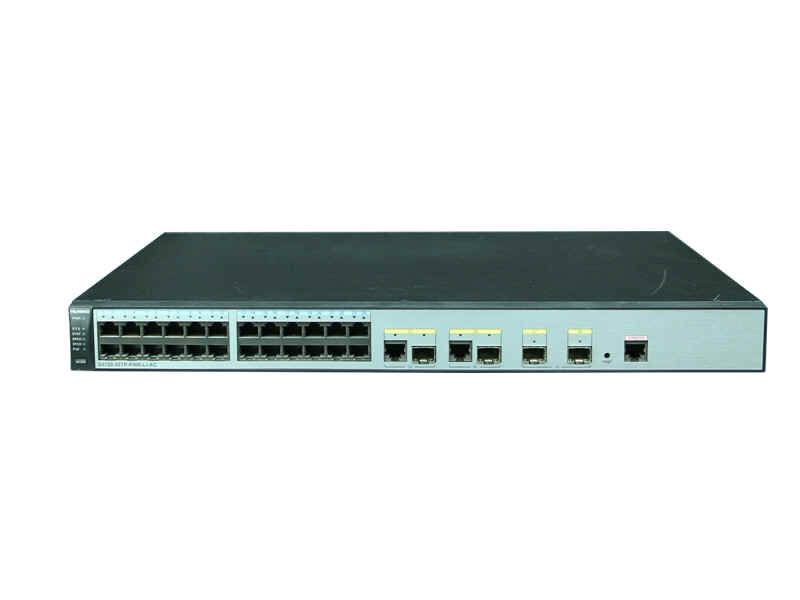

 S5720S-28TP-PWR-LI-ACL
Switching Capacity 336 Gbit/s, 2.56 Tbit/s
Forwarding Performance S5720S-12TP-LI-AC/S5720S-12TP-PWR-LI-AC: 27 Mpps/84 Mpps

S5720S-28P-LI-AC/S5720S-28P-PWR-LI-AC/S5720S-28TP-PWR-LI-ACL: 51 Mpps/108 Mpps

S5720S-52P-LI-AC/S5720S-52P-PWR-LI-AC: 87 Mpps/144 Mpps

S5720S-28X-LI-AC/S5720S-28X-PWR-LI-AC/S5720S-28X-LI-24S-AC: 108 Mpps

S5720S-52X-LI-AC/S5720S-52X-PWR-LI-AC: 144 Mpps
MAC Address Table 8K
VLAN 4K
Ethernet Loop Protection RRPP ring topology and RRPP multi-instance

Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protection switchover

SEP

ERPS (G.8032)

STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)

BPDU protection, root protection, and loop protection

BPDU tunnel
IP Routing Static route, RIP, RIPng, and OSPF
QoS/ACL Rate limiting on packets sent and received by an interface

Packet redirection

Interface-based traffic policing and two-rate and three-color CAR

Eight queues on each interface

WRR, DRR, SP, WRR + SP, and DRR + SP queue scheduling algorithms

Re-marking of the 802.1p priority and DSCP priority

Packet filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN ID

Rate limiting in each queue and traffic shaping on interfaces
Security Hierarchical user management and password protection

DoS attack defense, ARP attack defense, and ICMP attack defense

Binding of the IP address, MAC address, interface number, and VLAN ID

Port isolation, port security, and sticky MAC

MFF

Blackhole MAC address entries

Limit on the number of learned MAC addresses

IEEE 802.1x authentication and limit on the number of users on an interface

AAA authentication, RADIUS authentication, HWTACACS+ authentication, and NAC

SSH V2.0

Hypertext Transfer Protocol Secure (HTTPS)

CPU defense

Blacklist and whitelist

DHCP relay, DHCP server, and DHCP snooping

DHCPv6 relay, DHCPv6 server, and DHCPv6 snooping
Super Virtual Fabric (SVF) Working as an SVF client that is plug-and-play with zero configuration

Automatically loading the system software package and patches of clients One-click and automatic delivery of service configurations

Supports independent running client
Management and Maintenance iStack

Virtual Cable Test (VCT)

Remote configuration and maintenance using Telnet

SNMP v1/v2c/v3

RMON

eSight and web-based NMS

HTTPS

LLDP/LLDP-MED

System logs and multi-level alarms

802.3az EEE
