S6720-LI Series Next-Generation Simplified 10 GE Switches
Huawei’s S6720-LI series switches are next-generation simplified 10 GE fixed switches and can be used as access switches for campus and data center networks.
The S6720-LI series provides line-rate 10 GE access ports and 40 GE uplink ports. In addition, the S6720-LI series delivers a wide range of services, comprehensive security control policies, and various QoS features to help customers build scalable, reliable, manageable, and secure campus and data center networks.
High-density line-rate ports, Intelligent Stack (iStack), Super Virtual Fabric (SVF) for next-generation simplified 10 GE switching
- High-density line-rate 10 GE access ports and 40 GE uplink ports enable comprehensive campus solutions
- Intelligent Stack (iStack) virtualizes multiple switches into a single switch for simple management, and ensures high bandwidth, efficient O&M, and uninterrupted services
- Super Virtual Fabric (SVF) virtualizes the campus network architecture of ‘Core/Aggregation Switches + Access Switches + APs’ into a single device for simple management, and supports plug-and-play for easy deployment and simplified O&M

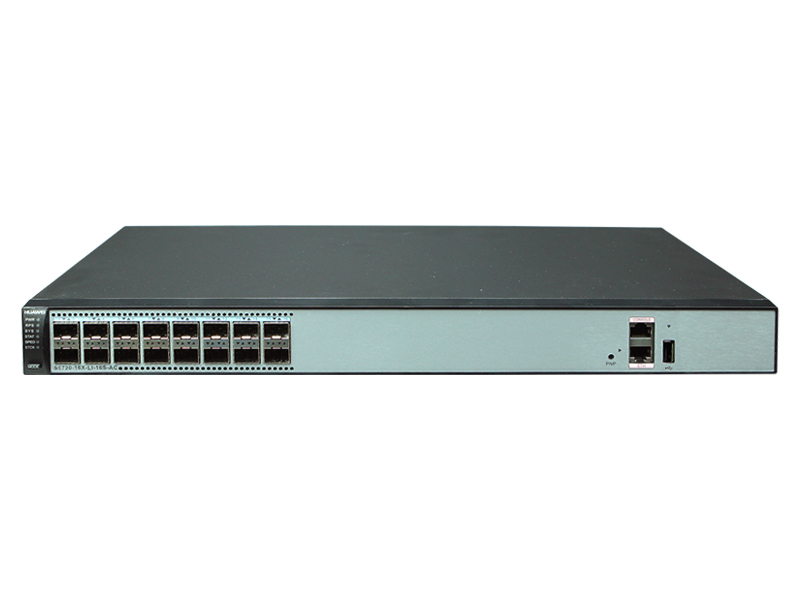

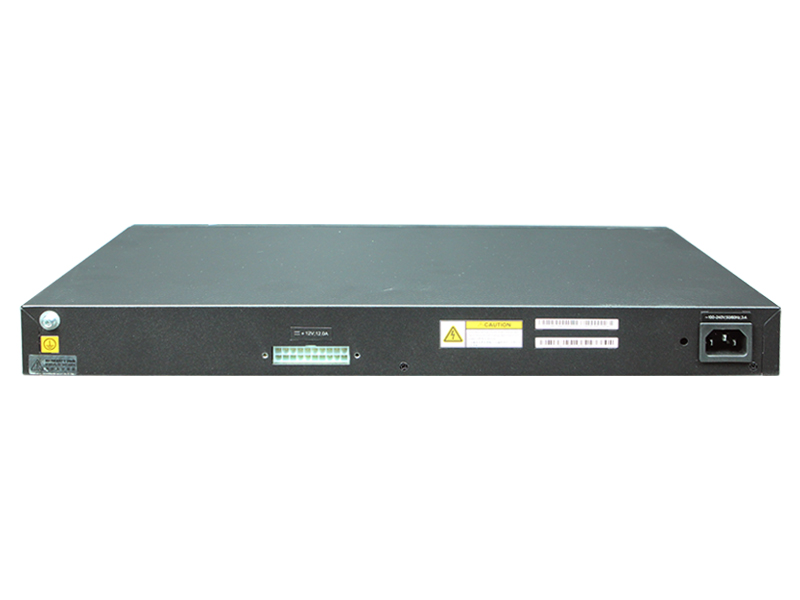

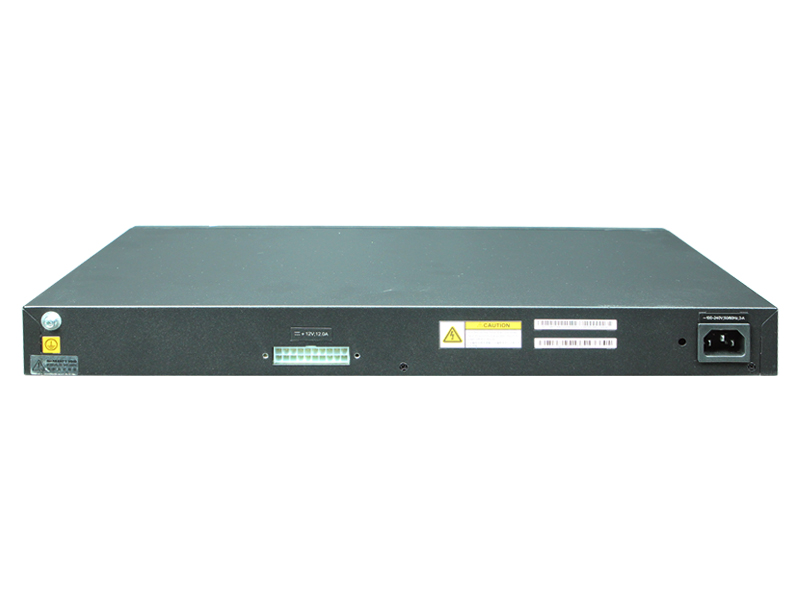

| Item | S6720-16X-LI-16S-AC

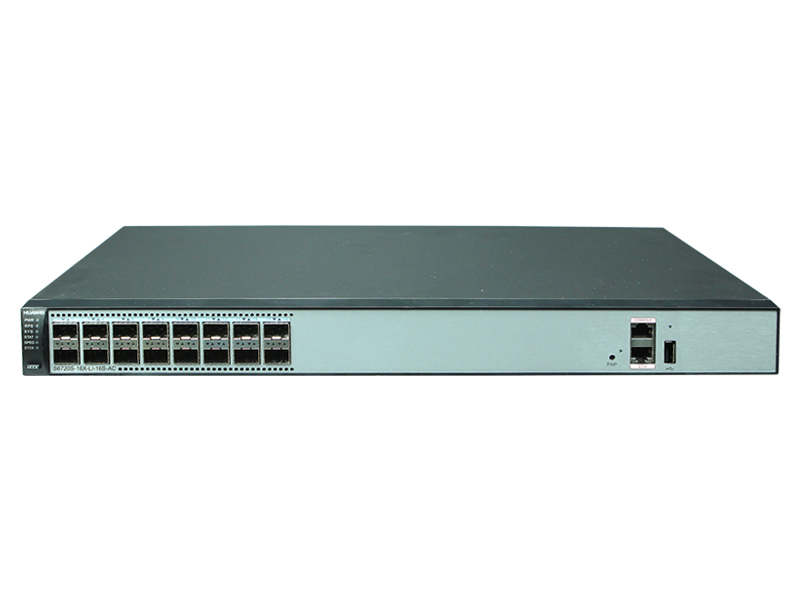

S6720S-16X-LI-16S-AC |

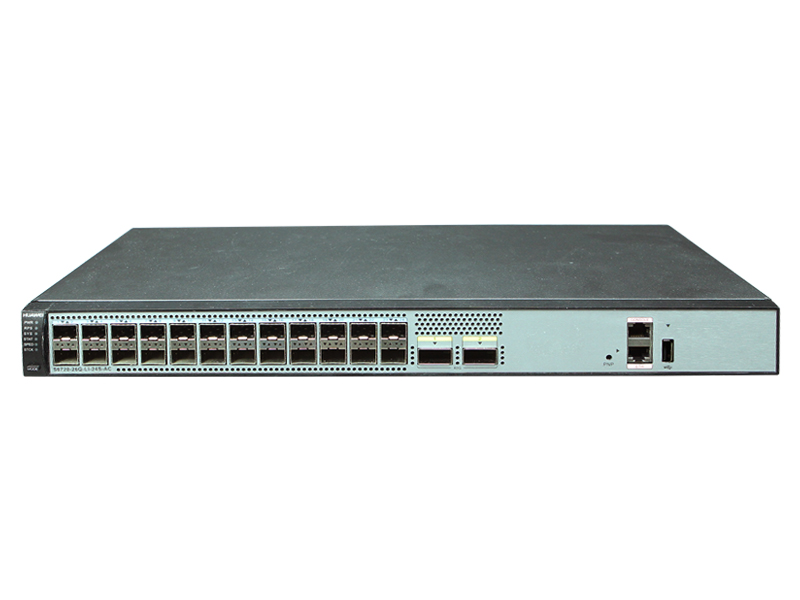

S6720-26Q-LI-24S-AC

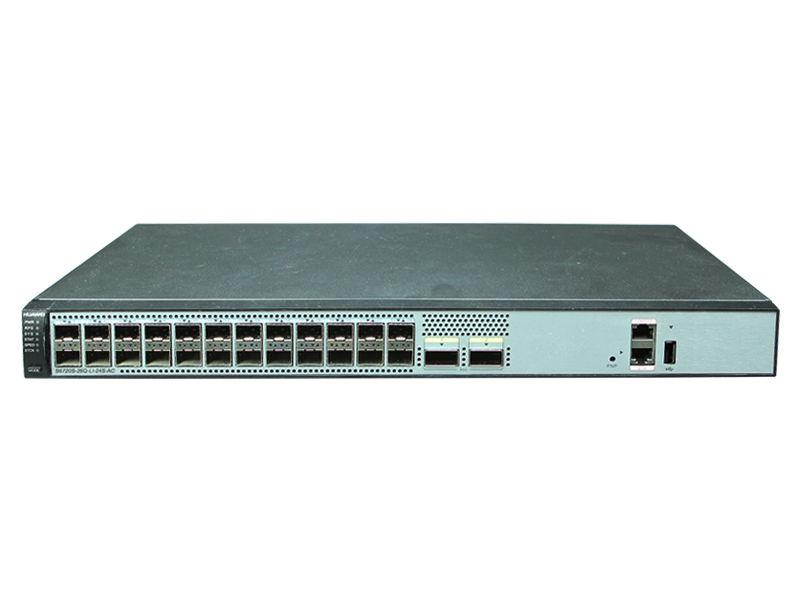

S6720S-26Q-LI-24S-AC |

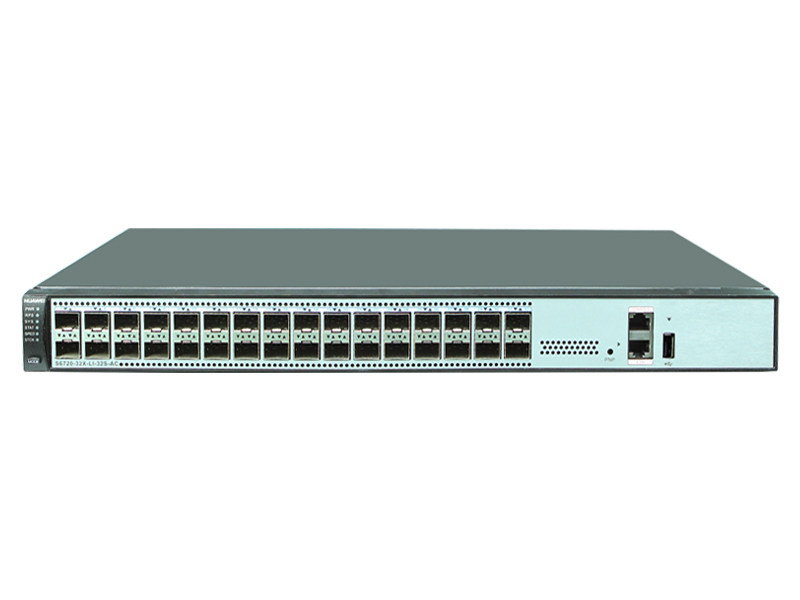

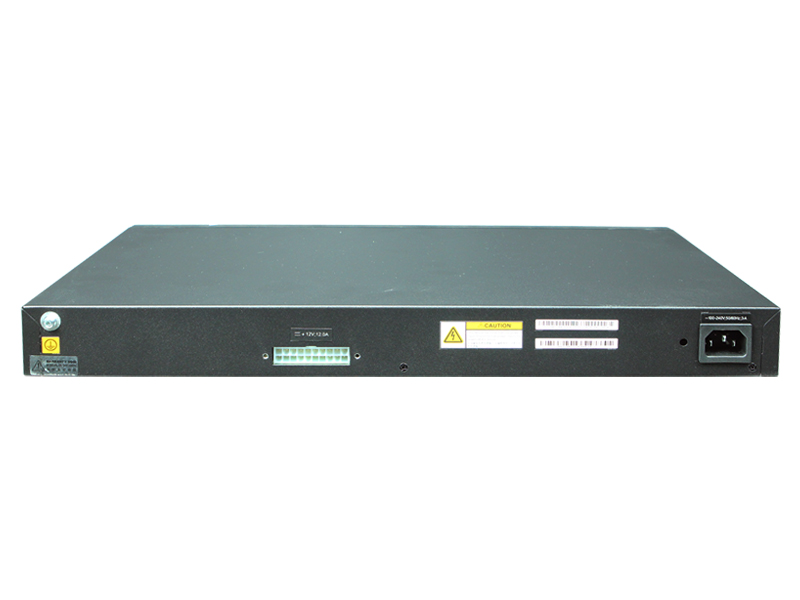

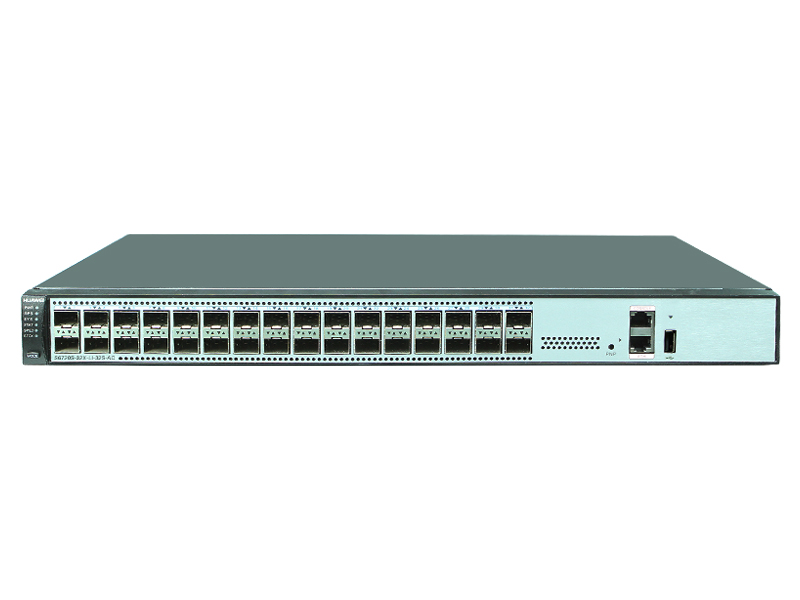

S6720-32X-LI-32S-AC

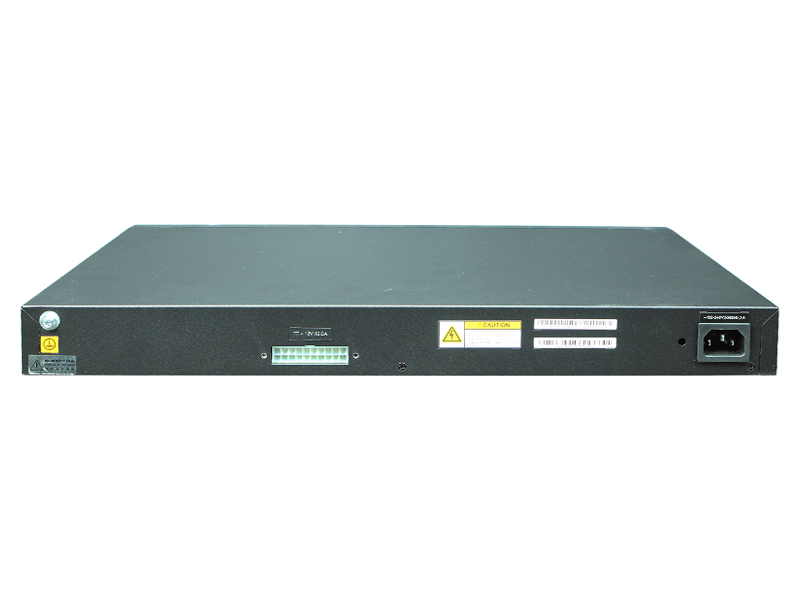

S6720S-32X-LI-32S-AC |
| Switching Capacity | 1.28 Tbit/s; 12.8 Tbit/s | ||
| Packet Forwarding Rate | 240 Mpps | 240 Mpps | 240 Mpps |
| Fixed Ports | 16 x 10 GE SFP+ ports | 24 x 10 GE SFP+ ports
2 x 40 GE QSFP+ ports |
32 x 10 GE SFP+ ports |
| MAC Address Table | 32K
MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses |
||
| VLAN Features | 4K VLANs
Guest VLAN and voice VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports VLAN mapping Basic QinQ and selective QinQ |
||
| IPv4 Routing | Static routing, RIP, and OSPF
VRRP Policy-based routing Routing policies |
||
| IPv6 Routing | Static routing
RIPng OSPFv3 |
||
| IPv6 Features | Neighbor Discovery (ND) and ND snooping
IPv6 Ping VRRP6 DHCPv6 snooping, DHCPv6 server, and DHCPv6 relay |
||
| Multicast | IGMP v1/v2/v3 snooping
Fast leave IGMP snooping proxy Multicast Listener Discovery (MLD) snooping Port-based multicast traffic suppression Inter-VLAN multicast replication Controllable multicast |
||
| Super Virtual Fabric (SVF) | SVF Client | ||
