S6720-SI Series Multi-Gigabit Switches
Huawei S6720-SI series switches are next-generation multi-gigabit 10 GE fixed switches. The S6720-SI series can provide access for high-speed wireless devices and 10G data center servers, and can serve as campus network access/aggregation switches.
The S6720-SI series provides the industry’s highest performance among multi-gigabit fixed switches, with line-rate 100M/1G/2.5G/5G/10G access ports and 40 GE uplink ports. They can provide access for high-speed APs and high-density 10G servers, and can serve as 40 GE core/aggregation switches on campus networks. In addition, the S6720-SI series offers a wide range of services, comprehensive security policies, and various QoS features to help customers build scalable, manageable, reliable, and secure campus and data center networks.
High-density access ports, a mix of AC and DC power supplies, and Super Virtual Fabric (SVF) for next-generation multi-gigabit switching
- Provide high-density, multi-gigabit 100M/1G/2.5G/5G/10G access ports and 40 GE uplink ports, and support PoE++ long-distance power supply
- Support 1+1 backup of power supplies and a mix of AC and DC power supplies. The S6720-SI series can increase scalability by using various types of sub-cards
- Support Super Virtual Fabric (SVF) and can function as either a parent or a client. SVF virtualizes the campus network architecture of ‘Core/Aggregation Switches + Access Switches + APs’ into a single device for simple management, and supports plug-and-play for easy deployment and simplified O&M

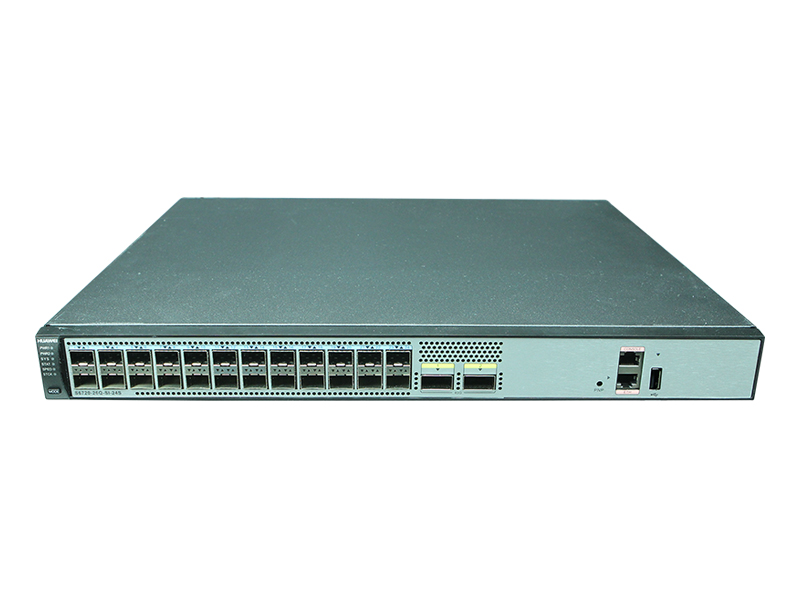

| Item | S6720-26Q-SI-24S-AC

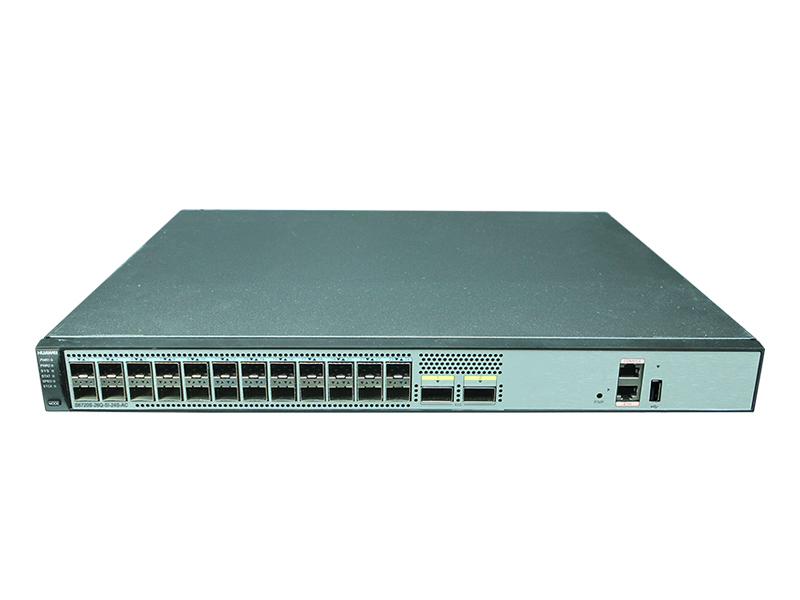

S6720S-26Q-SI-24S-AC |

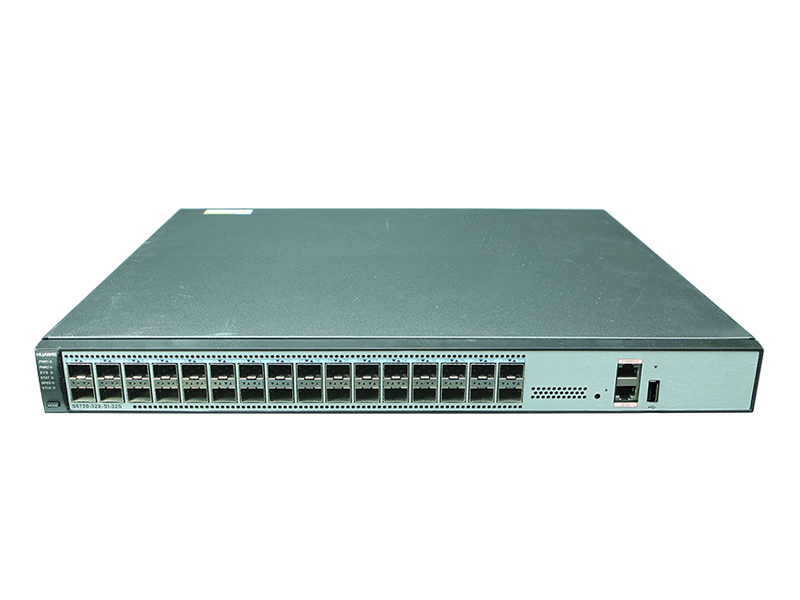

S6720-32X-SI-32S-AC | S6720-32C-SI-AC
S6720-32C-SI-DC |

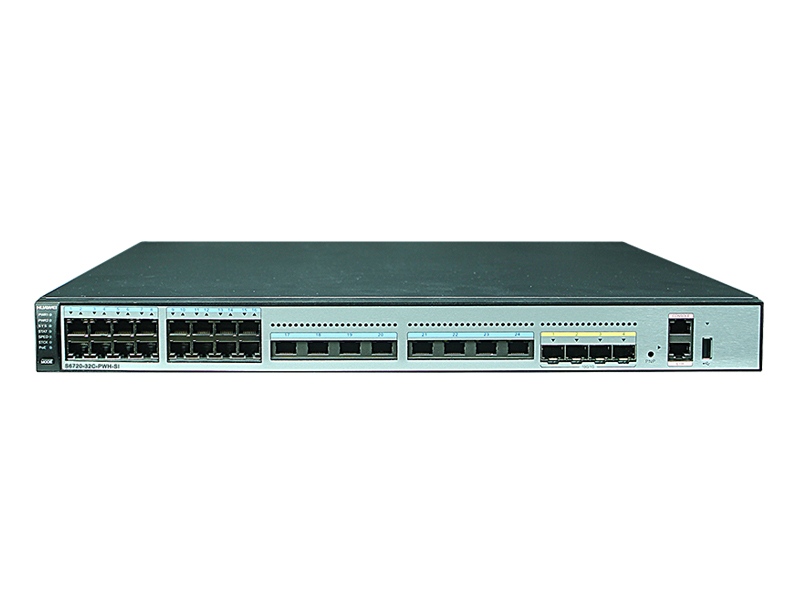

S6720-32C-PWH-SI-AC
S6720-32C-PWH-SI |

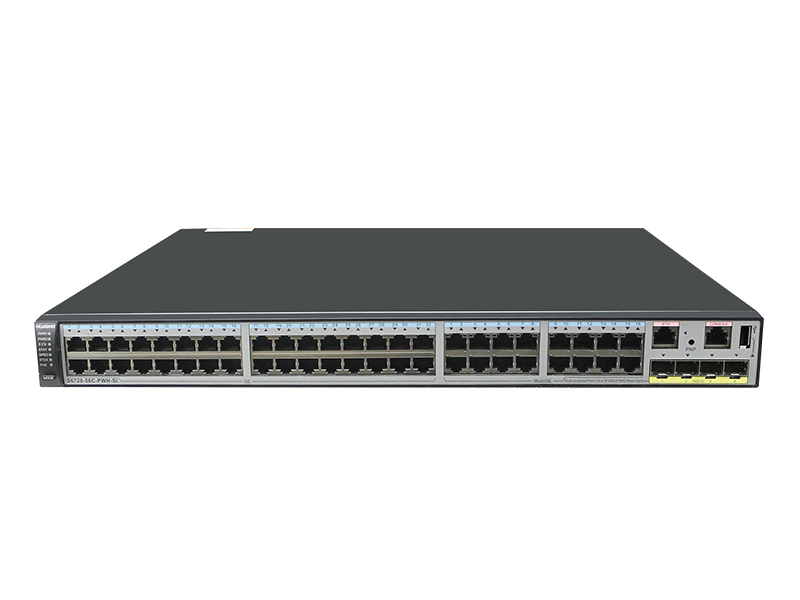

S6720-56C-PWH-SI-AC
S6720-56C-PWH-SI |

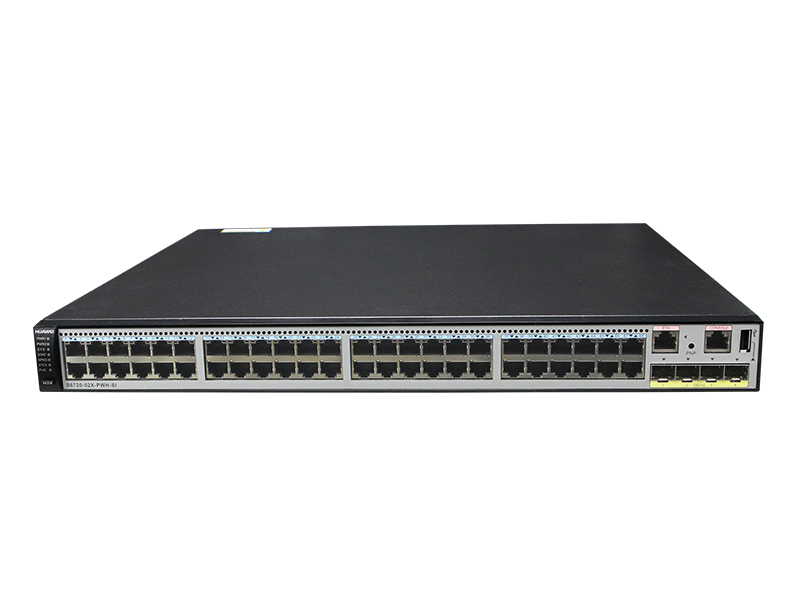

S6720-52X-PWH-SI |
| Switching Capacity | 2.56 Tbit/s; 23.04 Tbit/s | |||||
| Forwarding Performance | 240 Mpps | 240 Mpps | 240 Mpps | 240 Mpps | 240 Mpps | 480 Mpps |
| Fixed Ports | 24 x 10 GE SFP+ 2 x 40 GE QSFP+ |
32 x 10 GE SFP+ | 24 x 100M/1G/ 2.5G/5G/10G Base-T Ethernet ports 4 x 10 GE SFP+ |
24 x 100M/1G/ 2.5G/5G/10G Base-T Ethernet ports 4 x 10 GE SFP+ |
32 x 10/100/ 1,000 Base-T Ethernet ports 16 x 100M/1G/ 2.5G/5G/10G Base-T Ethernet ports 4 x 10 GE SFP+ |
48 x 100M/1G/ 2.5G/5G/10G Base-T Ethernet ports 4 x 10 GE SFP+ |
| Extended Slots | Not supported | Not supported | One extended slot | One extended slot | One extended slot | Not supported |
| MAC Address Table | 32K MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses |
|||||
| VLAN Features | 4K VLANs Guest VLAN and voice VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports VLAN mapping Super VLAN Basic QinQ and selective QinQ |
|||||
| IPv4 Routing | Static routing, RIPv1, RIPv2, ECMP, URPF, OSPF, IS-IS, and BGP VRRP Policy-based routing Routing policies |
|||||
| IPv6 Routing | Static routing RIPng OSPFv3 BGP4+ ISISv6 |
|||||
| IPv6 Features | Neighbor Discovery (ND) and ND snooping IPv6 Ping VRRP6 DHCPv6 snooping, DHCPv6 server, and DHCPv6 relay MLDv1 and MLDv2 PIM-DM for IPv6 PIM-SM for IPv6 6 Over 4 tunnels |
|||||
| Super Virtual Fabric (SVF) | SVF Parent and Client | |||||
