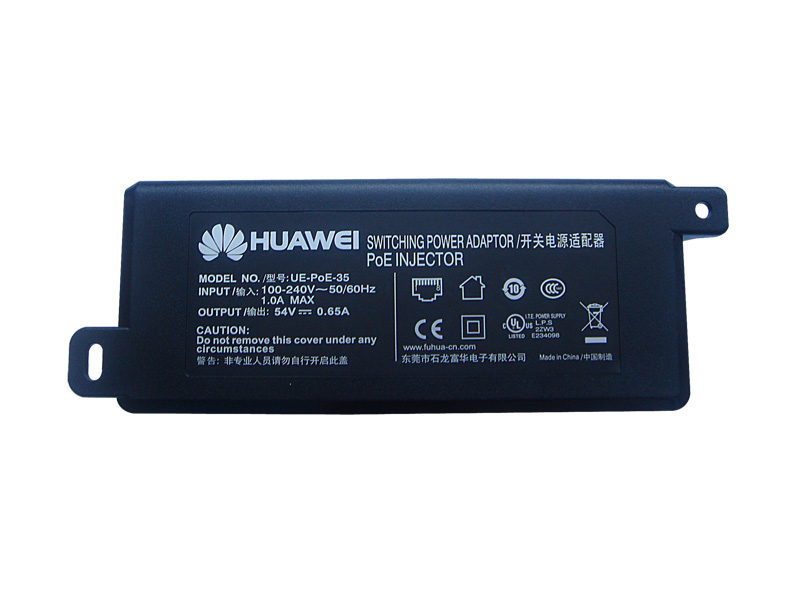

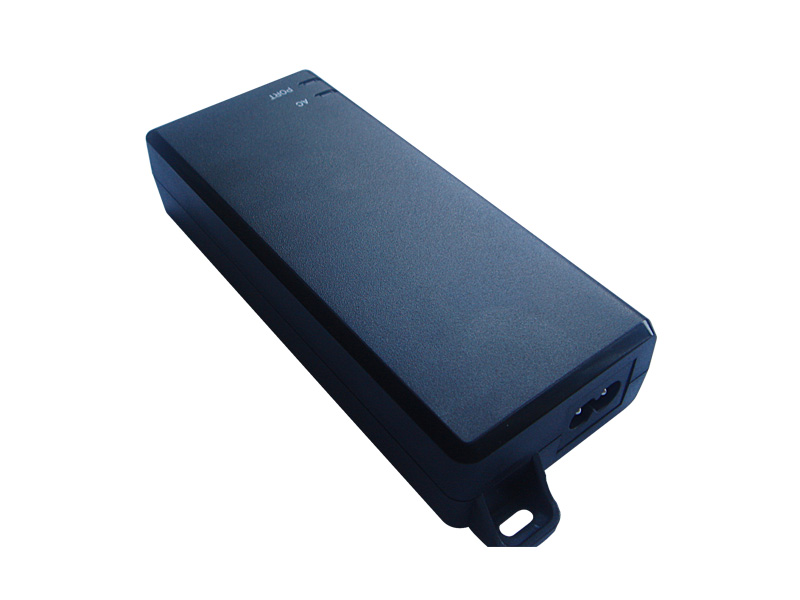

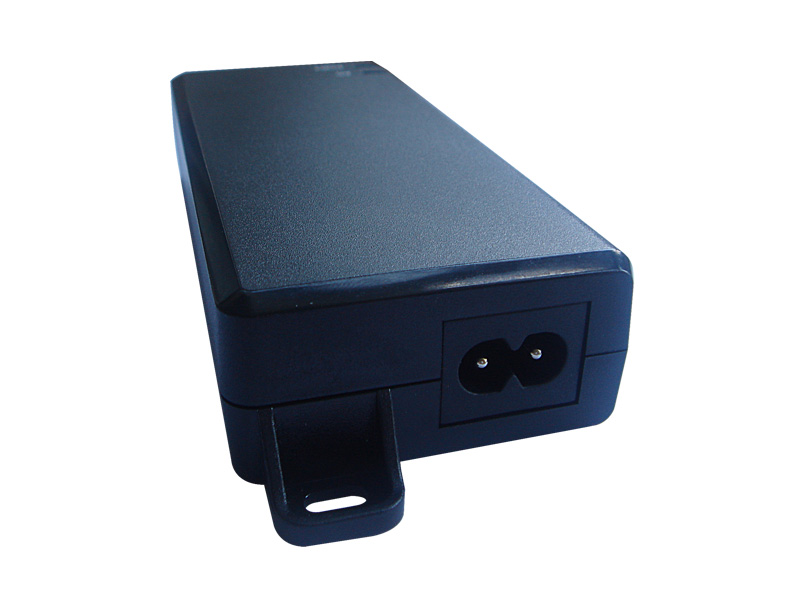

Single-port PoE Power Adapters
Indoors or out, where only AC power is provided, Access Points (APs) that require Power over Ethernet (PoE) can be supported by Huawei’s single-port PoE power adapters. The power supply module has a maximum PoE of 35W and a maximum port rate of 1,000 Mbit/s.
The PoE power adapter module has two RJ45 network interface connectors. One RJ45 interface connects to a switch or a network device; and the other is used to transmit network data and supply power to the Power Sourcing Equipment (PSE).
A single-port Huawei PoE power adapter converts AC power to PoE-powered access points

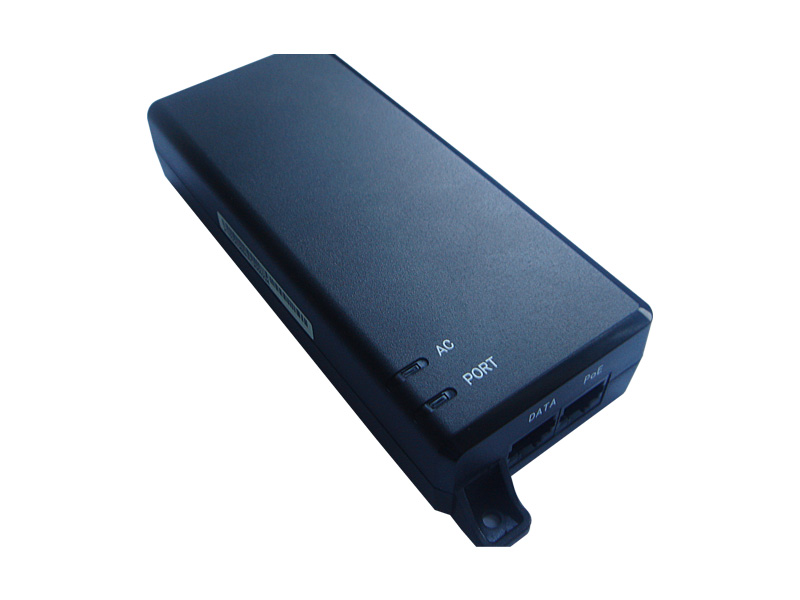

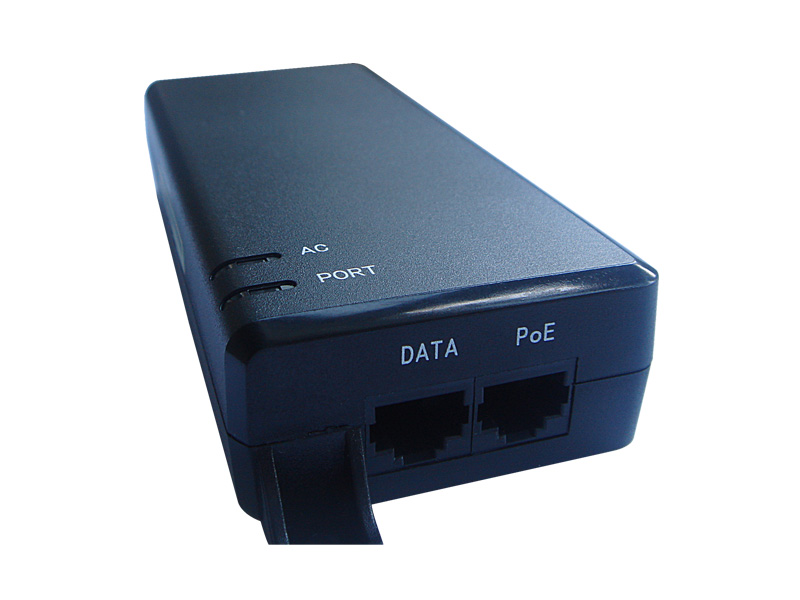

- Two RJ45 interfaces: A data interface connects to a switch or network device; and a PoE interface integrates network data and provides PSE power
- Indicators display power supply status
- Maximum of 35W power and 1,000 Mbit/s port rate
Specifications
| Model | W0ACPSE00 |
| Operating Temperature | –10°C to 45°C |
| AC Input Voltage Range | 90V to 264V |
| AC Input Voltage Frequency | 47 Hz to 63 Hz |
| Output Voltage | 54V |
| Rated Output Current | 0.65A |
